P38A Can someone confirm parts please

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
stuu

stuu

Well-Known Member
Posts
1,866
Location
Aberdeenshire
96 dse 2.5 manual

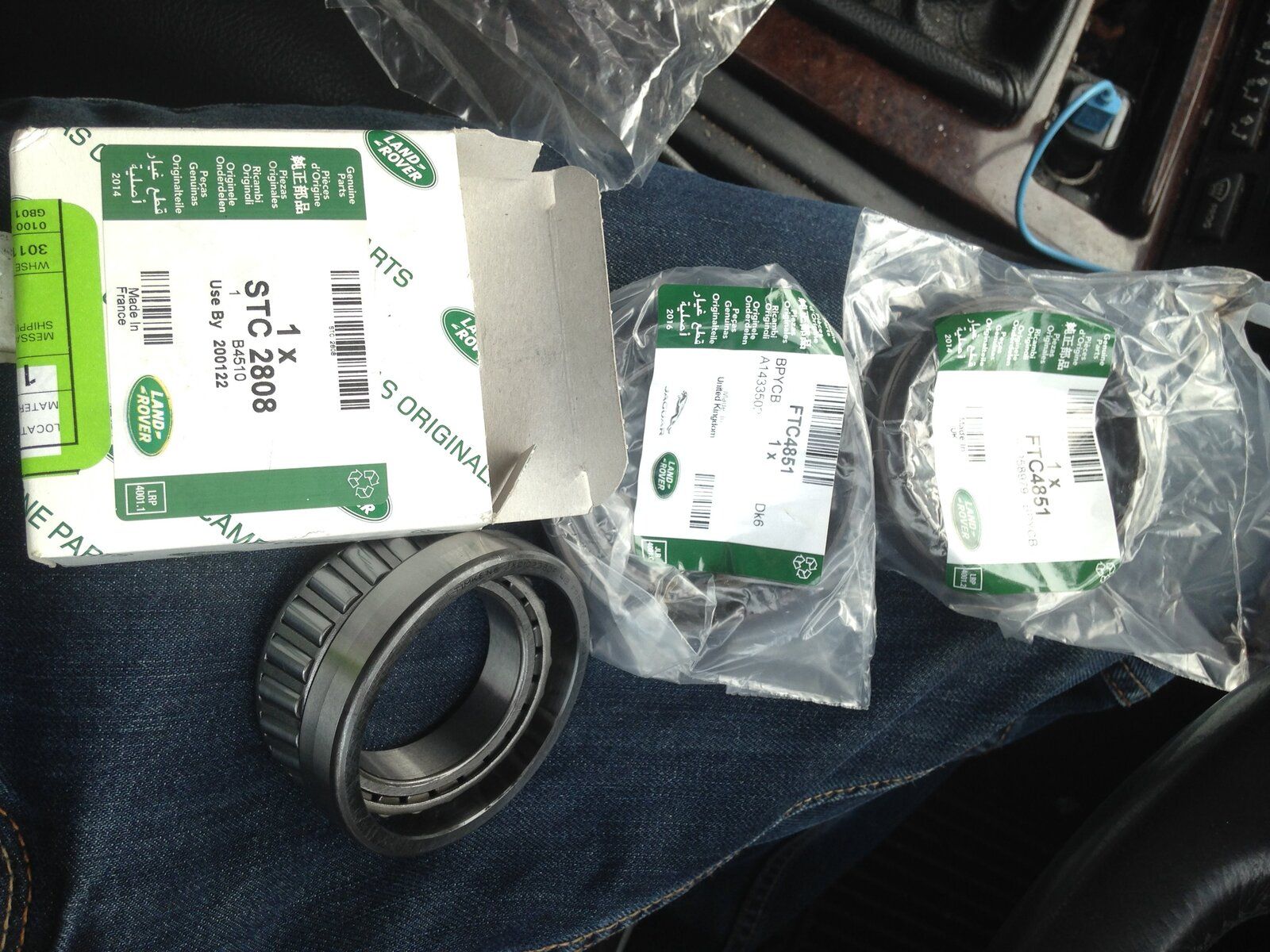

I have a bearing for my front output shaft out of the transfer box.

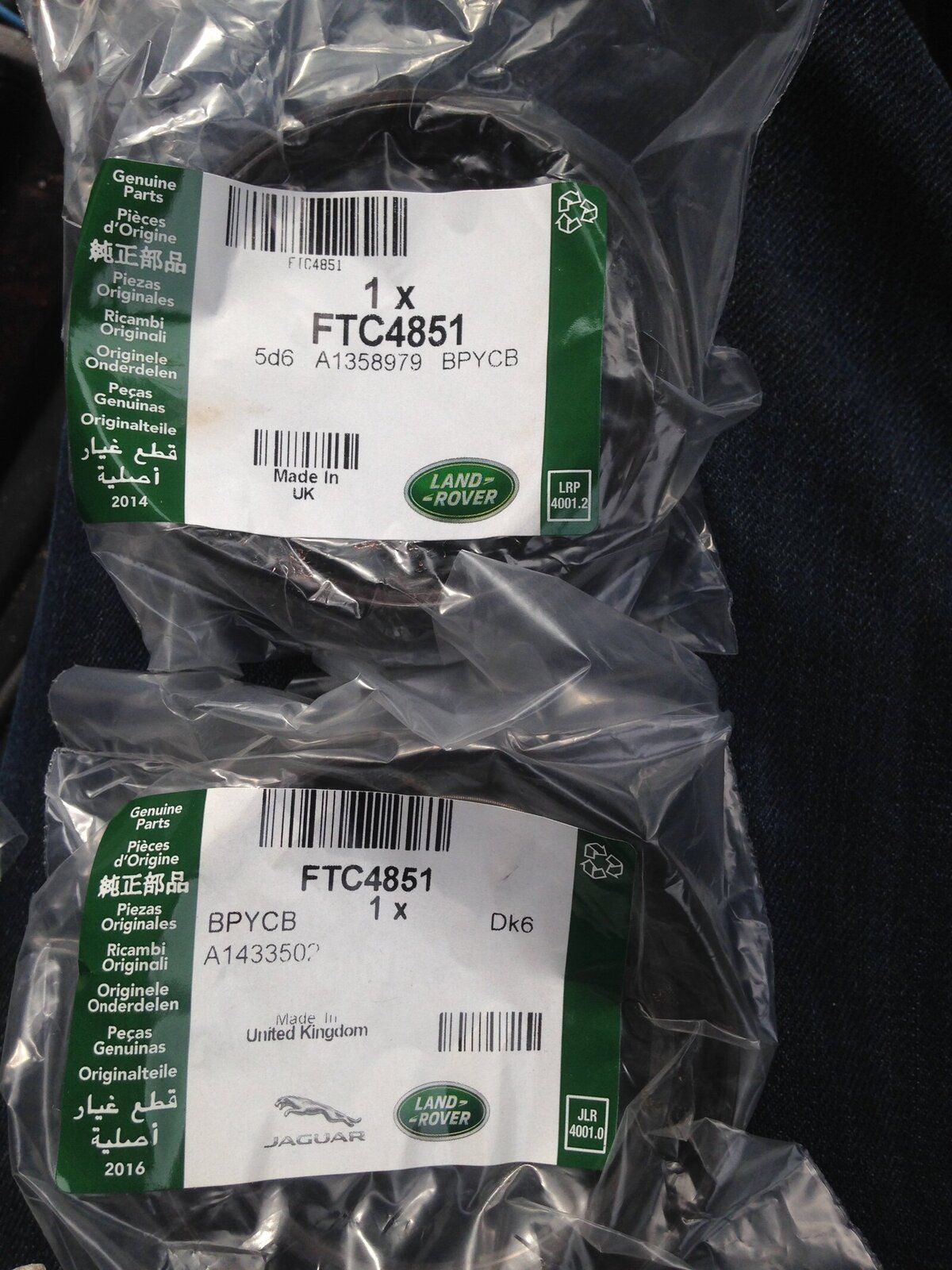

A seal for the same location.
And a seal for the input to the rear diff.

Can someone confirm they're correct before I start the jobs please

I take it you have a borg warner NV-225 fitted. Front output shaft bearing case onto VCU should be RTC6025. Seal for same should be FTC4939. Seal for diff should be ok. Bearing STC2808 is listed as crown wheel bearing.
