Camshaft bearing tool

Discussion in '300 TDi' started by Alfieslandy, Apr 7, 2019.

< Previous Thread | Next Thread >
  1. Alfieslandy

    Alfieslandy Member

    Joined:
    May 4, 2015
    Posts:
    53
    Likes Received:
    10

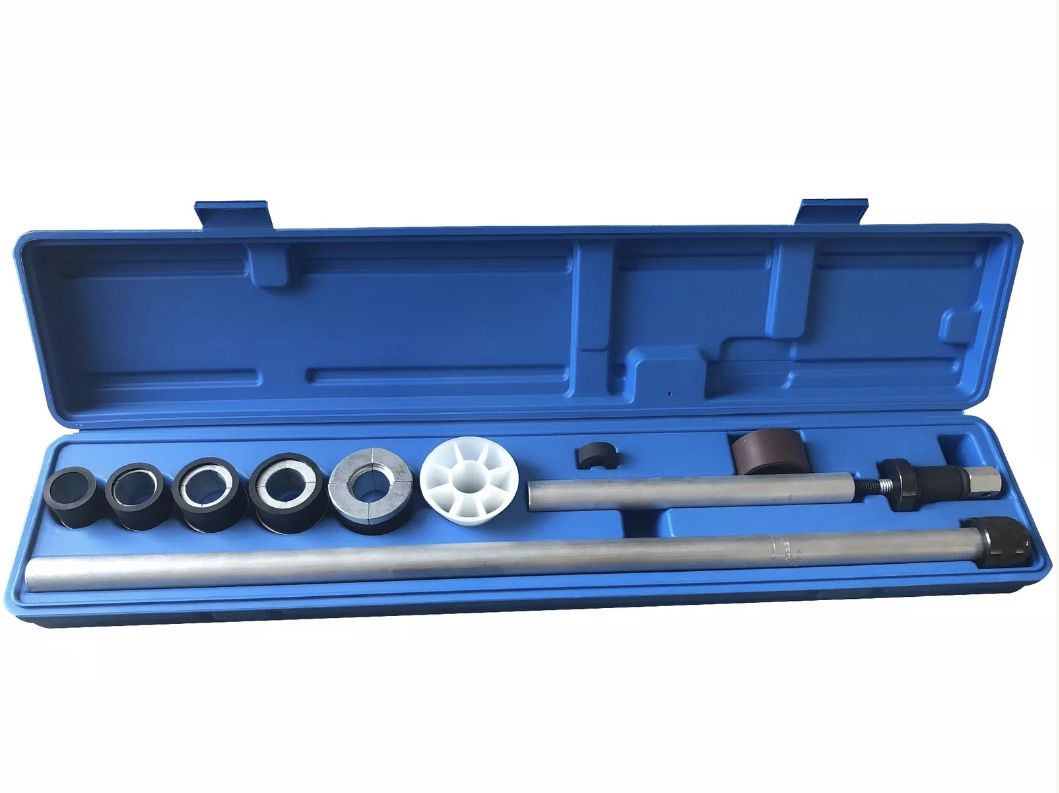

    So a couple of days ago I ordered one of these...


    First and second bearings on a block I am rebuilding don’t look so great. local engine shop did not sound over thrilled at the prospect of fitting new ones warning that they can press new ones in but if the cam does not fit afterwards they won’t be able to do anything about it. The other options are all a distance away and would involve palleting the block up. So undeterred I decided to have a crack at it myself. Have watched a few u.s based videos on YouTube and it looks relatively straight forward though obviously has to be right. I shall practice first by removing one then attempting to drift it back in and keeping alignment. Bearings will be pre-finished ones from turner engineering. Will keep this post updated on my progress. Wish me luck! :)

  2. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    7,744
    Likes Received:
    2,182
    Location:
    North of the Wall
    Good luck, mate. When I did mine I just changed the front bearing :oops:

    Alfieslandy likes this.
  3. Alfieslandy

    Alfieslandy Member

    Joined:
    May 4, 2015
    Posts:
    53
    Likes Received:
    10
    Cheers :) have just been looking at mine again and interestingly 3 and four bearings look almost like new. Definitely loads of checking and marking up to be done and then checking again. Think the ones behind number 1 have to be drifted out towards the front because of lack of access between 2 and 3.

  4. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    7,744
    Likes Received:
    2,182
    Location:
    North of the Wall
    IIRC there's a core plug you can take out to give access at the back?

  5. Alfieslandy

    Alfieslandy Member

    Joined:
    May 4, 2015
    Posts:
    53
    Likes Received:
    10

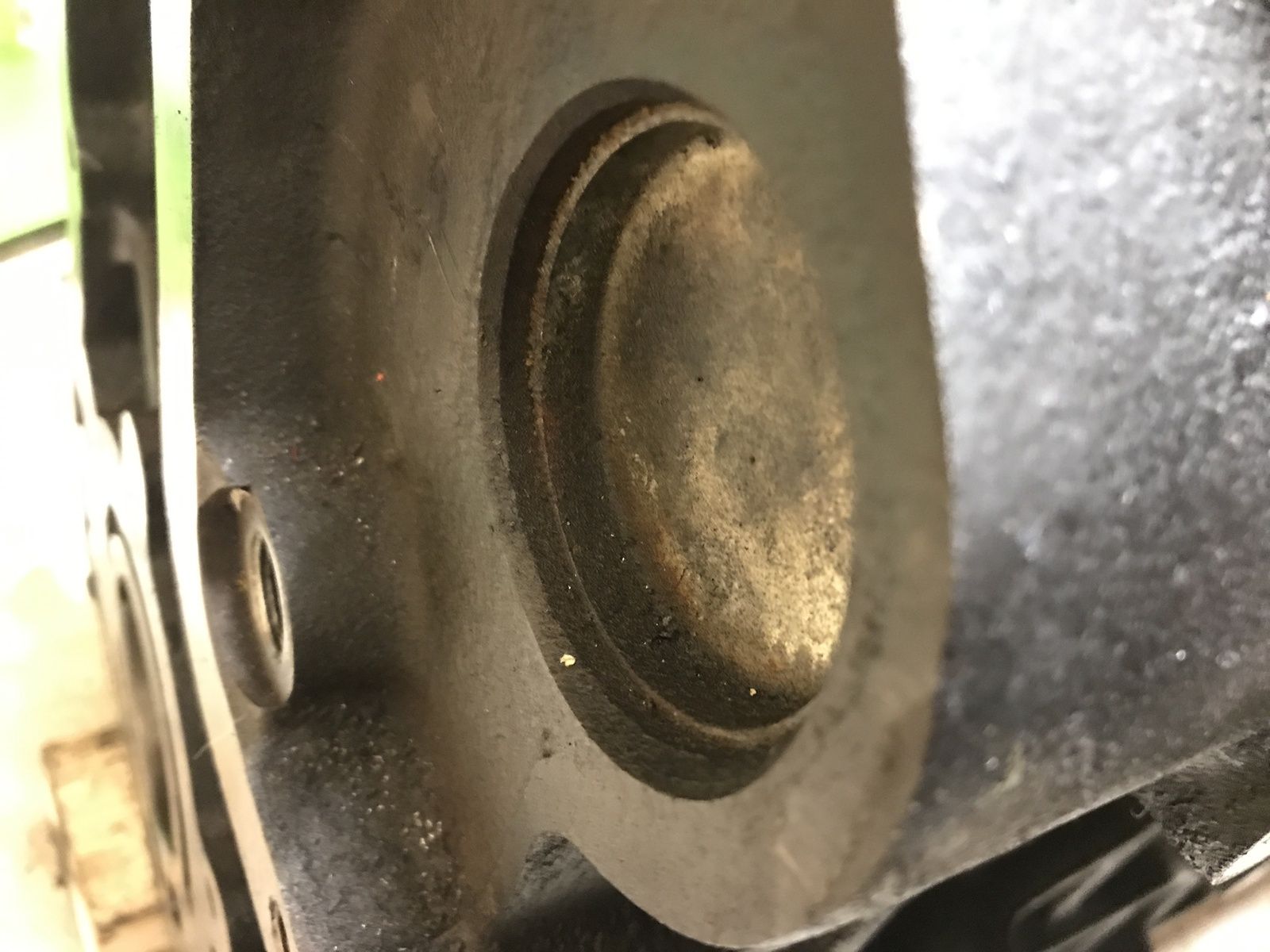

    That’s right yes the big one on the rear.

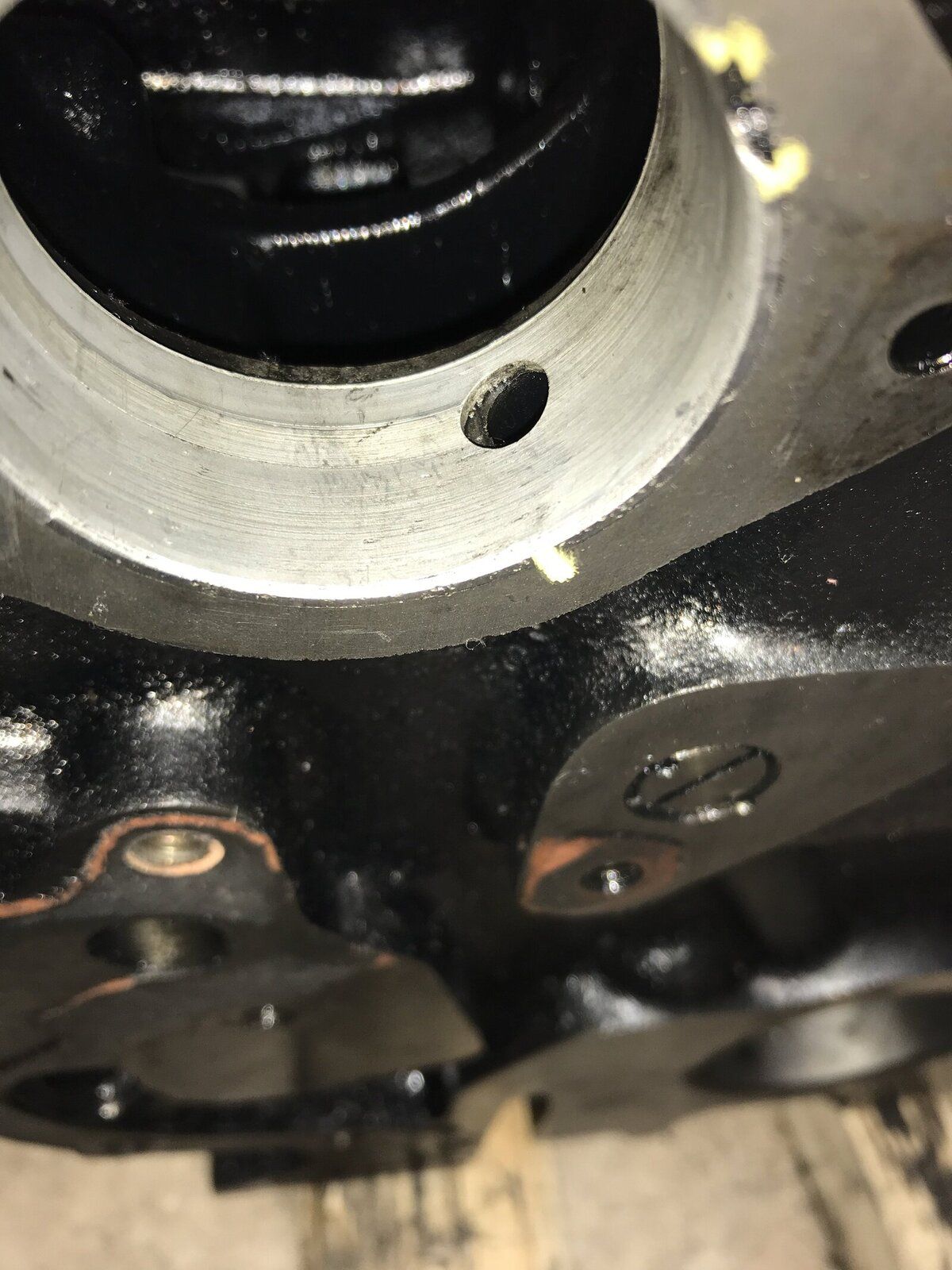

    Does not look like the oil holes on the very front one have been lined up properly. Must of been like this from new :eek:


  6. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    7,744
    Likes Received:
    2,182
    Location:
    North of the Wall

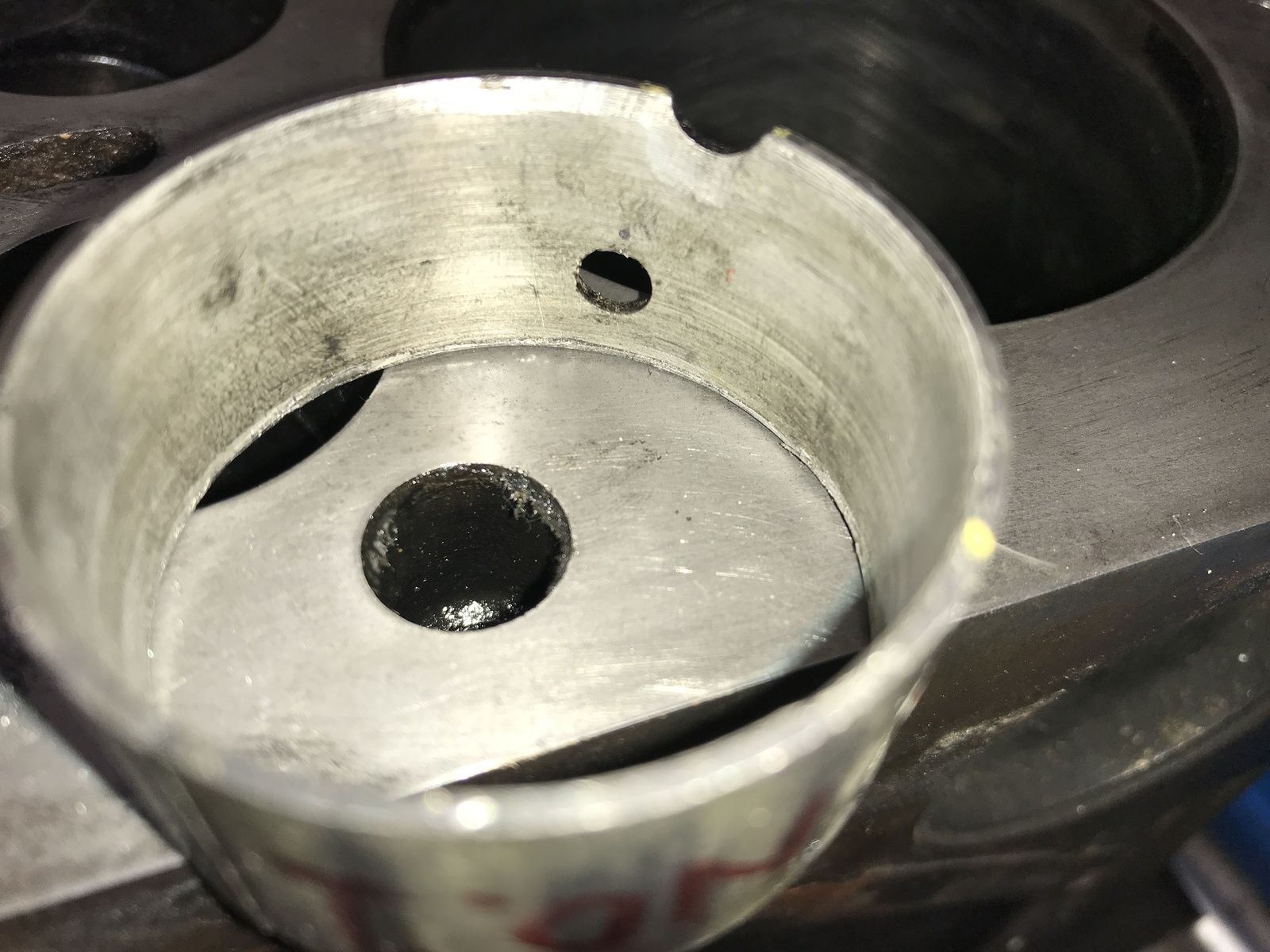

    I think it's lined up ok. The oil exits that hole and enters the channel in the cam shaft, the oil can then circulate around the shaft and pressurise in the shell. That ring will be raised, rather than indented. The bearing shell looks a bit ropy?

    Last edited: Apr 8, 2019
    Alfieslandy likes this.
  7. Alfieslandy

    Alfieslandy Member

    Joined:
    May 4, 2015
    Posts:
    53
    Likes Received:
    10

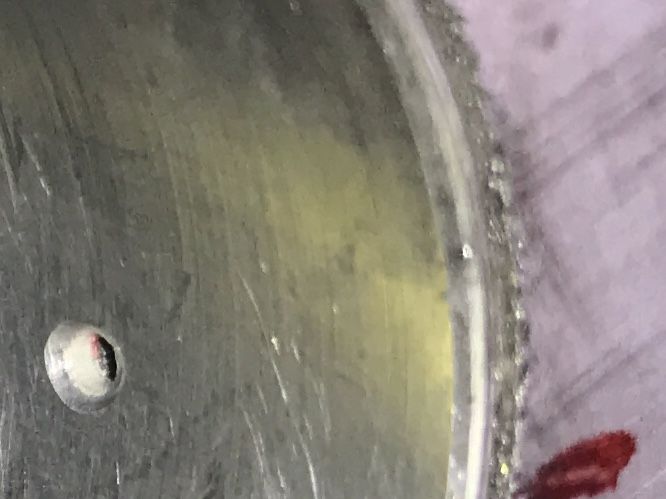

    Think it looks worse in pic but yes it is pretty bad. Looking again there is a smaller feed hole approaching the top of the bearing which is in line so yes this must be correct.

  8. Alfieslandy

    Alfieslandy Member

    Joined:
    May 4, 2015
    Posts:
    53
    Likes Received:
    10
    Edit: Scratch that...

    Actually lack of access between 2 and 3 is making me cautious of drifting a bearing into somewhere where it looks impossible to remove. Things should be clearer when i receive the tool as being an expanding type it may be possible , or not , to drift them both out in different directions.

  9. Alfieslandy

    Alfieslandy Member

    Joined:
    May 4, 2015
    Posts:
    53
    Likes Received:
    10
    Its arrived all shiny and new! :D


    No instructions but found them quickly enough online. Using the tool was pretty much self explanatory. Using expander no.2 and three blows with an heavy hammer no.1 bearing was out!


    ^ inserting tool into bearing number 2


    ^ How it looks when it is expanded using the socket head for a snug fit. It is the other side which is important to take note of though as this has a lip to help drive it out.


    ^ bearing out. Slacken tool again to remove bearing from expander and two more to go. May practice putting the new ones in with the old bearings first though.

  10. Alfieslandy

    Alfieslandy Member

    Joined:
    May 4, 2015
    Posts:
    53
    Likes Received:
    10
    All bearings removed and noticed they have arrows stamped onto the outside diameter like this ->

    Directions of arrows on bearings arranged as in picture below


    Does this mean they have to be pressed in from this direction? Or press the lot in from the front and just keep them arranged the same way?

    Edit : i ended up driving 1 and 2 bearing from the front of engine and 3 and 4 from the rear. The new ones did not come with arrows but like the originals half an half circle cut out on one side. The two rear cut outs face the rear and the two fronts face forwards. Using them like this the face you drive in has a deeper chamfer I guess to help with initial alignment.

    Last edited: Apr 13, 2019
  11. Alfieslandy

    Alfieslandy Member

    Joined:
    May 4, 2015
    Posts:
    53
    Likes Received:
    10
    Camshaft bearings 1 , 2 and 3 from the front of engine now fitted and cam turns nicely in them. Unfortunately I had the tool adjusted incorrectly whilst fitted the last one , a bit slack , and the bearing folded in on itself.... at least I know it is do-able now however. Will just have to order a new set.

    @jamesmartin have you noticed such a difference between oil feed holes on the first bearing before? I would ring turners to ask them but shut at weekends... :(

    The original


    The new one from turner engineering


    Last edited: Apr 13, 2019
  12. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    7,744
    Likes Received:
    2,182
    Location:
    North of the Wall
    I spoke to Turners about that when I did mine. They said it was to increase the oil pressure.

    Alfieslandy likes this.
  13. Alfieslandy

    Alfieslandy Member

    Joined:
    May 4, 2015
    Posts:
    53
    Likes Received:
    10
    Phew! I thought I may have to resort to drilling it larger. Thank you :cool:

  14. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    7,744
    Likes Received:
    2,182
    Location:
    North of the Wall
    :)
    When I spoke to them they said I could drill it out if I wanted, but they rebuilt their engines using the smaller hole. So. I just left mine too :)

    Alfieslandy likes this.
  15. Alfieslandy

    Alfieslandy Member

    Joined:
    May 4, 2015
    Posts:
    53
    Likes Received:
    10
    ^ the hole for the feed also corresponds with the restriction in the head gasket interestingly.

    Though in need of an extra bearing due to my own carelessness I am declaring today a success! :D I’m happy I got this far to be honest.

  16. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    7,744
    Likes Received:
    2,182
    Location:
    North of the Wall
    I only used the front one out of the set and I'm wondering if I kept the rest. I'm away and not home till Tuesday. I could look then and post them to you if they're still there!

    Alfieslandy likes this.
  17. Alfieslandy

    Alfieslandy Member

    Joined:
    May 4, 2015
    Posts:
    53
    Likes Received:
    10
    ^ ooh! that would be great if possible. Thank you.

  18. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    7,744
    Likes Received:
    2,182
    Location:
    North of the Wall
    Sorry for late reply, been out dining and drinking with friends. Are you happy to wait, cos I might not have kept a them and I genuinely can't remember!

  19. Alfieslandy

    Alfieslandy Member

    Joined:
    May 4, 2015
    Posts:
    53
    Likes Received:
    10
    That’s ok :) I’m in no great rush.

  20. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    7,744
    Likes Received:
    2,182
    Location:
    North of the Wall
    No bother. I'll check as soon as I get home.

    Alfieslandy likes this.
