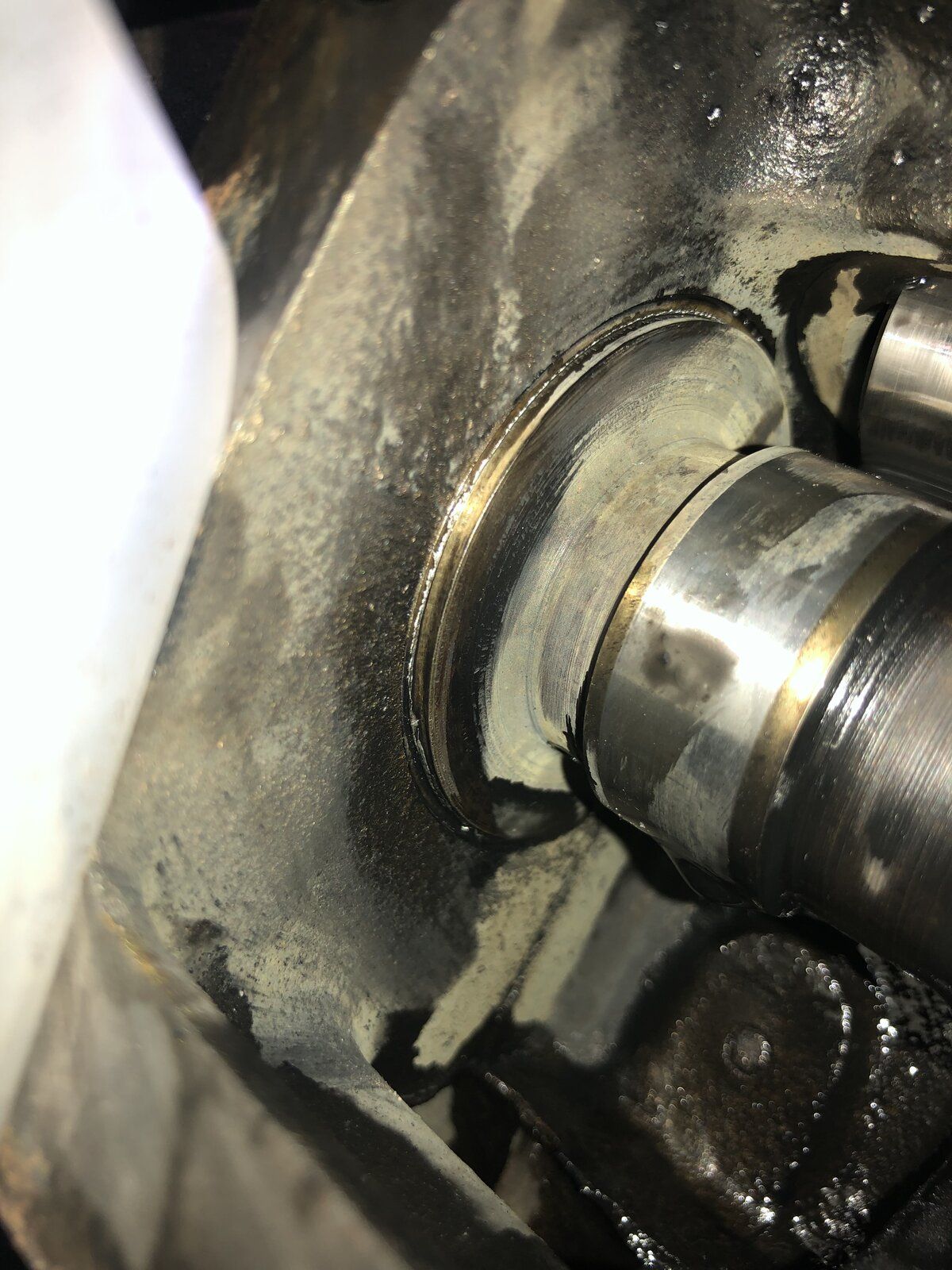

Hi all. I’ve been chasing a low oil pressure problem for a while and have discovered damage on the number 4 camshaft bearing. Having read lots of helpful threads on here I’m fairly certain this is the problem but if anyone can throw any light on it I’d be grateful. Picture attached, it’s a 200tdi disco engine. Many thanks
Camshaft bearing damage
- Thread starter MudHunter
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
what is the picture supposed to show
It looks to me like the edge of the bearing is all chewed up and damaged. You have to zoom in a bit
- Posts
- 11,023
- Location
- North of the Wall
Is that a crankshaft?
Nope, camshaft
- Posts
- 11,023
- Location
- North of the Wall
It looks really big, but I think that must be because it's a close up picture with not a lot of obvious things to reference it with.

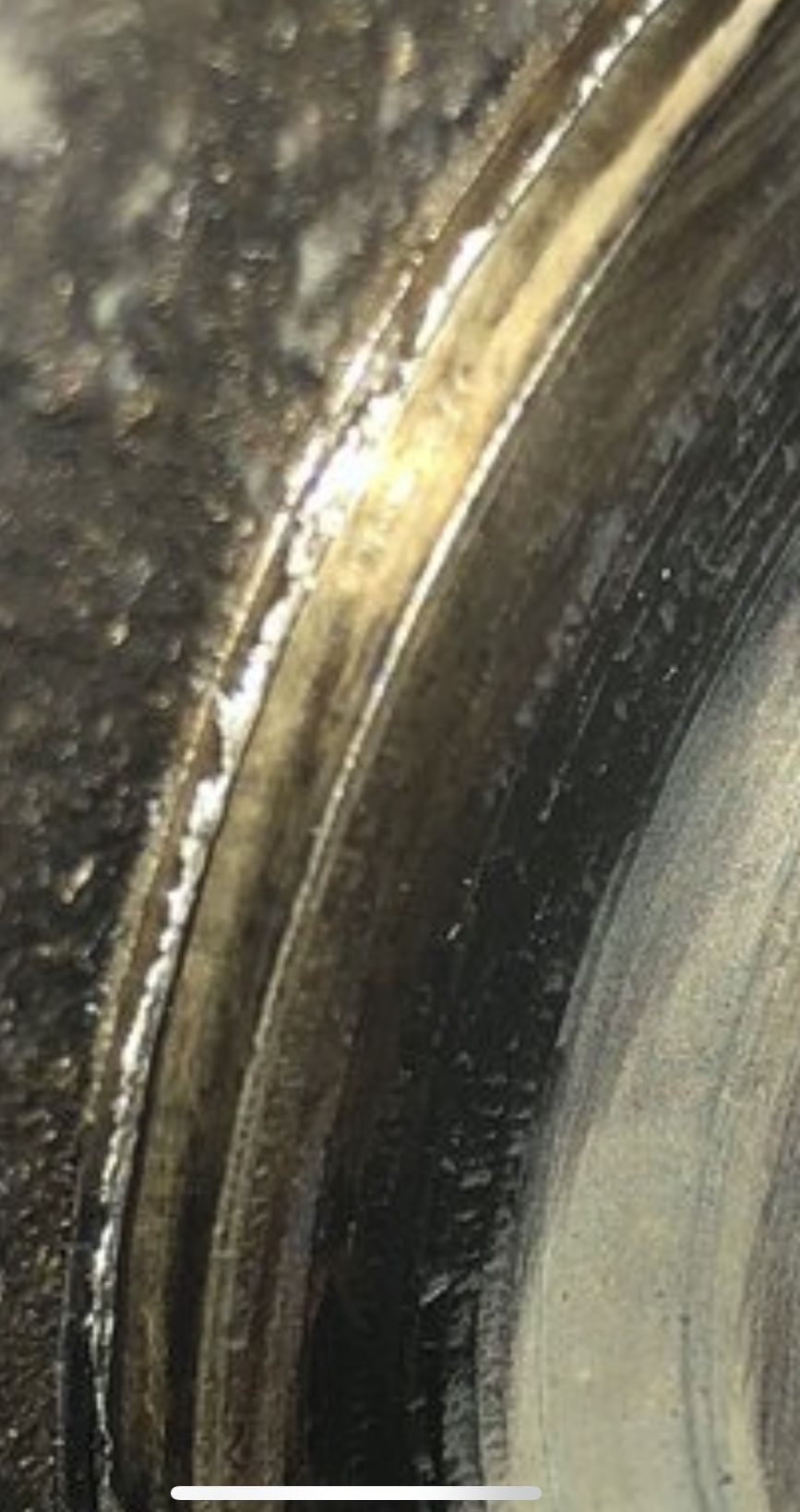

Are you referring to this “damage” seen here on a zoomed in image of the bearing?
Edit: ****e internet signal made the post without the image, see next post.
If so, that looks like one of 2 things has happened.
First, and possibly the most likely, the cowboys who cast the bearing didn’t bother cleaning the Babbitt from the edge while machining.
Second, the camshaft has generated enough heat to melt the Babbitt and cause it. I’m not saying this isn’t possible, but knowing the casting temps of a few Babbitt metals as being 380-450, I wouldn’t expect that to happen.
Last edited:
Turboman
Mab An Gov
- Posts
- 60,151
- Location
- Lathrowda, Kernow
Great pic of the rings of Saturn! I love astronomy!
