Bust the fan belt tensioning bracket - help!!

cpa · May 3, 2015

I've bust the cast alloy bracket that holds the pulley wheel to the serpentine belt at one end and the damper at the other. Problem - can't shift the cap which holds the thing to the assembly. The large hex hole is warn round (not me) and mole grips won't shift it. Any tips please on how to undo it without trashing the whole assembly?
Many thanks

wammers · May 3, 2015

12" stilsons will shift it but you may need a new cap. Island 4x4 have them. You may loosen the boss trying to get the cap off, just screw the lot out and take the cap off in a vice.

cpa · May 3, 2015

Thanks for the tip - I'll give it a go when the sun comes up!

cpa · May 3, 2015

Btw breakers are wanting 35 to 45 quid for a bracket and cap - seems a bit over the odds to me.

johnnysensi · May 4, 2015

Cheaper to buy one from island4x4.....I may have a new top as I got a few m47 bmw parts.....and this part is exactley the same on the m47 engine....leave a message if u want it and I'll log on in morning to see...peace out ....

johnnysensi · May 4, 2015

Breakers round here are cheap...jr in paddock wood ,Kent....probably 10-15 quid...there's a few bmw and Vauxhall omegas in there at Mo....I know the one of bmw is diesel....prob a 320d with same bracket...I'll have a look on Tuesday as I'm going down for some bits ...

stuu · May 4, 2015

Damper new bolt and new shock thingy was only 95quid dealer items

cpa · May 4, 2015

Thanks for all the help. Got it off this morning. The cap is welded to the boss so will get the whole thing - island do it new for around 65 - so will go down that route. Noticed that grease has come out the back of the water pump - looks like forced out the back of the spindle - it's a new unit - anyone know if that's usual ?
Thanks

cpa · May 4, 2015

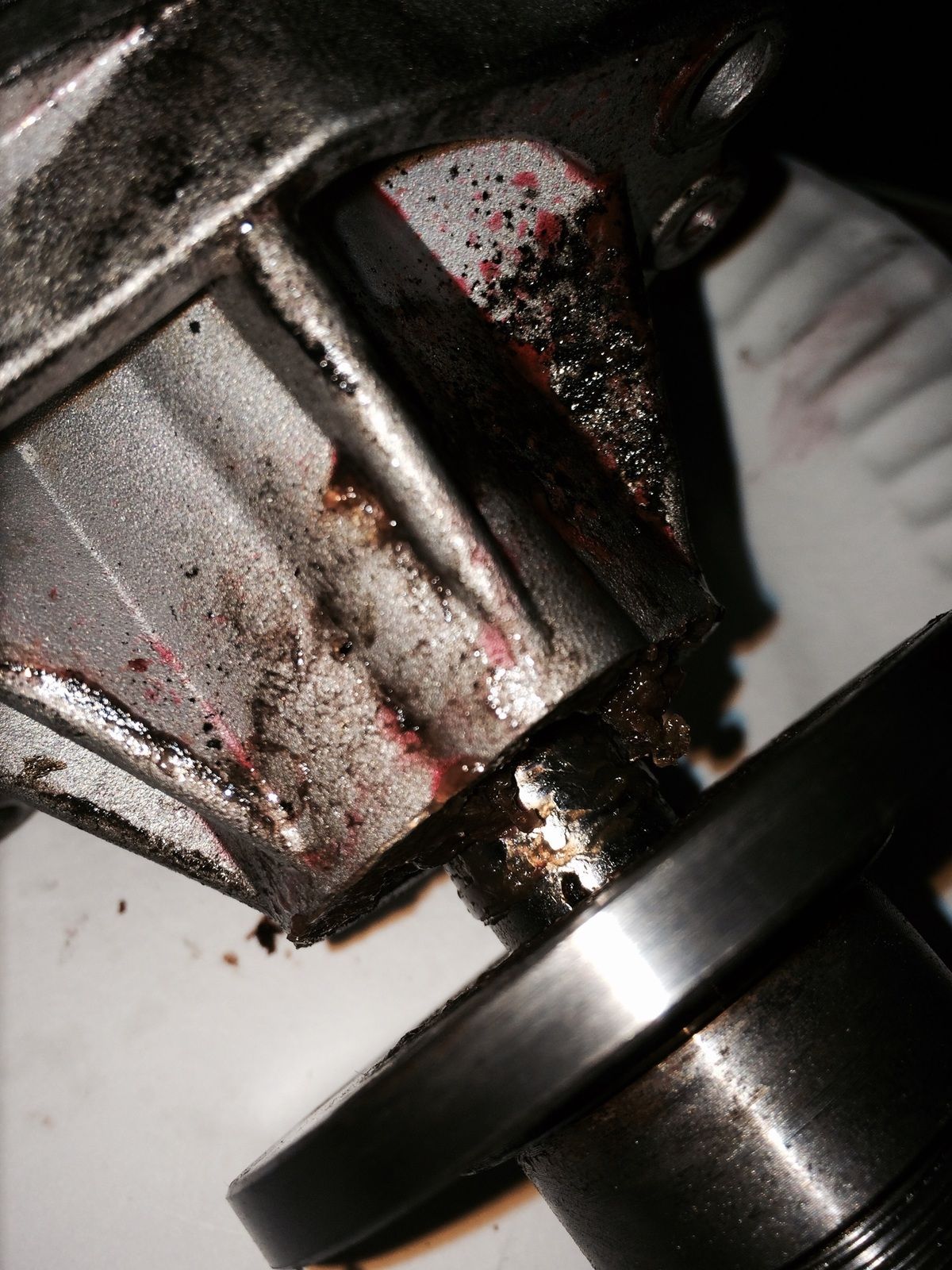

Here's a pic of the pump.

wammers · May 4, 2015

cpa said:
Here's a pic of the pump.

Change the pump while you are in there. Get a good one.

cpa · May 4, 2015

Is it worth doing the tensioning damper too? The one on it seems ok - but date on it says 2008.

cpa · May 6, 2015

Got second hand assembly off Emmotts - including damper - 35quids including post - arrived in a day - I was impressed!

Grrrrrr · May 7, 2015

Panic over!

cpa · May 8, 2015

Yes, thanks to all for help.
