Bush Identification

sgpstar · Sep 10, 2009

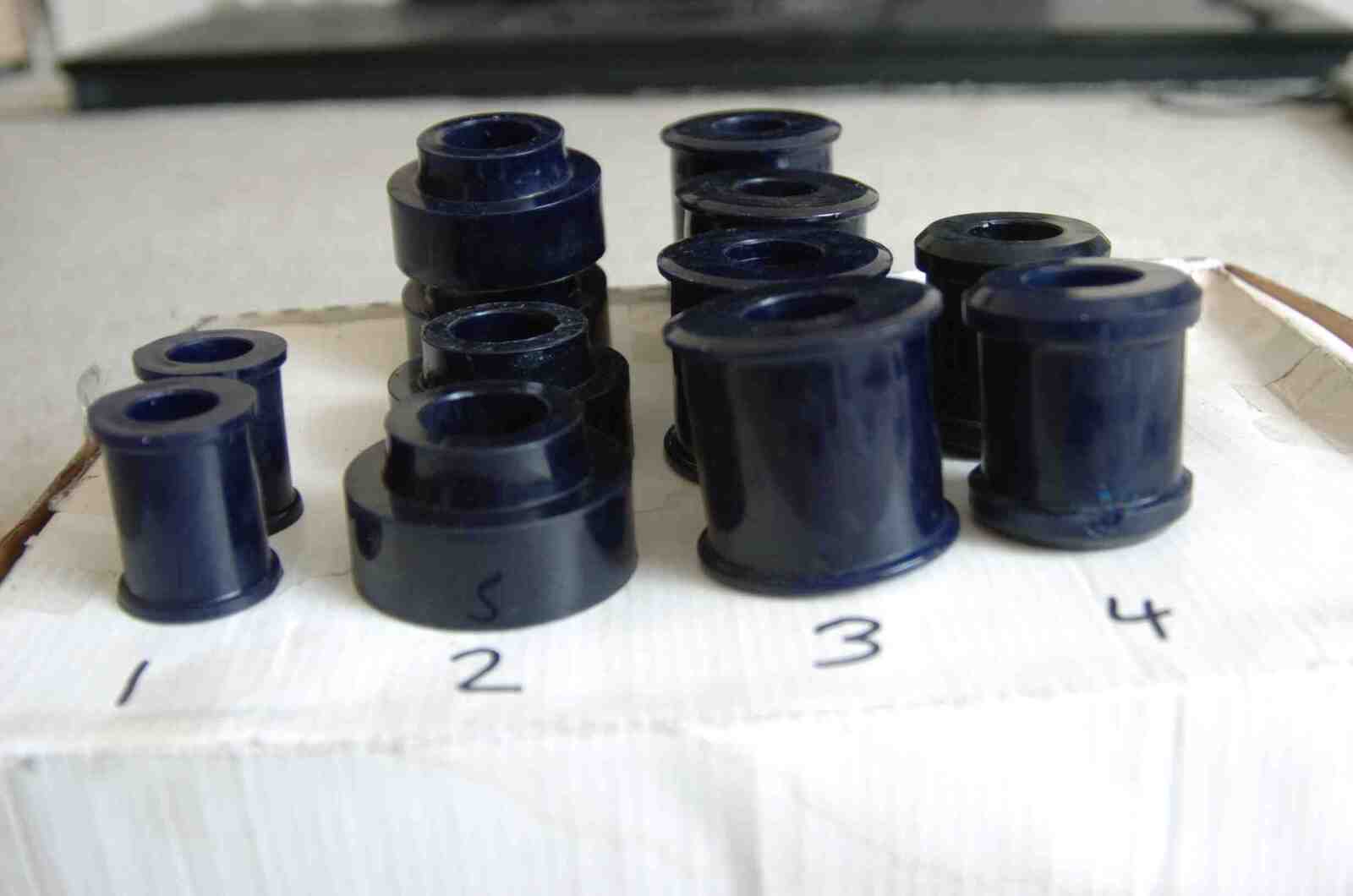

Hi chaps, I would be really grateful if someone could identify which of these bushes are for which part. Some bushes are missing and I don't want to be taking something off to find I don't have the bush for it, the sizes are as follows:- 1- 40x30mm 2- 34x59mm 3- 51x50mm 4- 52x41mm.

Thanks in advance.

Paul D · Sep 10, 2009

Can't you just offer the bushes up to whichever part you want to replace and get an idea from that? I can't ever recall seeing a dimensioned diagram of bushes, but that doesn't mean there isn't one out there ...

Maybe get a list of what fits where from the supplier?

sgpstar · Sep 10, 2009

I have already phoned britpart but they couldn't help. Thing is you can't really get a good look at the bushes while they are in place, I tried that method already,
Also I believe there are 4 pieces missing otherwise as you say I could take the part off and it should be there,

thanks.

Griffdowg · Sep 10, 2009

post some pics. most folk here have changed the lot and will be able to ID each bush which you can them label for future reference. If you wanted to be uber helpfull you could then produce a labelled photo collection of said bushes for others to use in future

are the bushes in individual packets? the last lot i had came in seperate packs so ID'ing them was easier.

G

daftpooly · Sep 10, 2009

I may be wrong and other's will jump in if I am but they look like:-

1. Rear trailing arm, axle end
2. 2 front look larger than 2 behind, if so the front ones are rear trailing arm chassis end and the 2 behind front radius arm chassis end
3. Front radius arm, axle end
4. A frame, chassis end

sgpstar · Sep 10, 2009

Thanks for the info, it's the A frame I was worried about taking off for nothing. On the picture all the bushes behind each number are the same, it's just the way they are sitting on the box,
Thanks Guys.

nickh75 · Sep 10, 2009

sgpstar said:
I have already phoned ****part but they couldn't help. Thing is you can't really get a good look at the bushes while they are in place, I tried that method already,
Also I believe there are 4 pieces missing otherwise as you say I could take the part off and it should be there,

thanks.

if there brit part throw them in the bin an go an get a proper set otherwise you'll be doing them again in a years time

if they last that long

bustersbus · Sep 10, 2009

sgpstar said:
Thanks for the info, it's the A frame I was worried about taking off for nothing. On the picture all the bushes behind each number are the same, it's just the way they are sitting on the box,
Thanks Guys.

The A frame ain't that bad to take off...

http://www.landyzone.co.uk/lz/f41/upper-link-frame-bushes-renewal-65602.html
