Series 3 Bulk head query

codfather79 · Sep 3, 2022

Evening all.
This is probably a stupid question, but, are the A pillars part of the bulkhead or a separate item?
Just wanted to know if I need to cut them out to fit into a new bulkhead, or if they will be part of a new bulkhead?

Trying to clear some space and the old one needs to go!

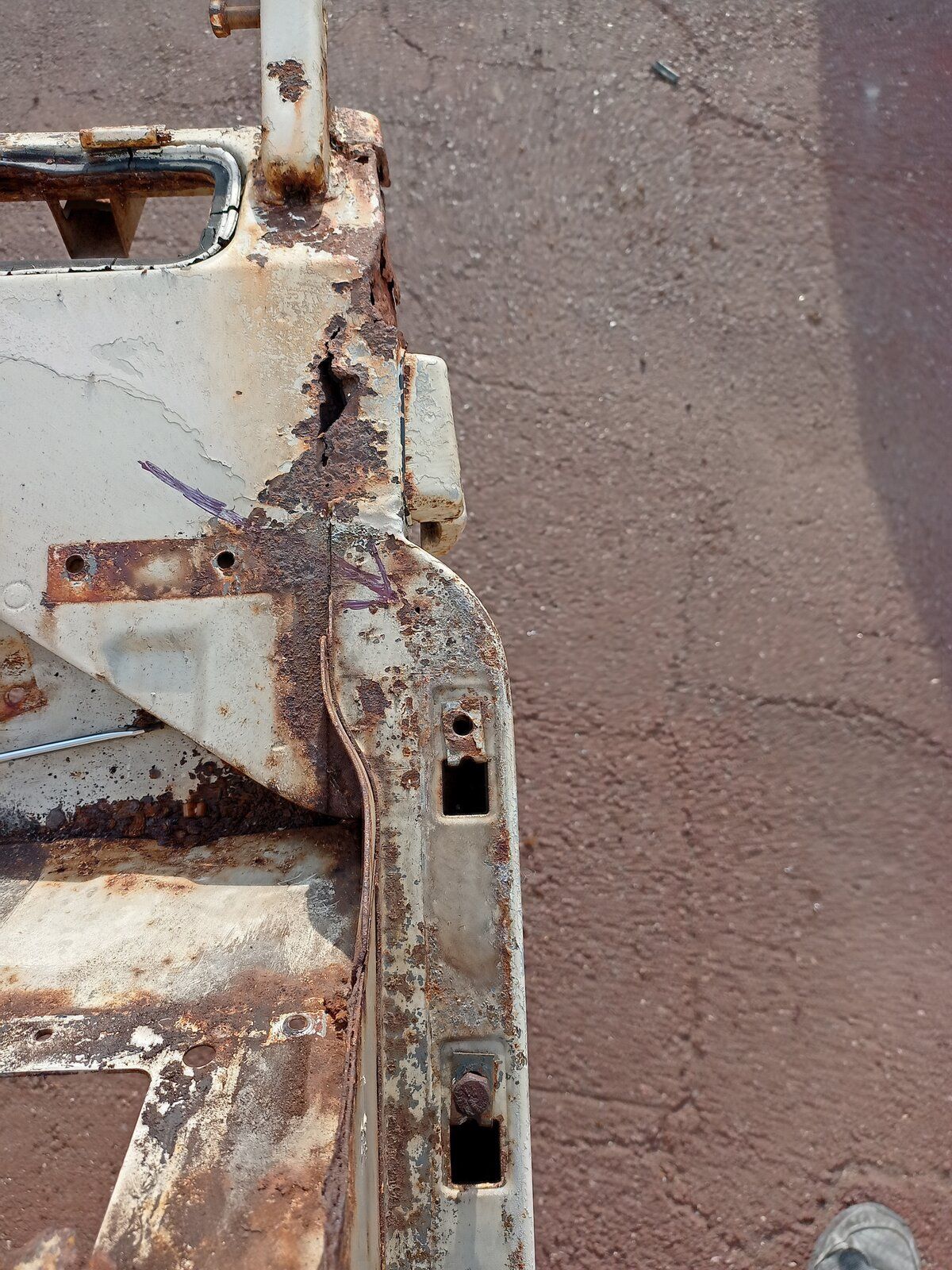

The bit I have arrowed!!

Thank you.
Shirl

kermit_rr · Sep 3, 2022

I'm sure you can buy them.. at least you could..

codfather79 · Sep 3, 2022

kermit_rr said:
I'm sure you can buy them.. at least you could..

Yes, as a replacement, bloody expensive I think?
But as I'm buying a new bulkhead, I was going to repair the ones I have. Unless of course a new bulkhead comes with them already fitted?
I'm confused!

Bobsticle · Sep 3, 2022

I was under the impression they are part of the bulkhead.

kermit_rr · Sep 3, 2022

You won't buy a new bulkhead without the A pillars

Turboman · Sep 3, 2022

codfather79 said:
Yes, as a replacement, bloody expensive I think?
But as I'm buying a new bulkhead, I was going to repair the ones I have. Unless of course a new bulkhead comes with them already fitted?
I'm confused!

They are a separate item, but welded on, if that makes any sense.
The bulkhead is made of quite a number of separate pressings, which are welded together to make the whole.

The door pillars are available to replace, which is quite a simple job if you are good at MIG welding, but will come fitted to a new bulkhead, because you can't fit the bulkhead without the pillars. The bracket at the bottom of the pillars on either side are the only points at which the bulkhead attaches to the chassis, by means of two large bolts.

codfather79 · Sep 3, 2022

Turboman said:
They are a separate item, but welded on, if that makes any sense.
The bulkhead is made of quite a number of separate pressings, which are welded together to make the whole.

The door pillars are available to replace, which is quite a simple job if you are good at MIG welding, but will come fitted to a new bulkhead, because you can't fit the bulkhead without the pillars. The bracket at the bottom of the pillars on either side are the only points at which the bulkhead attaches to the chassis, by means of two large bolts.

Thank you.
A perfect and clear explanation and answer.
Shirl

LordOWar · Sep 3, 2022

Short answer, they come on the bulkhead. Lol

nathanglasgow · Sep 4, 2022

What ever you do don't scrap the bulkhead. It looks very saveable if you have basic fabrication and welding skills.

BikerB · Sep 10, 2022

nathanglasgow said:
What ever you do don't scrap the bulkhead. It looks very saveable if you have basic fabrication and welding skills.

Mine is a lot worse than that and i reckon its salvageable

codfather79 · Sep 10, 2022

I'll stick it up for sale then.
I'm no fabricator and the thought of un galvanised steel on the sea front does not appeal to me. Especially on something like a bulkhead.

catman275 · Sep 10, 2022

I am in Poole Dorset, I rebuilt a bulkhead a few years ago I bought the parts from here, were good quality then. https://yrmit.co.uk/product-category/series-2-3-swb/
I also bought a mig welder which I practised on for a few weeks before attempting the actual job. Very pleased with the outcome. I fitted the old bulkhead in the correct position before starting to maintain the measurements and did one part at a time. After completing I had is shotblasted then galvanised. Plenty of photos on here of nasty bulkheads. good luck. Peter
