Britpart top shock polybushes
- Thread starter resto_d1
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 9,105
- Location
- Roaming the UK on assignments
How are you fitting them?
Chrisw8
Well-Known Member
- Posts
- 1,982
- Location
- Top of the Hill

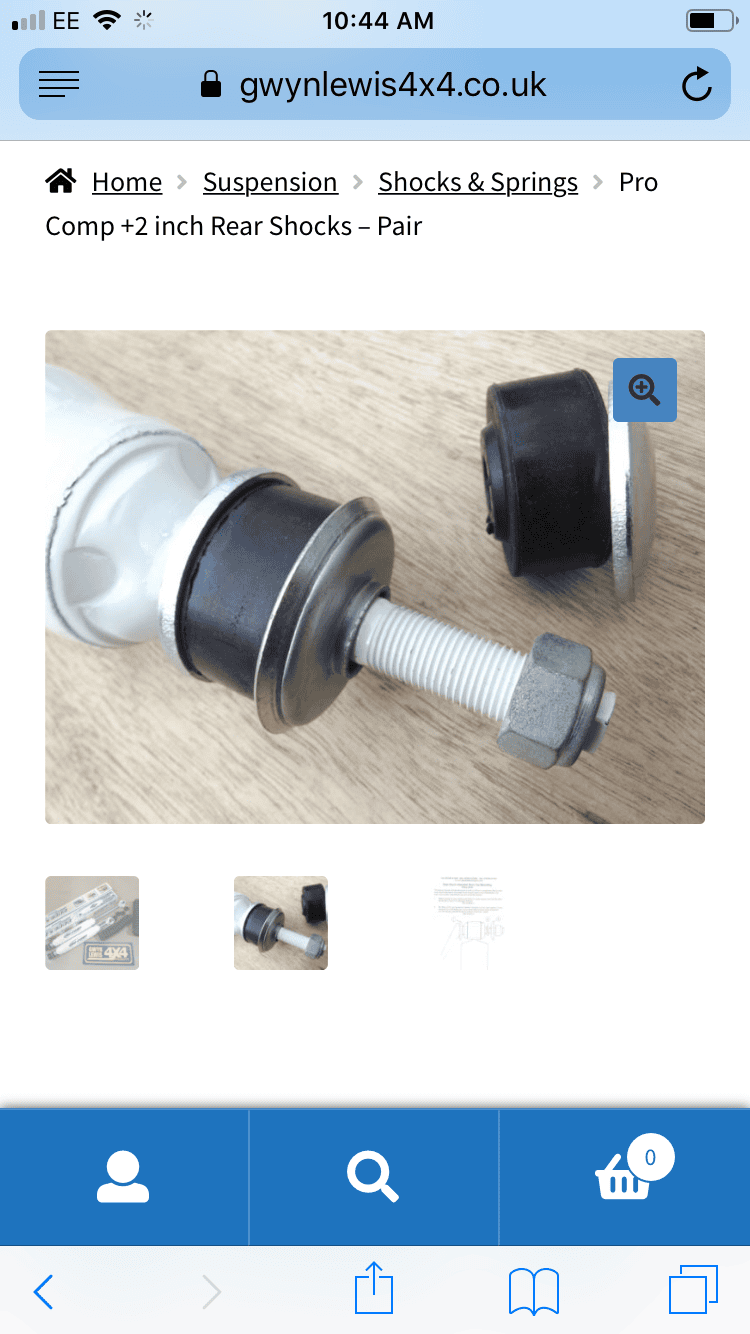

You know you got to fit the big washers round side against bushes not the flat side. eg
)||(
)||(
- Posts
- 9,105
- Location
- Roaming the UK on assignments
Have you measured the pin, the spigot spacer and the bush widths?
I had to trim 10mm off the spigot spacer and even then they were tight but wound up good and tight, warmed them up in a jug of hot water to make them a little more pliable too.
Bit confused now - think I could have been trying to jam in the wrong bushes!!! Looking in the removal box it seems these ones may be the ones I need to fit! I way trying to squash in two trapeze shaped ones which I now do not know where they belong...

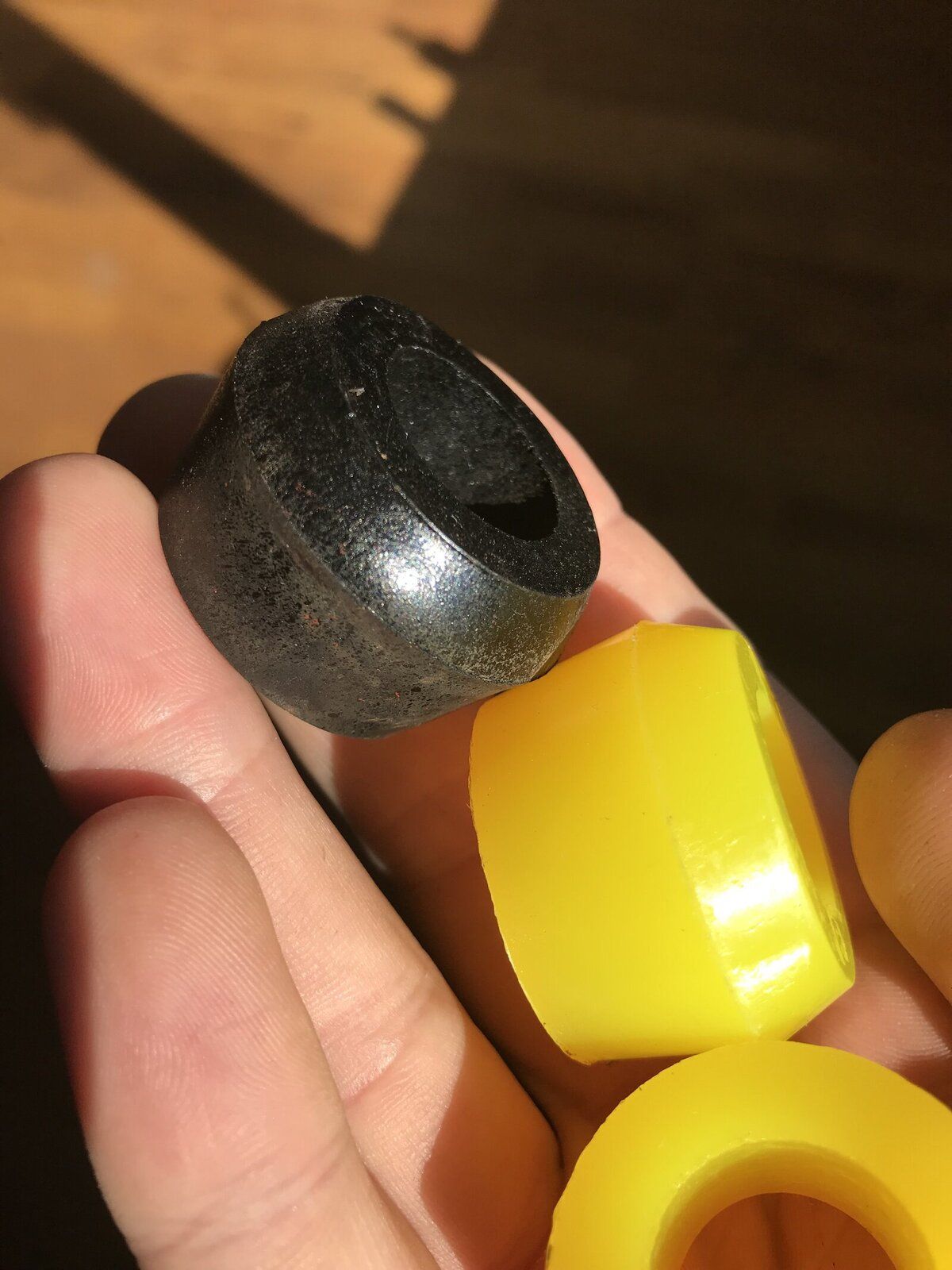

Could anyone confirm these are the top shock ones? Thanks
Could anyone confirm these are the top shock ones? Thanks

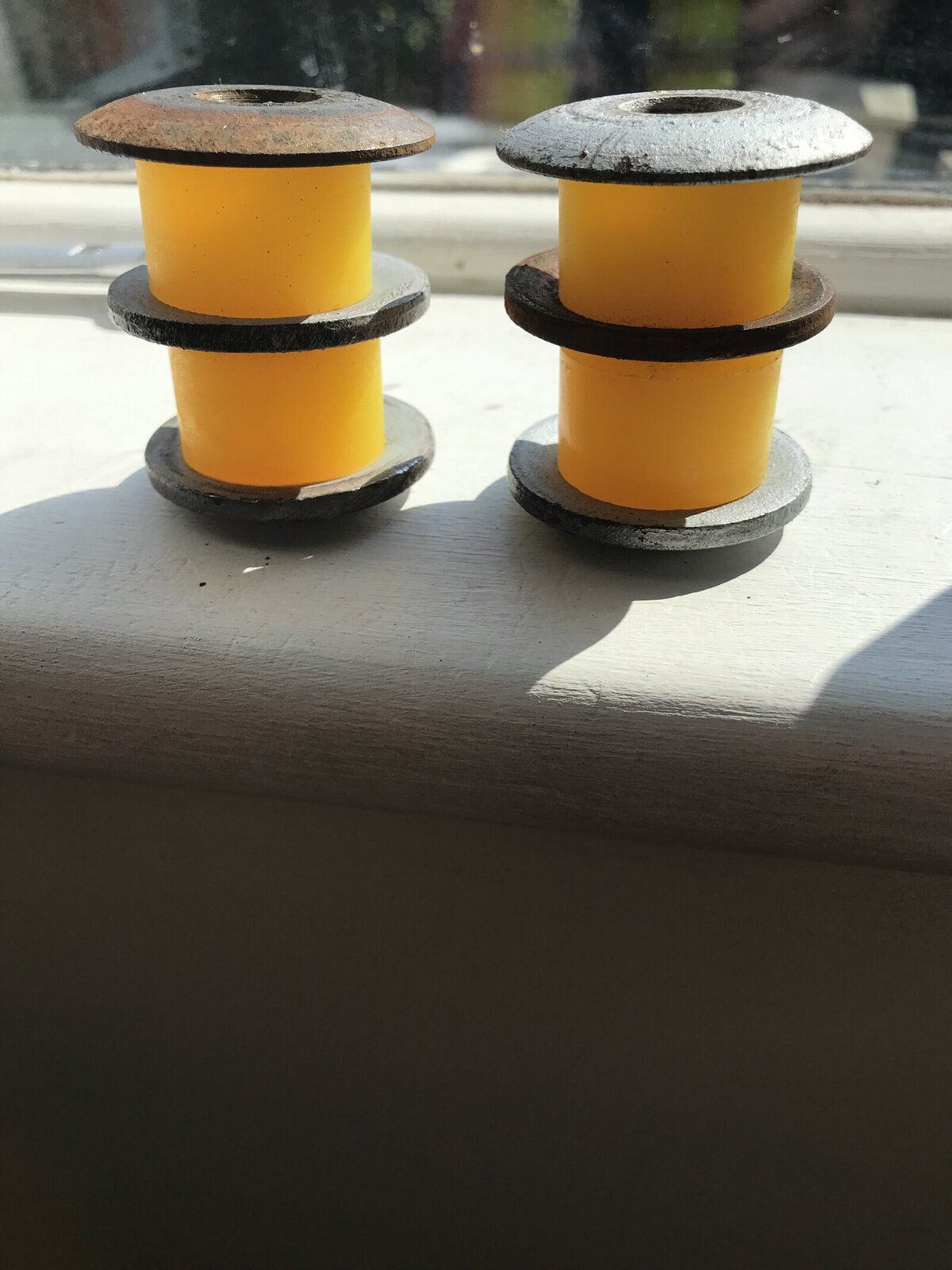

It’s confirmed. I’m a tw@t. For some reason I zip tied the bushes I was trying to use to the shocks in a pair so assumed they were correct. My next problem is I only have two cups on each shock. I think the originals were chiseled off then the bush just sat directly on the axle plate. I’m guessing this is a requirement before fitment
- Posts
- 9,105
- Location
- Roaming the UK on assignments
They are the top ones, they are a bit of a squeeze so long as the centre sleeve is the right length they will squish up when warmed in a jug of warm water.
They go fat end facing the outside of the shock, use a smear of grease or vaseline to help them slide in.
Cheers they’re all in mate. The penny dropped when I looked at my removed box to not find anything that looked close to what I was trying to jam in there. So used to things taking effort lol. Bit of red rubber grease and the correct ones slid straight in nicely
