Britpart Lynx Evo Diagnostics App?

There's no submenu under Mobilisation Learn. If you touch that, you're in for a "mobilisation learn" and there's no going back, apart from quitting the app. Of course, the engine ecu and immobiliser where already mated, so the "learn" didn't do anything apart from temporarily immobilising the vehicle. I'll take another look around, maybe.

If it does that sort of thing to me again, I guess it's probably safe just to quit and unplug the device, rather than select the only option (continue)?

When I've looked at "Version Information" in the past, it's just given me the vehicle Serial Number, Software Number, Hardware Number, and Date of Manufacture.

If you can't find thopse programming options for the BCU then send that device back cos it's not OK... is by any chance a separate section like "special functions" as main menu and if you access it to find BCU or security under it?

No "Special Functions."

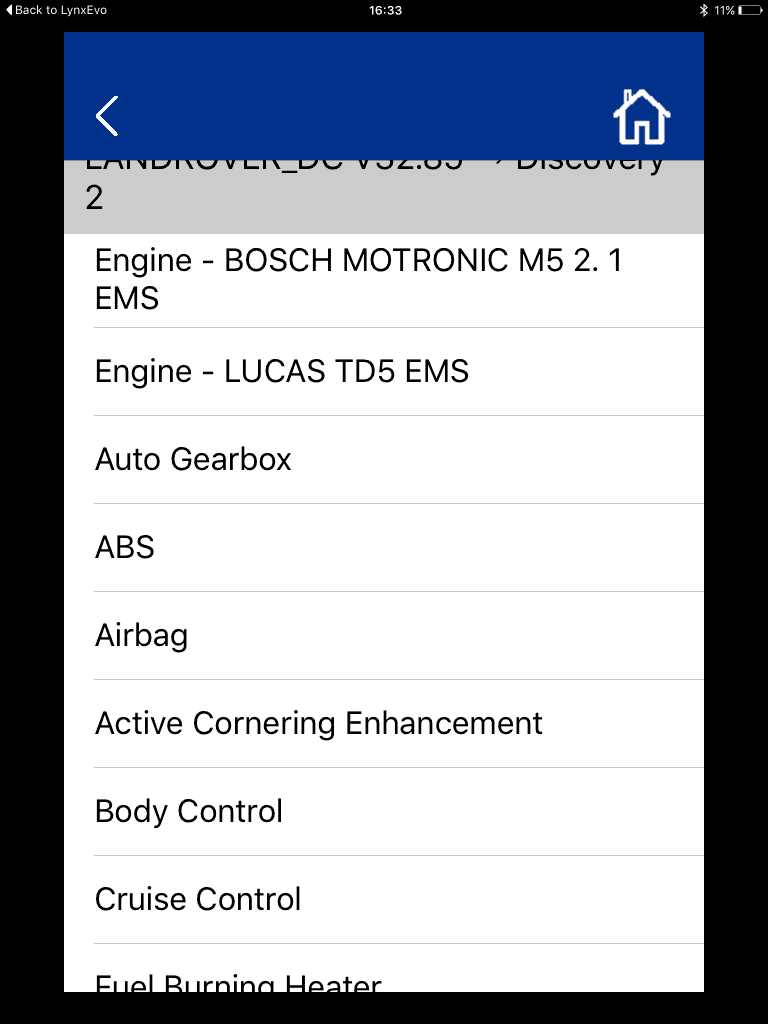

After choosing the correct model:


A

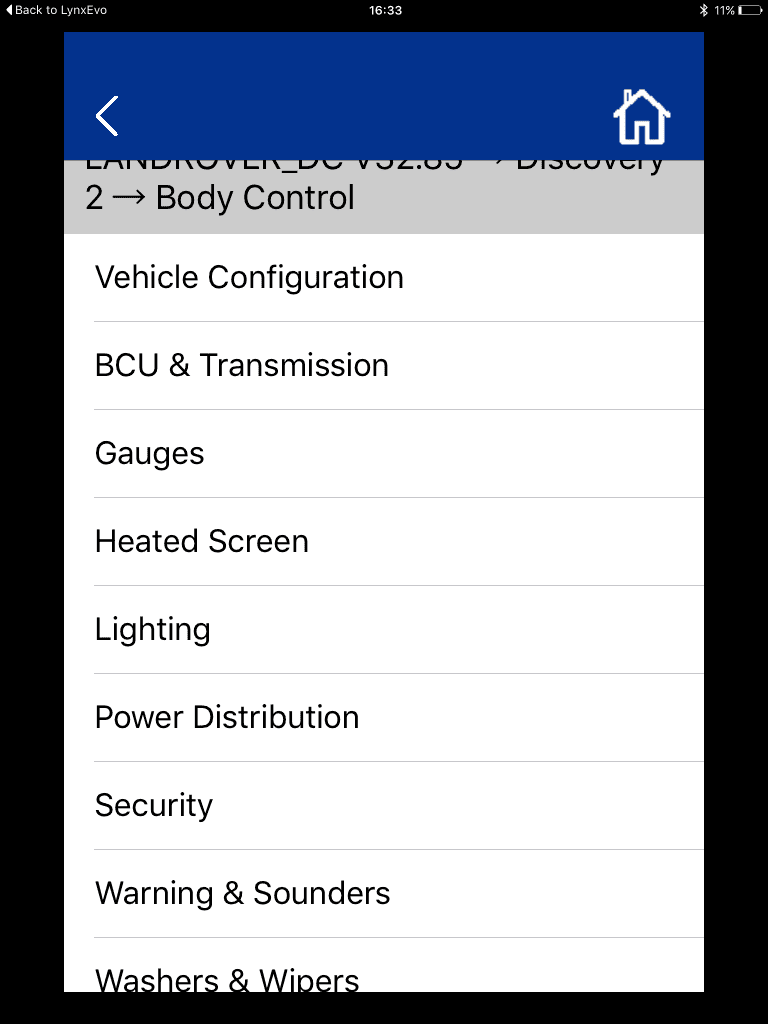

Then selected Body Control...


B

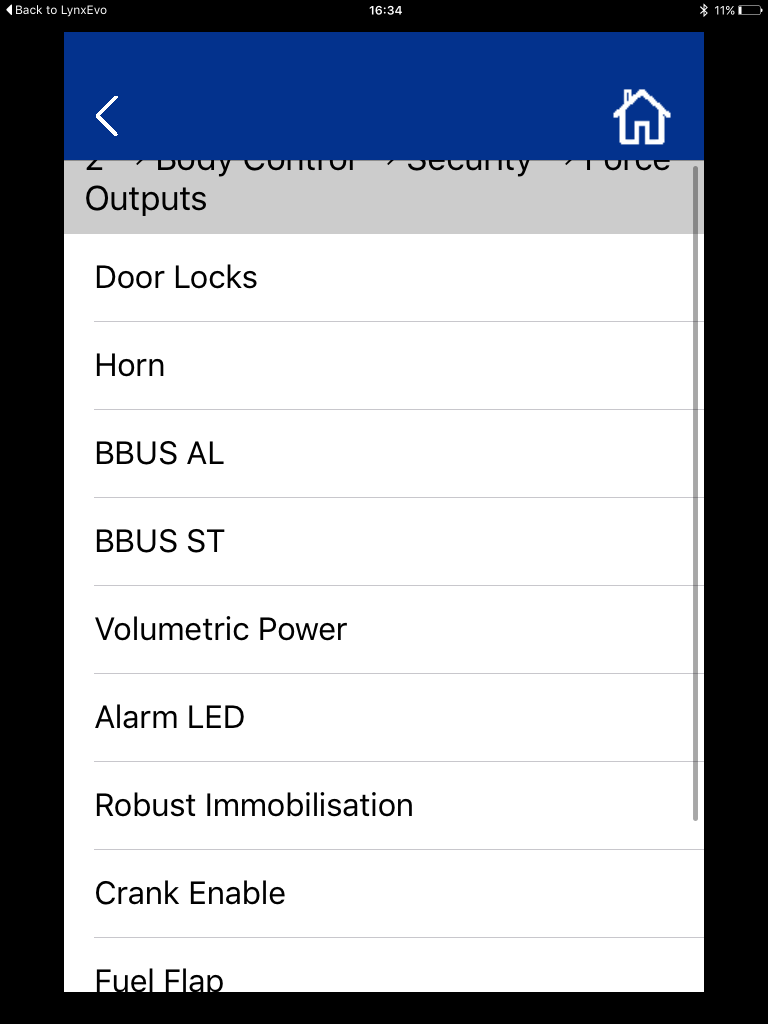

Force Outputs...


C

It seems you found it

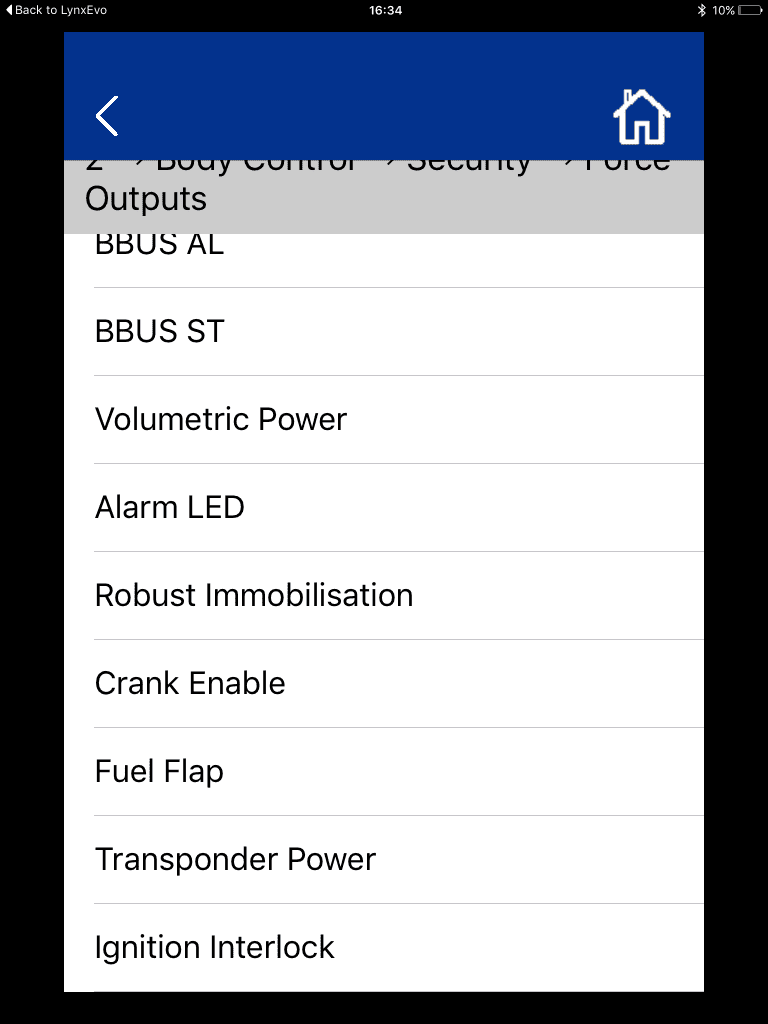

Force outputs scrolled down:


D

Go in Vehicle Configuration

OK... I'll run back up the yard to the vehicle!

I saw that you went under force outputs in the security ... now when the vehicle was selected and gave you more options are those still the same like before under security? , still no programming or settings or something? ... seing these new menus i'm sure it's there somewhere

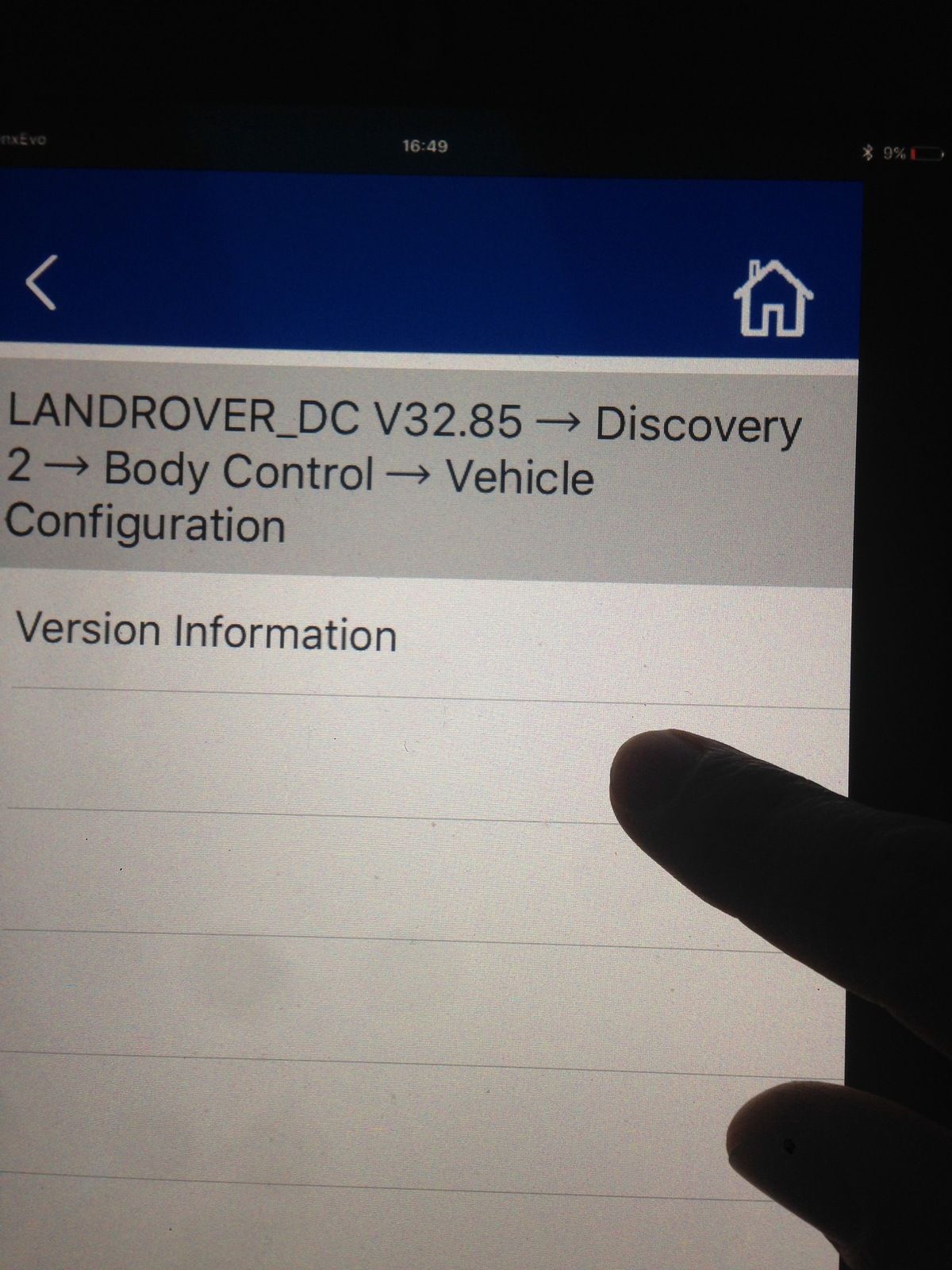

This is all under Discovery 2 > Vehicle Configuration.

Continue searching in that body control or see in the engine part, under security all is the same as before? ... there must be alarm settings somewhere IMO

Sorry, I don't quite understand your question. What page would you like me to check?

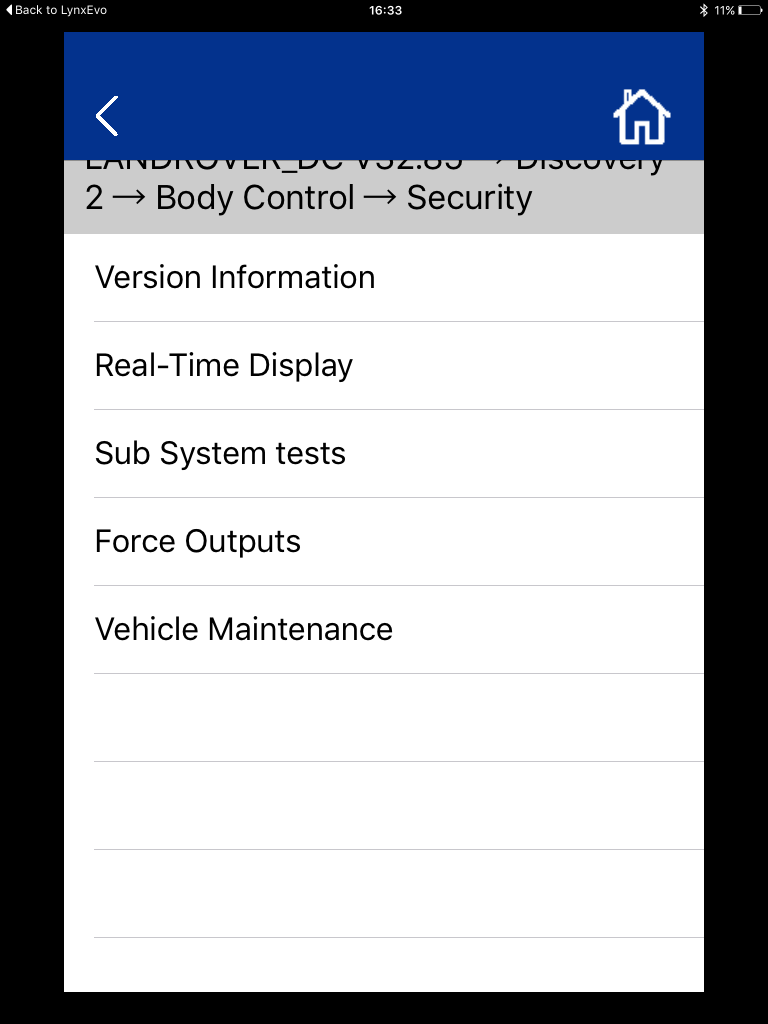

This is under Discovery 2 > Body Control > Security:

sierrafery said:

Continue searching in that body control or see in the engine part, under security all is the same as before? ... there must be alarm settings somewhere IMO

Click to expand...

Ok, I don't think that those menus have changed.

Just going to look at it again. A little confusing!

It's hard for me this way.... try under that BCU & transmission then.... i can't believe there are no alarm settings somewhere but i can't just guess as the whole menu of that lynx is peculiar try to find something about alarm somewhere

Even I can tell the Lynx Evo menus are peculiar! Thank you for your patience – it's really appreciated.
