Just some info that might answer the numerous threads on "will it won't it?"

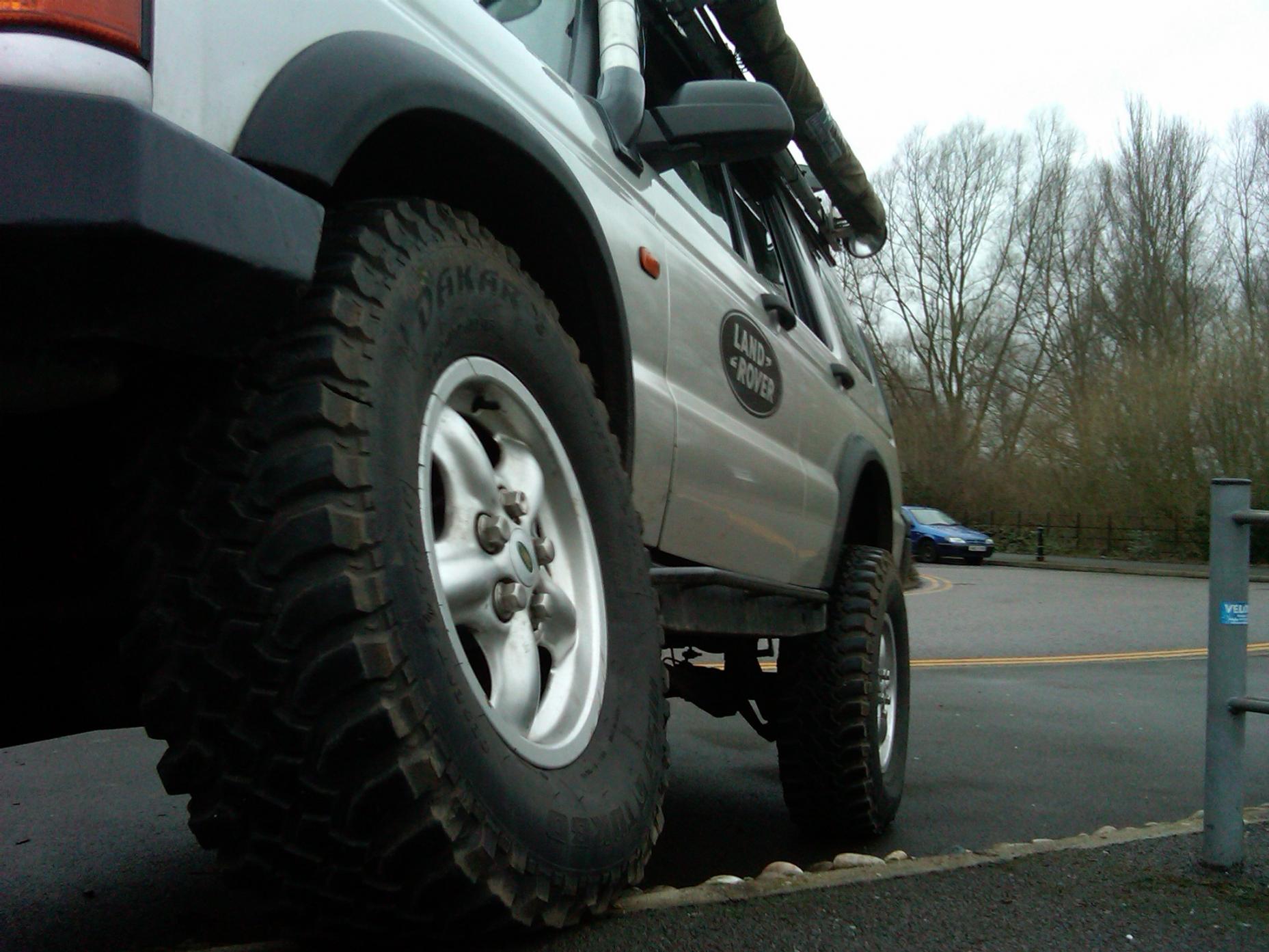

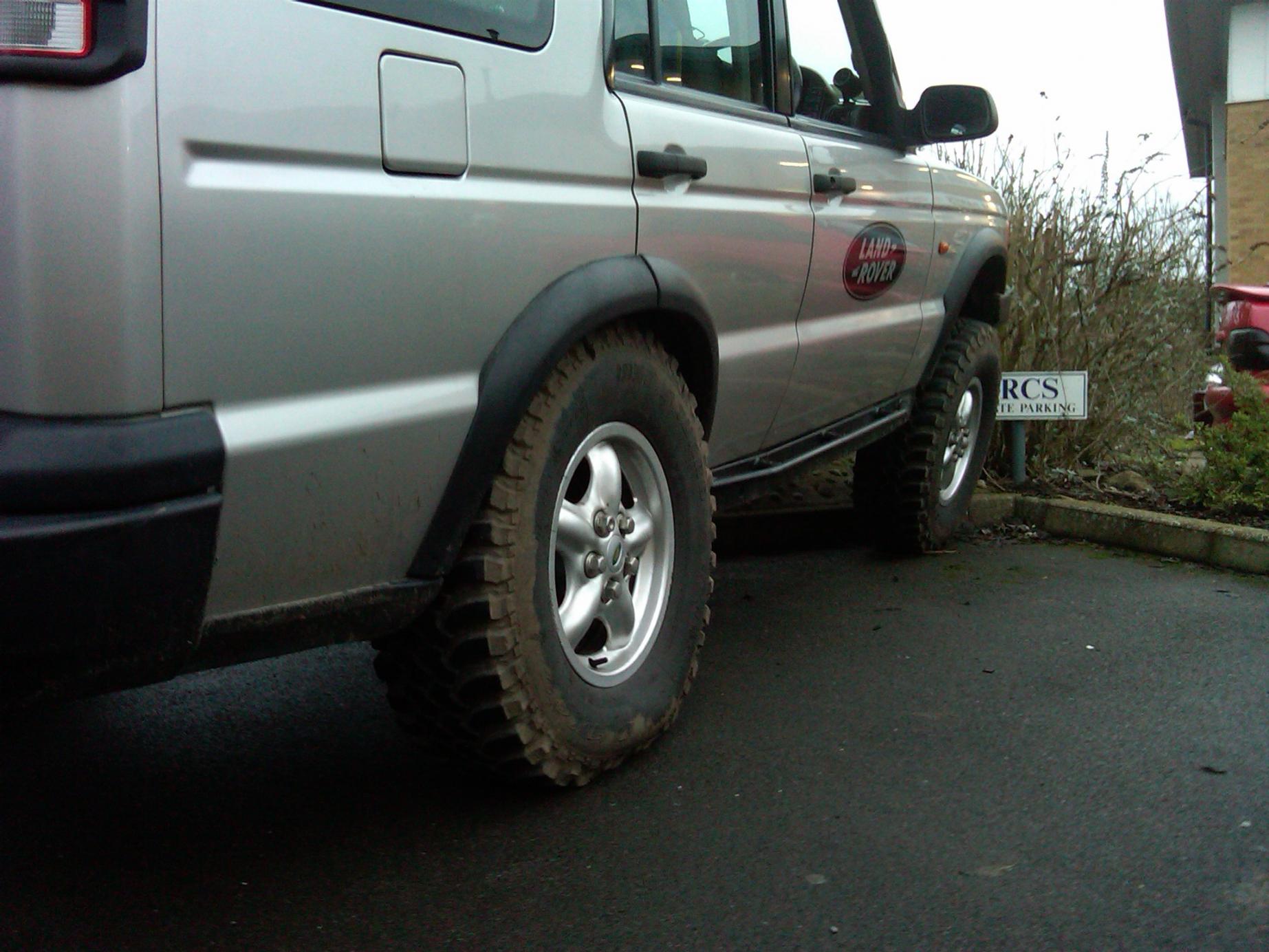

If you wish to run this set up then you will have NO issues with tyre rub on your arches at all...in fact there is still a good 20mm of space between the tyre & arch when sidewards...and to the "you shouldn't have done that" brigade; Yes, I am counting the miles until I need a bearing or two and other items

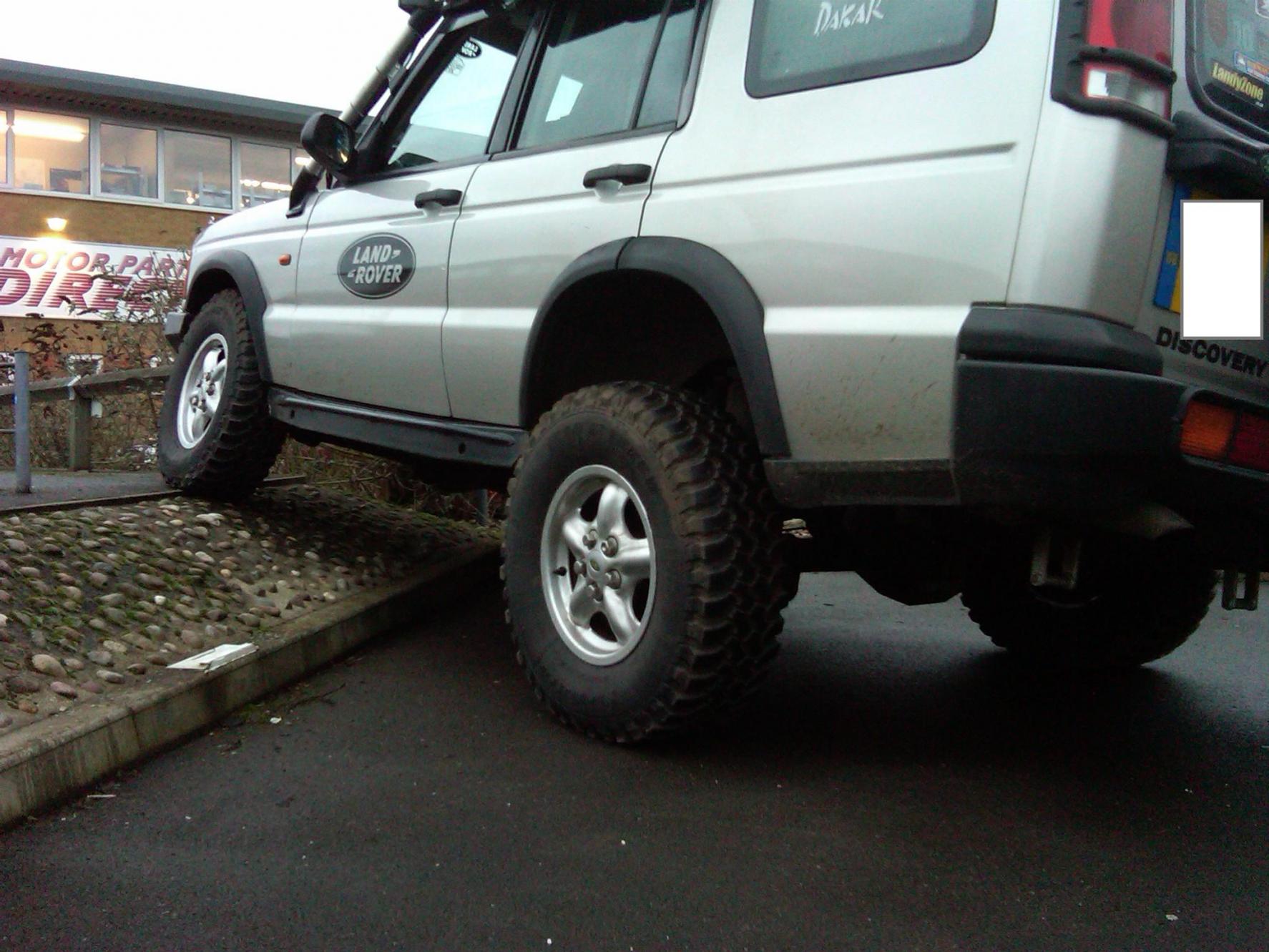

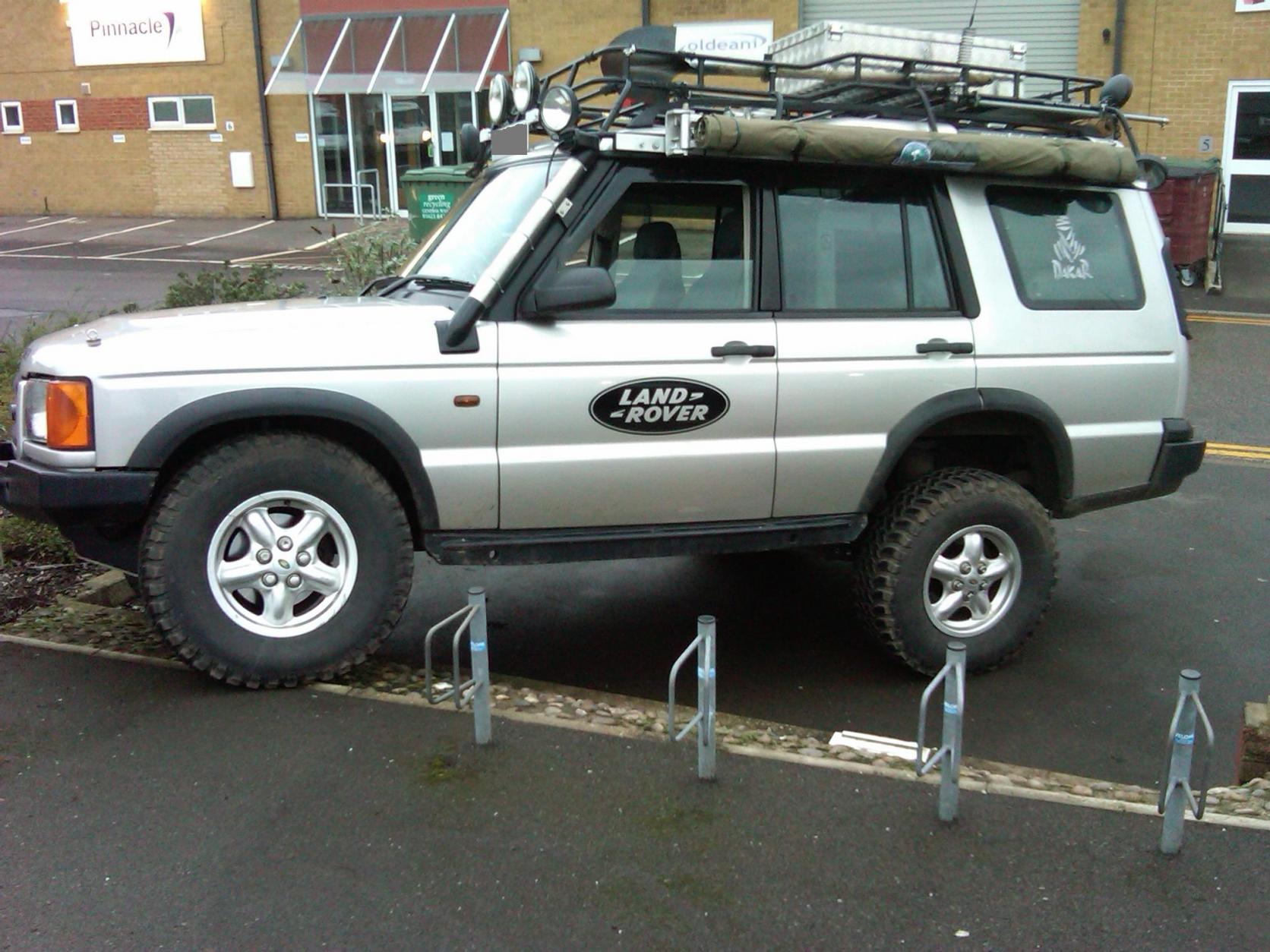

The pics were taken without the air bags raised

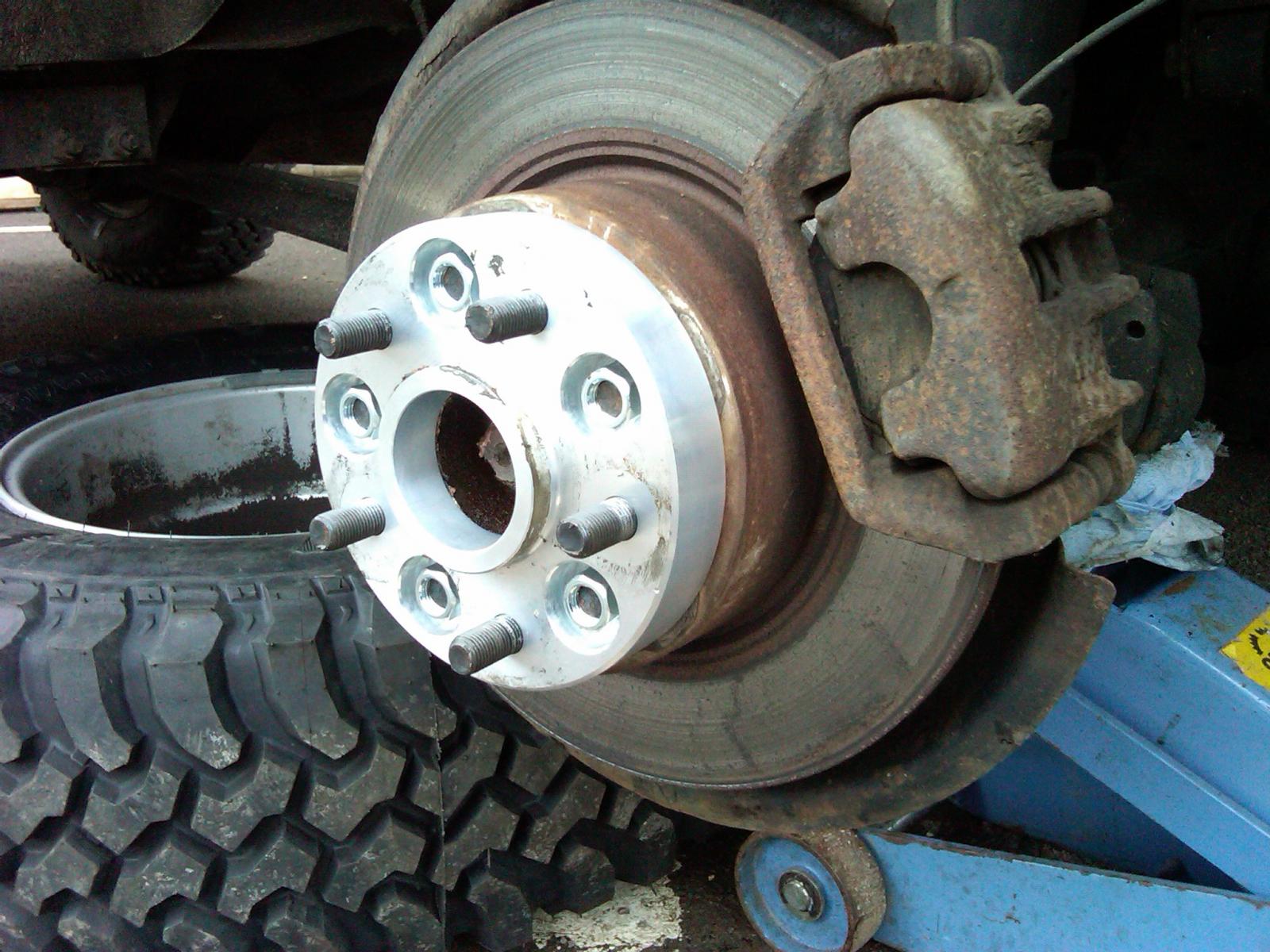

I wanted initially to run steelies with an offset to widen my track as the lift had unsteadied the ride slightly..instead I went for 30mm hubcentric spacers from Rakeway & all is well...

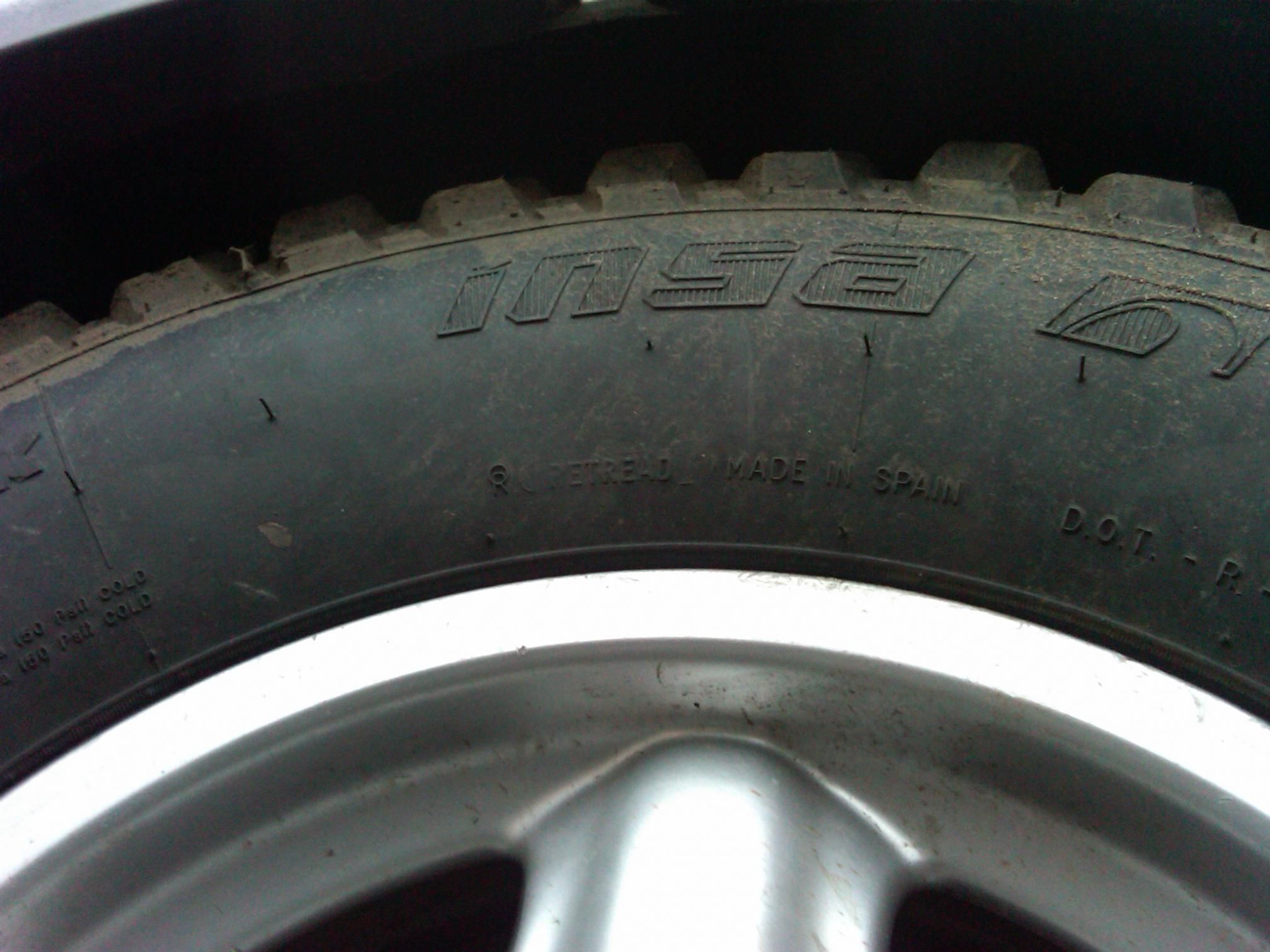

Tyres 265/75/16 Dakars
30mm spacers
2" air bag spacers
2" coils up front
2" extended shocks & brake lines
Extended bump stops
Standard arms & rear prop
Wide yoke extended slip front prop
10mm gearbox X-member spacers
Unclipped ABS cables for extra length
...ps sorry about the advertising :nospamhere:
If you wish to run this set up then you will have NO issues with tyre rub on your arches at all...in fact there is still a good 20mm of space between the tyre & arch when sidewards...and to the "you shouldn't have done that" brigade; Yes, I am counting the miles until I need a bearing or two and other items
The pics were taken without the air bags raised
I wanted initially to run steelies with an offset to widen my track as the lift had unsteadied the ride slightly..instead I went for 30mm hubcentric spacers from Rakeway & all is well...
Tyres 265/75/16 Dakars
30mm spacers
2" air bag spacers
2" coils up front
2" extended shocks & brake lines
Extended bump stops
Standard arms & rear prop
Wide yoke extended slip front prop
10mm gearbox X-member spacers
Unclipped ABS cables for extra length
...ps sorry about the advertising :nospamhere:
