Brake pipes

gR@HaM · Apr 25, 2010

Whilst removing ABS module I was very careful to label all pipes and outputs to make sure I didn't get any mixed up. However I didn't do this with the rear 2 brake lines where they connect to flexi hoses :doh:
Does anyone have a schematic of ABS unit showing which outputs are rear o/side & n/side?

David Pye · Apr 25, 2010

They are labelled on the top of the ABS unit on the Disco2. (LHR, LHF, RHR, RHF, from memory)

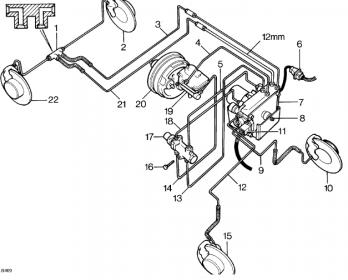

On the Disco1, see attached image from RAVE

Hopefully you can make that out....

The key is as follows: 2 = rear left brake
22 = rear right brake

David Pye · Apr 25, 2010

Whoops, way tooooo small.

Trying to attach larger one, hang on ;-)

gR@HaM · Apr 25, 2010

Cheers mate much appreciated

would 'right' be offside or nearside?

David Pye · Apr 26, 2010

Hmm, usually described as if you were sitting in the drivers seat I think.

You can figure that out by looking at the front brakes in the diagram (which I assume you already have 'piped' in - check the which hose from the modulator goes to which).

10 = front left, 15 = front right.

David
