Brake Calipers

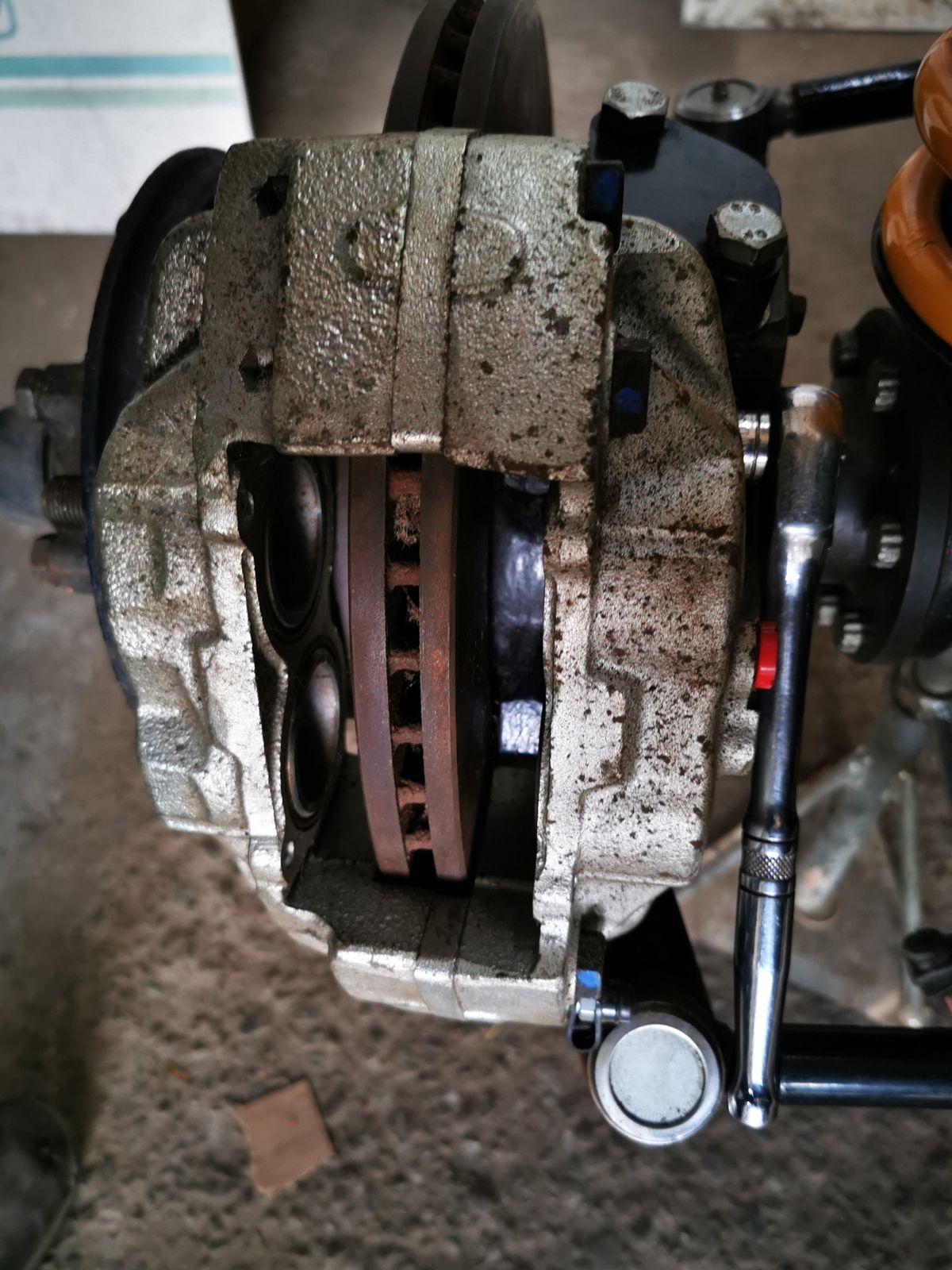

Just fitted new Calipers, Everything ok until I get to last turn on Nut to nip up, then hubs stop turning, soon as I loosen off a turn they move again.
What have I done Wrong this time ??

bolt too long ?is caliper central

Is it possible the bolts are touching the disc?
Just slightly too long.

J

I remember when I bought the bolts there was 2 different sets, I'm sure I posted thread on here about them, will try and find it. first one was wrong thread so got these ones, they go in perfect but like mentioned probably to long. What's the options will washers do ?

Do they have washers? A Manual I have shows spring washers.

If so I would just be inclined to take a file to the end and shorten them its obviously only a very small amount.

Are they new discs? The bolts aren’t just going into some rust build up on the discs somewhere?

J

fine thread bolt not coarse thread bolt does have a spring washer

I'm certain they are the right bolts, will try spring washer. Thanks

border said:

I'm certain they are the right bolts, will try spring washer. Thanks

Click to expand...

top has a spring washer

Mines same as top Thank You

m12 spring washers

... and try and get hold of the correct socket for them ...

jamesmartin said:

m12 spring washers

Click to expand...

Thanks Again, couldn't find any out of the bucket full of old nuts and bolts I have, will get some tomorrow.

Oldseadog said:

... and try and get hold of the correct socket for them ...

Click to expand...

13 mm fits not sure if its the right one but it fits.

border said:

Thanks Again, couldn't find any out of the bucket full of old nuts and bolts I have, will get some tomorrow.

13 mm fits not sure if its the right one but it fits.

Click to expand...

its right but when corroded over time a 1/2 inch fits better

I have a 13mm 'star' socket which was made for the job.
It has 12 points instad of 6 or 12 flats, but I can't remember where I got it fron all those years back.

Multipoint 1/2 af socket and the same size ring spanner works well. They need tapping on to the bolt head but they have never slipped on me, 13mm has though.
Get quality ones though, mine are both britool.

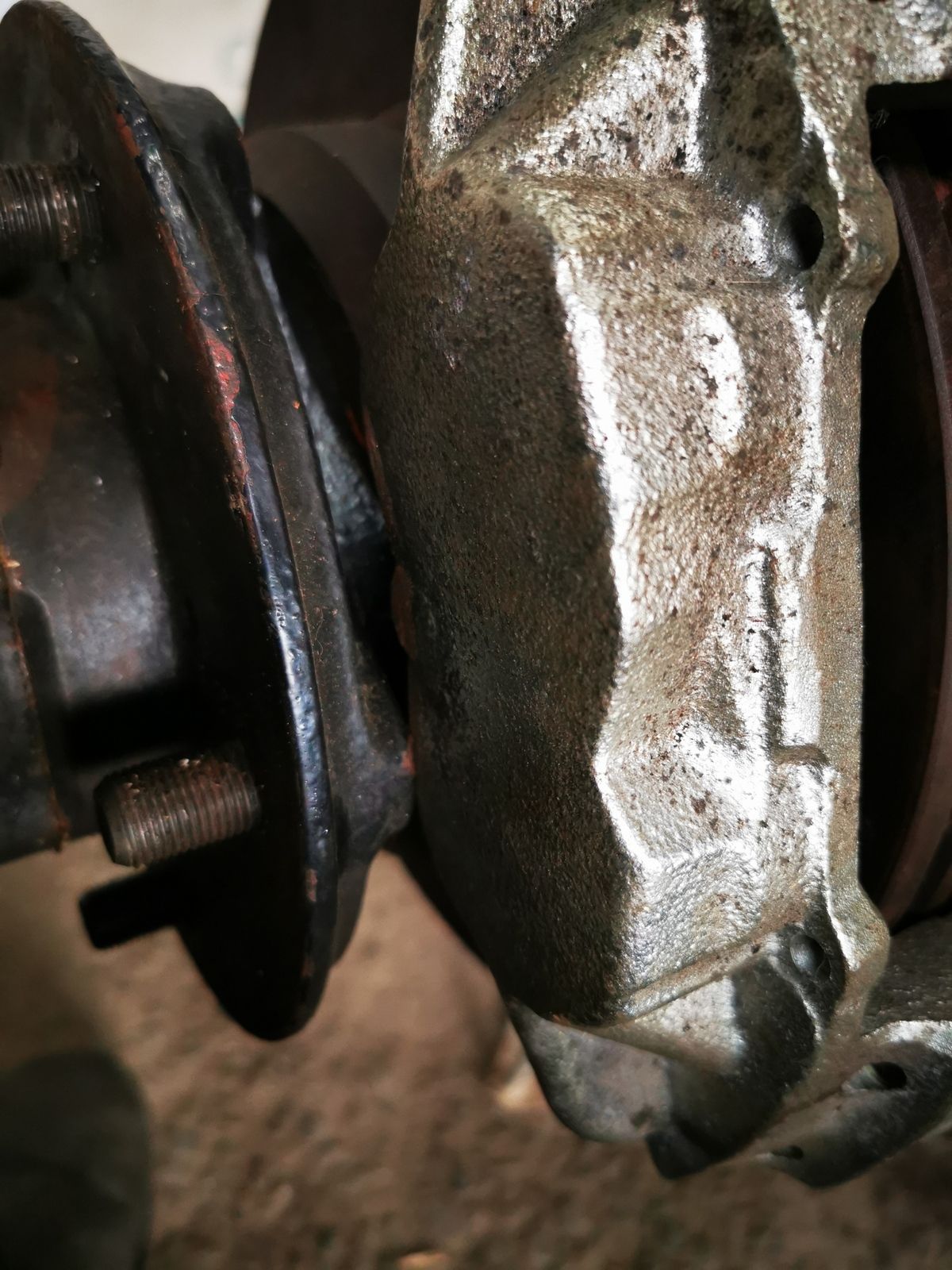

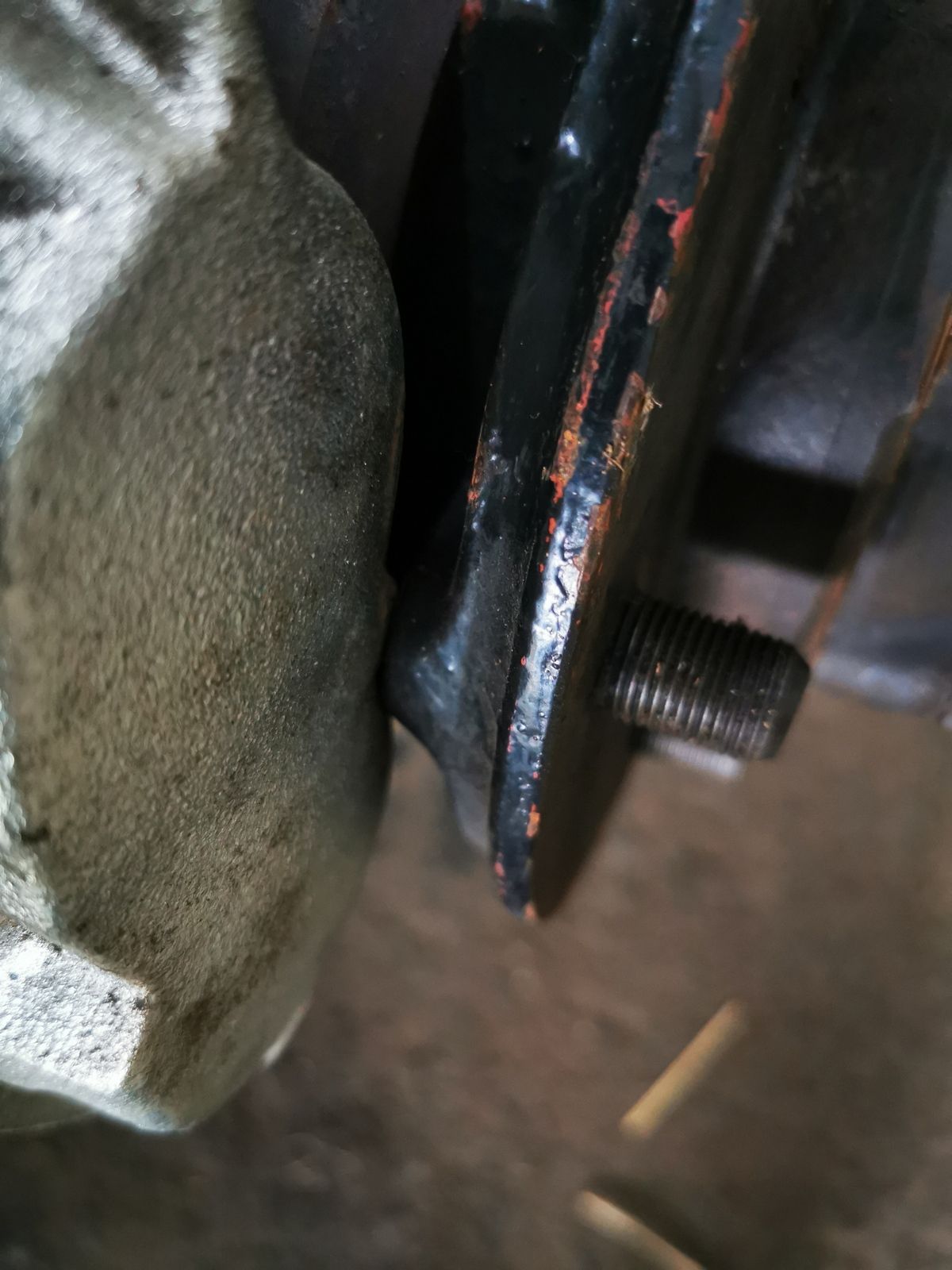

Well this has got my head done in now. The bolts were coming through and catching disc to stop it spinning fix i could see them. Put washers on , not coming through now But now the are catching side of hub, when fully tightened so no further forward. Think I'm Jinksed

These are replacement calipers? What Part number are they?

slomofo said:

These are replacement calipers? What Part number are they?

Click to expand...

Have not got a clue Mate they were in box of parts that came with it when I first bought it,

Hmmm...might be the wrong ones.

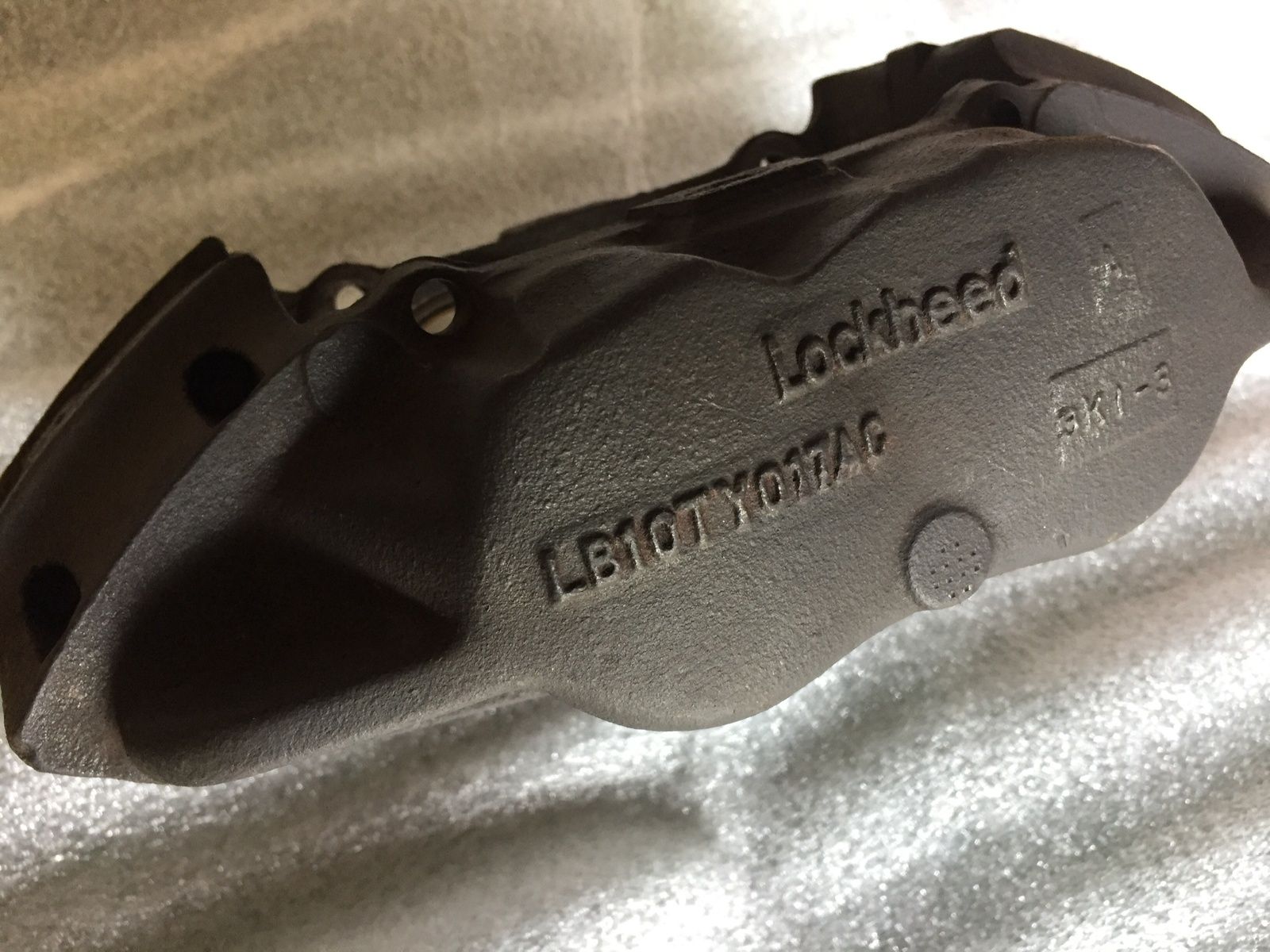

Anything stamped on the reverse face that looks anything like this?


Not saying this the right Caliper for your project, but there are various iterations of Caliper on 110 axles over the years....

https://www.lrworkshop.com/diagrams...ms-discs/front-brake-calipers-and-discs_52911

slomofo said:

Hmmm...might be the wrong ones.

Anything stamped on the reverse face that looks anything like this?

View attachment 180195
Not saying this the right Caliper for your project, but there are various iterations of Caliper on 110 axles over the years....

https://www.lrworkshop.com/diagrams...ms-discs/front-brake-calipers-and-discs_52911

Click to expand...

Couldn't find any numbers on them, but was thinking they could be wrong ones myself. Mind you they are only catching Very slightly, but then again enough to stop the hub spinning.
