Brake caliper..£20 Vs £70 vs £120

Looks like troll post has been deleted Keith, if you delete yours it will kill the link.

Grit Valve said:

Click to expand...

Back from the dead:clap2::clap2:

Dredging up this old thread, I just fitted Britpart calipers to my spare P38. All looked good, so bled them with help from mate.

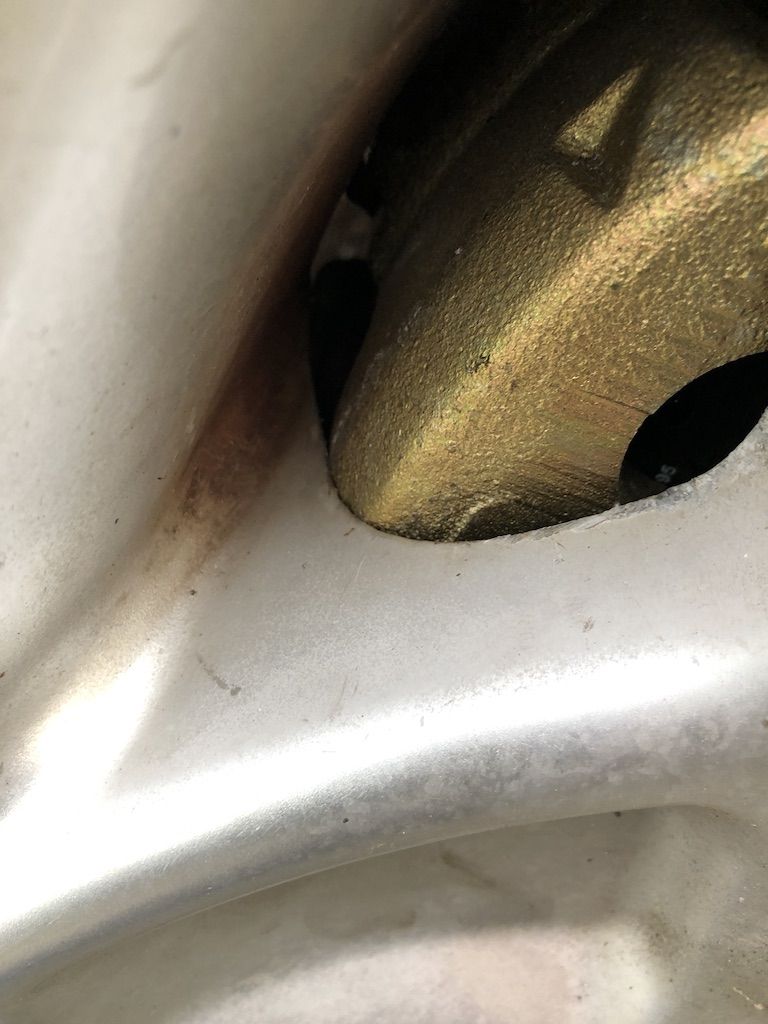

Didn't realise until wheels re-fitted, but the front calipers are 5mm bigger in the centre, and foul on the wheel rims.

Have sent email with pictures off to Island-4x4 to see what they are gonna do.

pwood999 said:

Dredging up this old thread, I just fitted Britpart calipers to my spare P38. All looked good, so bled them with help from mate.

Didn't realise until wheels re-fitted, but the front calipers are 5mm bigger in the centre, and foul on the wheel rims.

Have sent email with pictures off to Island-4x4 to see what they are gonna do.

View attachment 234372 View attachment 234373 View attachment 234374 View attachment 234375

Click to expand...

What size wheels have you got must be 16s

Nope 18" on this car. Don't know if they LR P38, or aftermarket ? Fitted by previous owner or before that maybe? I even moved the caliper aside, and re-fitted the original to double check. Caliper definitely measures 5mm bigger !!

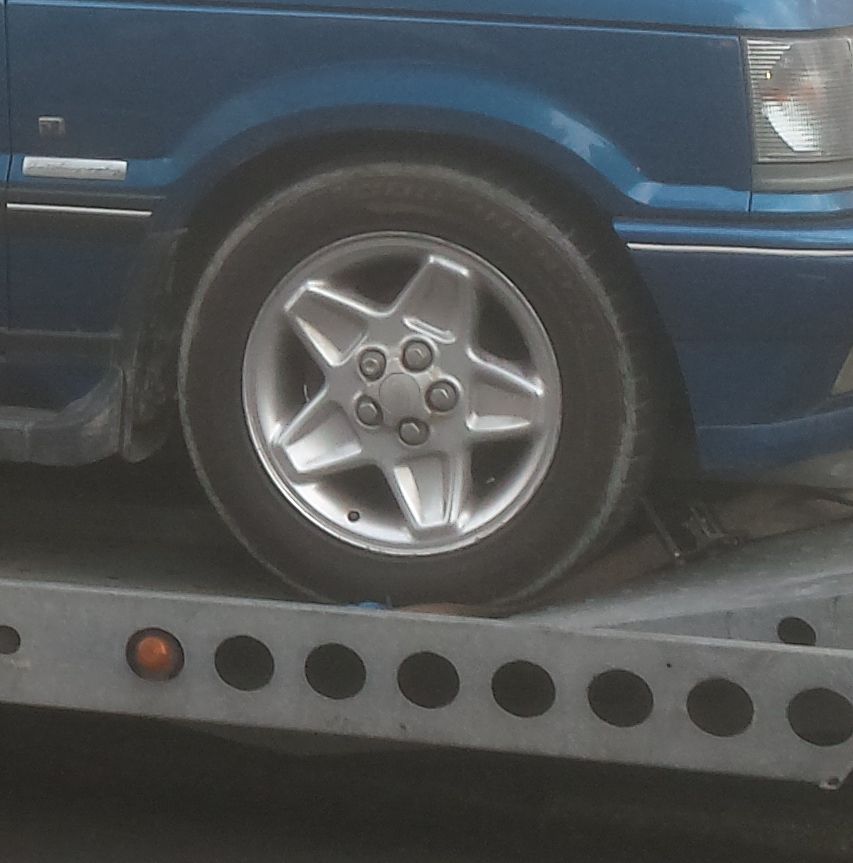

Update . . .searching google images & it looks like they are Mondial 18" either from this P38, or a disco.

Maybe I should try a 16" wheel from the other car !!

It would be even worse with 16s then,
They definitely have a problem with the calipers

Got a reply from Island already saying they will collect callipers. Surprised to get a response on Sunday or maybe they have a batch problem & know about it.

At least it’s the project car & not daily driver, but pain having to bleed again. Almost MOT ready as well.

Good they are sorting it, i wonder if they are labeled up wrong or as you say bad batch.

Same calliper used on Disco & P38. I also checked carriers to see if they are L & R but identical both sides.

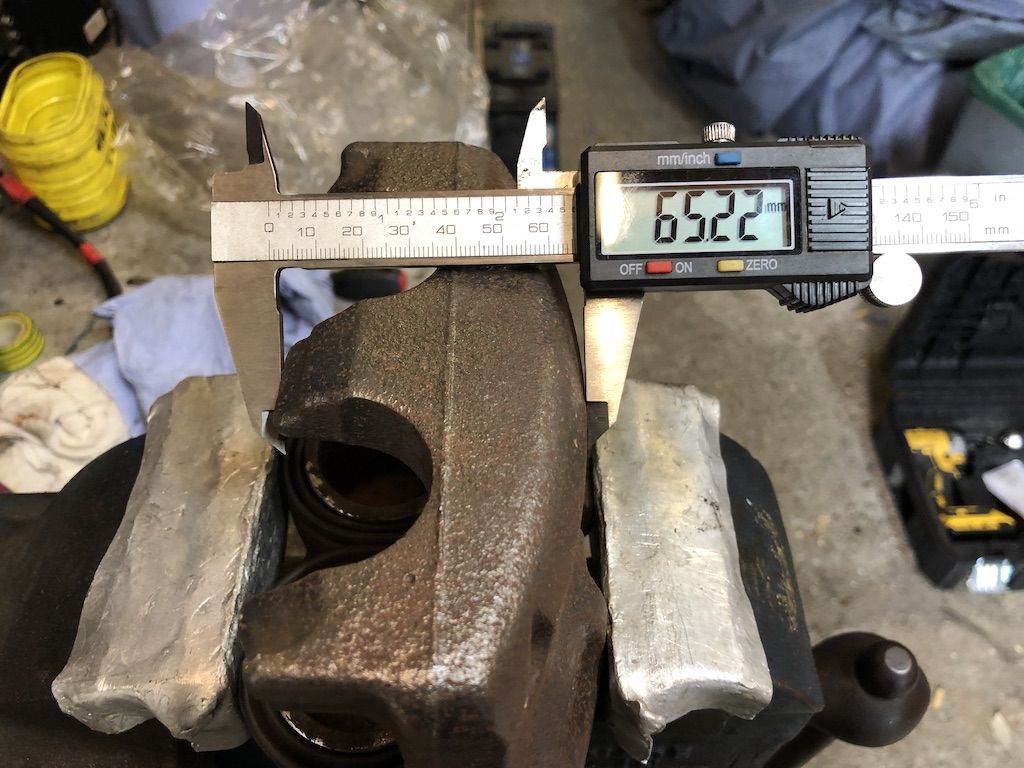

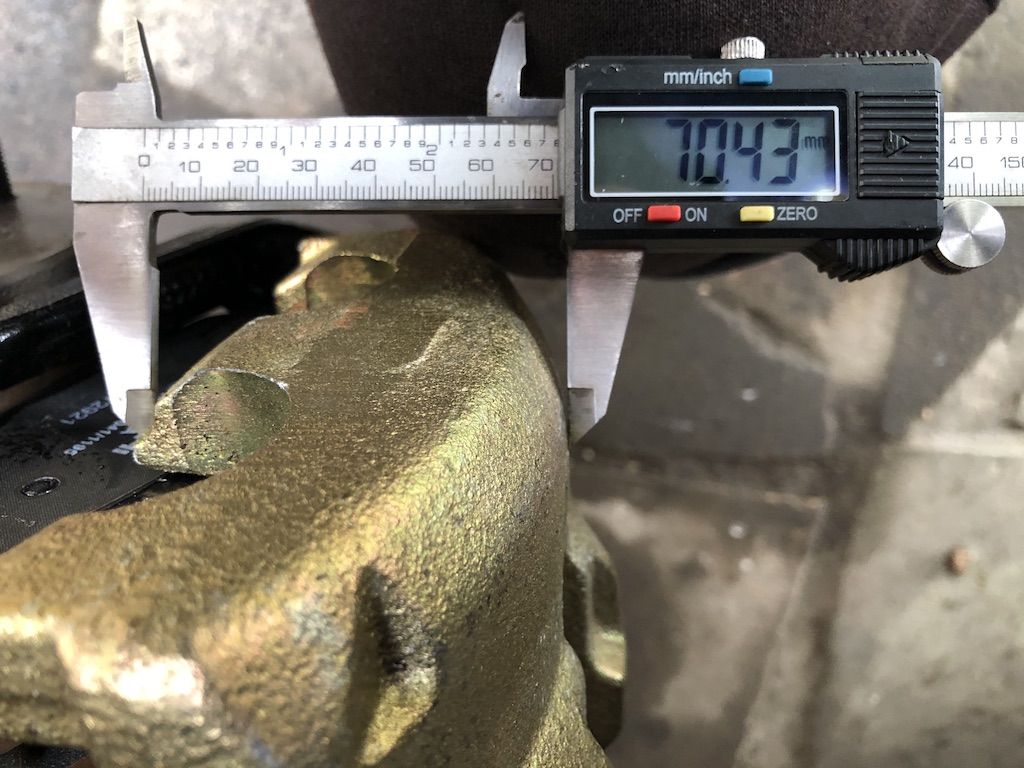

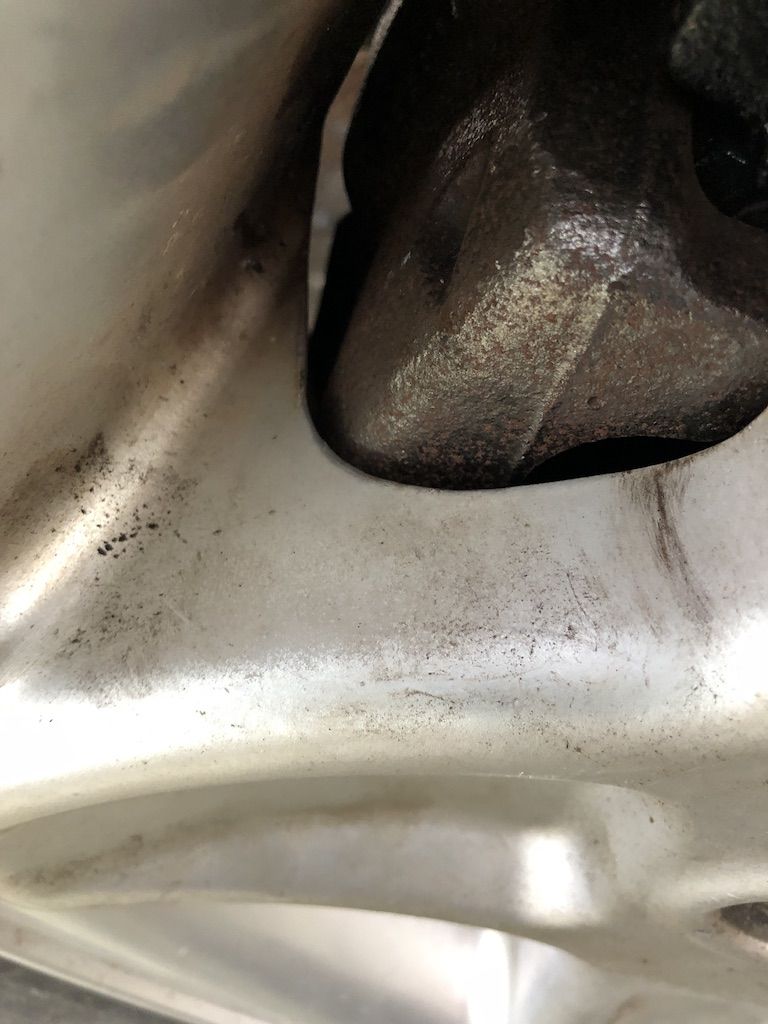

The measures in pictures show the real issue. Thicker castings but no extra offset in the mountings.

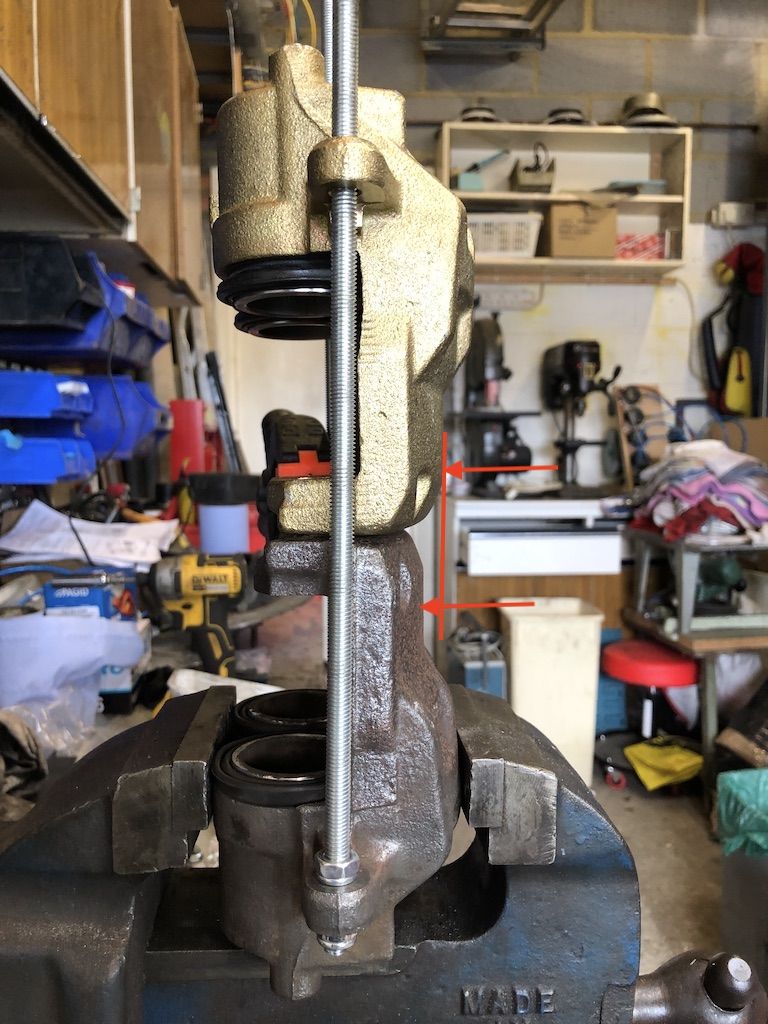

New pictures of Lucas & Britpart calipers. Studding was as straight as I could get it. Waiting for Island to respond !!

FYI, they have checked other Britpart & Eurospares calipers in their warehouse, and apparently all of them are 70mm thick at the centre. Now waiting for them to check the position of the lugs.

pwood999 said:

New pictures of Lucas & Britpart calipers. Studding was as straight as I could get it. Waiting for Island to respond !!

FYI, they have checked other Britpart & Eurospares calipers in their warehouse, and apparently all of them are 70mm thick at the centre. Now waiting for them to check the position of the lugs.

View attachment 234427

Click to expand...

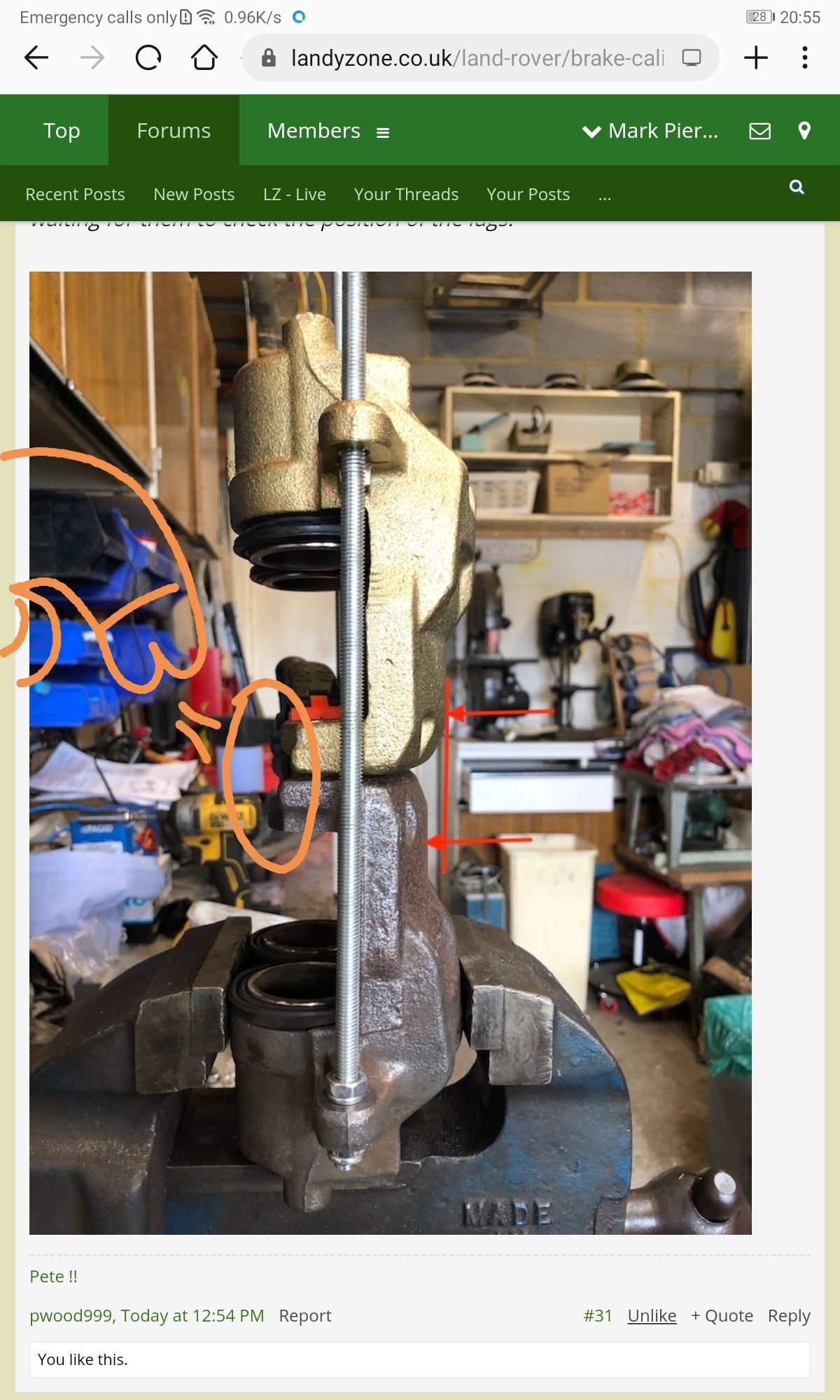

What's the difference if these two edges are flush?

Now Now . . . .

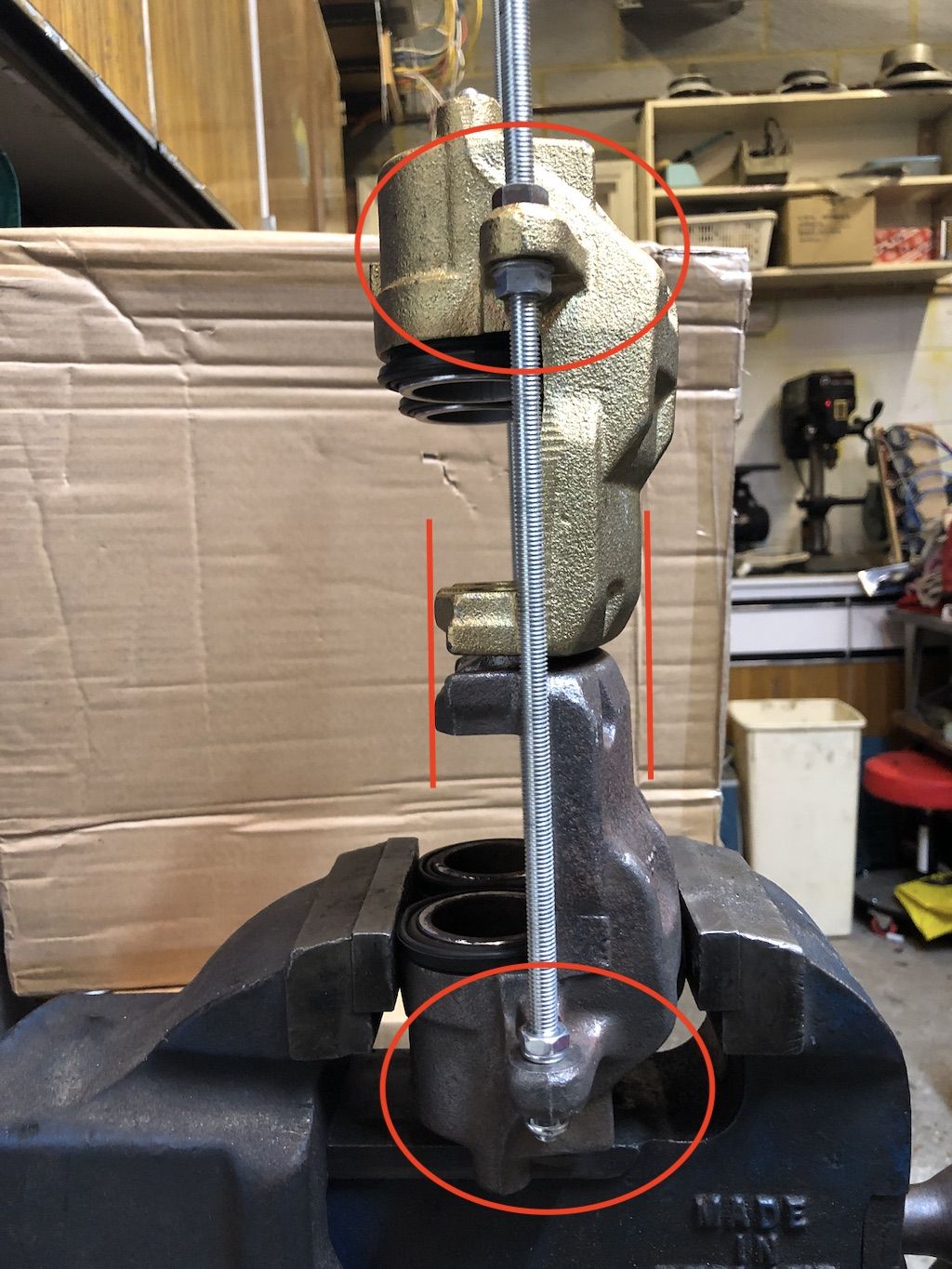

Britpart one is 5mm thicker when those two edges line up. Didn't bother lining up with your extra useless part.

pwood999 said:

View attachment 234464 Now Now . . . .

Britpart one is 5mm thicker when those two edges line up. Didn't bother lining up with your extra useless part.

Click to expand...

Hee hee,
It doesn't make sense why there would be a difference?? Could they be different on the later models with 18" wheels?

Mark Piercy said:

Hee hee,
It doesn't make sense why there would be a difference?? Could they be different on the later models with 18" wheels?

Click to expand...

No, I've seen similar issues with 16" rims although I cannot remember now if they were 7J rims rather than 8J - some early P38s had 7J rims, presumably using up stock from the Classic.

Mine are stamped ANR6316 on the inside casting. Definitely P38 wheels. https://parts.jaguarlandroverclassic.com/anr6316mnh-wheel-alloy-road.html

Grrrrrr said:

No, I've seen similar issues with 16" rims although I cannot remember now if they were 7J rims rather than 8J - some early P38s had 7J rims, presumably using up stock from the Classic.

Click to expand...

Early Dhse models where fitted with 255/65/16's before the 18" arrived and the other models had 235's.

Update. Today I cleaned up the old Lucas calipers. Lubricated them with Rubber Grease & fitted new seals. Installed back on the car & have >>7mm clearance to the wheels. Pulled new fluid through using vacuum pump & no leaks so far. They need bleeding properly when I have an assistant available.

FYI, before this I tried my 16" spare from the other car with the ****part caliper installed. There's << 2mm clearance between the wheel & caliper, so would be concerned using these even with 16" wheels. How much do calipers expand when hot from heavy use ?

Along with mud and stones when mooching in the crap
