Had enough of this wreckin my head, can get fittings but own a welder and can't make up my mind what to do.
Bolt the boot floor in or weld it in?
Bolt the boot floor in or weld it in?
Bolt it or weld it?
- Thread starter dieseldog69
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Colthebrummie
Well-Known Member
- Posts
- 9,870
- Location
- Thatcham
Do you think you will ever need to get the floor out again?
Col
Col
- Posts
- 9,105
- Location
- Roaming the UK on assignments
That's my problem, with me you never know, part of me thinks bolt in means easy out in the future for fuel tank, ease of access to sedimentor bowl, A frame bushes and ball joint and the other bit thinks drill the holes, blaze it in like all the other millions of em around an work underneath it.
Welding would go faster, bolt in gives more opportunity & flexibility down the road.
Colthebrummie
Well-Known Member
- Posts
- 9,870
- Location
- Thatcham
Then, I'd bolt it inThat's my problem, with me you never know, part of me thinks bolt in means easy out in the future for fuel tank, ease of access to sedimentor bowl, A frame bushes and ball joint and the other bit thinks drill the holes, blaze it in like all the other millions of em around an work underneath it.
Welding would go faster, bolt in gives more opportunity & flexibility down the road.
Col
Pawl
Well-Known Member
- Posts
- 558
- Location
- West Midlands, UK
How close is the section to be replaced to the chassis mounts ?
MOT testers sometimes take a more extreme view of strength reduction if items not as production near the structural mountings.
MOT testers sometimes take a more extreme view of strength reduction if items not as production near the structural mountings.
- Posts
- 9,105
- Location
- Roaming the UK on assignments
Will measure it up to be certain but not very close.
Hicap phill
Well-Known Member
- Posts
- 15,381
- Location
- Wiltshire
Bolt it in.
Drill/tap some good fixing points.
As you say it's better for later work.
Drill/tap some good fixing points.
As you say it's better for later work.
- Posts
- 15,100
- Location
- Benfleet, Essex
Weld a peripheral lip on all the way round and bolt to that with a waterprooof gasket between the floor panel and the lip?
Would perhaps be the best of both worlds?
Would perhaps be the best of both worlds?
1988smithy
Well-Known Member
- Posts
- 3,895
- Location
- West midlands
Bolt it, it's a keeper
- Posts
- 9,105
- Location
- Roaming the UK on assignments

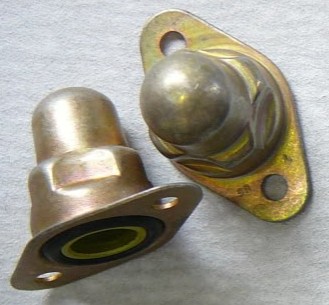

I found these.
Look to need a couple of small skin pins to secure them but look at the way they have their own "O" ring seals, once they're in place and they'll be good for years and the bolts won't rust in the nuts either so right result
The floor panel sits on a panel lip around it's circumference and is usually spot welded to the front, sides, rear and to the floor support bars that run across it.
I bought a couple of rolls of the closed cell foamed neoprene door seal strip from Lidl ages ago, it's about 3/4" wide so should be plenty wide enough
- Posts
- 15,100
- Location
- Benfleet, Essex
Sorted! Will be a great upgrade with respect to servicing.I found these.
View attachment 174217
Look to need a couple of small skin pins to secure them but look at the way they have their own "O" ring seals, once they're in place and they'll be good for years and the bolts won't rust in the nuts either so right result
The floor panel sits on a panel lip around it's circumference and is usually spot welded to the front, sides, rear and to the floor support bars that run across it.
I bought a couple of rolls of the closed cell foamed neoprene door seal strip from Lidl ages ago, it's about 3/4" wide so should be plenty wide enough
- Posts
- 9,105
- Location
- Roaming the UK on assignments
100% a keeper, really hadn't planned on doing this again but needs must and I'll be sure to get in there once I've repaired it all this time and apply a generous underbody wax coating that will creep into all the seams and joints and any residual rust I missed or just can't reach without popping the body off.
You seem like a bit of a boy racer from back in the day with your admission of being an avid reader of Max Power
Don't suppose you know anything about wheel arch rolling?
1988smithy
Well-Known Member
- Posts
- 3,895
- Location
- West midlands
Yeah, don't do it with a scaff tube and the car rolling
Closest I got to boy racer was a diesel 306 with chopped springs and a nova 1.4sr with ground hubs to fit cav wheels
- Posts
- 9,105
- Location
- Roaming the UK on assignments
Yeah, don't do it with a scaff tube and the car rolling
Closest I got to boy racer was a diesel 306 with chopped springs and a nova 1.4sr with ground hubs to fit cav wheels

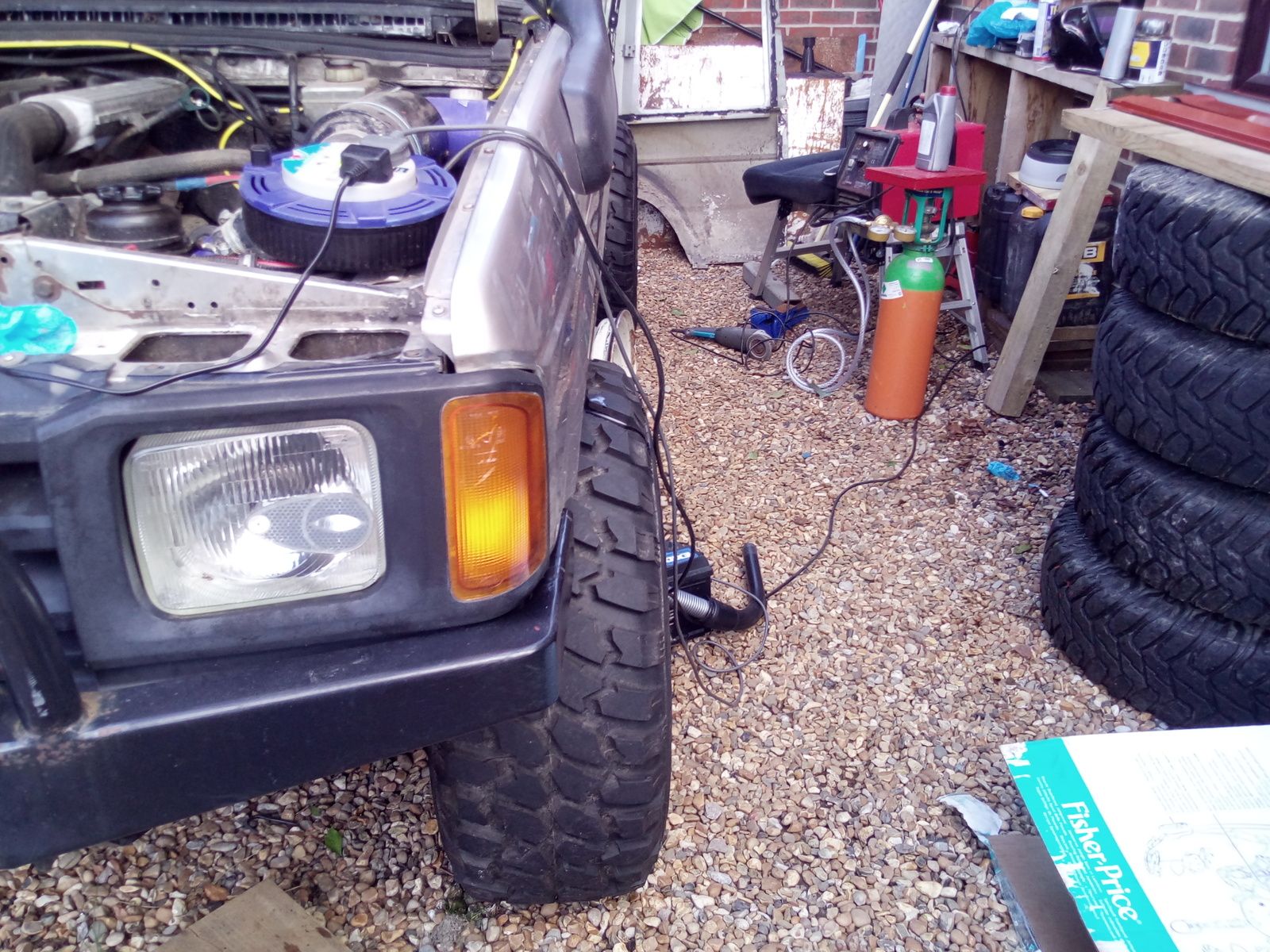

I need about 3 inches of coverage over the tyres
Fell asleep on the couch with the babe after giving her a bottle an YouTube had auto played me to this from a This Old Tony vid.
Just wondering how far I could push the roller? I might be being a little over optimistic?
I need about 3 inches of coverage over the tyres
View attachment 174223
Fell asleep on the couch with the babe after giving her a bottle an YouTube had auto played me to this from a This Old Tony vid.
Just wondering how far I could push the roller? I might be being a little over optimistic?
Might go if you warm it being alloy?
Gazbo
Well-Known Member
- Posts
- 3,949
I need about 3 inches of coverage over the tyres
View attachment 174223
Fell asleep on the couch with the babe after giving her a bottle an YouTube had auto played me to this from a This Old Tony vid.
Just wondering how far I could push the roller? I might be being a little over optimistic?
Because it's aluminium it will stretch a lot easier than the high strength low alloy steel of a modern steel body, so it could work fine for you. The person who thought of that device is pretty clever, it takes a lot of guesswork out of guard flaring.
