Where i can find blower resistor on my freelander 1?Thanks.
Blower resistor??
- Thread starter ilija_oreshkov
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
J_D
Well-Known Member
- Posts
- 648
- Location
- Worcestershire
Where did you have it last?
Alibro
Well-Known Member
- Posts
- 7,205
- Location
- Northern Ireland
Everyone's a comedian!
Which model?
Have you tried Google, I typed your question into Google and the first link was a video showing the location for a Freelander 1.
ilija_oreshkov
New Member
- Posts
- 4
- Location
- Macedonia
Everyone's a comedian!
Which model?
Have you tried Google, I typed your question into Google and the first link was a video showing the location for a Freelander 1.
I know this video, but on my freelander is not like this.I cant find here, my steering wheel is on left side.
J_D
Well-Known Member
- Posts
- 648
- Location
- Worcestershire
I think it's reversed for lhd. Not seen the video though.
Looking at rhd pic it's green and next to the round motor, towards the engine.
I've seen having ac makes a difference or maybe some other parts in the way.
If you can find the fan connector it should be close as it's cooled by the fan.
Looking at rhd pic it's green and next to the round motor, towards the engine.
I've seen having ac makes a difference or maybe some other parts in the way.
If you can find the fan connector it should be close as it's cooled by the fan.
ilija_oreshkov
New Member
- Posts
- 4
- Location
- Macedonia
J_D
Well-Known Member
- Posts
- 648
- Location
- Worcestershire
On mine, the blower looks the same.
Its got about 4 cables going to it.
Its fitted to the surround that's out of your picture.
The bit where the motor fixes to with 3 screws.
Its towards the engine side, but obviously mine is in the other side.
Its got about 4 cables going to it.
Its fitted to the surround that's out of your picture.
The bit where the motor fixes to with 3 screws.
Its towards the engine side, but obviously mine is in the other side.
J_D
Well-Known Member
- Posts
- 648
- Location
- Worcestershire
I think, not sure though, if you take out the blower you should be able to see inside or feel the resistors in there.
Its only held by the 3 screws and power cable
Its only held by the 3 screws and power cable
In the side of the heater box, close to the motor. It's a small square thing, with 4 wires coming out.
ilija_oreshkov
New Member
- Posts
- 4
- Location
- Macedonia
I finaly find the resistor and repair.Now blower motor works fine on 1 2 3 and 4 speed.I repair and blower motor, here was dust and oil.I dont know from where the oil comes in blower pipes.Im sending you pictures from my work, thanks for all who help me with the answers
Attachments
CaptHanDjob
Member
- Posts
- 15
- Location
- Finland
I think you'll find the heater resistor on the driver side of the heater box, which is the side opposite the diagnostic port.
CaptHanDjob
Member
- Posts
- 15
- Location
- Finland
andyfreelandy
Well-Known Member
- Posts
- 5,586
- Location
- Devon
If that is the accelerator pedal, you are looking on the wrong side !!LHD ??
CaptHanDjob
Member
- Posts
- 15
- Location
- Finland
Hello,

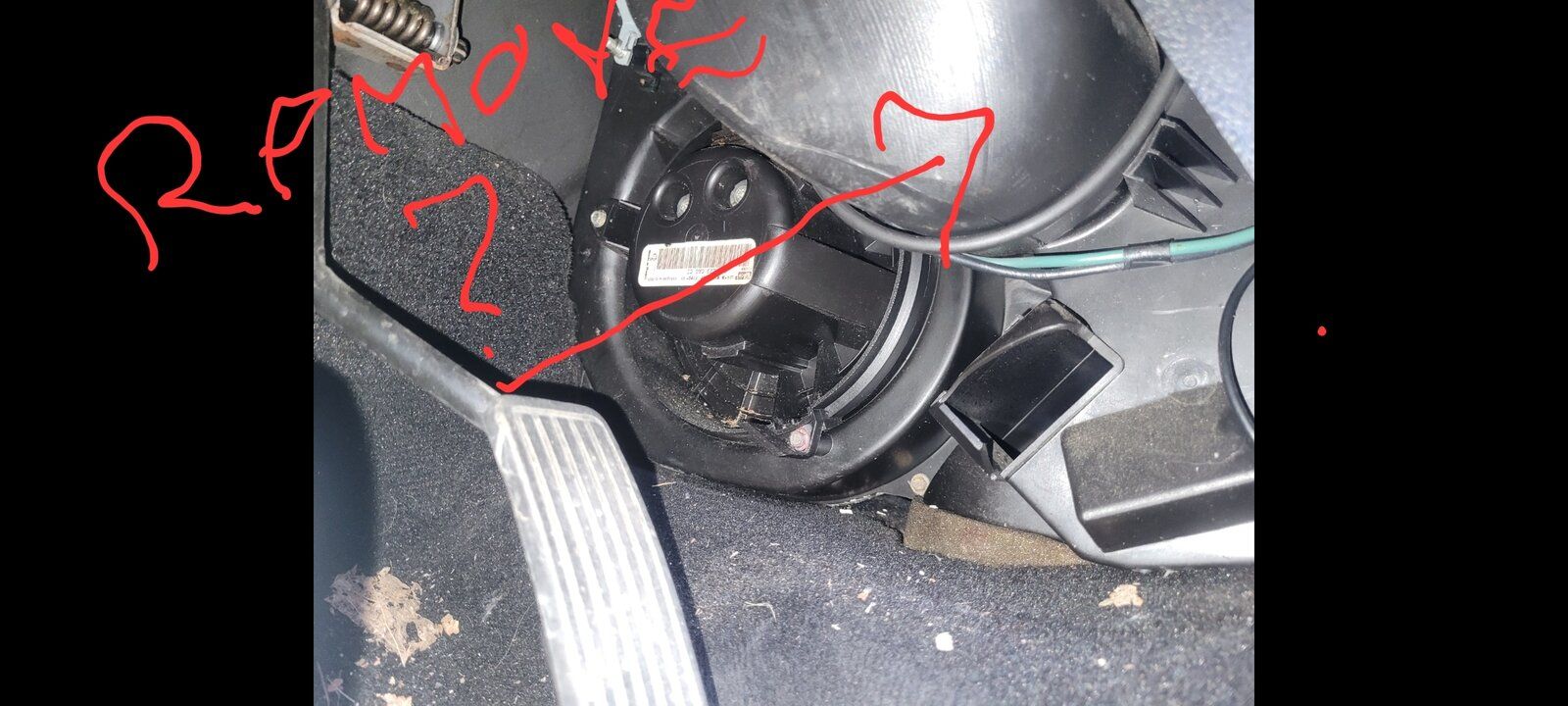

Yes LHD. Looking youtube video of RHD car I couldnt find it? So i thought if its on other side. Attached once more the right hand side picture. Resistor should be near blower behind that tube then? Need to remove the black box to see it?
Sorry for trouble, this is so annoying I know
Captain
Yes LHD. Looking youtube video of RHD car I couldnt find it? So i thought if its on other side. Attached once more the right hand side picture. Resistor should be near blower behind that tube then? Need to remove the black box to see it?
Sorry for trouble, this is so annoying I know
Captain
Attachments
CaptHanDjob
Member
- Posts
- 15
- Location
- Finland
andyfreelandy
Well-Known Member
- Posts
- 5,586
- Location
- Devon

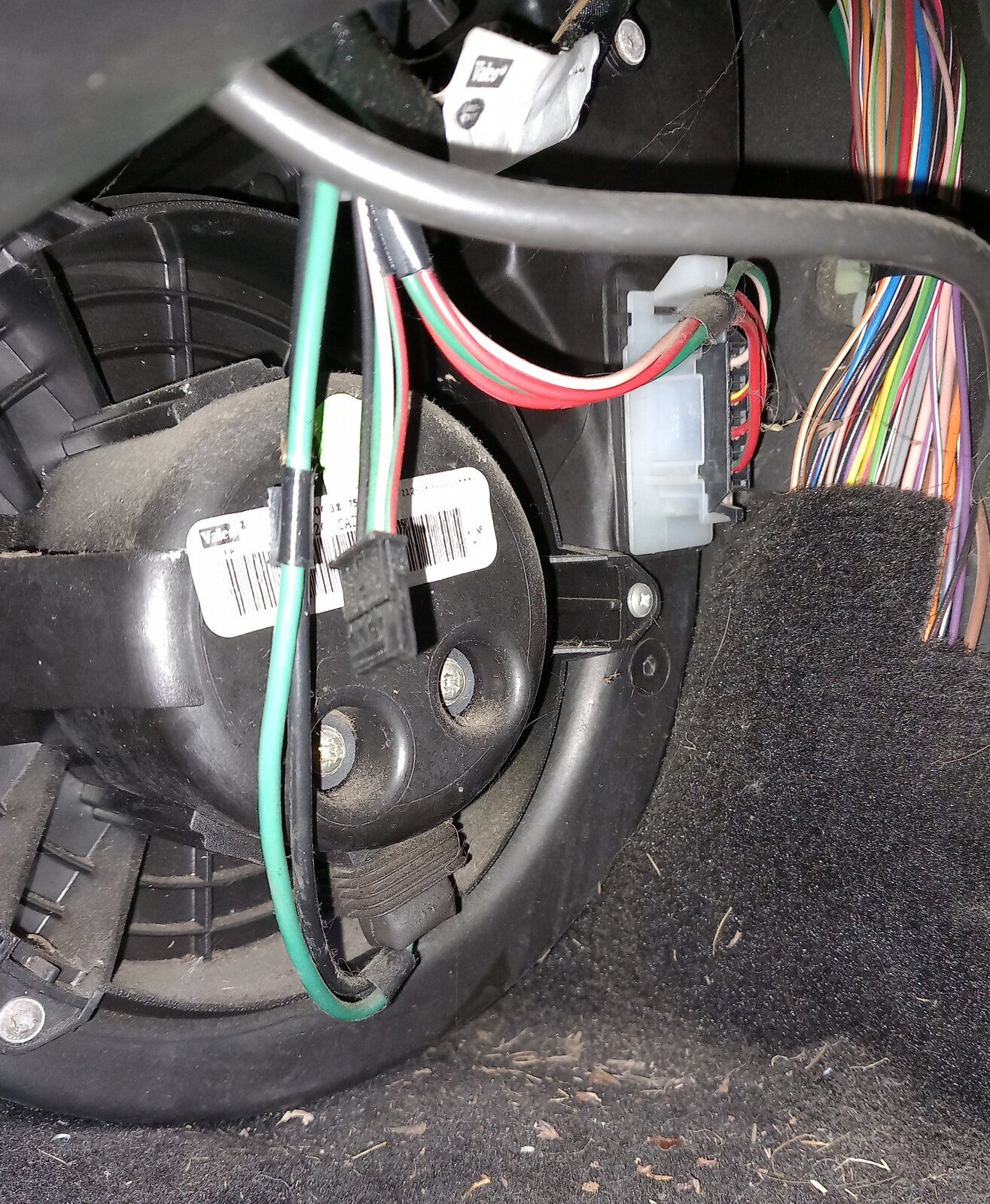

Here is mine on a RHD car the resistor pack is on the right hand side of the tunnel. On mine you can see it without removing anything.The LHD appears to have the heating system reconfigured as your pollen filter is on the right and mine is on the left.
Hope this helps.
