Freelander 1 Belts

anubis757 · Feb 16, 2021

2004 HSE 121k
Hello I need to change my AC belt and aux belt ….I don't know what pulleys or tensioners I found the belt (AC) reference from Britparts....Any idea about the refe. for the serpentine belt and tensioners , and the tensioners for the AC one?
And videos how to ...if possible
Many Thanks

freespaña · Feb 16, 2021

SHORT BELT - A / C COMPRESSOR
PQS000180
TENSIONER PULLEY long belt
LonPQR000080
g automatic tensioner long belt
PQS101710L
FREE PULLEY long belt
PRF100060L
Short belt tensioner - A / A compressor
PQG100340L

anubis757 · Mar 29, 2021

WOW THANK YOU SO MUCH

mbrokof · Apr 18, 2022

Did you get the tensioner PQS101710L changed? Just wondering how that works? Does the engine cover need removal as on that picture http://cat.lrparts.ru/?category=67201 it doesn't look clear to me, more like if it would be inside the engine.

Nodge68 · Apr 18, 2022

mbrokof said:
Does the engine cover need removal as on that picture

No, the timing cover doesn't need to be removed, the belt tensioner bolts to it.

mbrokof · Apr 18, 2022

Thanks @Nodge68 then my eyes are still working when I was underneath recently.

Alteredtech · Apr 19, 2022

Hi,

The automatic tensionner

. The workshop manual suggest to remove to much parts to access the retaining nut

don't know if it is necessary. You should plan 3 hours only for replacing the tensionner.

Regards.

Nodge68 · Apr 19, 2022

Alteredtech said:
You should plan 3 hours only for replacing the tensionner.

Not really, it's held on by 2 bolt iirc.

Alteredtech · Apr 19, 2022

mbrokof · Apr 20, 2022

@Nodge68 You mean the PQS101710L and PQG100330L are bolt together? Someone mentioned that PQG100330L would be connected to a spring inside the engine if I am not mistaken and I was wondering if the one goes into the other?

mbrokof · May 28, 2022

Alteredtech said:

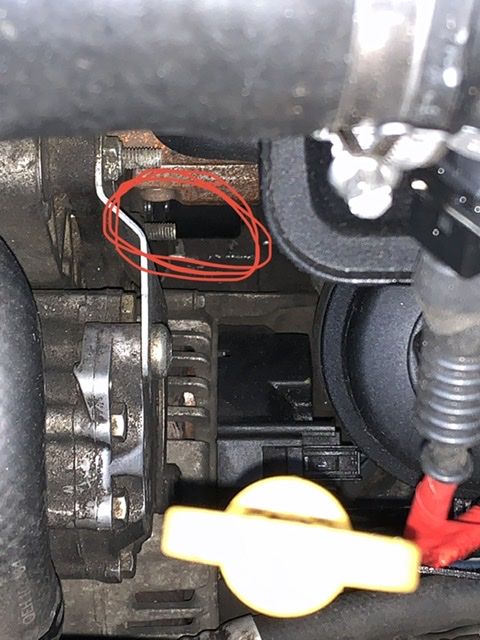

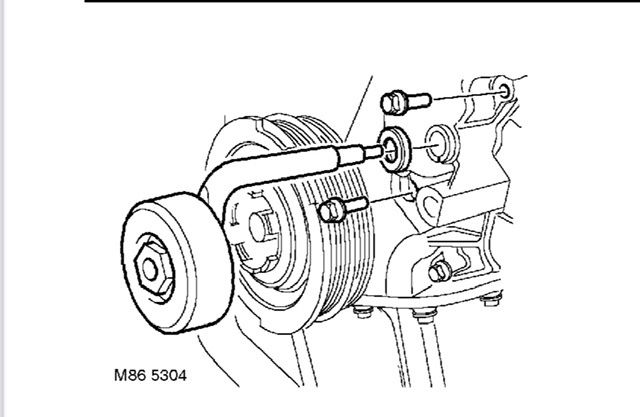

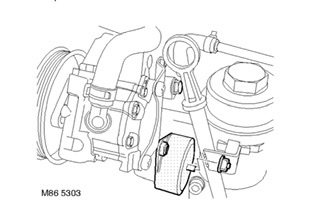

View attachment 263341 View attachment 263339 View attachment 263340

Thanks @Alteredtech

mbrokof · Jun 12, 2022

mbrokof said:
@Nodge68 You mean the PQS101710L and PQG100330L are bolt together? Someone mentioned that PQG100330L would be connected to a spring inside the engine if I am not mistaken and I was wondering if the one goes into the other?

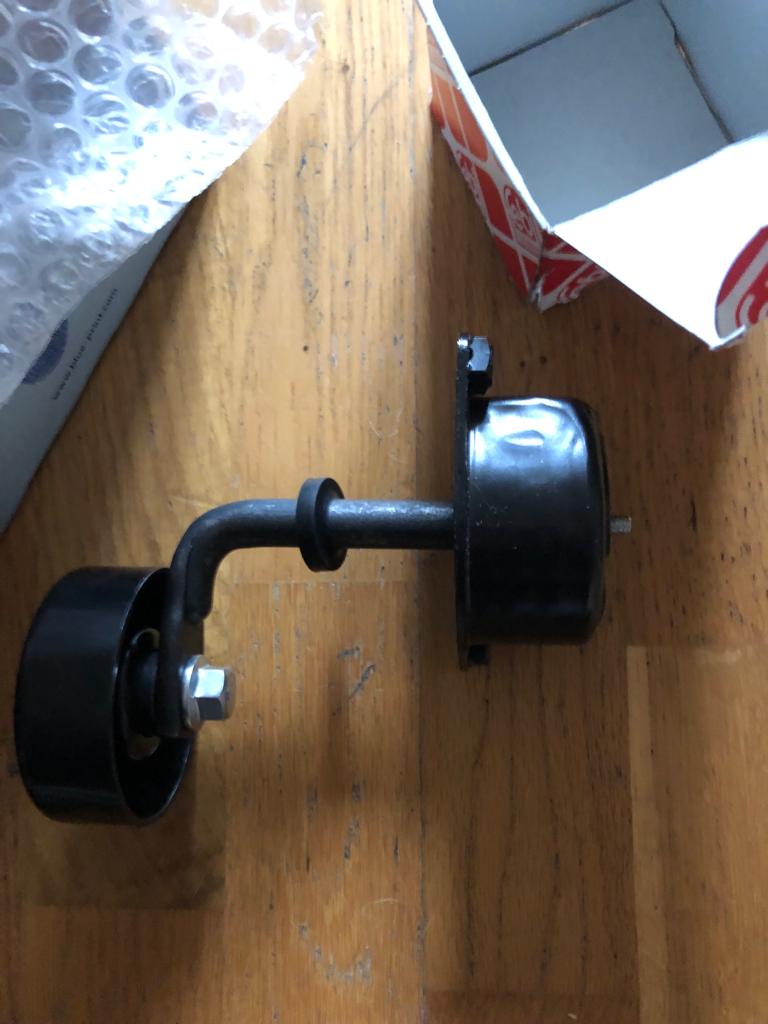

Here is coming the picture on how those two add together:
