ciderman
Active Member
- Posts
- 770
- Location
- sunny worcestershire
CAN you change the big end and mains on a 3 bearing crank with the engine in place?
BEARINGS
- Thread starter ciderman
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
steve2286w
Well-Known Member
- Posts
- 4,577
- Location
- monkeyangerland
I’ve got the 5mb and you should be able to do that , one at a time , need to ensure correct half goes in on mains then you can slide it round to the upper end of crank pushing the old one out first
then put lower half in cap , with the big ends rotate crank then push piston up to get enough clearance to install

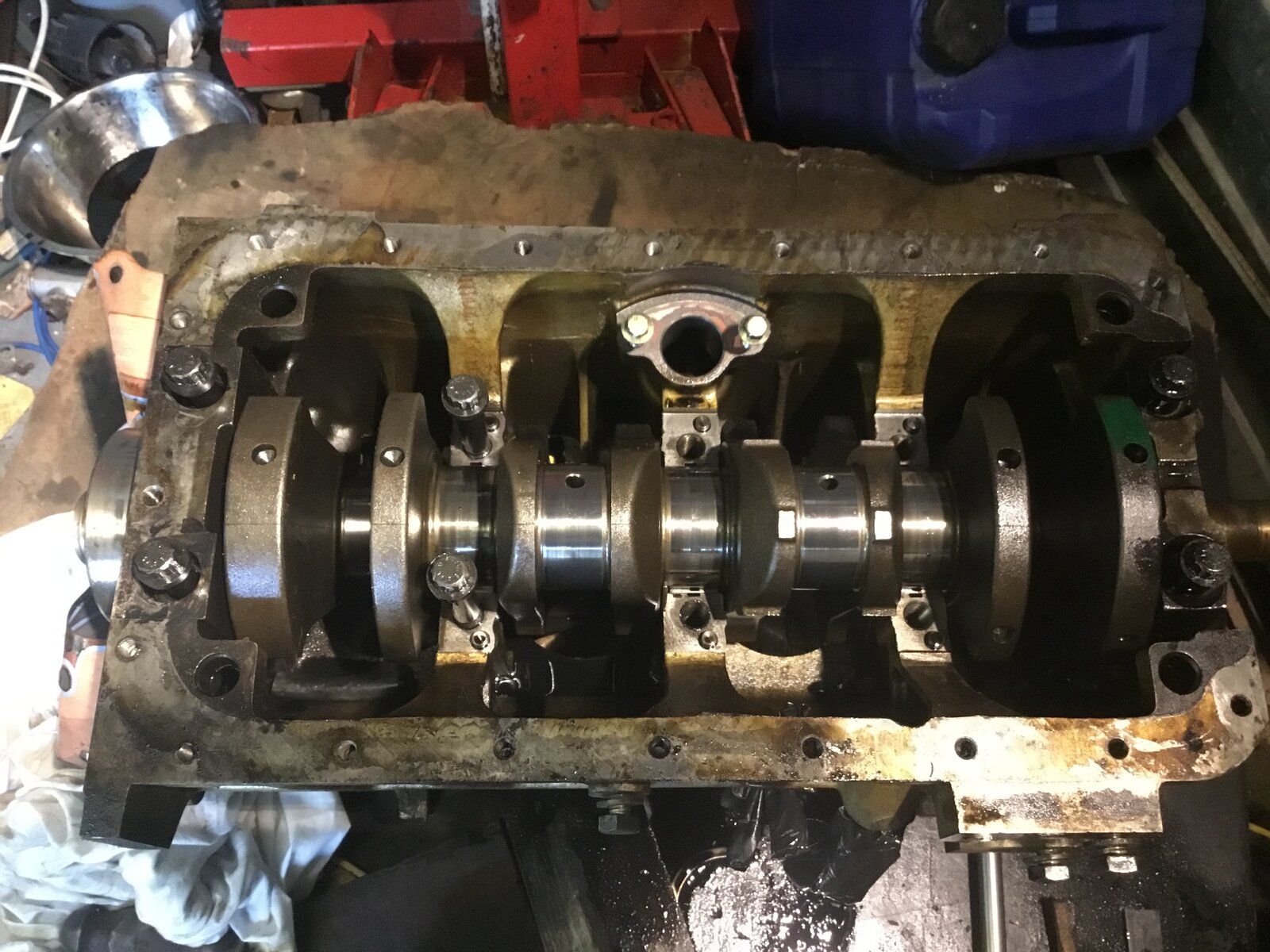

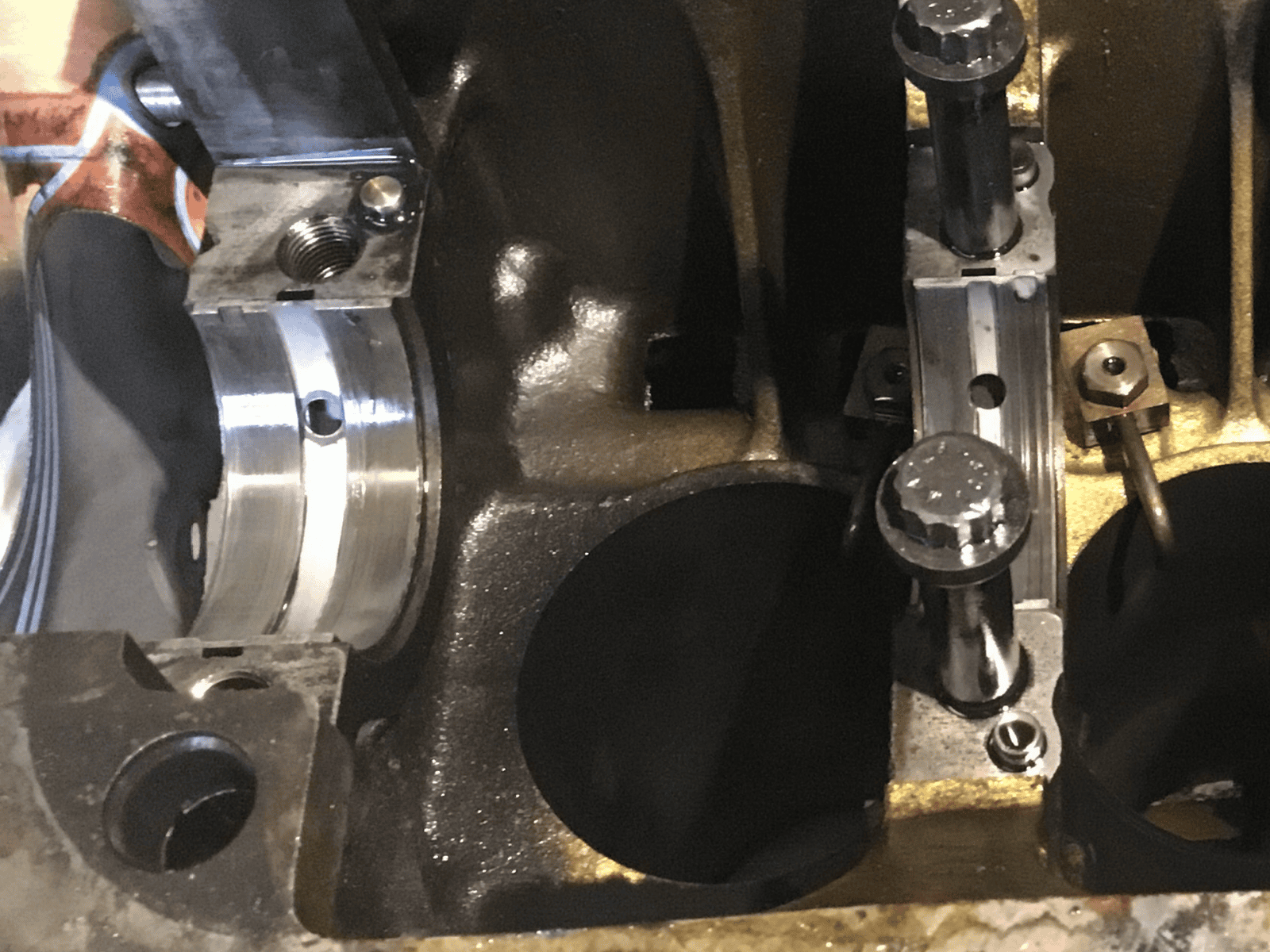

This is my 200tdi but currently doing the series
only do on a still day to avoid dust getting in
This is my 200tdi but currently doing the series
only do on a still day to avoid dust getting in
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
rear main will be a struggle but the rest fairly easy
ciderman
Active Member
- Posts
- 770
- Location
- sunny worcestershire
hi- I couldn't see a way of doing it..........................
steve2286w
Well-Known Member
- Posts
- 4,577
- Location
- monkeyangerland
It will only push out one way as one end has a bit swaged over to stop it moving in housing
The rear main
being wider will need a bit more effort but if the other 2 mains bolts are backed off a bit that will give more clearance
the hardest bit will be getting the T seal back in
The rear main
the hardest bit will be getting the T seal back in
ciderman
Active Member
- Posts
- 770
- Location
- sunny worcestershire
Is that with the bell housing attached?
ciderman
Active Member
- Posts
- 770
- Location
- sunny worcestershire
well we made a slide hammer to the bearing cap and hammered away until the steel strap 25 x 1 with a sump bolt deformed and the bolt head punched through. buggrit. i'll leave it. sounds really smooth now but the front crank oil seal is leaking a drip every 10 seconds.....
Botswana-Mike
New Member
- Posts
- 7
- Location
- Maun, Botswana
So... I want to do the big ends on a S3 petrol - assume this'll be easier than doing the whole lot... Did anyone ever answer Ciderman's question about the bell housing? I don't want to take out the gearbox if I don't have to....
Flossie
Well-Known Member
- Posts
- 11,052
- Location
- Shropshire
steve2286w
Well-Known Member
- Posts
- 4,577
- Location
- monkeyangerland
Big ends no problem, but as your in there at least check mains
ciderman
Active Member
- Posts
- 770
- Location
- sunny worcestershire
Big ends are easy- mains as well but--- the rear one is difficult.
Botswana-Mike
New Member
- Posts
- 7
- Location
- Maun, Botswana
Excellent, thanks very much - I've been putting it off because I don't have a hoist for the engine. Now I can get into the cool darkness of the PIT!
ciderman
Active Member
- Posts
- 770
- Location
- sunny worcestershire
We have abandoned tyre changing as it is too hot I will hide in the house and James will hide in the toilet
Botswana-Mike
New Member
- Posts
- 7
- Location
- Maun, Botswana
Sounds like the two hemispheres are running at similar temps - we've got nice cool nights but the days are already up to 30 deg C - it's s'posed to be winter here.
