Bankzs 110 CSW XS Build

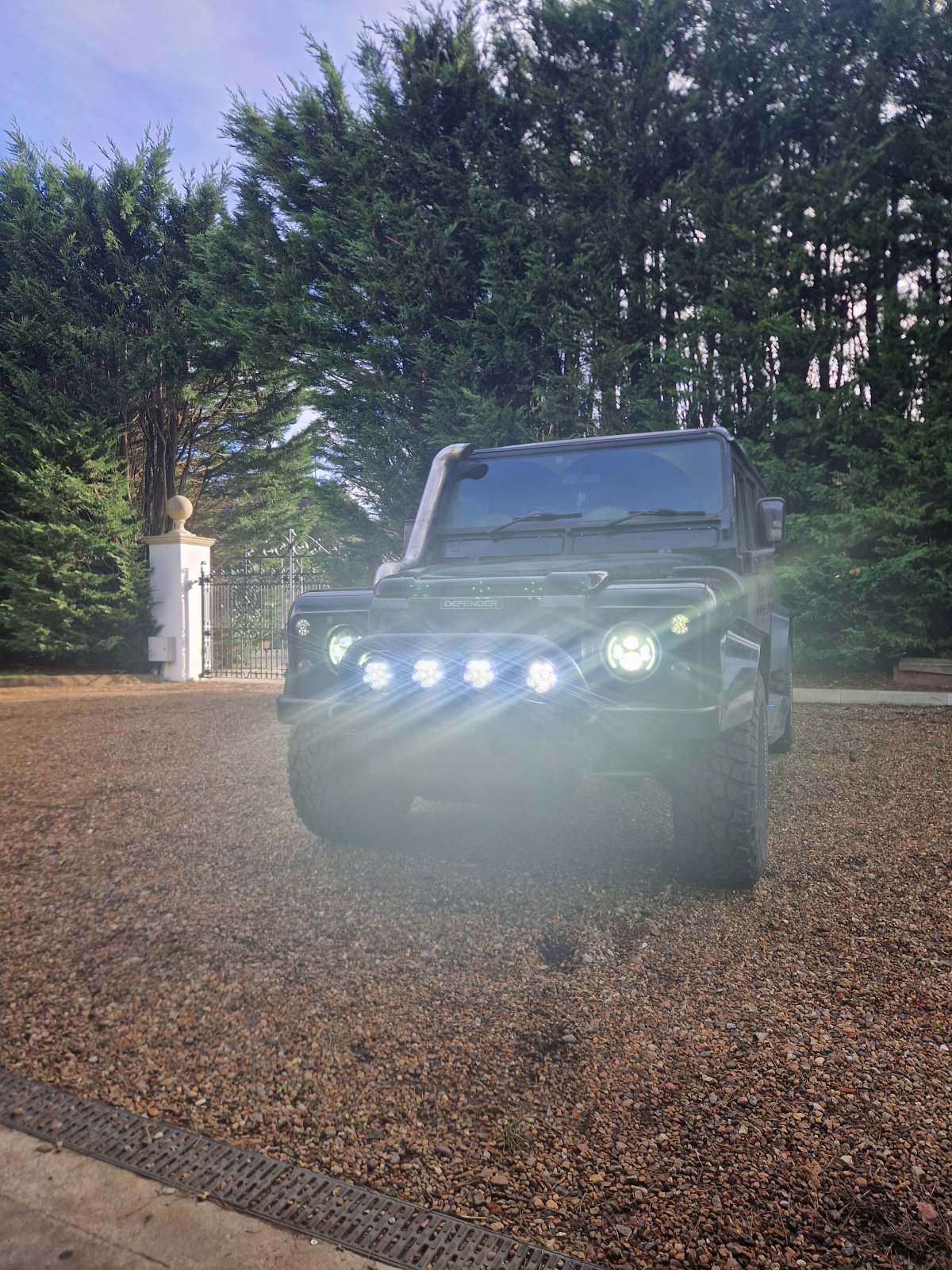

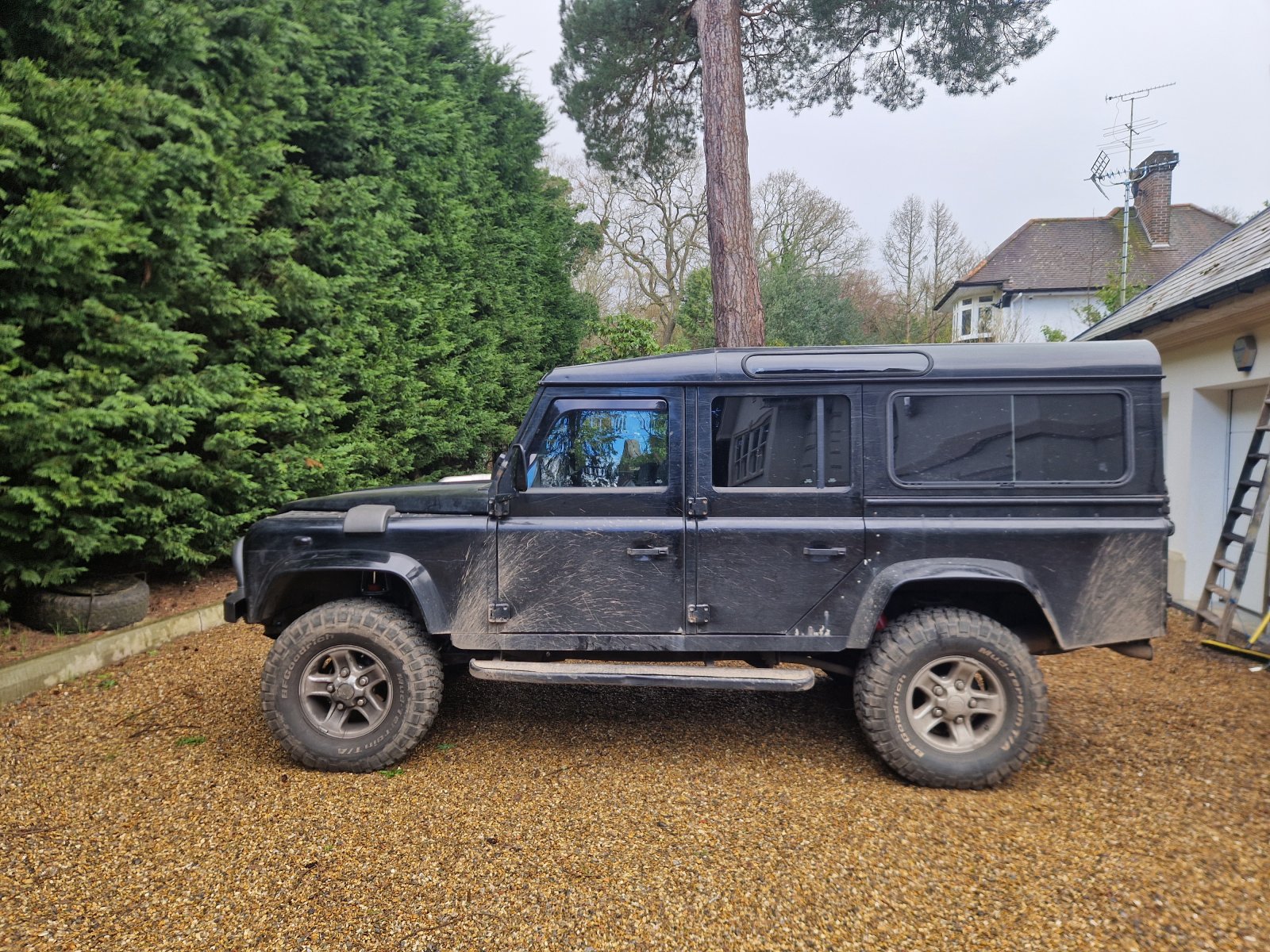

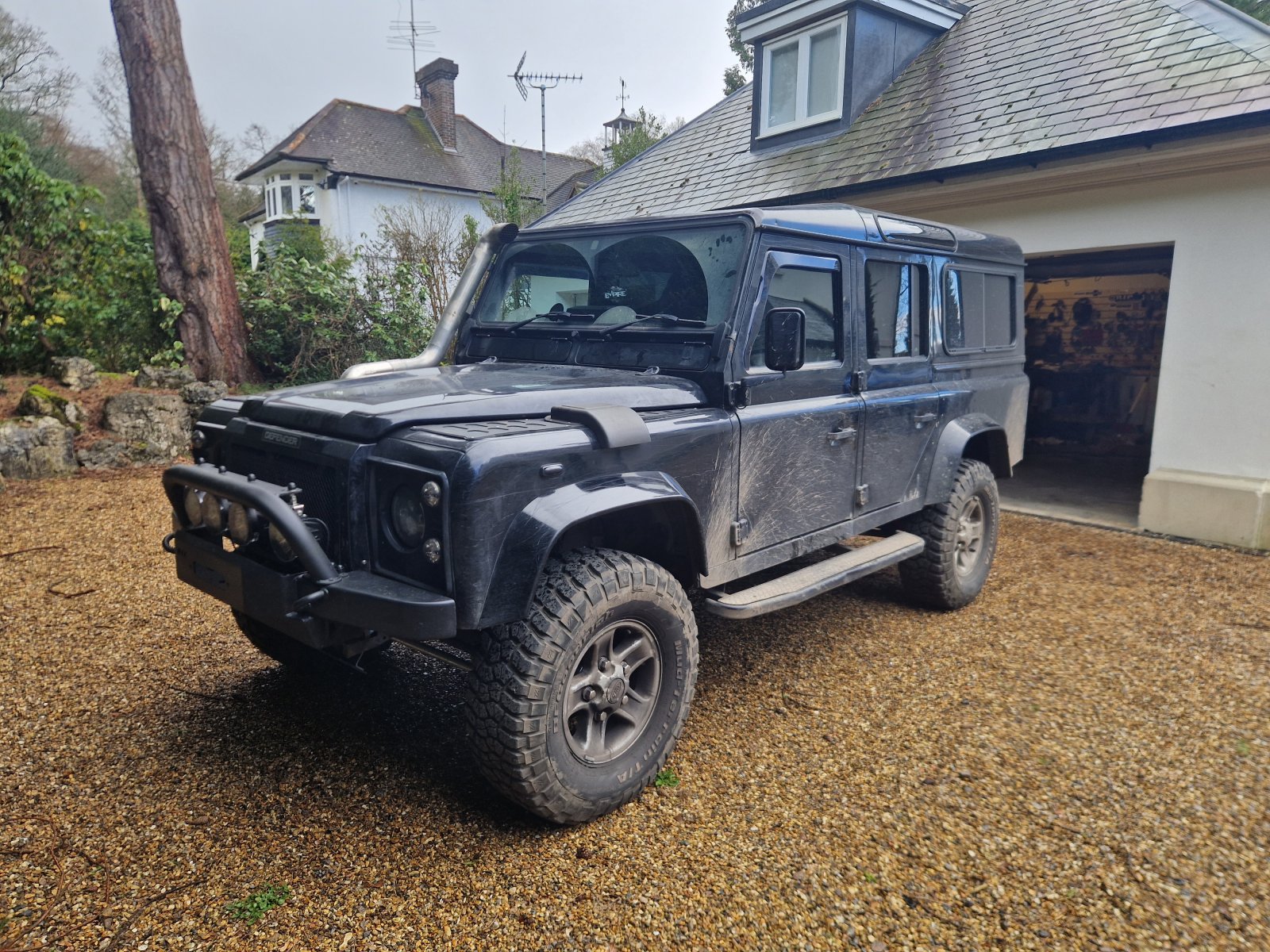

Looks better in the daylight! Subtle but not over bearing in colour given that its all black.

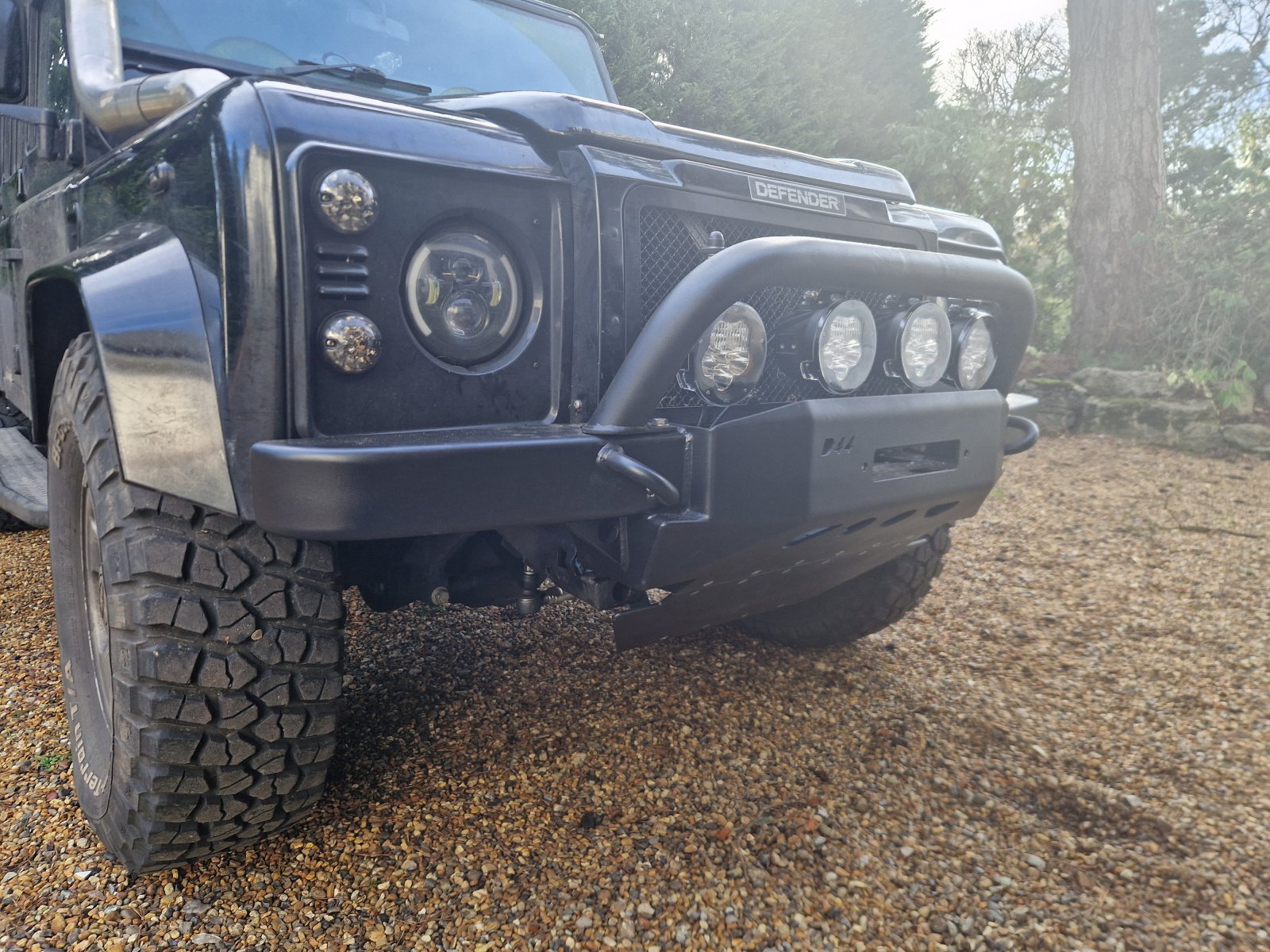

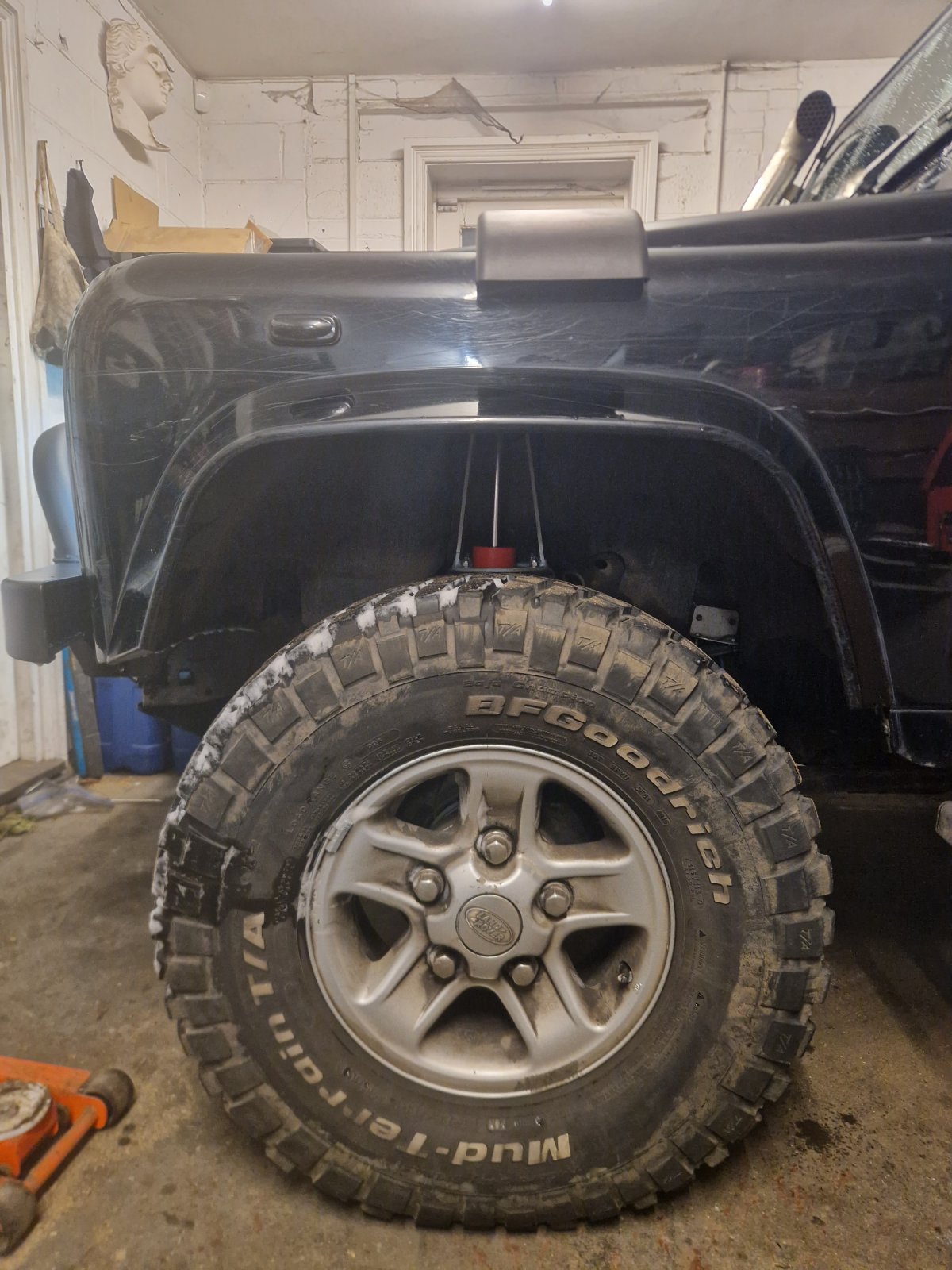

Really happy with the bumper, a face ive not seen in a long time!

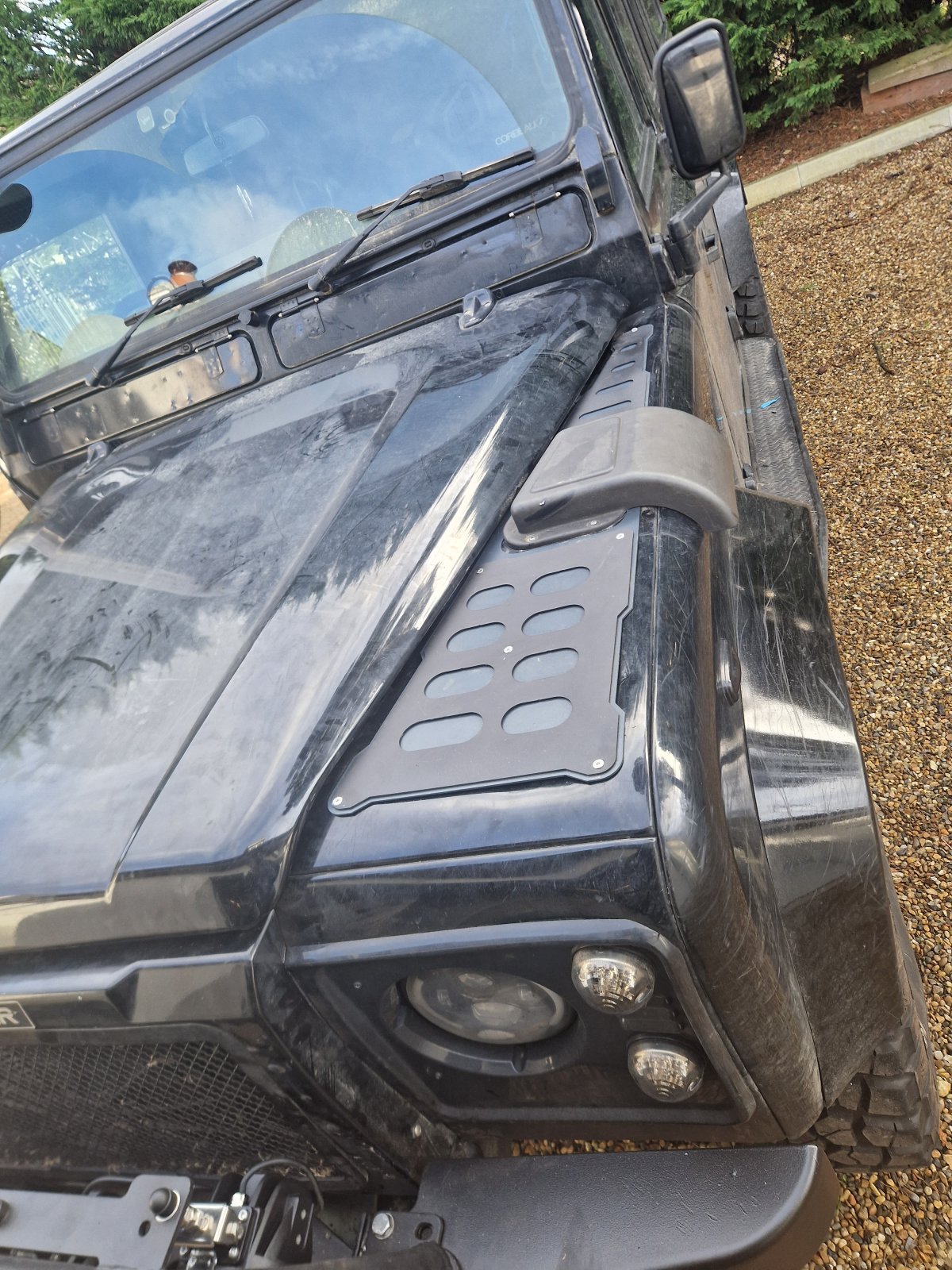

Wired into the high beam switch and a carling switch. Very happy

Suspension is on the way

Same set up as before, couldnt fault it in anyway. Excellent flex, excellent ride.

Had the OME Springs in the garage for a couple months, this was a "risk" as I did spend a huge amount of time researching the spring rates for the old 110. Bought the same ones again.

The fronts identical to the old one only difference is the rear being a DCPU vs a CSW, cant be that much difference surely!

If interested its

Front Springs OME2767
Rear Springs OME2755

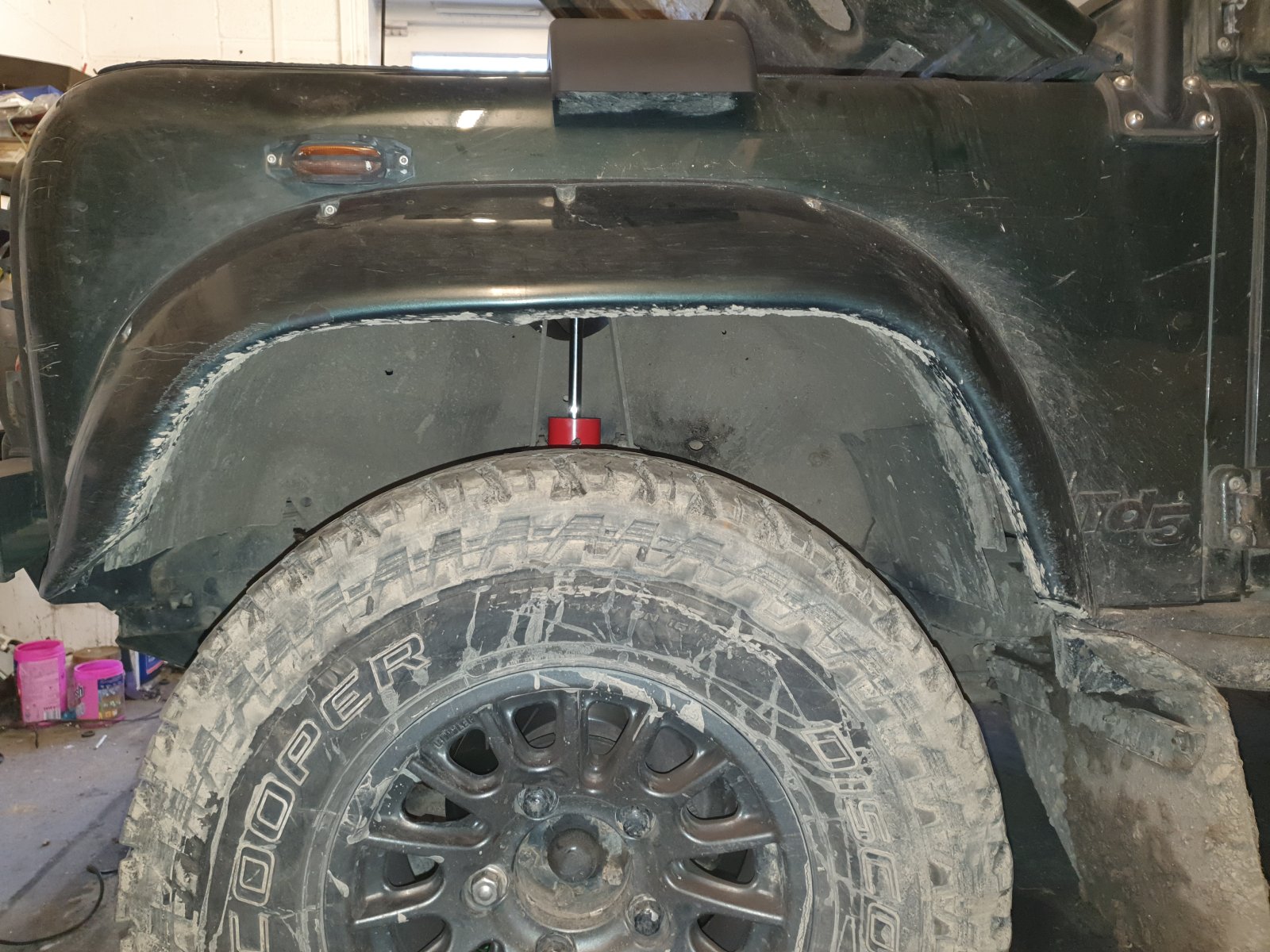

It sat very level and gave a very good ride.

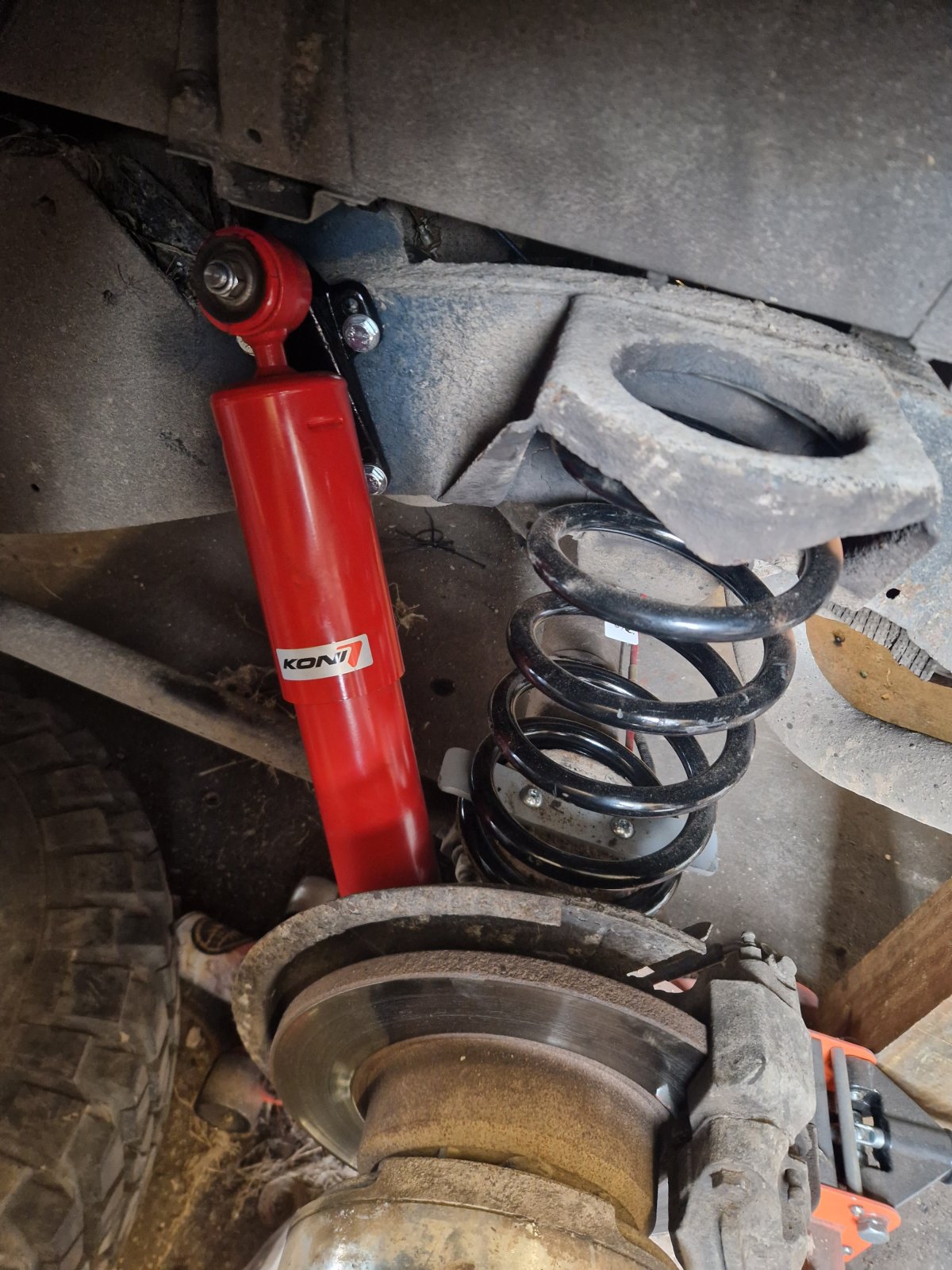

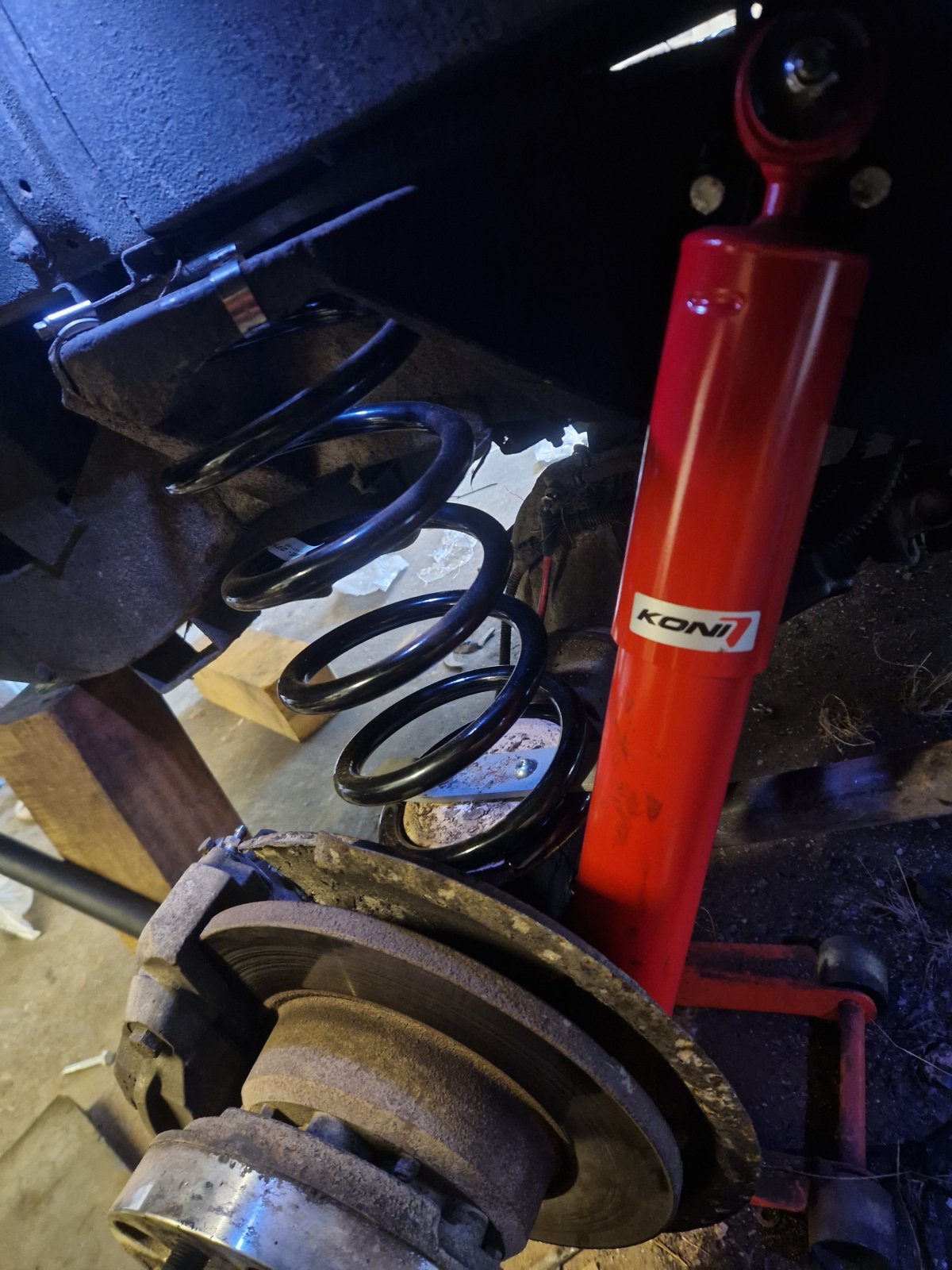

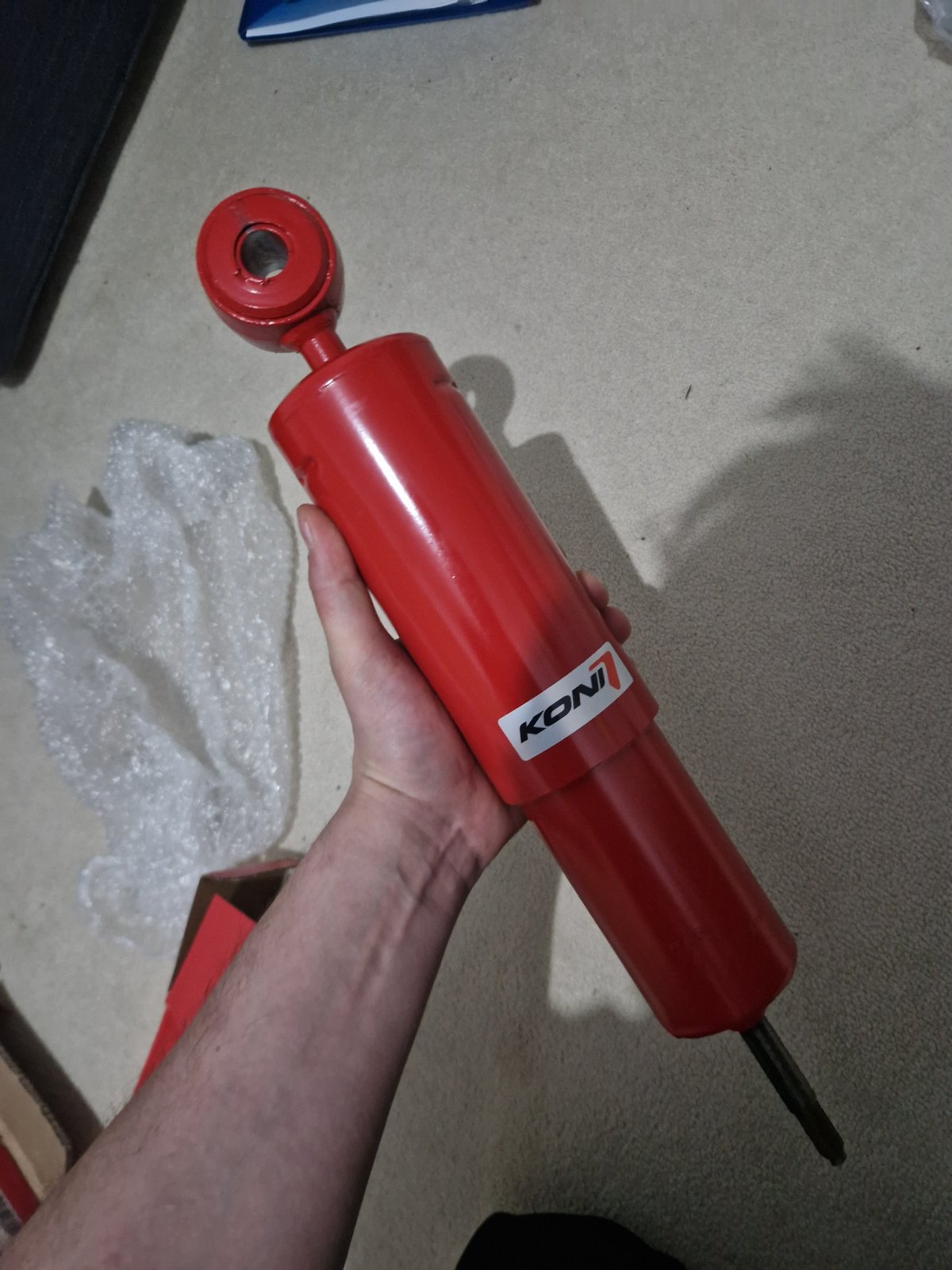

Dampers are thiccc

bankz5152 said:

Dampers are thiccc
View attachment 312583

Click to expand...

chunkas look like they for a light aircraft lol

Repost because the last image gave too much away lol

Ive also found myself a TD5 axle tube for not alot of money.

So instead of painfully trying to remove the 9 rounded and rusted bolts off my swivels.

Im going to build up a new axle!

Gywn lewis HD Diff pan + making my own trusses because why not!

Fit the built ATB diff i have plus new siwvel balls. Much quicker haha

bankz5152 said:

Repost because the last image gave too much away lol

View attachment 312631

Click to expand...

PMSL always wondered where your batcave was lol

moving soon anyway

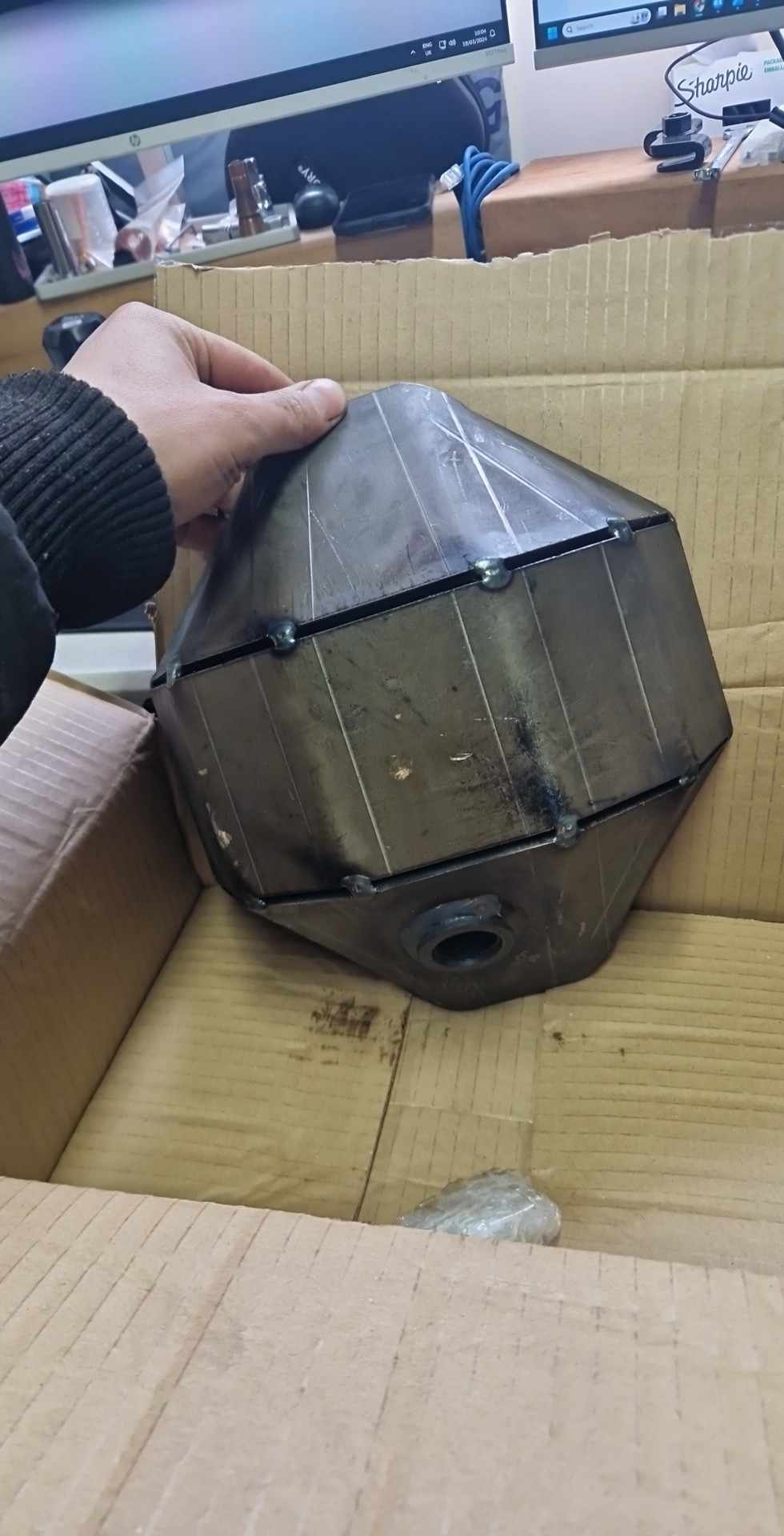

DIY Diff Pan arrived from Gwyn!

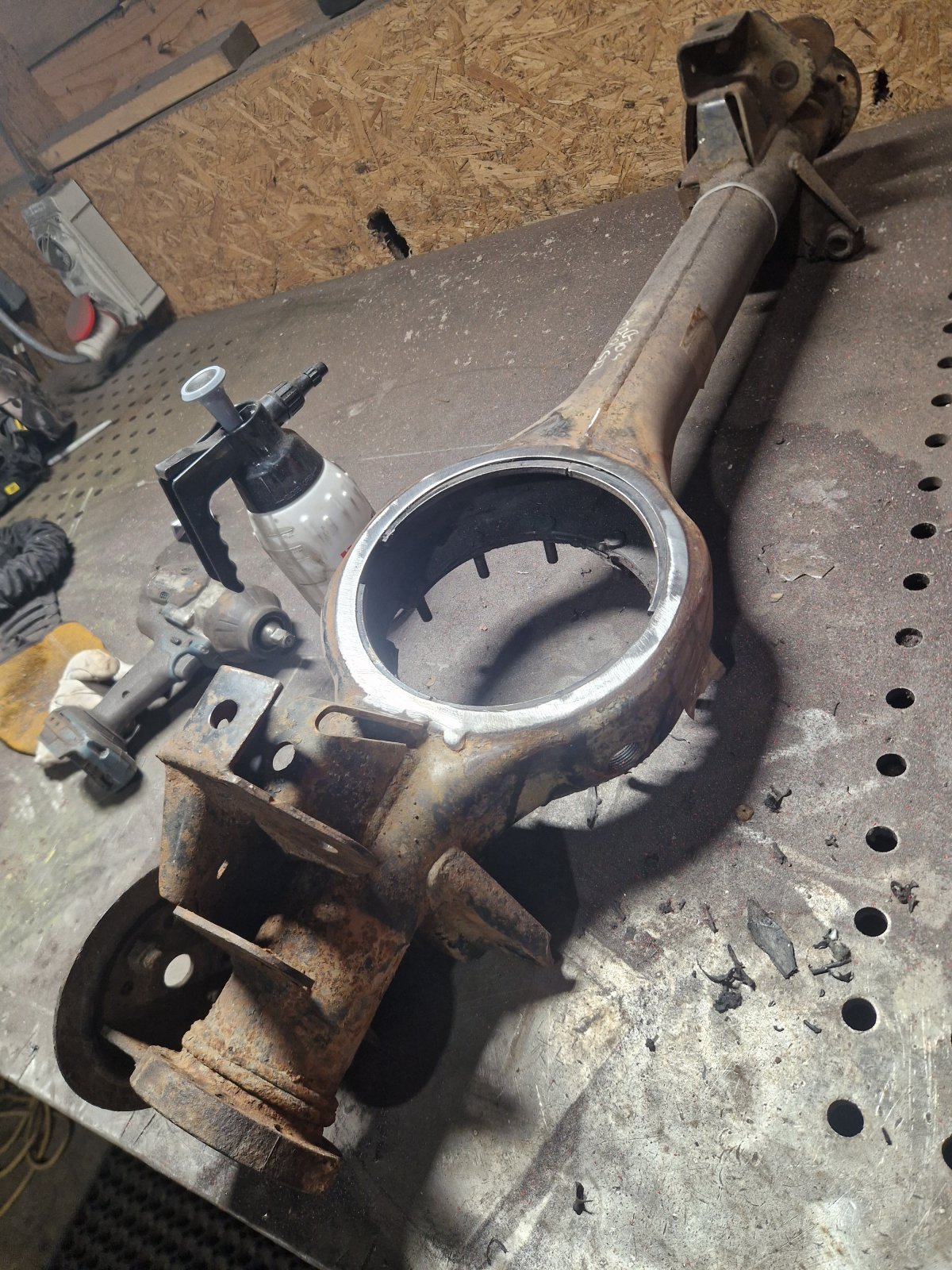

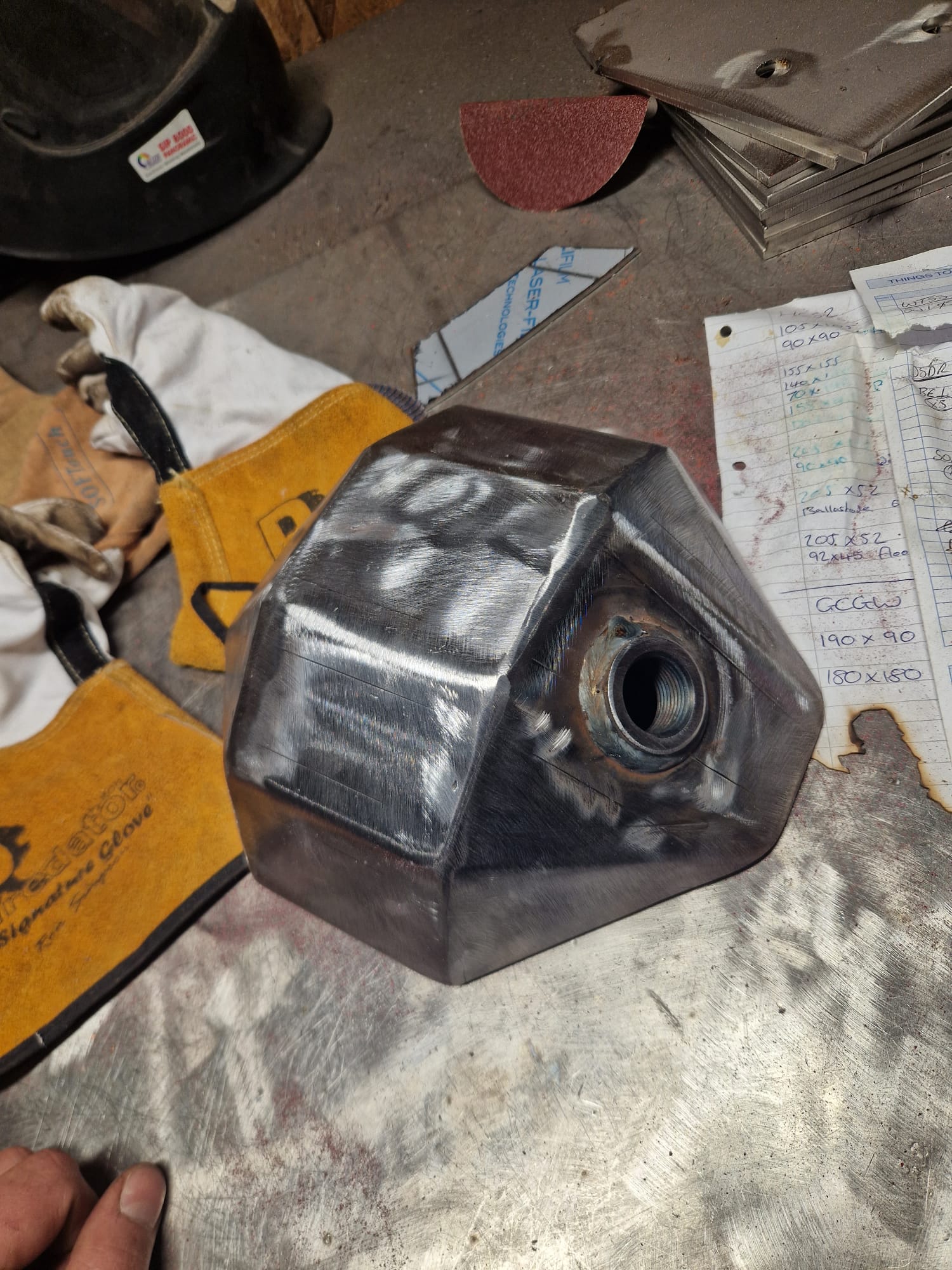

Welded up, cleaned off. Ready for the axle case which arrived today!

Mega exciting pics here

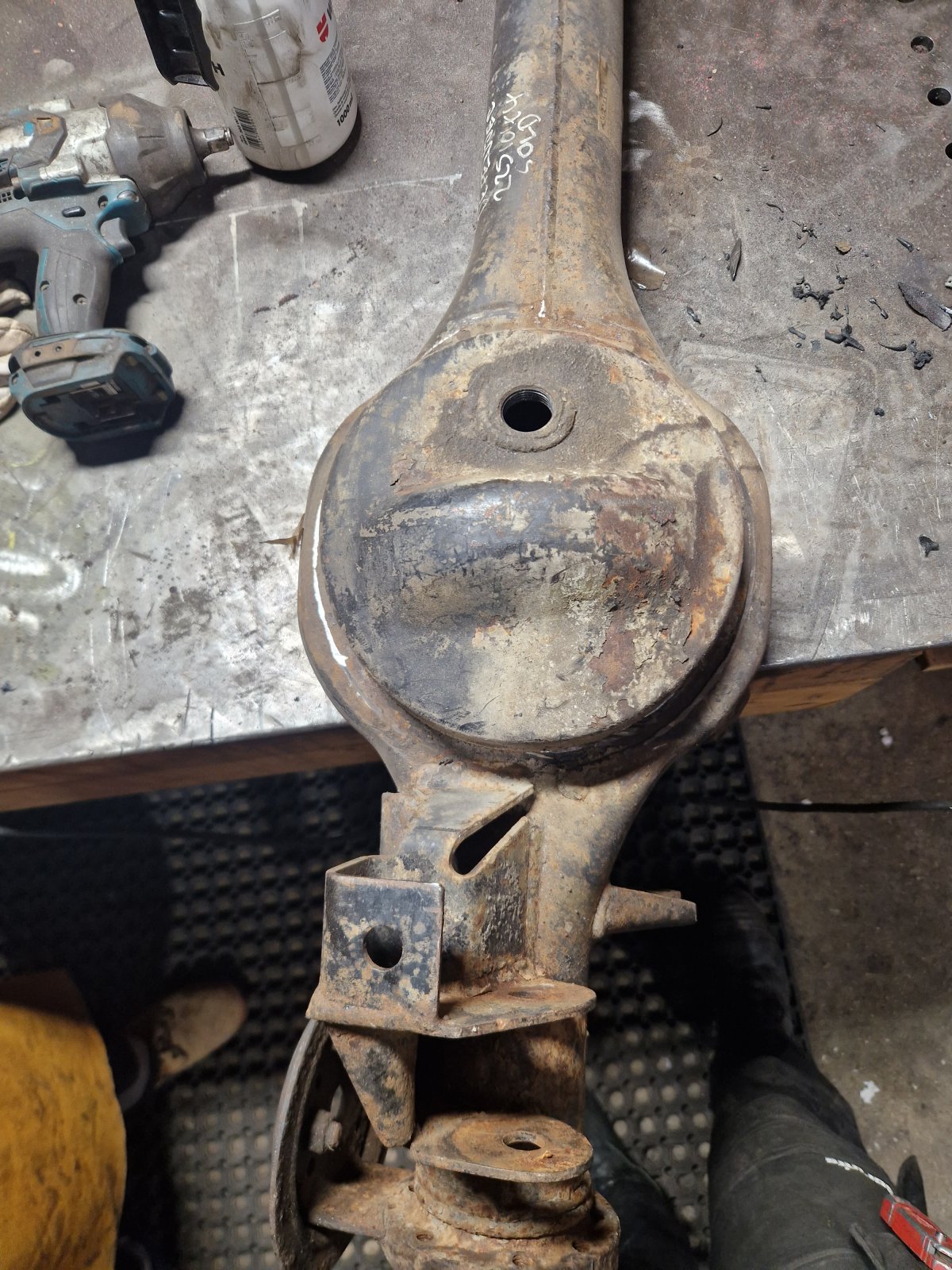

Old pans off. Axles begun cleaning.

Forgot a few pics but the HD weld on pan isnt quite as straight forward as its made out to be!

Given the original is circular and the new is a sort of hexagon shape, tricky to line up correctly. So much so I found the right hard drive mount for the panhard rod had to be modified, bu modified i mean cut off a bit so the new pan could sit more central.

Took a fair bit of fettling as well to get a good fit up. Definitely would not suggest doing this on car even if youre an experienced fabricator!

Going to look at drawing up a truss kit for the long side because why not

Wont be fitting this for a while.
Plan is to shot blast this one, repaint, get the swivel balls fitted, ATB fitted. Then transfer over my current hubs but new swivel bearings.

Do the military do an updated diff pan?

Still like your builds. Write ups are great because even if there is a problem you tell us and possibly how to get round it.

Hicap phill said:

Do the military do an updated diff pan?

Still like your builds. Write ups are great because even if there is a problem you tell us and possibly how to get round it.

Click to expand...

Think some military axles had thicker pans and heavy trussing but rather rare.

Thanks

Partly for my own records partly as a thank you to the community. Spending countless hours reading threads in the past trying to find solutions to odd problems!

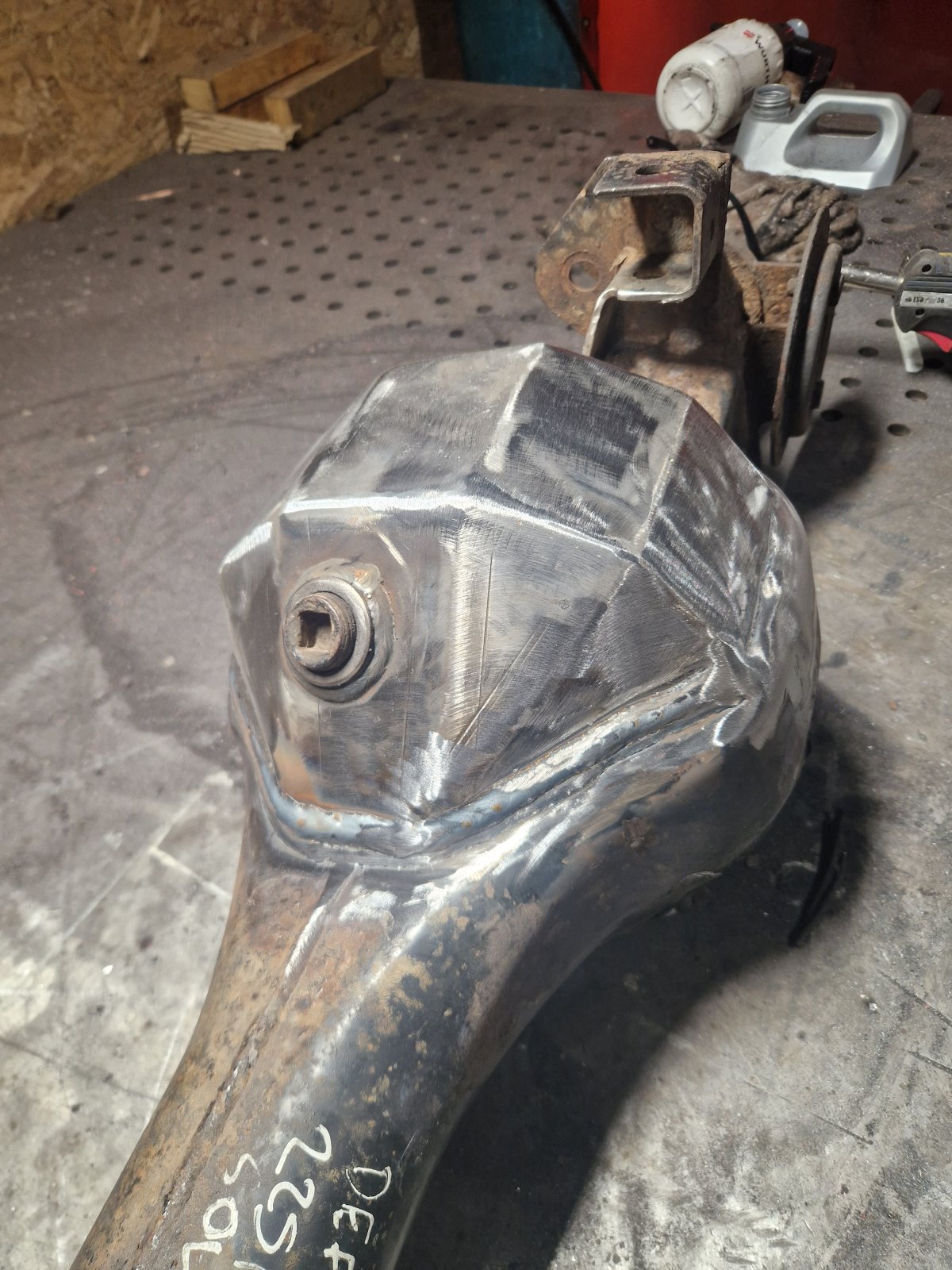

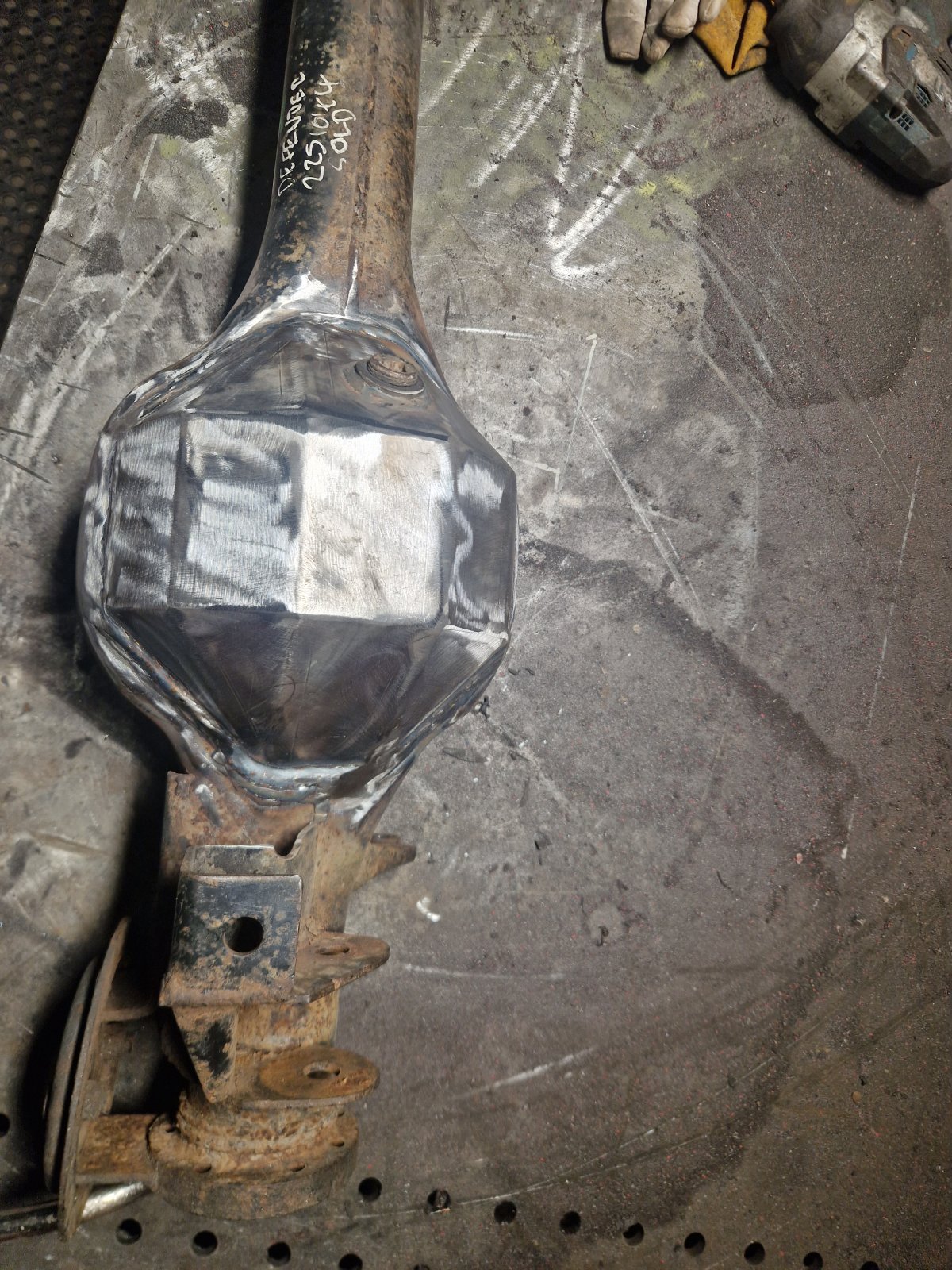

Welded

bankz5152 said:

Think some military axles had thicker pans and heavy trussing but rather rare.

Thanks

Partly for my own records partly as a thank you to the community. Spending countless hours reading threads in the past trying to find solutions to odd problems!

Welded

View attachment 313121

View attachment 313122

Click to expand...

You do know how to make a man go moist...........
bet you got a sunburn now!
I dont want to give anything away but i have seen the final drawings for this project....

bankz5152 said:

Think some military axles had thicker pans and heavy trussing but rather rare.

Thanks

Partly for my own records partly as a thank you to the community. Spending countless hours reading threads in the past trying to find solutions to odd problems!

Welded

View attachment 313121

View attachment 313122

Click to expand...

Interested as to why the diff fill/level plug is lower? (or seems)

Nice work though, I enjoy your updates keep em coming .


J

marjon said:

Interested as to why the diff fill/level plug is lower? (or seems)

Nice work though, I enjoy your updates keep em coming .


J

Click to expand...

I thought that. Even looked to see if was welded upside down.
Think as it’s wider than standard,oil must get thrown round more

Tbf hadnt noticed the diff plug but it does look lower so.will look again tomorrow

It is a little wider and sticks out a little further and more of a dome shape rather than the pressed one from LR. So I expect it will actually hold a little more oil! Ill measure when I fill it up.

Funnily enough I weighed an old wrap around diff guard. Came in at 5.6kg. This is 4kg so actually a bit lighter!!

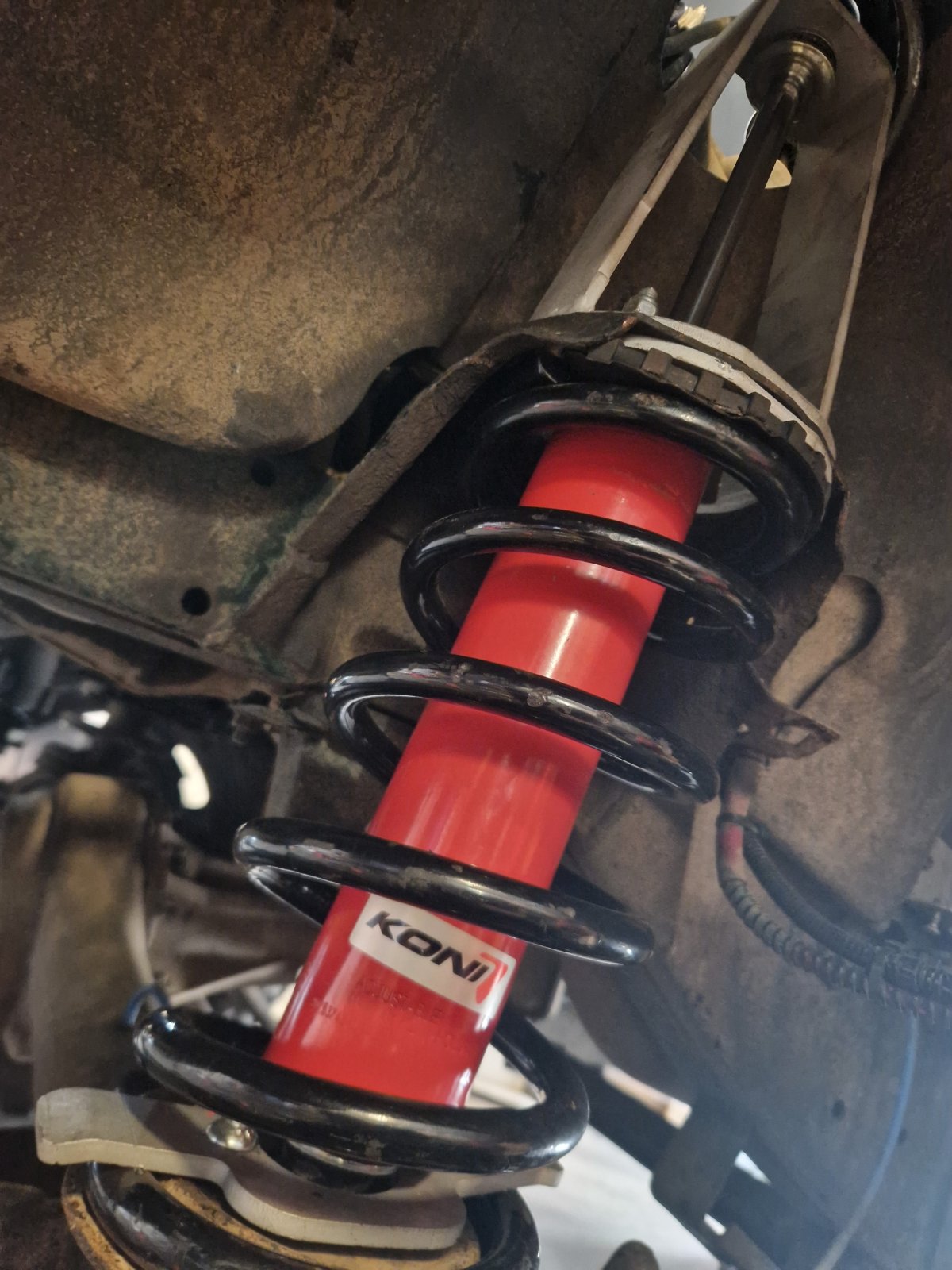

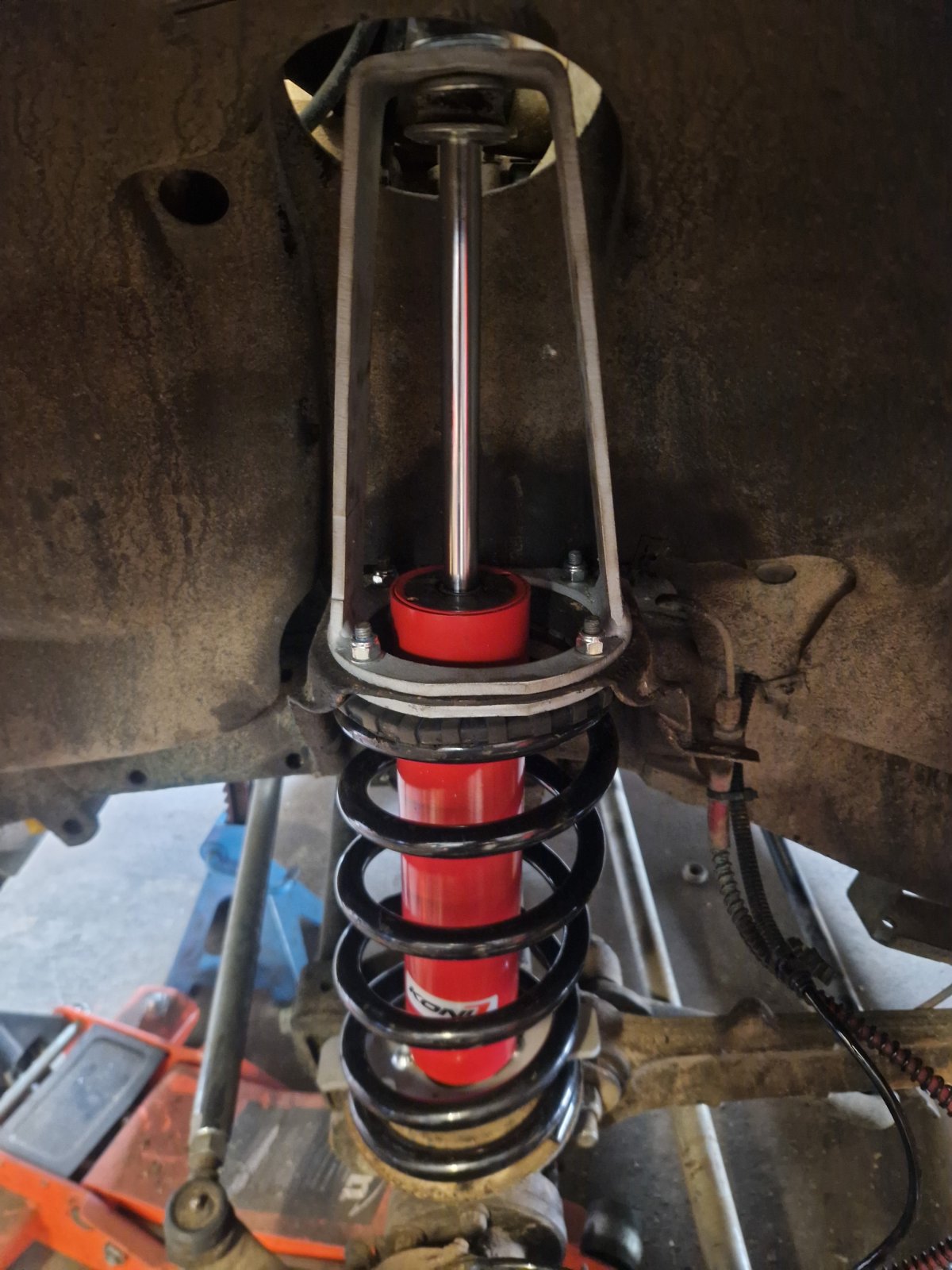

Busy day. Dampers, springs, turrets, retainers, spring clamps all fitted!

When shockingly smoothly. All done in about 6 hours.

Serviced it as well.



Shock turrets drawn, laser cut, CNC bent and Mig welded by me

Also fitted the RRC spring isolators on the front and the rubber wrap arounds on the rear.

Along with the HD spring retainers. 6mm mild, with bent tabs on the end.








2 on the soft setting on the front 3 on the rear.







Test drive in a bit!!

Forgot I did these!

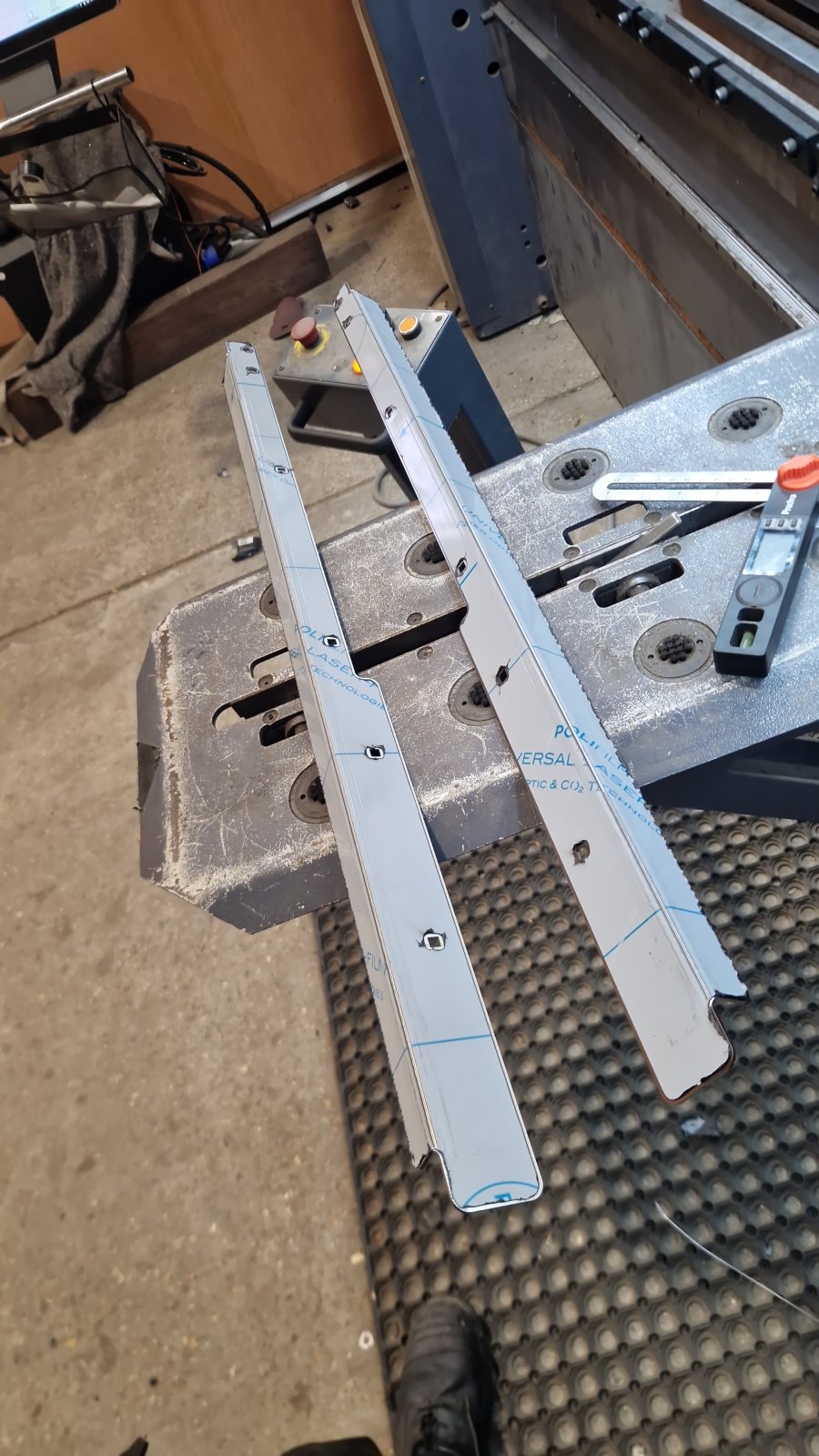

Stainless door threshes, designed, cut and folded by yours truly.



If anyone would like a set more than happy to do a run, be cheaper than anyone else online. Can even provide fixings.

2mm brushed stainless, secured with carraige bolts using the original fixing holes.

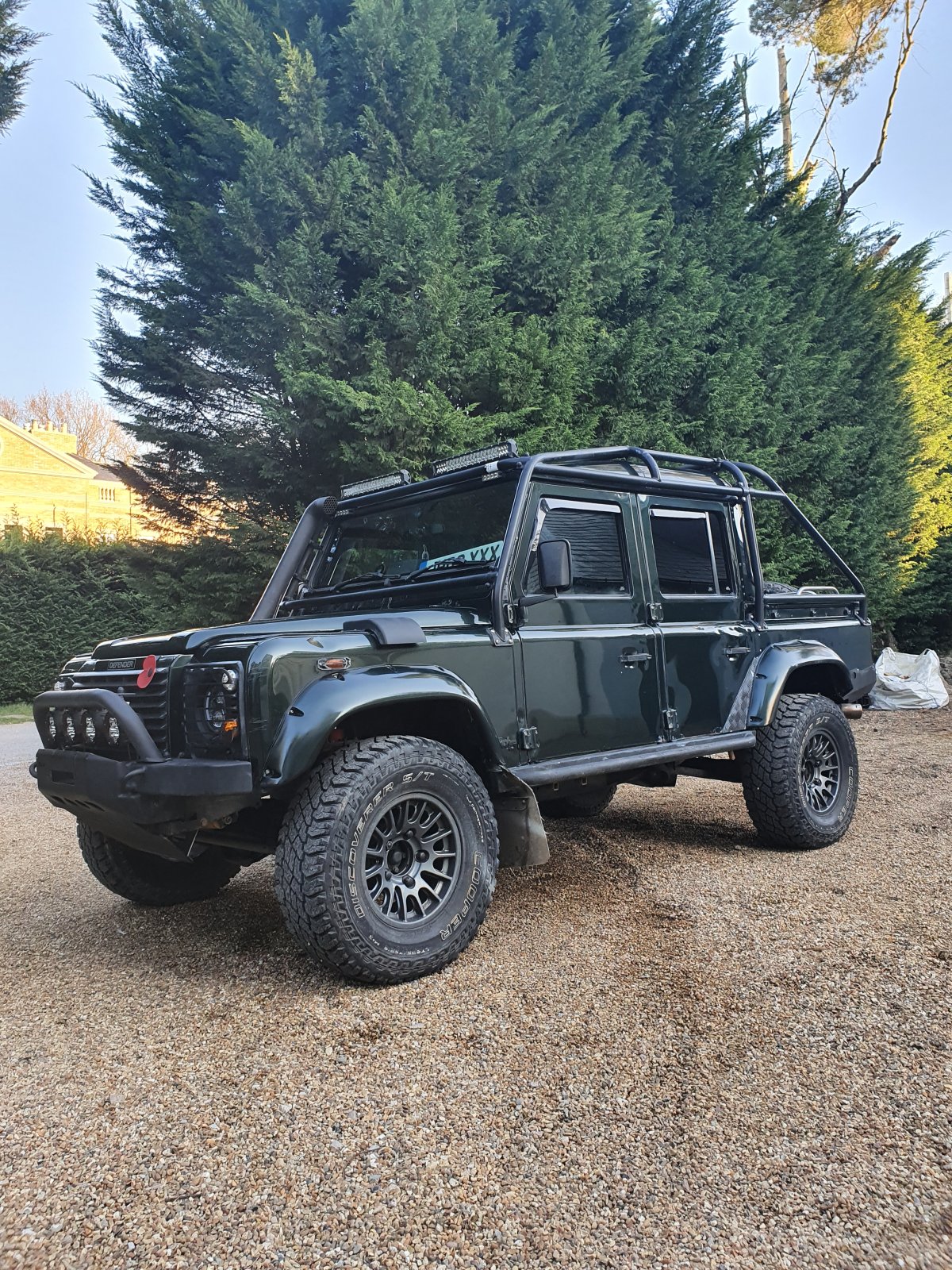

Some comparison pics

Exact same springs and dampers.

CSW



DCPU

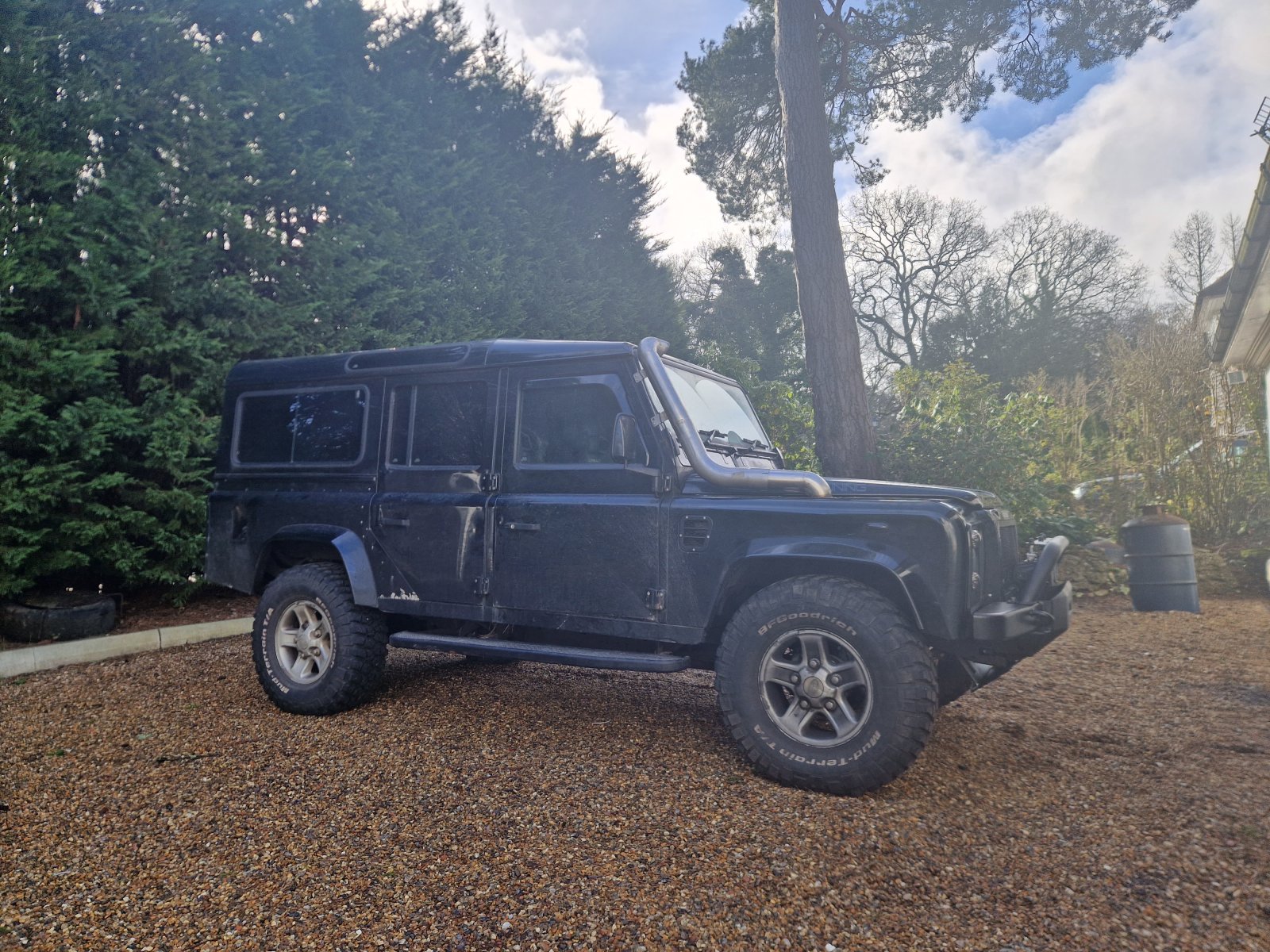

Standard CSW

So quick look over to check the suspension has all settled...


It was fine on Sunday i swear

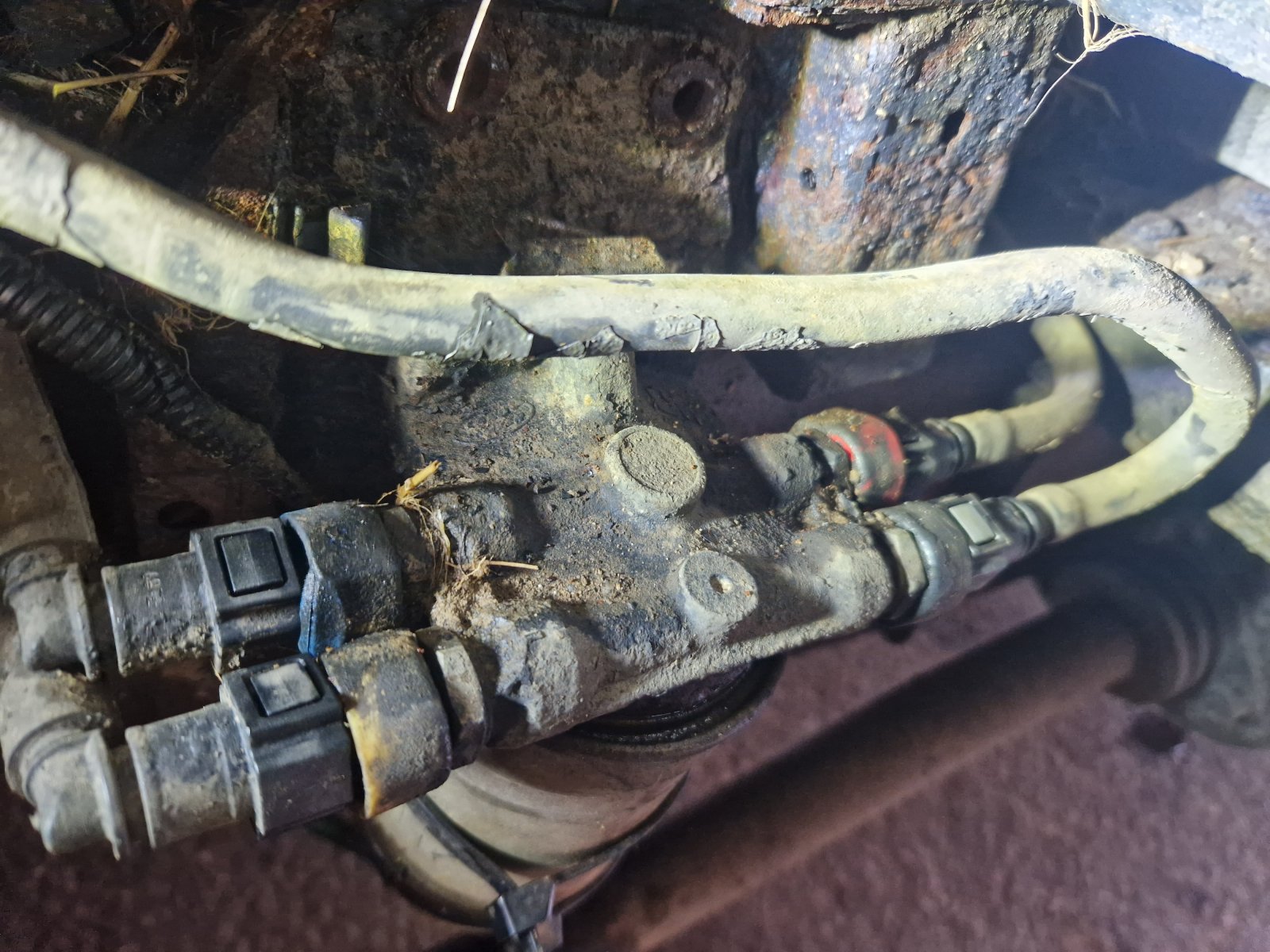

Sadly my favourite company GORE no longer trade and Pioneer4x4 have a silly lead time. So in a very unlike me move OEM it is.




£147 later. Utterly ridiculous for some awful cast ali!?

The GORE unit was designed and CNC machined IN THE UK for less that £100. How this crap from wherever can be more is beyond me.

Alas sorted.

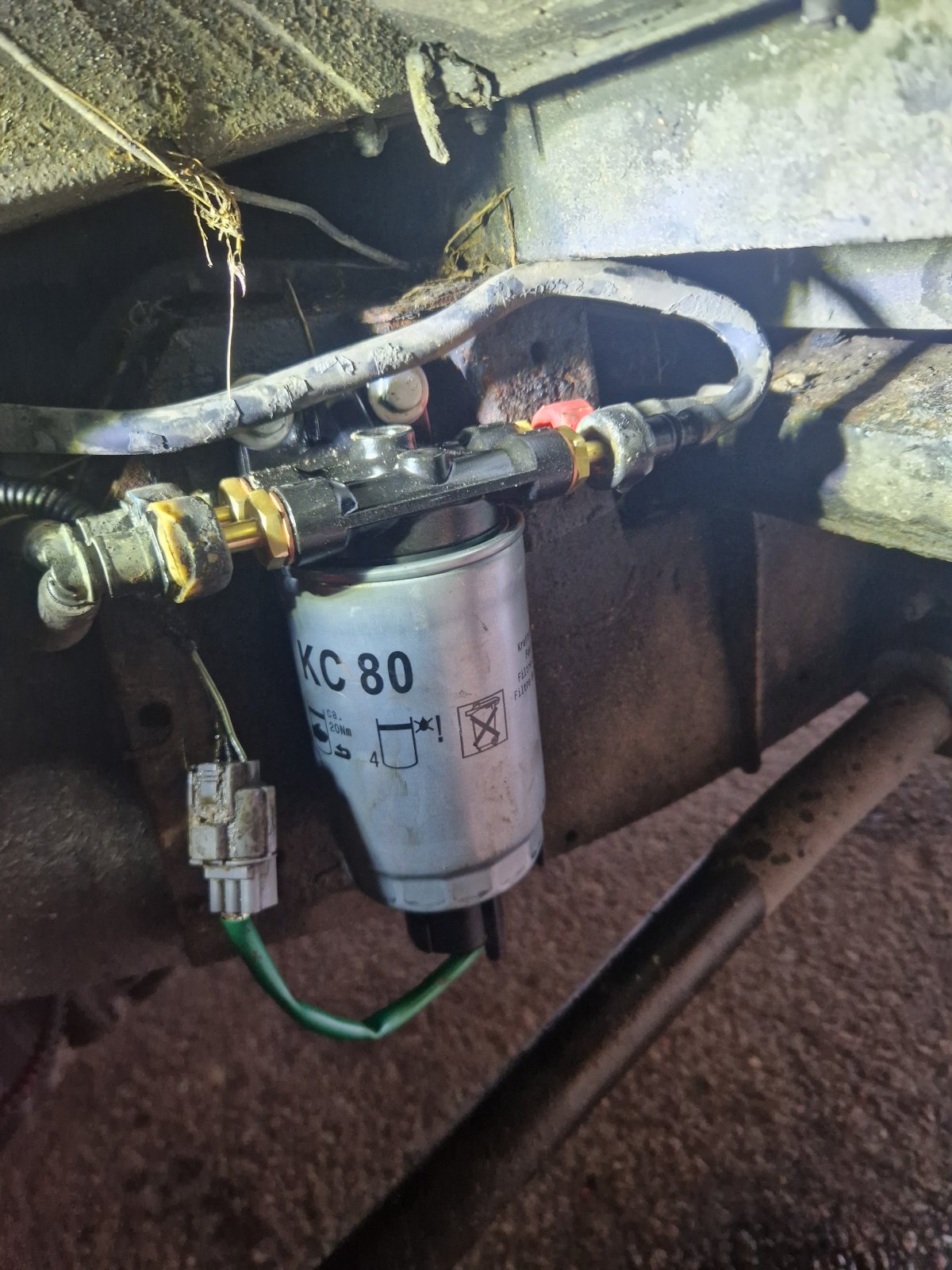

Same for the alternator oil feed. Genuine £100+ braided stainless from Pioneer4x4? £44

No brainer.
