Ashcroft Compushift harness

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Kai3747

New Member
Posts
1
Location
Cyprus
Hello , i am new to this and i want your lights.
I have a TD5 defender 2001 year (msb) ecu.
I installed Discovery ii automatic gearbox with defender's transfer box.
Has anyone done this here ???
One of the cable that is connected to XY switch has 2 wires black and red. It writes on "..break the black/orange signal wire (starter solenoid) from the loom coming from the fuse box under the right hand seat and wire in these wires from XY switch to complete the broken circuit.."
1st issue : under my drivers seat there is no cable in fuse box on starter with orange/black , and i found on bulkhead fuse box a cable orange/black but it does not have relay on it.( by the way car starts fine).

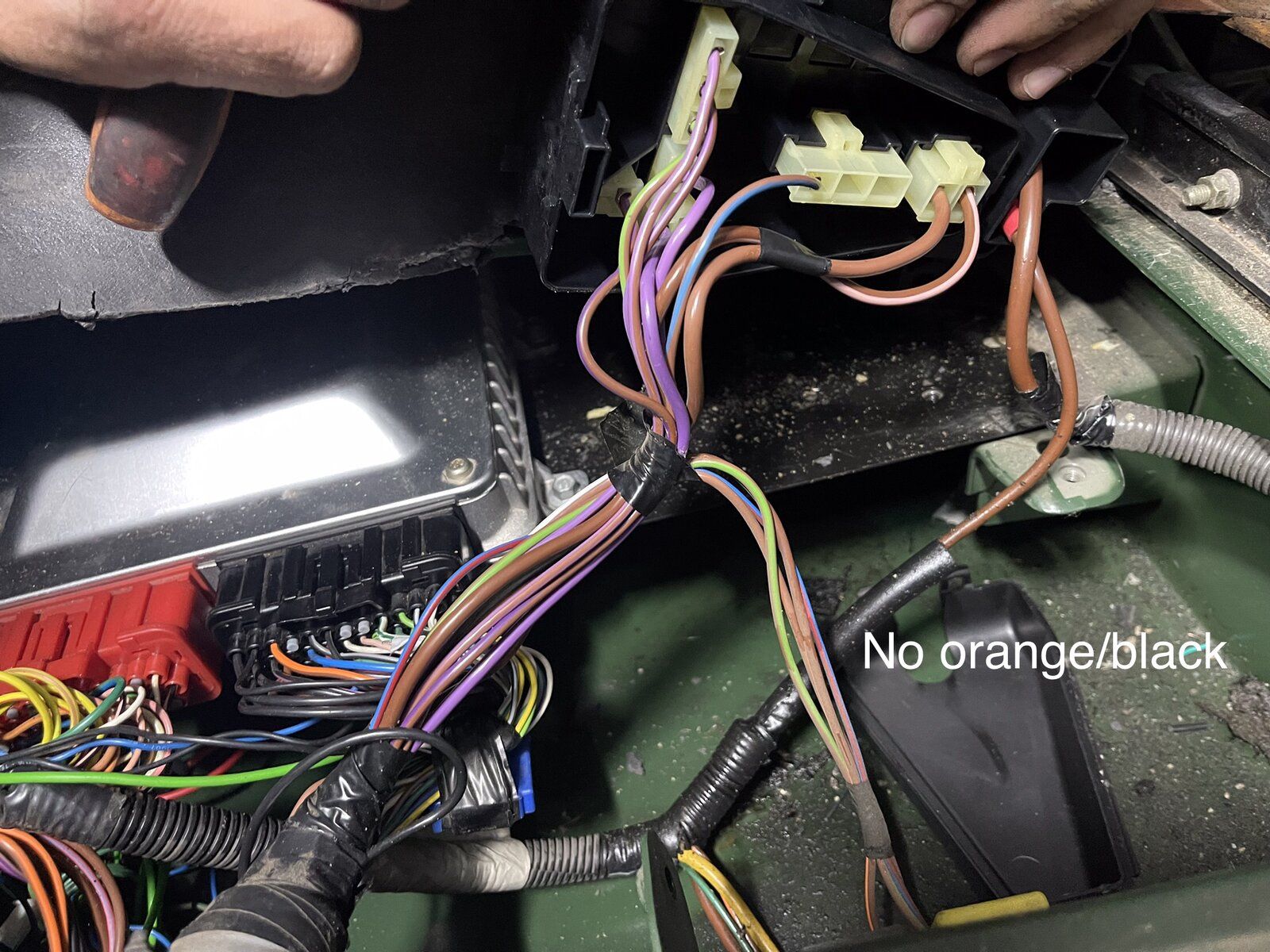

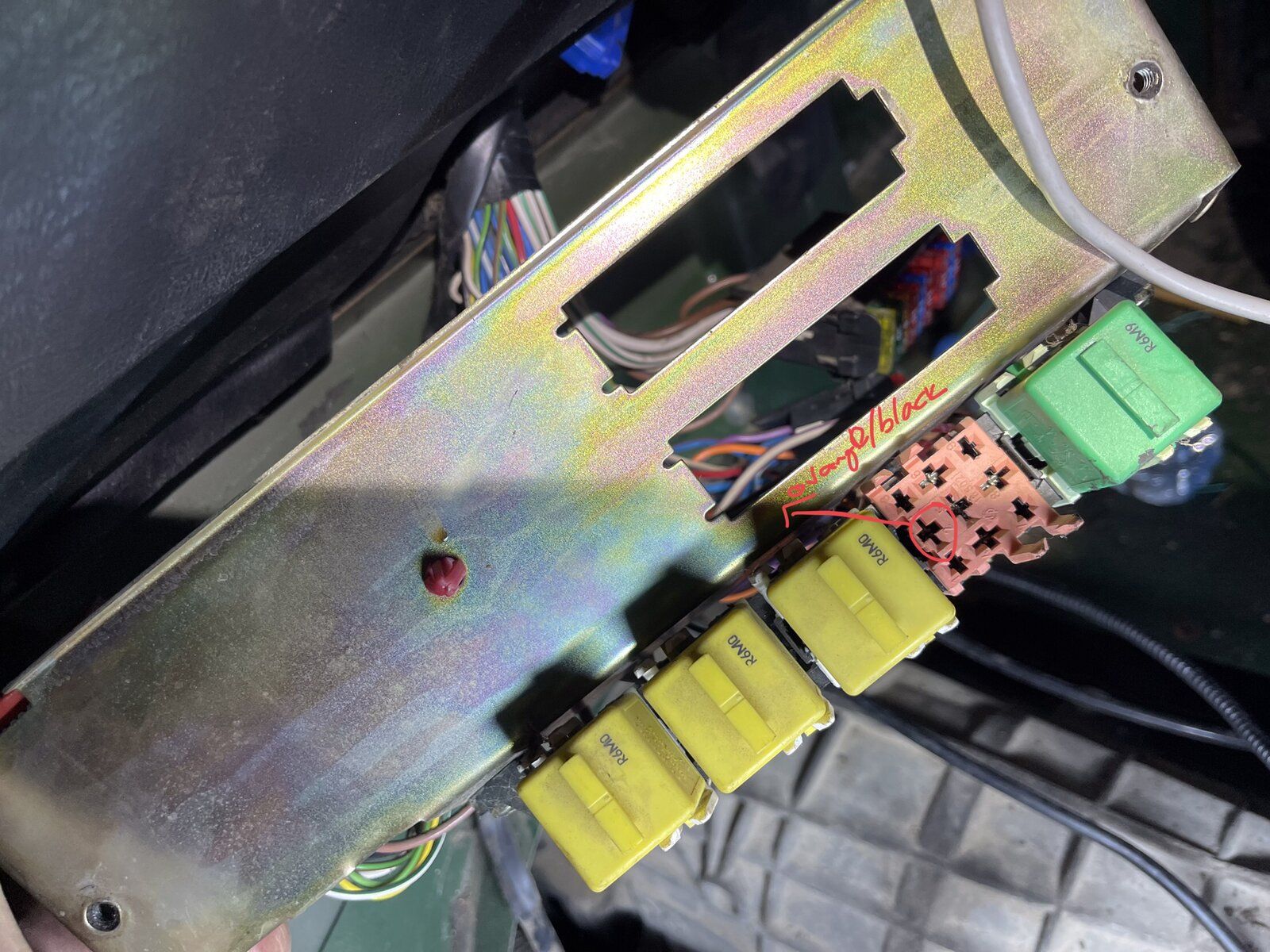

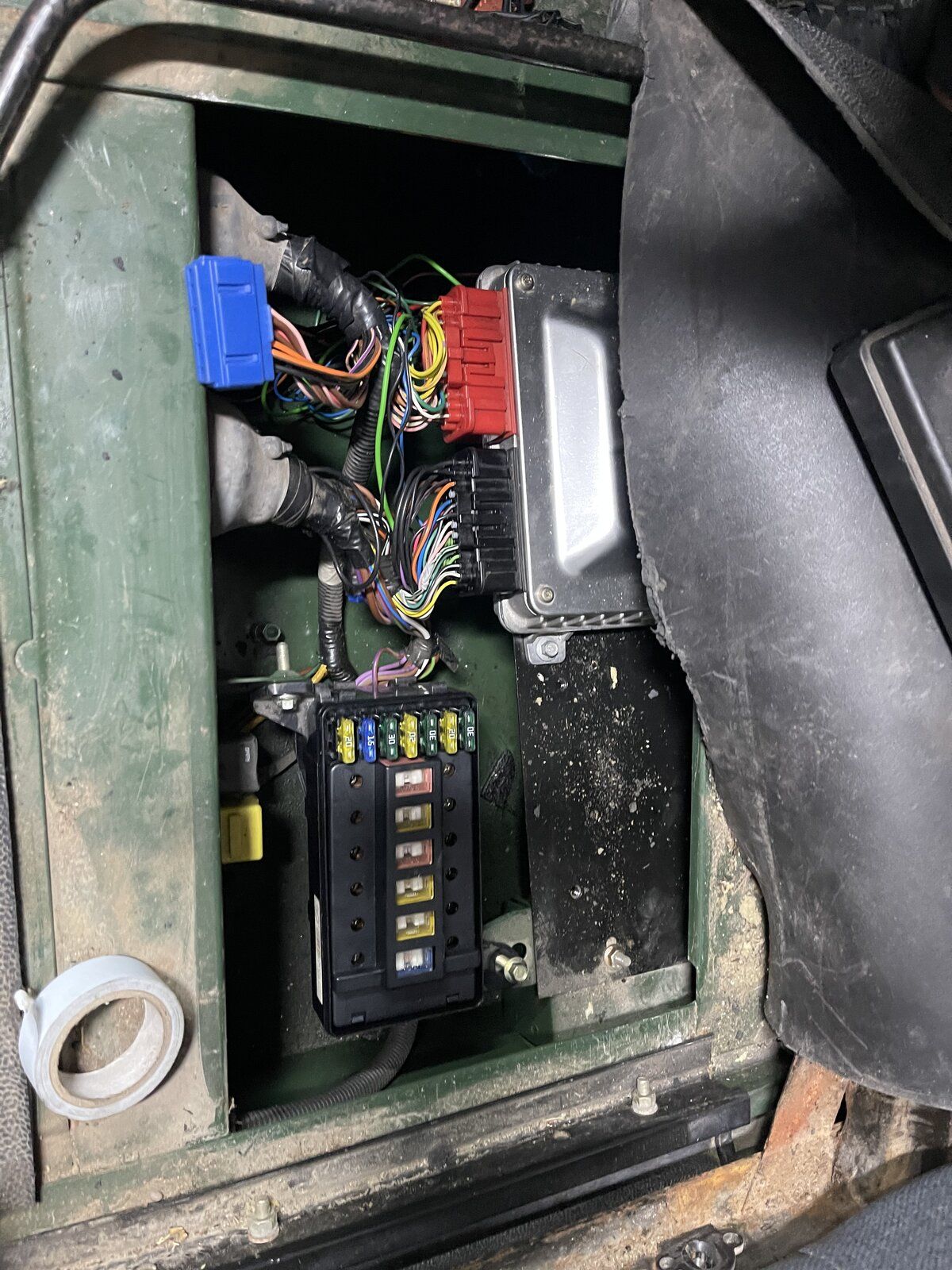

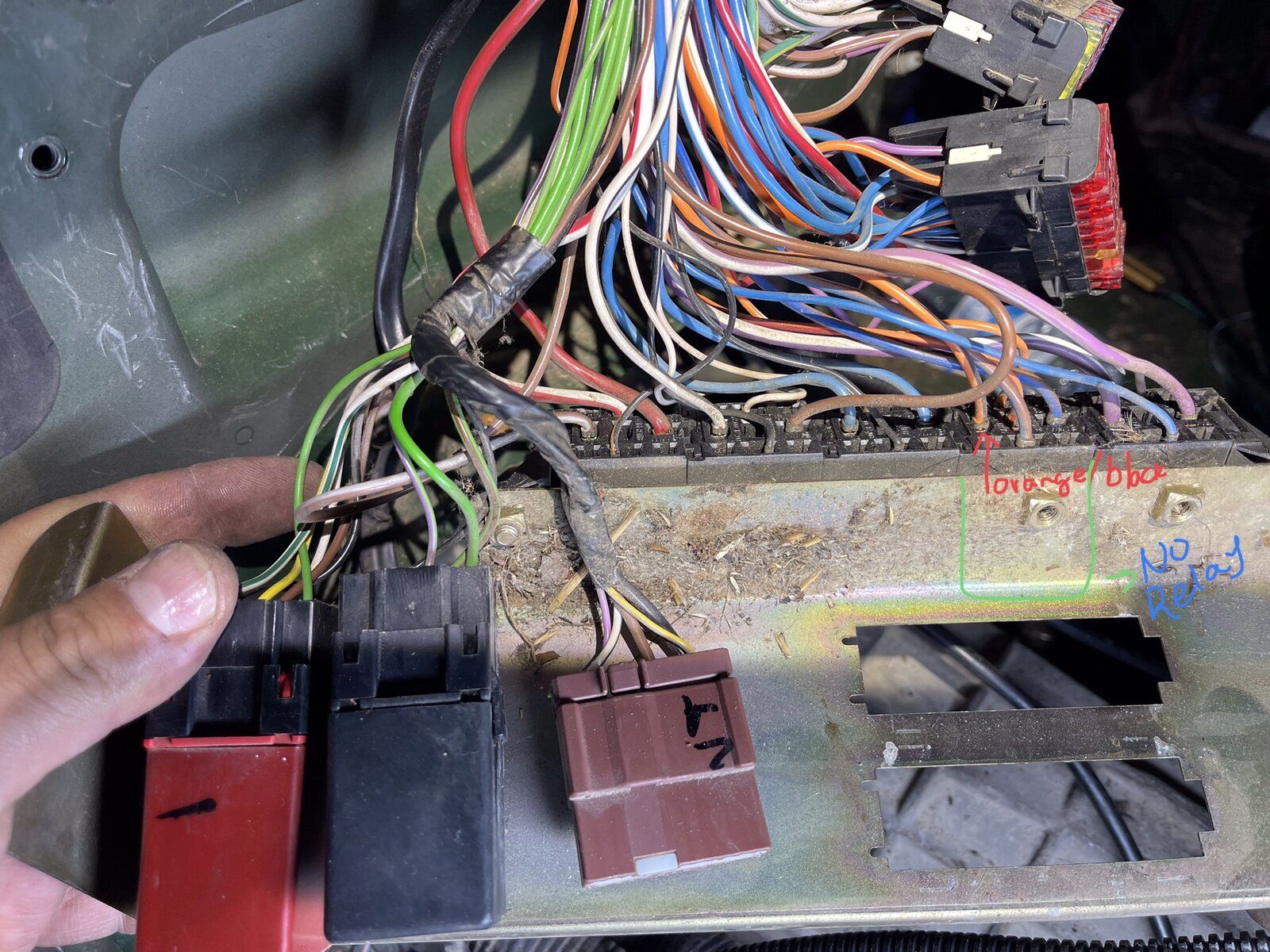

How i proceed ?? Pictures for check are coming :


Attachments

  • 972AB723-E29D-4190-A30F-4584778B9128.jpeg
    412.8 KB · Views: 94
  • 26358F53-15A6-4CD9-B56A-B5F76E3416CA.jpeg
    349.8 KB · Views: 97
  • 6180934E-4898-4959-92A7-2EC309505E9F.jpeg
    341.2 KB · Views: 97
  • 8DB95511-6BB9-49FE-A17E-F107B6F698CF.jpeg
    347.6 KB · Views: 91

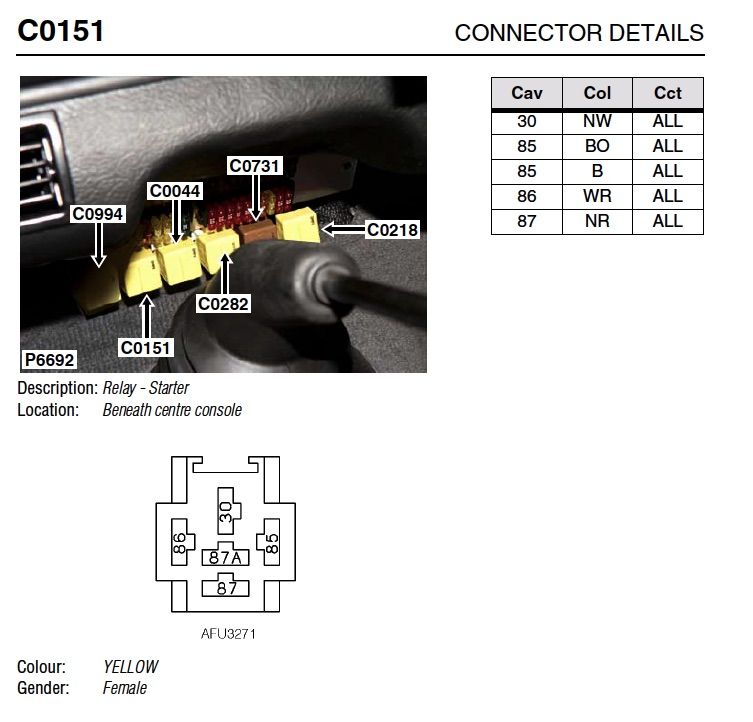

The black/orange wire they mean is in the starter relay's socket C0151 terminal 85
