Another Bug Mistake, Please Help

Please don't Laugh but I've made another big mistake somewhere down the line. Finally finished my rear axle to day, last job was fitting new seals and bearings to hub before putting it all back together.

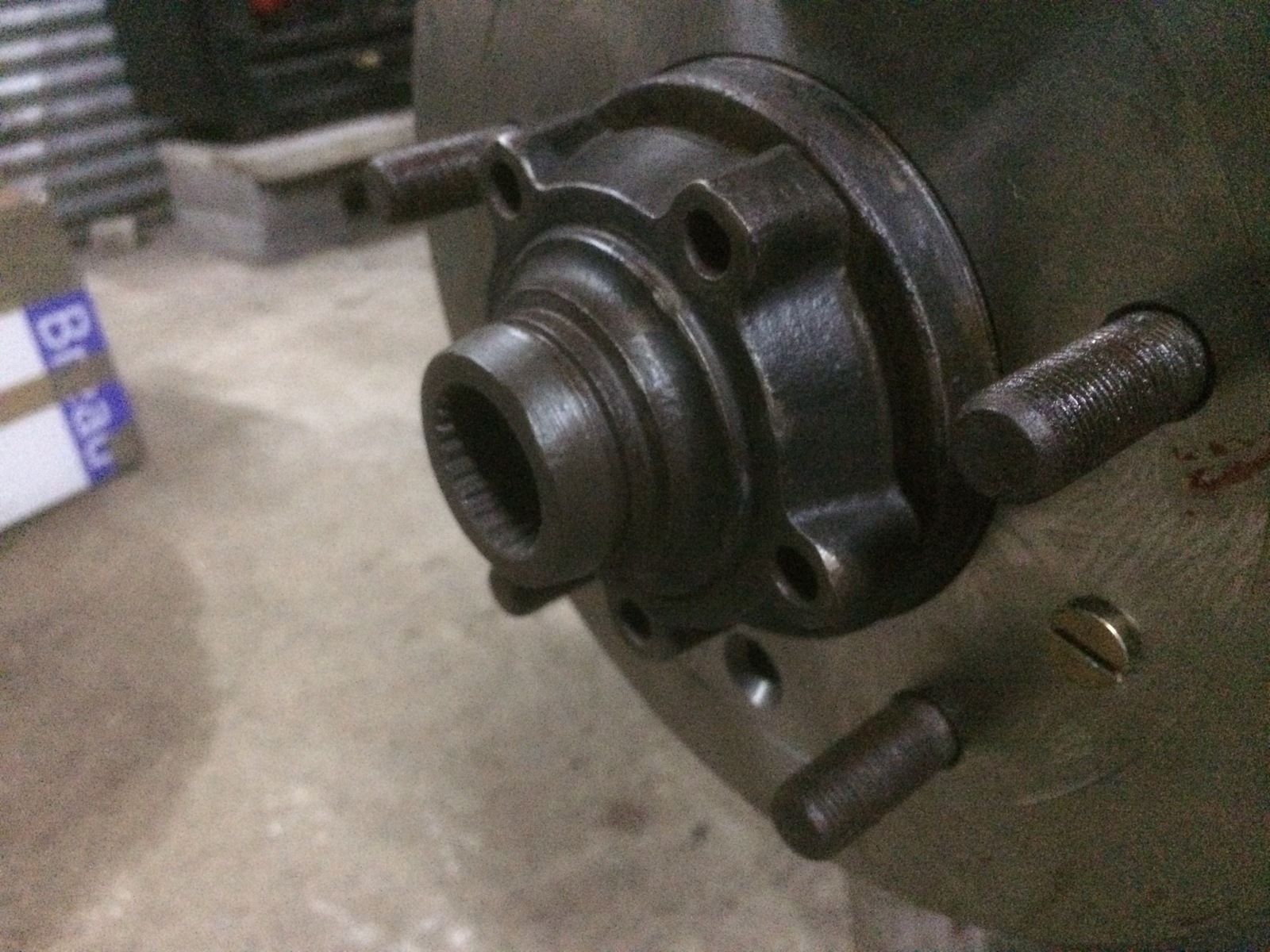

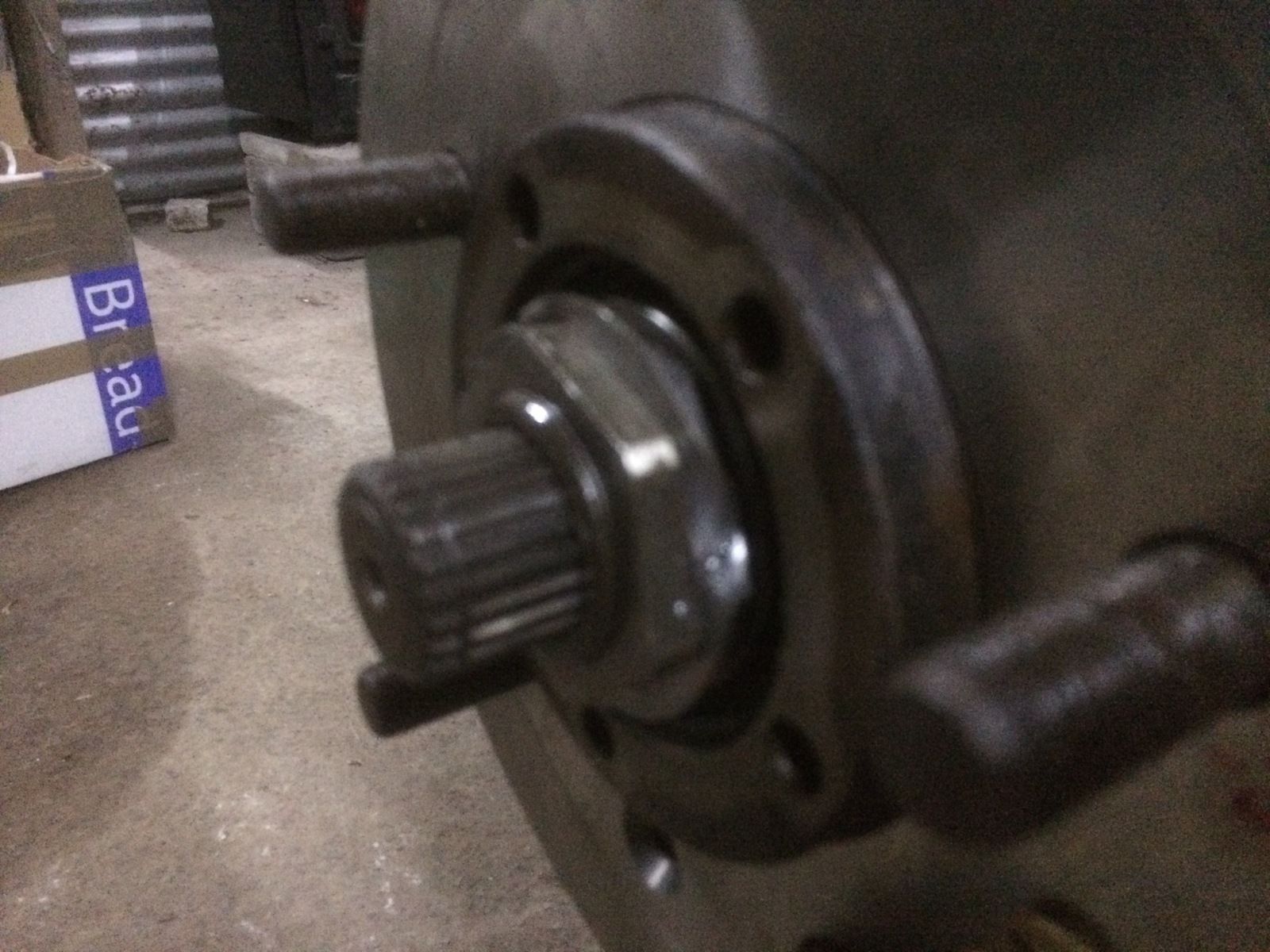

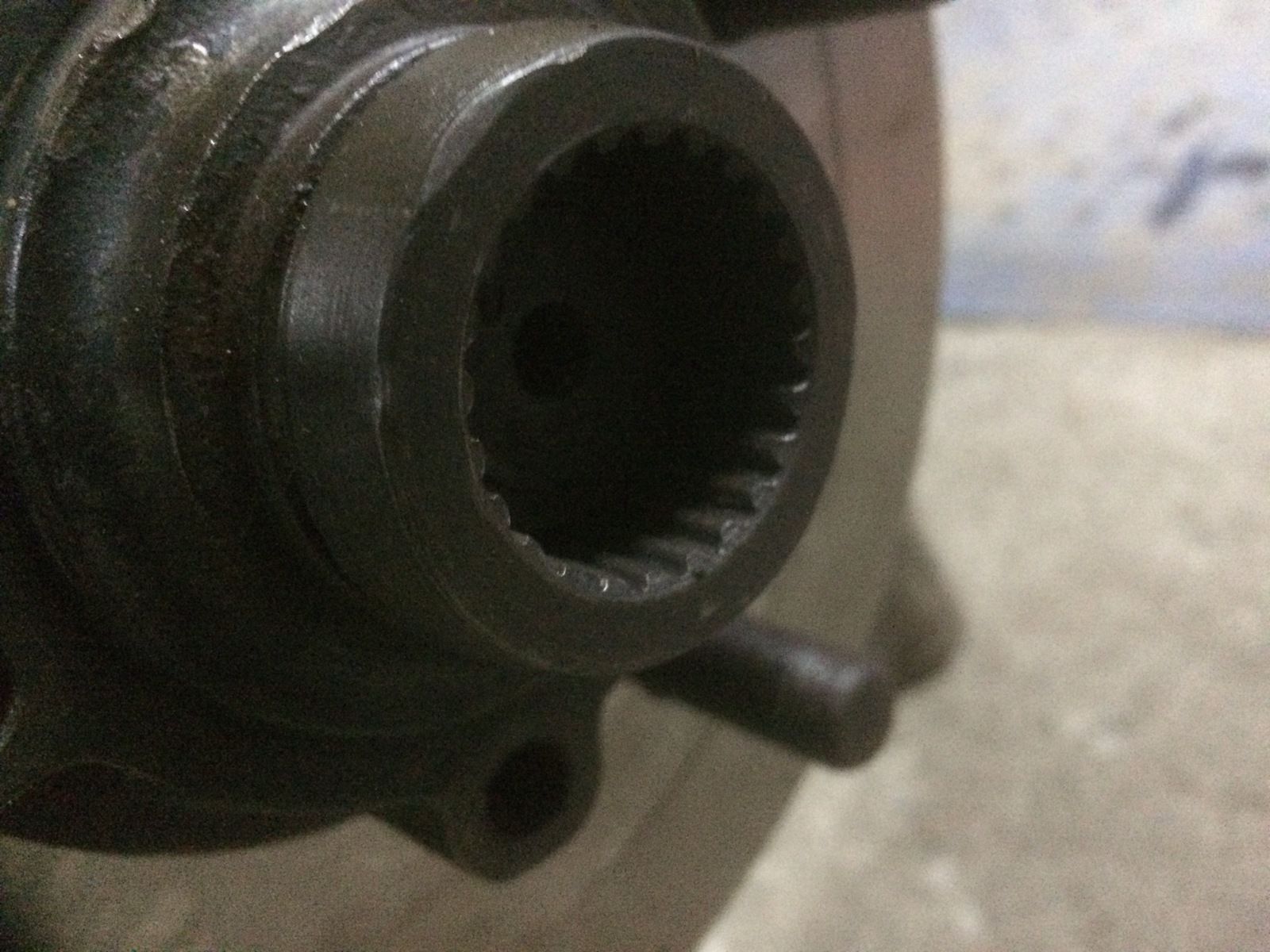

Anyway went to fit the last piece on End Flange, and I find this, in photos. Cant figure out where I've gone wrong as put every part back same way I took them out. The flange is pushed on as far as it will go but shaft is about quarter inch inside. Please tell me what I've done wrong ??

Are those the right drive member flanges?

Cheers

Flanges look a lot deeper than normal on disc brake axle

either wrong flange if 300 and onwards or just pull half shafts out fit flange then circlip then push home

Its a 110 1987. Rear Drum Axle, Salisbury. Im sure there the same Flanges I took off as I had two others but they were the same anyway.
Will the shafts just pull out as it is ? or will I have to strip down again ? or which Flange should I buy ??
Thanks

border said:

Its a 110 1987. Rear Drum Axle, Salisbury. Im sure there the same Flanges I took off as I had two others but they were the same anyway.
Will the shafts just pull out as it is ? or will I have to strip down again ? or which Flange should I buy ??
Thanks

Click to expand...

just pull out, i fit flanges to shaft first

jamesmartin said:

just pull out, i fit flanges to shaft first

Click to expand...

What's the best tool to get a grab on them to pull them out ? and will I have to loosen Lock Nuts for them to move forward ?

border said:

What's the best tool to get a grab on them to pull them out ? and will I have to loosen Lock Nuts for them to move forward ?

Click to expand...

remove the flanges and pull shaft out

jamesmartin said:

remove the flanges and pull shaft out

Click to expand...

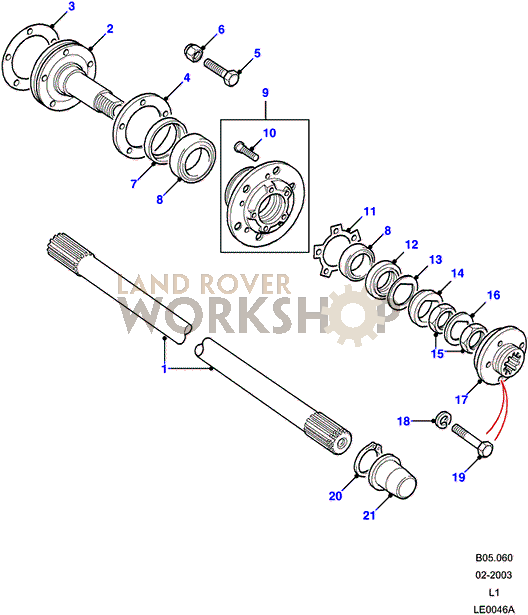

Thanks James It will be tomorrow night by the time I get back up will have a go then. Just been looking at, Diagram and Ive missed number 13 out, washer so will put them in while Im on.

border said:

Thanks James It will be tomorrow night by the time I get back up will have a go then. Just been looking at, Diagram and Ive missed number 13 out, washer so will put them in while Im on.

Click to expand...

not if you have an outer seal and a number 14

jamesmartin said:

not if you have an outer seal and a number 14

Click to expand...

There was 2 seals inner and outer also a number 14 which I already fitted, Cant remember number 13 when taking apart but there is one in Diagram

14 is for the 2 seal set up like yours,13 for the 1 seal

jamesmartin said:

14 is for the 2 seal set up like yours,13 for the 1 seal

Click to expand...

Thanks Again Mate, I did think that, Looks like I got something right for a Change

Arnt those shafts tapped at the end to take a m8 (I think) bolt? I vaguely remember being able to screw a bolt in there and pull them out.

nobber said:

Arnt those shafts tapped at the end to take a m8 (I think) bolt? I vaguely remember being able to screw a bolt in there and pull them out.

Click to expand...

No Mate I thought they were as the ones on the front axle were but these aren't , need something to get Good grip on them to pull.

border said:

What's the best tool to get a grab on them to pull them out ? and will I have to loosen Lock Nuts for them to move forward ?

Click to expand...

Does your shaft not have a thread inside? I usually use a bolt, turned in to the shaft a few threads, to pull it out. They move easily.

Al2O3 said:

Does your shaft not have a thread inside? I usually use a bolt, turned in to the shaft a few threads, to pull it out. They move easily.

Click to expand...

The front ones did but not the rears for some reason

border said:

The front ones did but not the rears for some reason

Click to expand...

Ok, just a thought

Just been looking at one of Busters guides on rear axle got an Idea that might work, if I put an old circlip on might be able to get a grip on the inside of it with something to pull on it.

border said:

Just been looking at one of Busters guides on rear axle got an Idea that might work, if I put an old circlip on might be able to get a grip on the inside of it with something to pull on it.

Click to expand...

Just get hold of it with your fingers, they pull out easily. On the other end is another set of splines that slide back and forth.
