Another 200 tdi Overheating thread

Discussion in '200 TDi' started by Ironstrike, Nov 25, 2018.

< Previous Thread | Next Thread >
  1. Ironstrike

    Ironstrike Well-Known Member

    Joined:
    Nov 12, 2005
    Posts:
    1,460
    Likes Received:
    2,136
    Location:
    Wiltshire
    Hi,

    I know there are loads of threads on this but I have read all of them and I just want to confirm my theory.

    My 90 with a replacement engine 12l code which I thought was a original defender engine but it turns out it is a disco engine as I found out when I ordered a water pump.

    Anyway, temp gauge went in to the red the other day so I did the following:

    Water pump needed replacing anyway so I replaced it.
    New Thermostat.
    Checked oil - no water
    Checked water - no oil
    Removed thermostat again
    Flushed cooling system
    No excess exhaust smoke after initial start up
    Even with gauge in the red water was not near boiling

    Gauge still in the red after 3 or 4 minutes

    I checked and the engine was warm not hot, same for rad hoses top and bottom
    No excess pressure in hoses
    Manually ran the electric fan on the radiator until air blew cold

    Gauge still near the red so I decided it was a faulty sender.

    I had ordered one but it was the wrong thread so I tried connecting it to the cable (not screwed in to thermo housing) and just earthing it with a wire.

    Even though the sender had no direct heat source it was still rising rapidly, but obviously it was the wrong sender so it is possible that it might read wrong.

    I am at the point where I am pretty sure it is either the sender or some other electrical fault (I had been wiring up all sorts of stuff the week before).

    Oh yes, another thing that is probably relevant is that I had a bulb melt the back light bulb housing in the temp gauge a couple of weeks ago too.

    Before I drive it for 40 minutes to work I would like to be certain that it is not over heating so my question is has anybody ever had an electrical issue that caused the gauge show over heating when it is not?

  2. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    5,642
    Likes Received:
    5,684
    Location:
    Wiltshire
    There is a difference between a defender/disco temp sender.
    Yes the disco 1 reads higher. (Mine did)
    As long as the pipes are not hot to touch you should be fine.
    I don't have a fan on

    Ironstrike likes this.
  3. Kev12

    Kev12 Well-Known Member

    Joined:
    Jan 1, 2018
    Posts:
    774
    Likes Received:
    336
    Location:
    Cornwall
    Its uncommon for a 200tdi to get hot, its usually harder to get them up to temp. How hot is your heater?

  4. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    10,361
    Likes Received:
    3,955
    Location:
    Kent
    I smiled when I read ANOTHER 200 over heating and thought ho ho, many if not most 200 owners would wish for more heat in the winter.

    The onlly way to be really sure is to fit a capilliary gauge and sender, Tim is the make 35 quid from ebay, Ive had two fitted for about 7/8 yrs now with no issues at all.

    mick 1986 likes this.
  5. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    6,031
    Likes Received:
    3,277
    Location:
    Shropshire

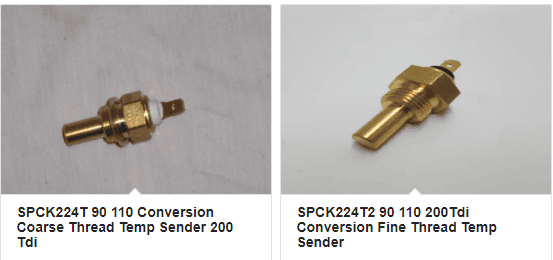

    Steve Parker used to sell the correct sender for disco engine in 90/110 so the gauge reads correctly, I've got one in mine.
    There was a thread about this not long ago and I think sp doesn't do them anymore? Not sure on that.
    There are other work around too also on that thread.
    You could also fit a sender and gauge combo which will read more accurately (apparently) .

  6. Ironstrike

    Ironstrike Well-Known Member

    Joined:
    Nov 12, 2005
    Posts:
    1,460
    Likes Received:
    2,136
    Location:
    Wiltshire
    It has the usual 90 heater, I sometimes get a feeling like an asthmatic squirrel is breathing on my shins when I put the heater on but that's it.

    Last edited: Nov 25, 2018
    Flossie likes this.
  7. Ironstrike

    Ironstrike Well-Known Member

    Joined:
    Nov 12, 2005
    Posts:
    1,460
    Likes Received:
    2,136
    Location:
    Wiltshire
    Thanks, they certainly look cheaper than replacing the original gauge but the thread doesn't look right. Its a Disco 1 engine in mine, it uses the fine thread

  8. Ironstrike

    Ironstrike Well-Known Member

    Joined:
    Nov 12, 2005
    Posts:
    1,460
    Likes Received:
    2,136
    Location:
    Wiltshire
    The funny thing is it was working perfectly until last week

  9. My Old Landy

    My Old Landy Well-Known Member

    Joined:
    Aug 24, 2018
    Posts:
    1,402
    Likes Received:
    1,883
    Location:
    South
    I think he still does, I am ordering one for mine once I work out which thread :)

  10. My Old Landy

    My Old Landy Well-Known Member

    Joined:
    Aug 24, 2018
    Posts:
    1,402
    Likes Received:
    1,883
    Location:
    South
    Mine reads hot sometimes and other times it reads low to normal.... I tend to ignore it. If the heater starts working well, I will worry!!

    Hicap phill, Kev12 and Ironstrike like this.
  11. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    7,218
    Likes Received:
    2,013
    Location:
    Far away from you!!
    Get a capaillary gauge for total peace of mind, that’s wht I did. So accurate you can even see when the thermostat opens.

    A 200 had to be in really bad shape to overheat, on mine the fan seized, I went off roading and it still didn’t over heat.

  12. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    6,031
    Likes Received:
    3,277
    Location:
    Shropshire
    Cool:)
    From memory, you have to count the threads on your old one and then I gave them a call to confirm which one to get.
    I didn't have the internet when I did my conversion so everything I did was by phone back then .

    My Old Landy and Ironstrike like this.
  13. Ironstrike

    Ironstrike Well-Known Member

    Joined:
    Nov 12, 2005
    Posts:
    1,460
    Likes Received:
    2,136
    Location:
    Wiltshire
    Thanks for all the replies.

    I think I will go with a capaillary gauge. To those who have fitted one does the gauge fit in the dash/clock surround where the original temp gauge is?

    Last edited: Nov 26, 2018
  14. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    5,642
    Likes Received:
    5,684
    Location:
    Wiltshire
  15. Ironstrike

    Ironstrike Well-Known Member

    Joined:
    Nov 12, 2005
    Posts:
    1,460
    Likes Received:
    2,136
    Location:
    Wiltshire
    Thanks

  16. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    10,361
    Likes Received:
    3,955
    Location:
    Kent
    Yes it fits, but remember the capilliaru pipe cannot be split, so you have to thread it through the dash gauge hole, leave a little slack behind the dash then run the pipe through the bulkhead and then down to the stat housing, try and do it neat as its an arse to unpumb the thing afterwards to reroute the pipe.

    As mentioned above you can see the stat open on the gauge and when running light in sub zero conditions you can see the engine getting colder and colder, lowest I ever saw was 70 degs c and at this low temp the heater is utter carp.

    Ironstrike likes this.
  17. zeaphod

    zeaphod Well-Known Member

    Joined:
    Aug 13, 2013
    Posts:
    2,938
    Likes Received:
    795
    Location:
    Belfast, Norn Iron
    I've found it's easier to fit an electric gauge. Of course if it's an early disco engine you will need a M16 fine to 1/8 nptf adapter, which can be hard to find - it's a 16 by 1mm thread. As for the overheating, with the thermostat open at 80 degrees you will just be able to hold your hand on the top hose - it will feel properly hot, but you can just keep your hand on it. At anything close to 100 degrees I have found the engine will actually smell of hot oil.

    Ironstrike likes this.
  18. My Old Landy

    My Old Landy Well-Known Member

    Joined:
    Aug 24, 2018
    Posts:
    1,402
    Likes Received:
    1,883
    Location:
    South

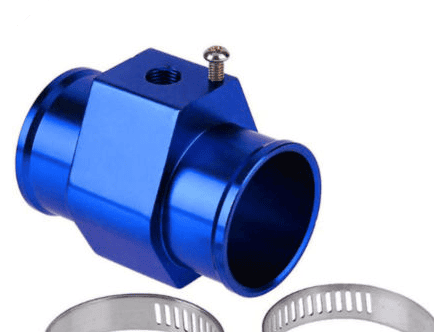

    I was thinking of getting one of these and putting it the top hose line :)

    Hicap phill likes this.
  19. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    10,361
    Likes Received:
    3,955
    Location:
    Kent

    Problem with the 200 is quite often you can get situations where the top hose is empty.
    Why I dotn know, but I have seen it more than once now, and of course no coolant means the sensor in the hose has nothing to read.

    My Old Landy likes this.
  20. My Old Landy

    My Old Landy Well-Known Member

    Joined:
    Aug 24, 2018
    Posts:
    1,402
    Likes Received:
    1,883
    Location:
    South
    I didn't know that, thanks for the heads up.
    Where is the best place to site the sensor?
    Cheers :)
