Airbox needed urgent

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

DORSETDEFENDER

New Member
Posts
20
Location
Ringwood , hants
im after an airbox complete with pipework for a land rover 90 (1987)
if anyone has one lying around let me know how much you want :)
any help would be greatfully recived.

cheers Rich

I also need the pipe that runs from the Airbox (Tubular one) to the Turbo if anyone has one kicking round...:D

sorry should have given a bit more of description.:eek:

just bought it a week ago and they seem to have put some sort of cone filter on it. so there is no airbox on it at all at the mo :mad:
so i just want to get rid of this and put standard airbox on as i want to put a snorkle on it eventually.
cheers

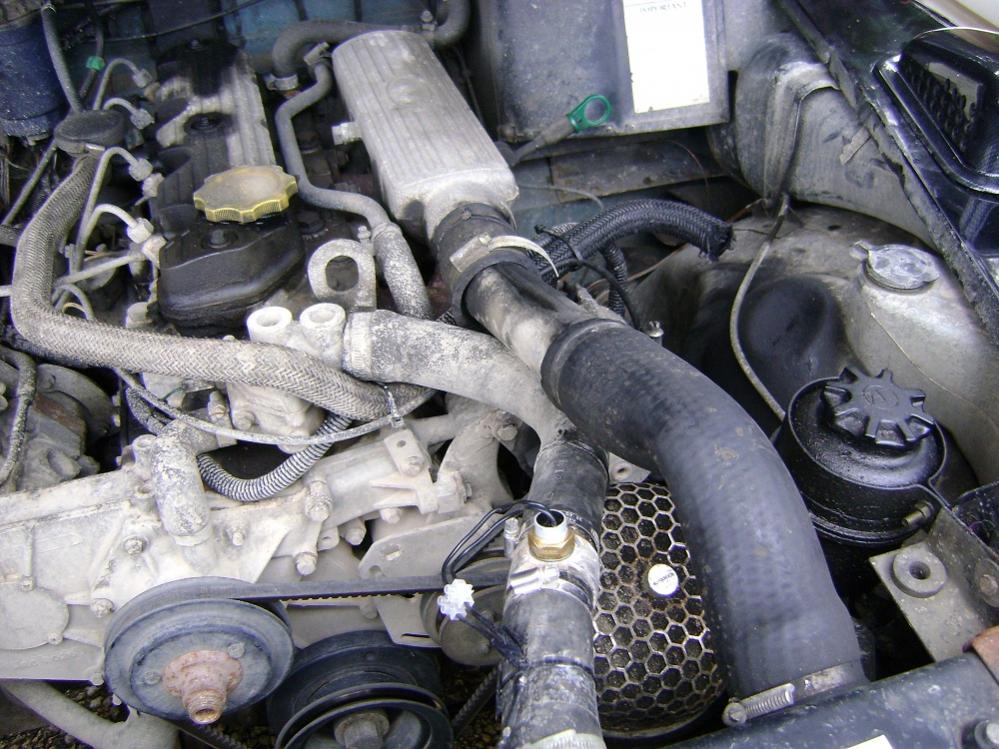

here is pic to help you see what im talking about. lol

you can use the 200 disco airbox and fit the box just in front of the heater box...

i can also see in your pic that the pipe from the cyclone breather has been cut and its just hanging there. that bit is connected to the airbox too..

When i bought mine it also had a conic filter ....
so i got a disco 200 tdi air filter box...

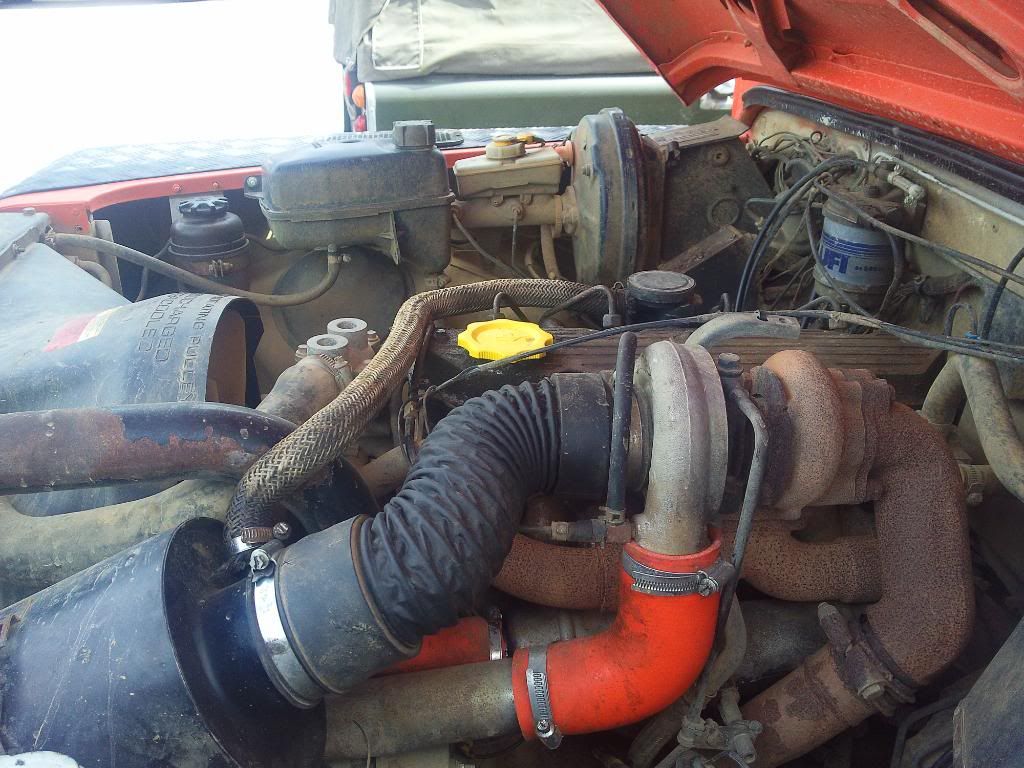

this is mine below....
as you can see the hose to the left goes straight to the turbo, and the little bit of plastic sitcking out, that's where you connect the pipe from the cyclone breather, which on yours is just loose...
the other end goes to the snorkel/air intake



dont have a better picture at the mo, so this one has to do (when I was working on the heater box)
as you can see, my air filter box is just there behind the rad.
one hose goes from the bottom of the box straight to the turbo and the other one goes next to the alternator and then to the back, and to the side air intake



I couldnt fit it in front of the heater box as I have the screen wash bottle there, but on yours you have loads of space to fit it there.
