Air suspension PSI

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Awale23

Member
Posts
35
Hi guys

My range l322 has been converted to manual air suspension from the previous owner. Using pneumatic hoses / schrader valves. Can use a tyre pump to stick air in, or press it to release air.

What’s the max PSI I can put in the rear air bags? There’s 80psi currently (still seems low) but I don’t want to put to much in.

Thanks in advance.

Put enough in so its at the correct height.
Obviously if the load in the boot goes up you will need more.
This is from a 2007-2010 manual, dont see it being different for the actual springs but I know the system pressure's changed somewhere in their life.

J


Attachments

  • L322 2007-2010 air pressure.pdf
    54.7 KB · Views: 174
Put enough in so its at the correct height.
Obviously if the load in the boot goes up you will need more.
This is from a 2007-2010 manual, dont see it being different for the actual springs but I know the system pressure's changed somewhere in their life.

J
5 - 8 bar for the rear. The thing is, will this still apply now it’s a schrader valve lol?

I don’t want to put to much in😅

The figures are min/max, the bag doesn't care what's on the end of the pipe ;)
Set it at the correct height.


J

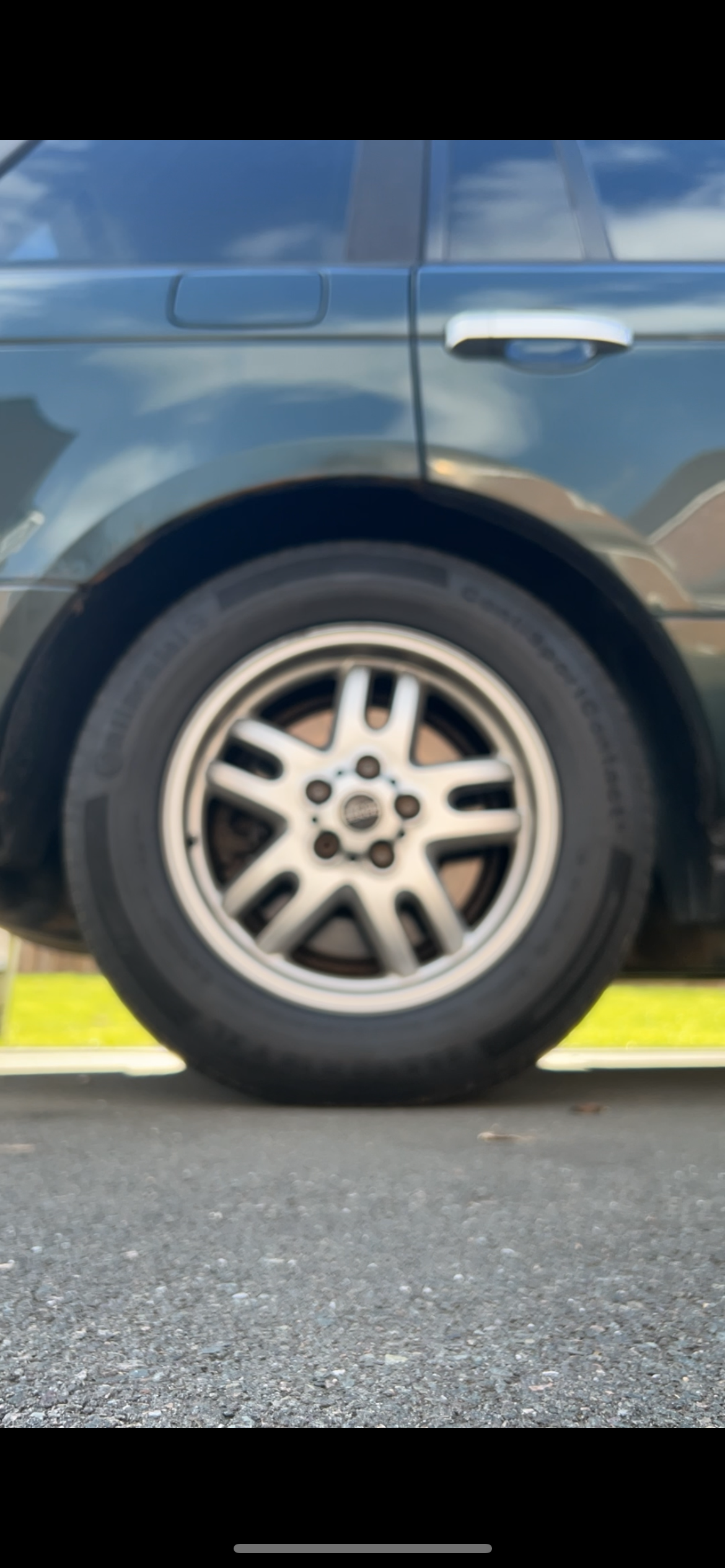

Phew. I’ll sick more in later. As you can see, too low at 80 haha

Hi guys

My range l322 has been converted to manual air suspension from the previous owner. Using pneumatic hoses / schrader valves. Can use a tyre pump to stick air in, or press it to release air.

What’s the max PSI I can put in the rear air bags? There’s 80psi currently (still seems low) but I don’t want to put to much in.

Thanks in advance.
Hang on, you said you'd converted it? 😜https://www.landyzone.co.uk/land-rover/pneumatic-fittings.387112/

Last edited:
How can you convert half!? Surely that would cause faults!?



How much tat do you have in the boot? That will impact the pressure required.
The previous owner literally did the front, and the back was incorrect and flat as a pancake. It looks horrendous so I didn’t drive t obviously. So had to sort the rear out
