Air Strut

Nightsman32 · May 9, 2020

Hi guys are they different struts for the RRS if they have ace system or are they both the same.
2008 RRS 2.7 hse
Thanks guys.

gstuart · May 9, 2020

Nightsman32 said:
Hi guys are they different struts for the RRS if they have ace system or are they both the same.
2008 RRS 2.7 hse
Thanks guys.

hi @Nightsman32

the struts are different between ACE and Non ACE, enclosed a picture of the part numbers for u

D3 struts are different than RRS

hope that helps

ps, bet ur pleased u haven’t got the 2010 model, as there struts are around £500 each )

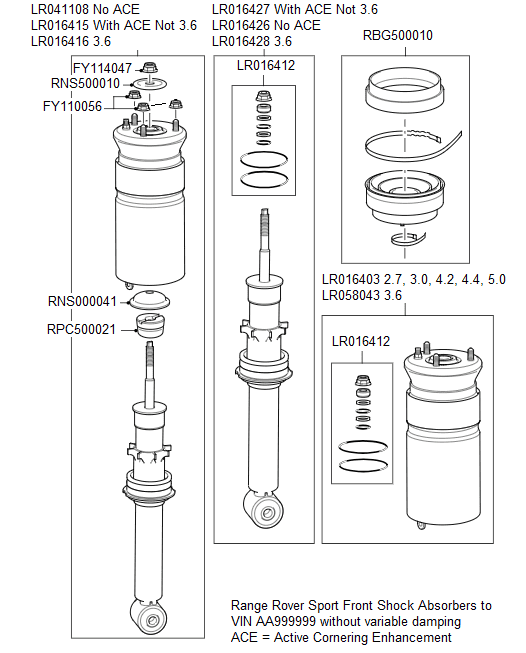

Fronts

gstuart · May 9, 2020

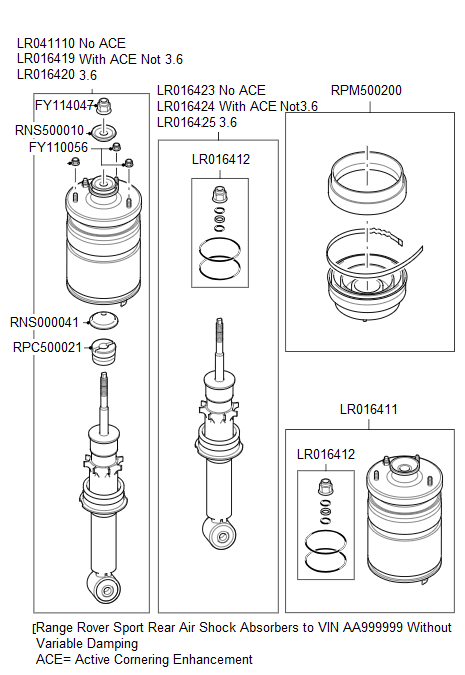

Rears

Tenebreaux · May 9, 2020

gstuart said:
there struts are around £500 each )

gstuart · May 9, 2020

2010 struts

front

https://www.advancedfactors.co.uk/lr052866-oem-shock-absorber---front-1087667-p.asp

rears

https://www.advancedfactors.co.uk/lr032651-oem-shock-absorber-1087740-p.asp

mine D3, were around £200 each , already replaced the fronts

gstuart · May 9, 2020

Plus the connectors used on the struts are called Voss , ( also fitted to the valve blocks ) outrageous at £15.00 each, very awkward to fit on top of the struts , as they are compression fittings with a small olive , I used brass pushfits on mine , considerably easier to fit and only £4.00

https://www.advancedfactors.co.uk/anr6460-voss-connector-100060-p.asp

Nightsman32 · May 10, 2020

gstuart said:
Plus the connectors used on the struts are called Voss , ( also fitted to the valve blocks ) outrageous at £15.00 each, very awkward to fit on top of the struts , as they are compression fittings with a small olive , I used brass pushfits on mine , considerably easier to fit and only £4.00

https://www.advancedfactors.co.uk/anr6460-voss-connector-100060-p.asp

Mine being a 2008 wont need these connectors would they. Again your ha e helped andwer my question i knew you wouldnt be long to answer haha. Hope your well mate

gstuart · May 10, 2020

Nightsman32 said:
Mine being a 2008 wont need these connectors would they. Again your ha e helped andwer my question i knew you wouldnt be long to answer haha. Hope your well mate

ur so welcome and always happy to help where I can

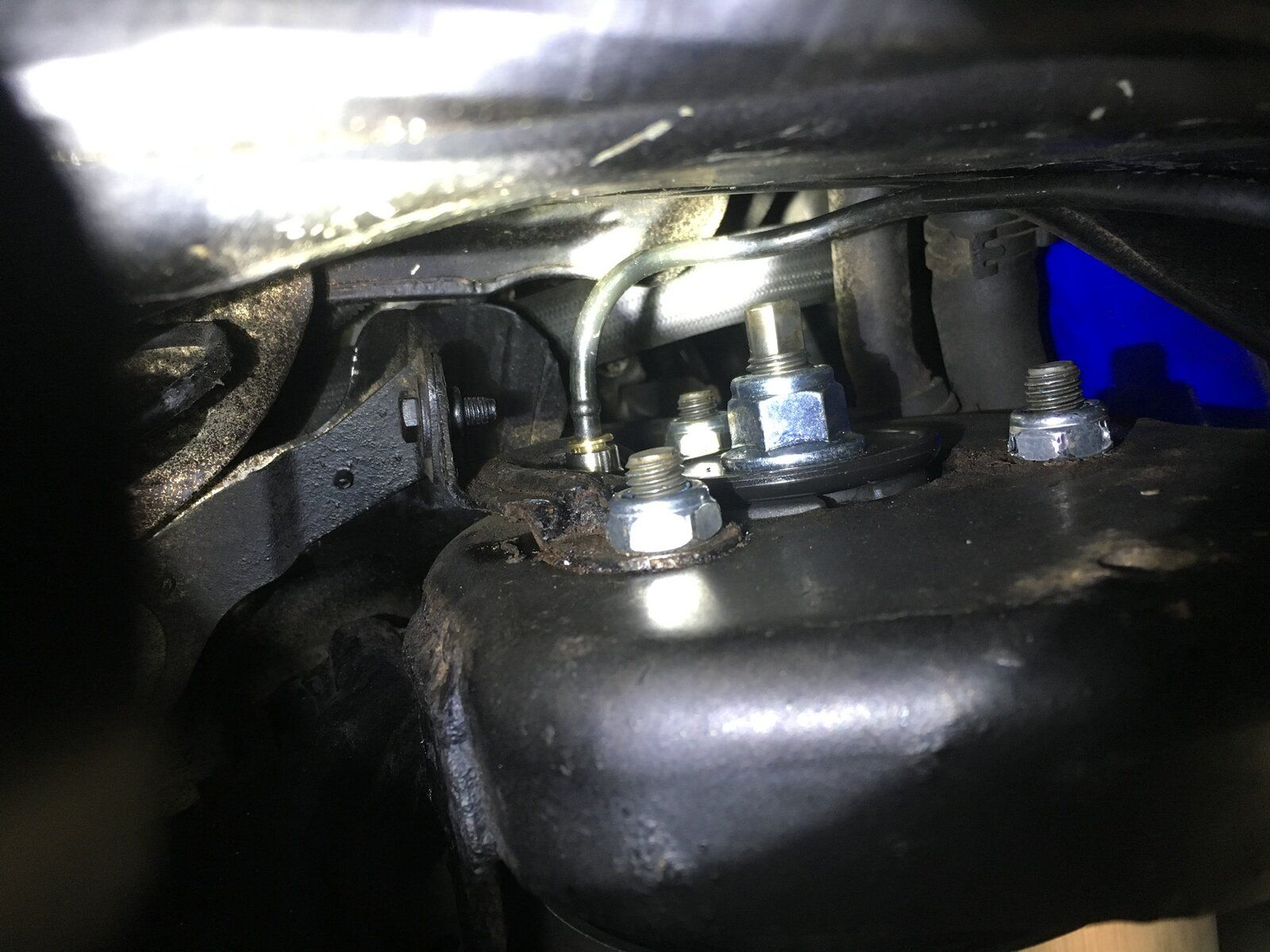

when I got my struts for the D3 they didn’t come with any connectors or nuts , so had to buy them, did get stainless steel nuts for the top and also the brass pushfits

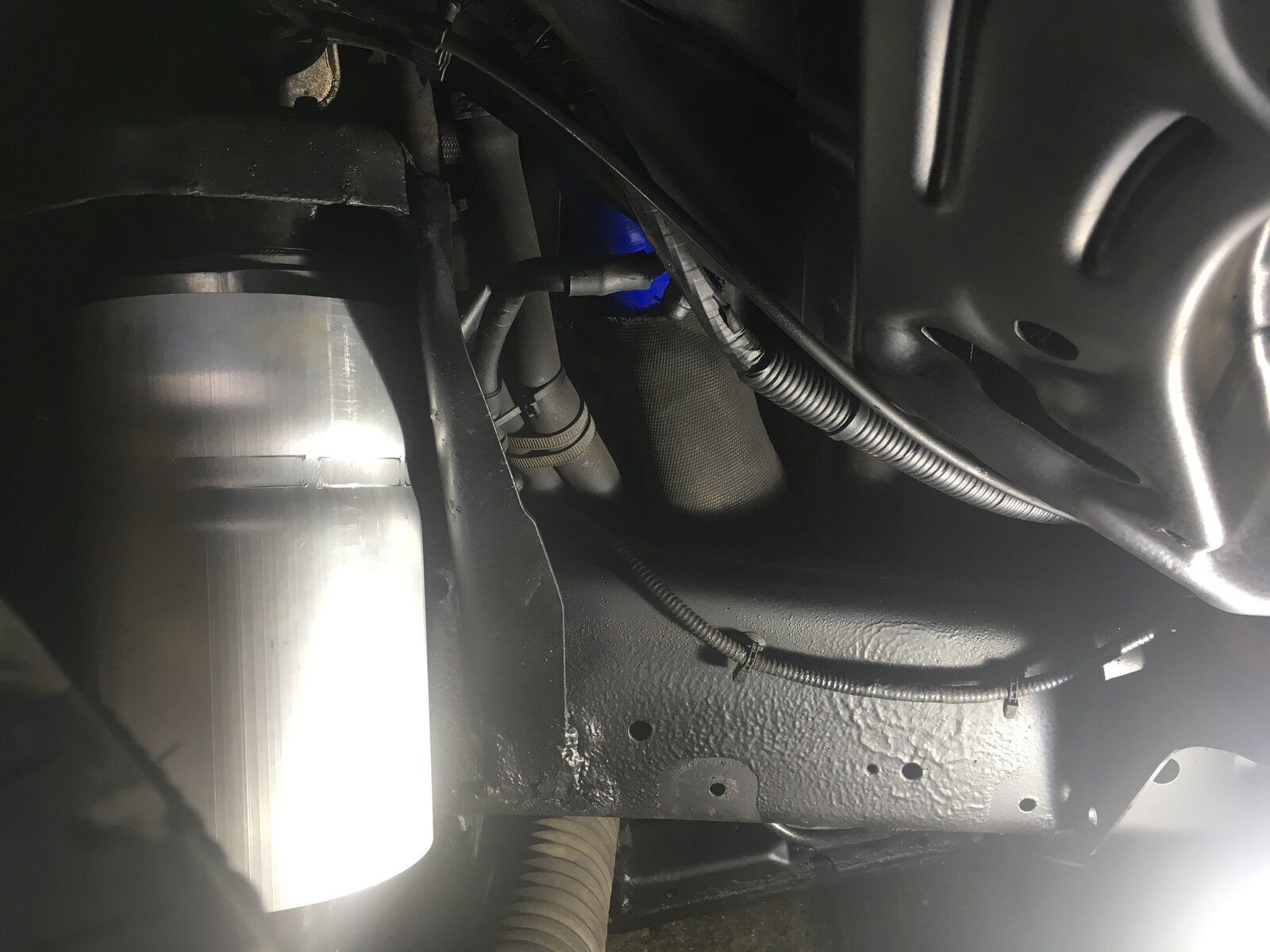

with the front struts removed it gave me chance to finish off the hidden areas with Dinitrol

slowly getting back on my feet but just got to take it easy , like wise hope all is well

Mark Piercy · May 10, 2020

New bits.. New bits.. New bits !!

gstuart · May 10, 2020

Mark Piercy said:
New bits.. New bits.. New bits !!

I better not show u these bits as u might loose ur mind, snigger

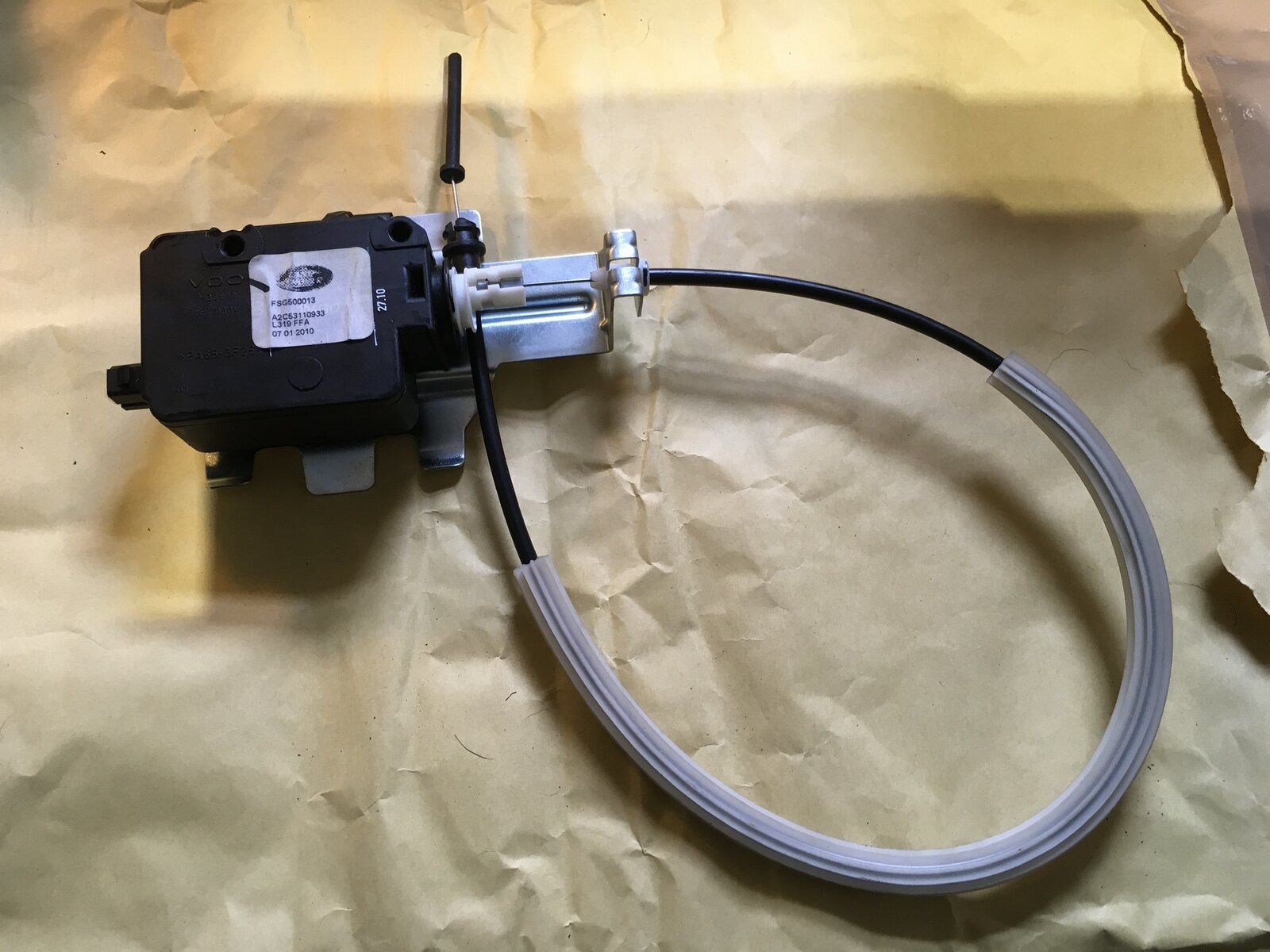

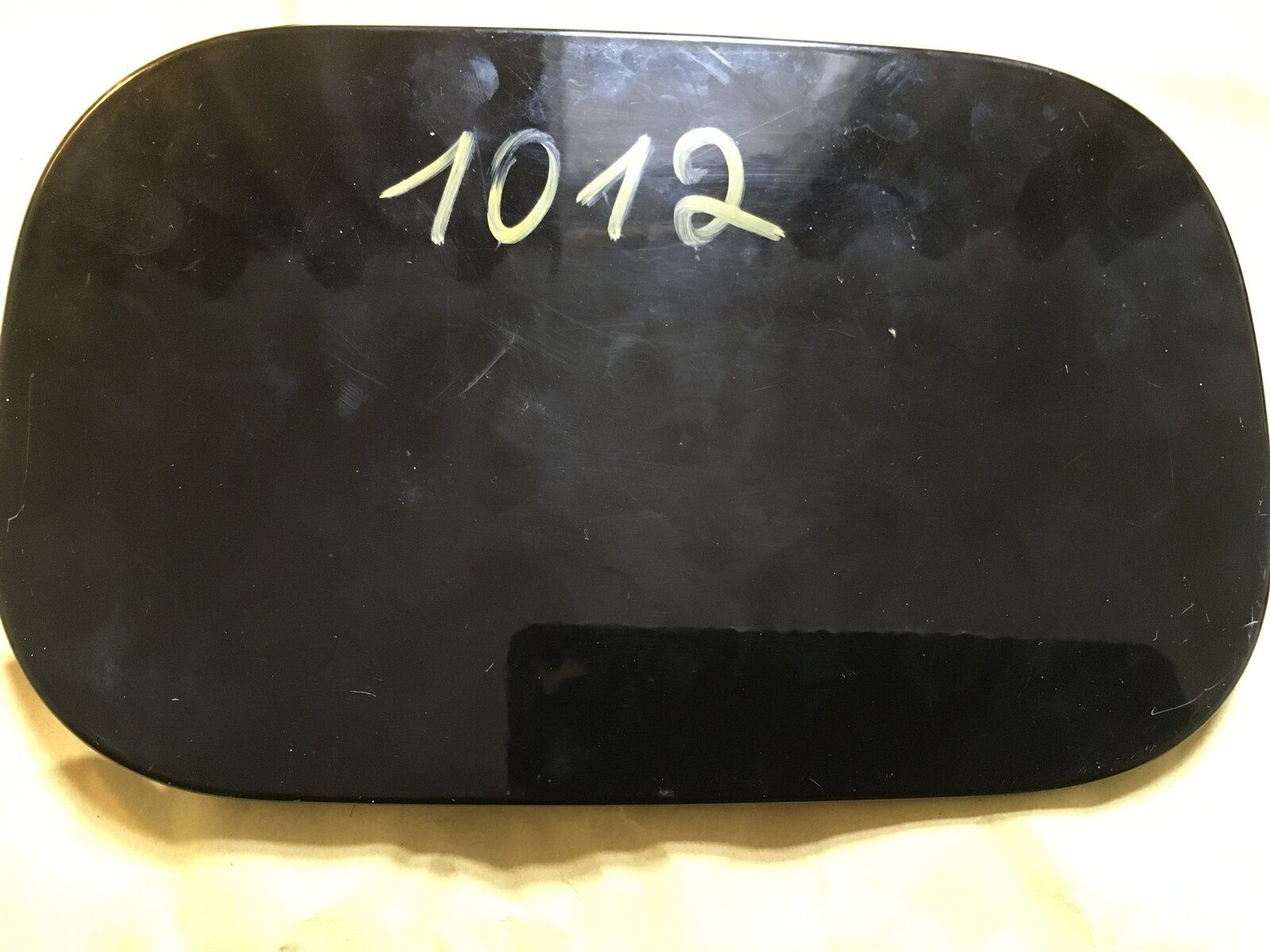

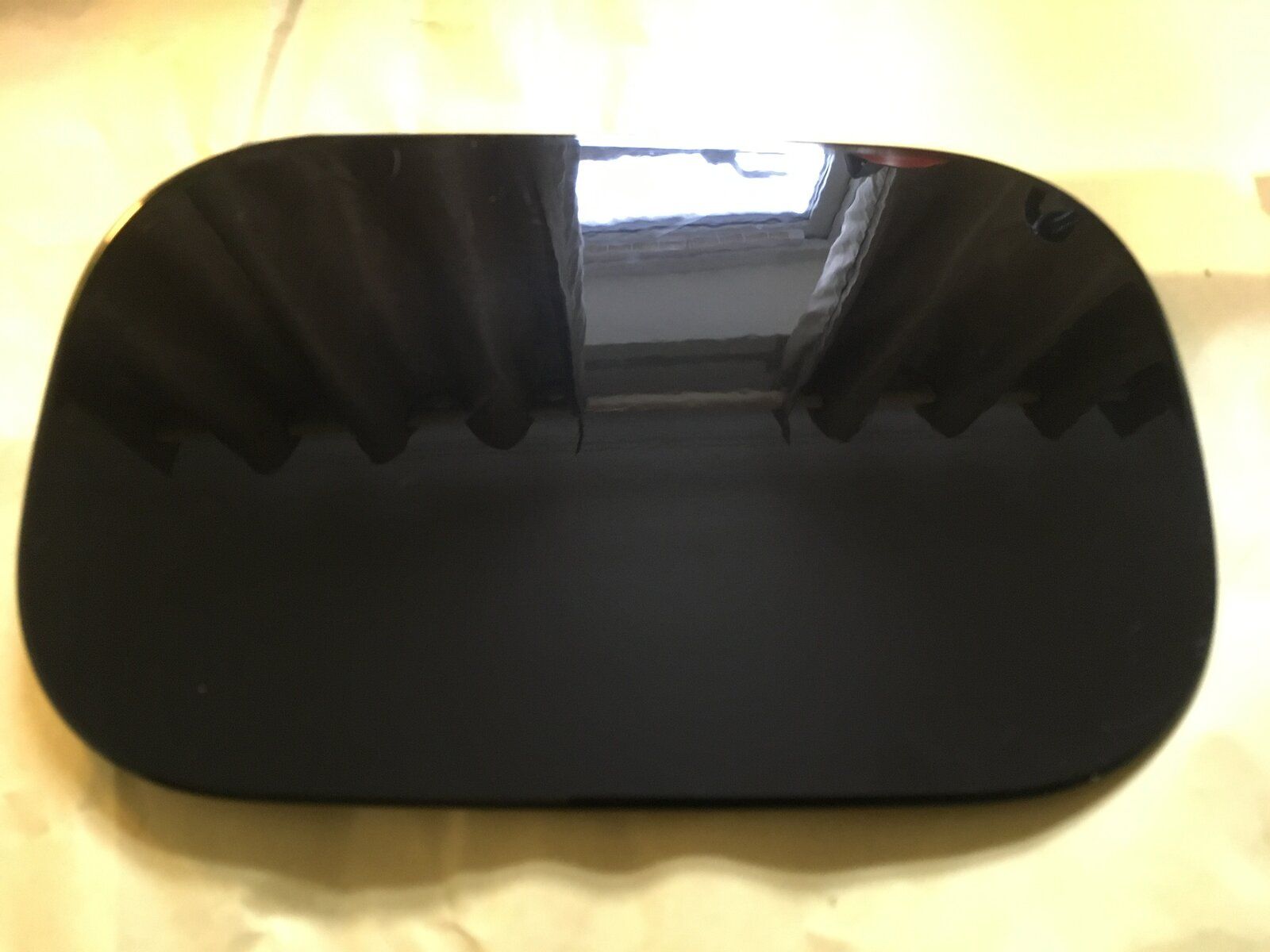

retrofitting a fuel filler flap lock , plus gave the fuel cover a quick polish

gstuart · May 10, 2020

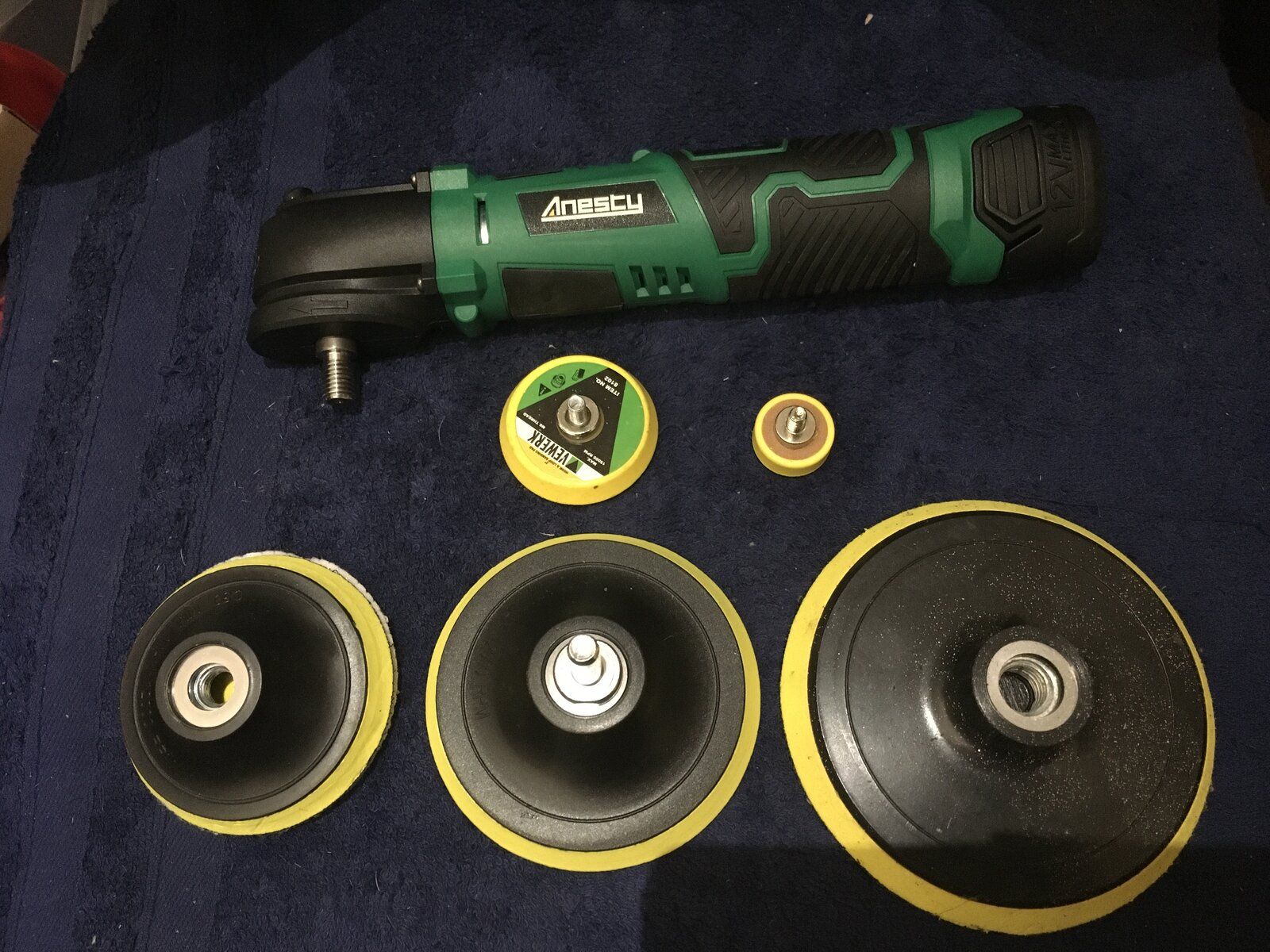

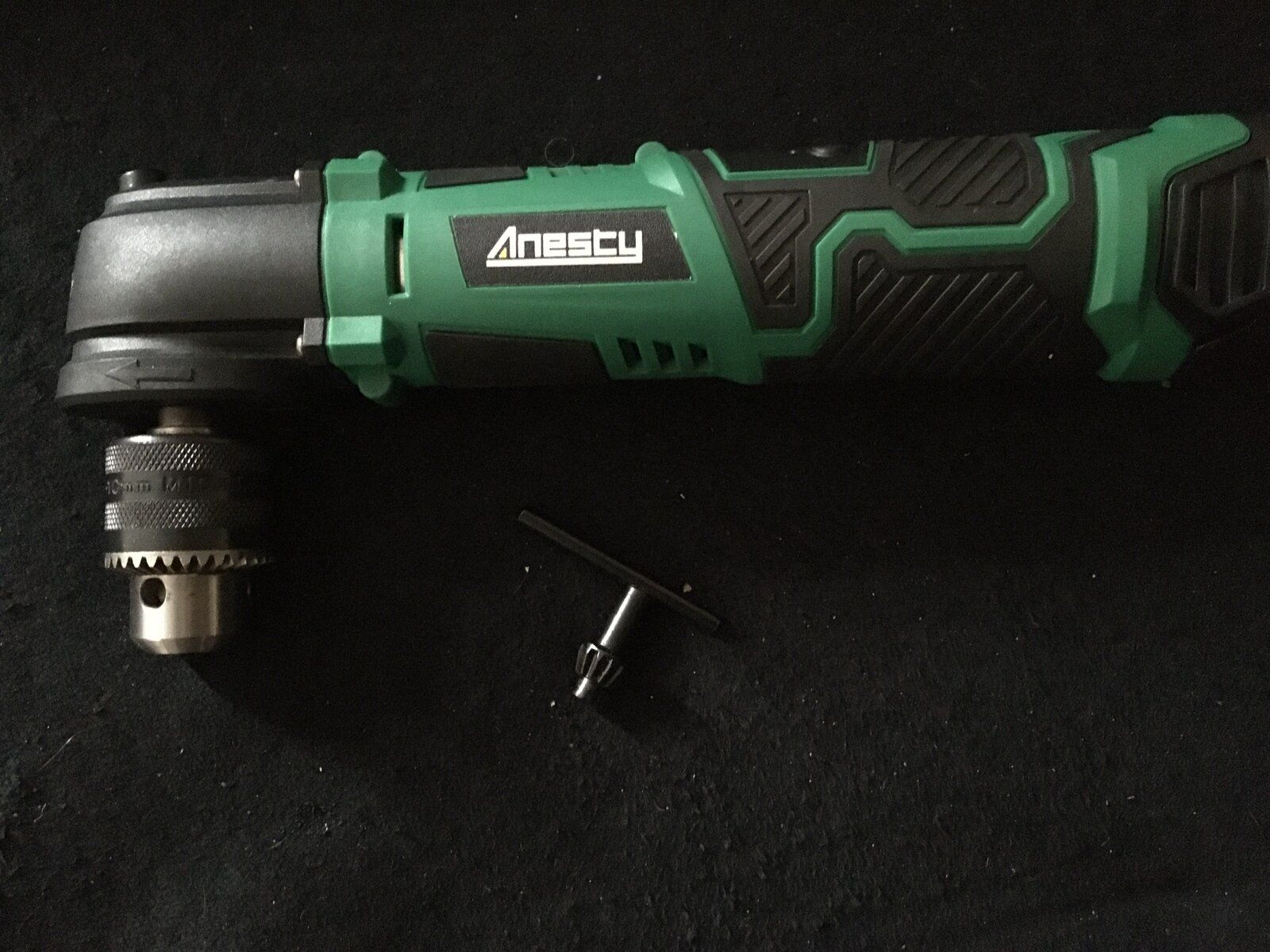

Used my new polisher/ sander, found a Chuck for it to make life easier

Mark Piercy · May 10, 2020

Stop it, your killing me

Mark Piercy · May 10, 2020

What polish is it your using?
It scares me to attack mine as I don't want to ruin the paint. It's full of scratches from off roading.

gstuart · May 10, 2020

Mark Piercy said:
What polish is it your using?
It scares me to attack mine as I don't want to ruin the paint. It's full of scratches from off roading.

I’ll do a post over in the discovery section , so then can post a good few piccies

done a thread here , will start to fill in the details and then add a tag

https://www.landyzone.co.uk/land-rover/cleaning-our-precious-discos.359581/
