Disco 2 Air Inlet Temp

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Shimsteriom

Master Procrastinator
Posts
41,905
Location
Over Here
Look reviewing the Nanocom live data from yesterday again and I've noticed that the Air Inlet Temp figure seems to going from about 20 to to almost 40 when the turbo is working hard.
I assume this value is measured at the inlet manifold so the temp of the air is from the intercooler.
Would a big fluctuation in the AIT indicate an intercooler issue?

Look reviewing the Nanocom live data from yesterday again and I've noticed that the Air Inlet Temp figure seems to going from about 20 to to almost 40 when the turbo is working hard.
I assume this value is measured at the inlet manifold so the temp of the air is from the intercooler.
Would a big fluctuation in the AIT indicate an intercooler issue?

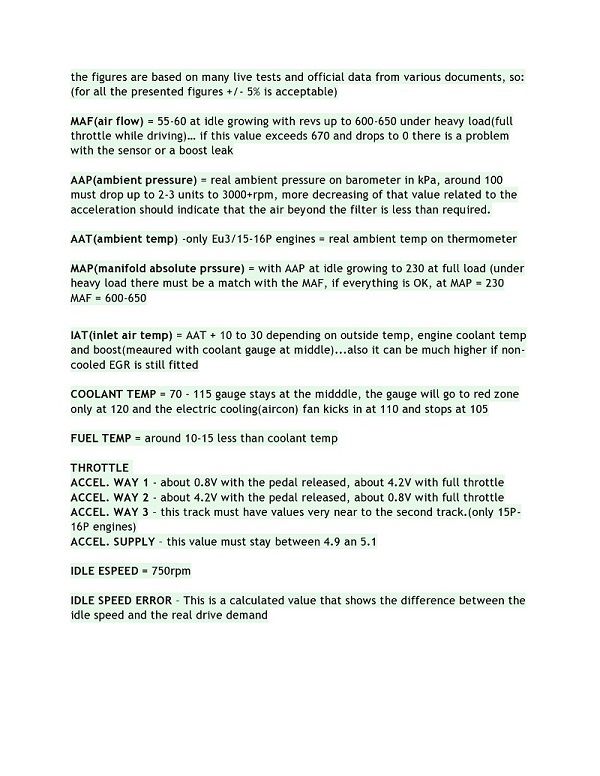

It's very dependant of the ambient temp and boost, all the readings have to be within a certain ''matrix'', here's a general list:

Td5 sensor readings-page0001.jpg
