Air inlet duct retaining screws

Discussion in 'Land Rover Freelander' started by Border Boy, Nov 22, 2020.

< Previous Thread | Next Thread >
  1. Border Boy

    Border Boy Member

    Joined:
    Aug 23, 2017
    Posts:
    61
    Likes Received:
    8
    Location:
    South Wales
    A minor detail but I'd like to get it right.

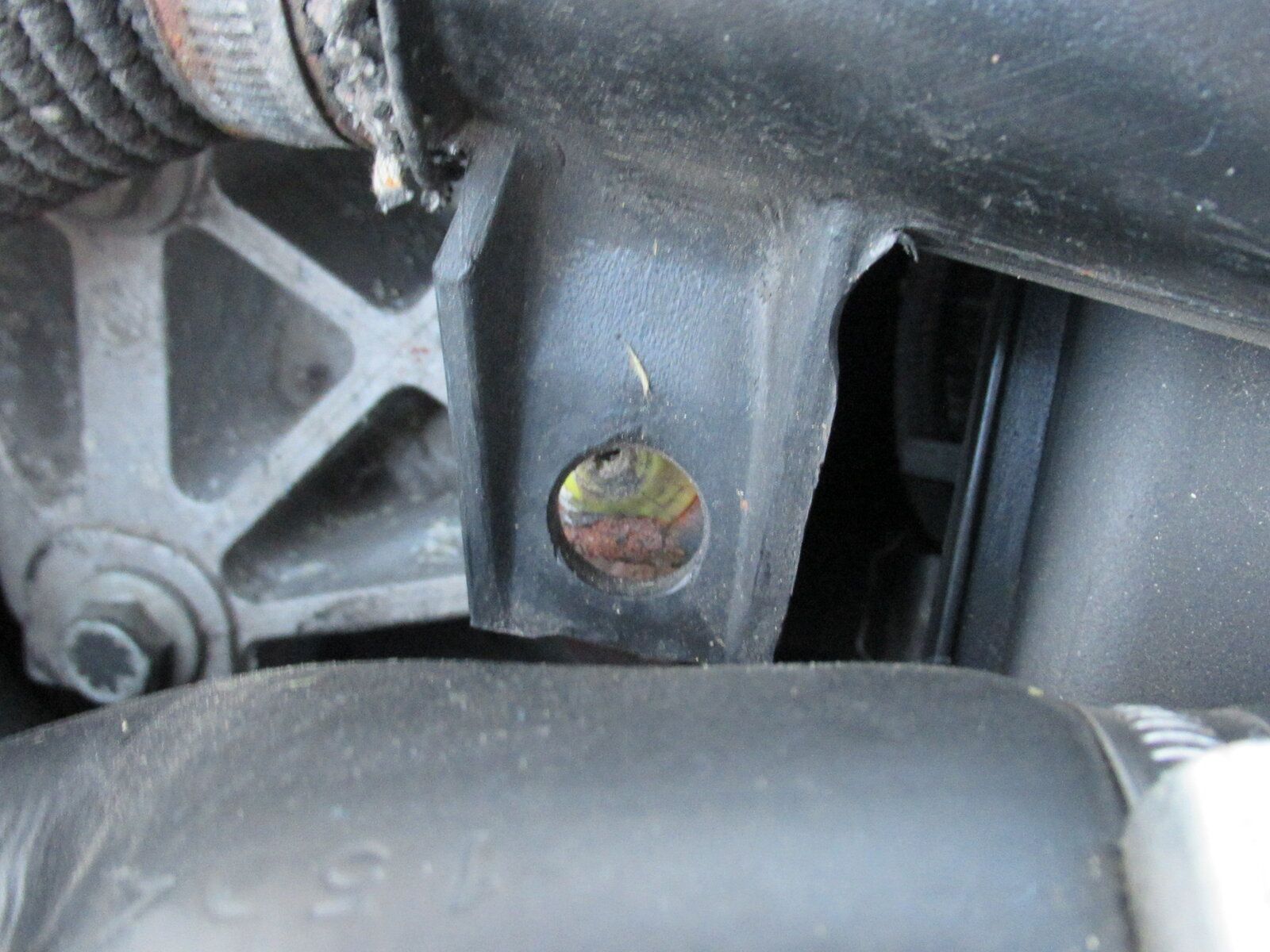

    See photos of air inlet duct retaining screws; one is missing and the other is not doing a lot! I am interested to know what the original fitting looked like


    Attached Files:

  2. Andy Warren

    Andy Warren Active Member

    Joined:
    Jun 27, 2017
    Posts:
    281
    Likes Received:
    89
    Location:
    Hertfordshire
    Hi, I had the same problem with mine when I got it 3 1/2 yrs ago, it took my local LR dealer weeks to get a part no. for it as it didn't show up on the parts list.
    The part no. is AWR5619 but it's now discontinued :mad:.(I wish I'd got 2 or 3 of them now) As it's fairly brittle I would have thought LR would keep stock available.
    The pics. are of what was left of mine when I got it & notes I made at the time. I can take a picture of the whole bit tomorrow if you want, let me know, otherwise if you google it Brit car have a out of focus picture of it on their website. Best of luck with your search.

  3. Andy Warren

    Andy Warren Active Member

    Joined:
    Jun 27, 2017
    Posts:
    281
    Likes Received:
    89
    Location:
    Hertfordshire

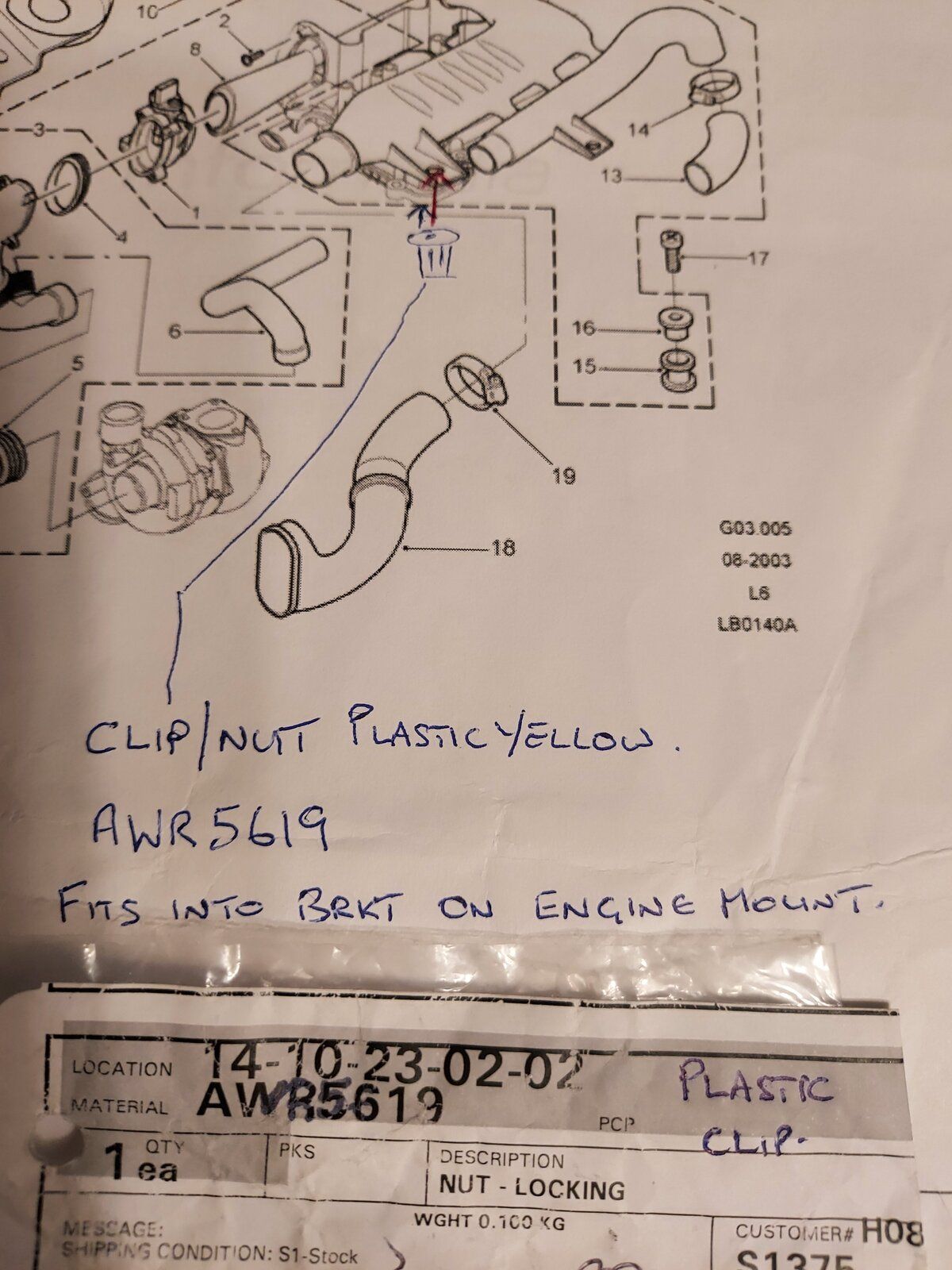

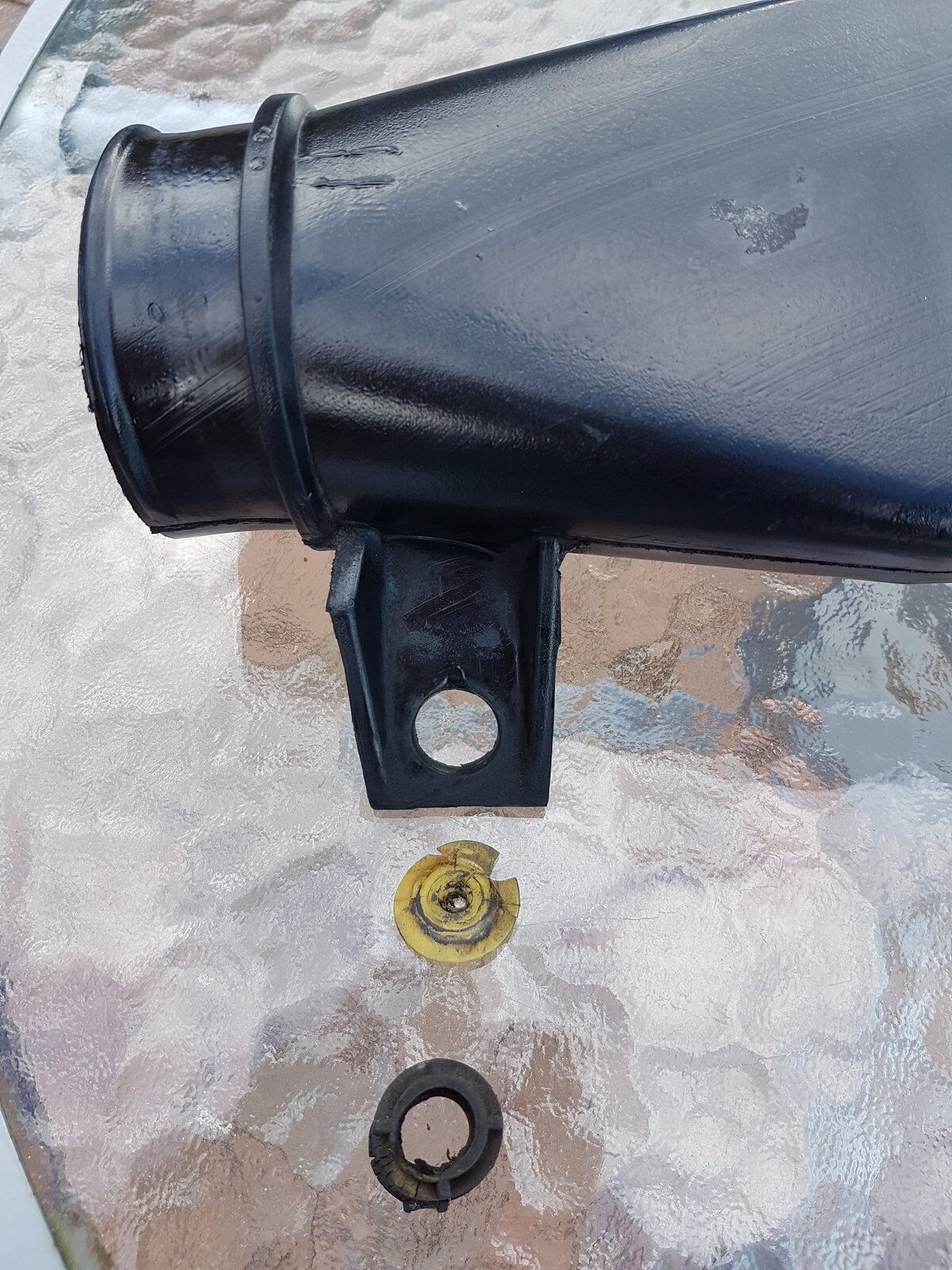

    20201124_213807.jpg 20170331_150229.jpg
    Hi, I had the same problem with mine when I got it 3 1/2 yrs ago, it took my local LR dealer weeks to get a part no. for it as it didn't show up on the parts list.
    The part no. is AWR5619 but it's now discontinued :mad:.(I wish I'd got 2 or 3 of them now) As it's fairly brittle I would have thought LR would keep stock available.
    The pics. are of what was left of mine when I got it & notes I made at the time. I can take a picture of the whole bit tomorrow if you want, let me know, otherwise if you google it Brit car have a out of focus picture of it on their website.

  4. hd3

    hd3 Well-Known Member

    Joined:
    Feb 5, 2012
    Posts:
    2,349
    Likes Received:
    359
    Location:
    Bradford u.k.
  5. Jayridium

    Jayridium Well-Known Member

    Joined:
    Aug 23, 2013
    Posts:
    814
    Likes Received:
    250
    Location:
    Pedronapper (Peterhead)
    OK, toy may or may not like this, as it's a bit Heath Robinson, but on mine I packed the hole with numerous gromits, and secured it with a new self taper, and a penny washer.

  6. hd3

    hd3 Well-Known Member

    Joined:
    Feb 5, 2012
    Posts:
    2,349
    Likes Received:
    359
    Location:
    Bradford u.k.
    when mine were fitted .. the screws were a bit awry ..
    think one were missing ..
    were easy to replace them from bolts 'n what not found in my various stashes
    ```````````````````````````````
    much prefer the mod. .. releasing it from the filter box .. be one clip-screw to undo
    `````````````````````````````````
    also used bolts that self tapped perfectly .. to block various holes in the filter box
    only kool air in for my td4 ;-] .. no preheated oily engine bay air thanx ..
    every little bit helps .. ;-]]
    `````````````````````````````````````````````````````
    `s`

  7. Border Boy

    Border Boy Member

    Joined:
    Aug 23, 2017
    Posts:
    61
    Likes Received:
    8
    Location:
    South Wales
    Andy, thanks for reply and photo, I thought it would be a screw and washers. A photo of the correct fitting will be appreciated, it's a sunny day tomorrow!
