Air Filter Connector

Resurgam · Oct 19, 2023

Any idea what this second small pipe is for on the 200Tdi air filter box?

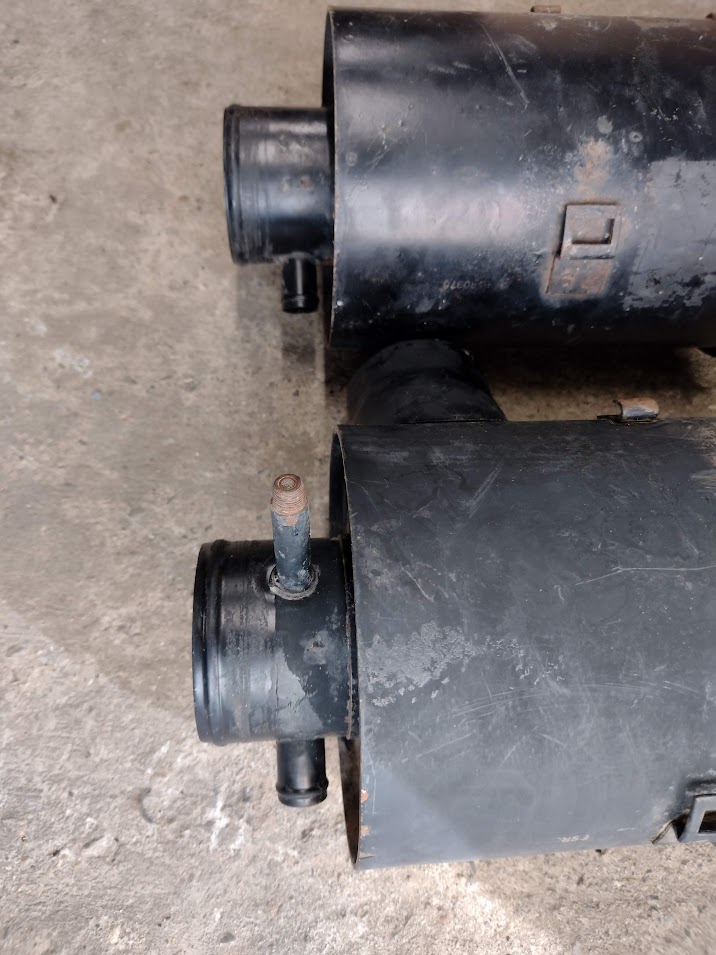

The photo shows both my old knackered one and the replacement one, which has an additional sticky-outy bit.

Tirran · Oct 19, 2023

Looks like some kind of mod, can’t think what it could be for

Resurgam · Oct 19, 2023

I've seen it on a few now, having scoured the internet looking for a filter box in reasonable condition. Looks like it was probably on the early 200Tdi, but gone by the time mine was made (about November 1992)

lynall · Oct 19, 2023

Is the extra stub welded or bolted in?

Resurgam · Oct 19, 2023

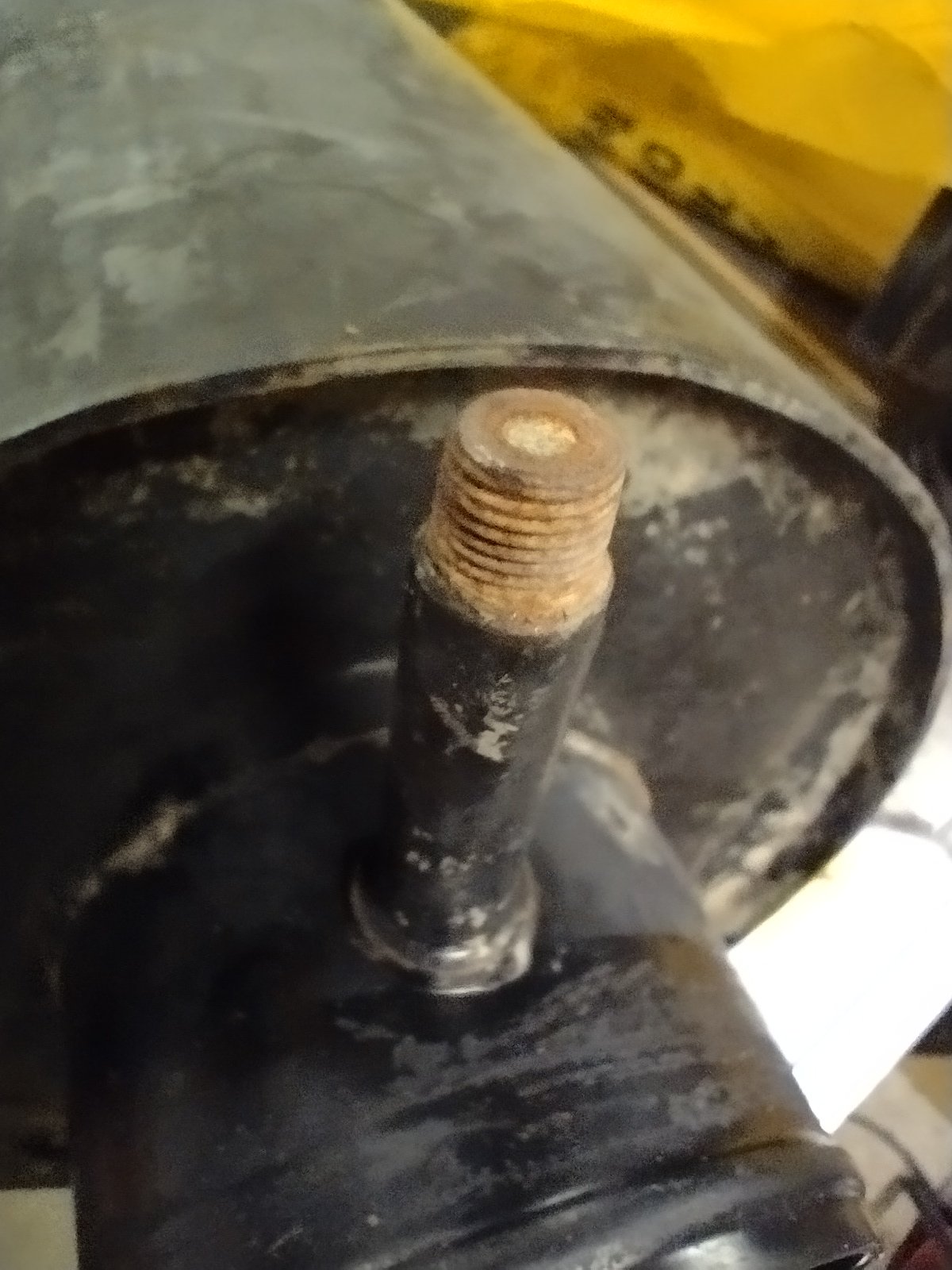

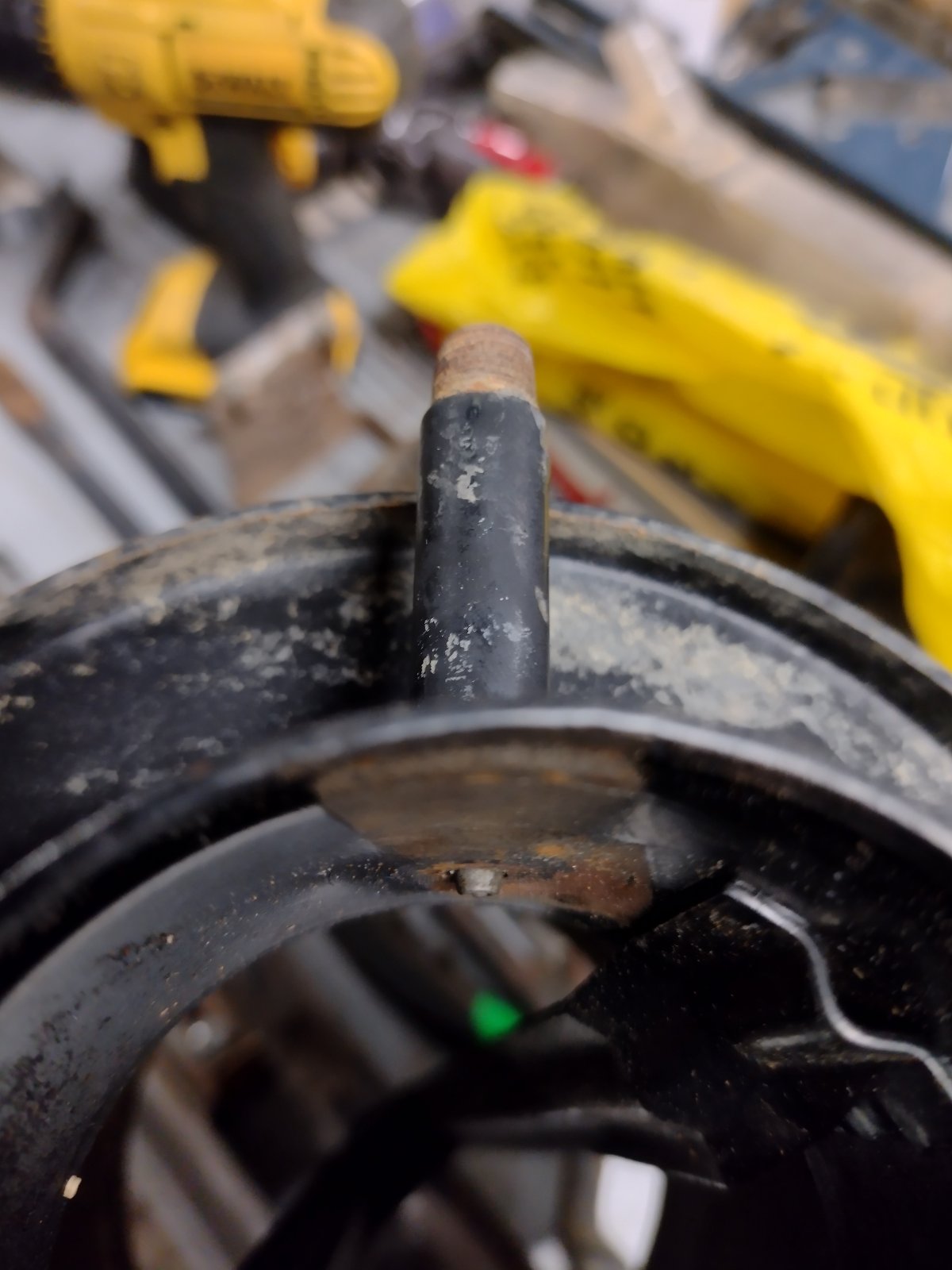

It's not bolted in so I assume it's welded, but it's very neat. The end is threaded and there's a tiny bit that goes through into the box itself. Nitrous injection?

lynall · Oct 19, 2023

Bet you 50p that is for an air filter indicator, ie when the air flow gets restricted the filter pops up red.

Edit like this, https://www.westernfilters.net.au/D...r-Filter-restriction-indicator-25-h2o-6-2-kp/

Tirran · Oct 19, 2023

Nitrous…mmmmm now there’s an idea I should ignore
