advice on my crusty hole

Discussion in 'Defender 90 / 110 / 130' started by swampy Stephen, Apr 21, 2019.

< Previous Thread | Next Thread >
  1. swampy Stephen

    swampy Stephen Member

    Joined:
    Apr 17, 2019
    Posts:
    11
    Likes Received:
    7
    Location:
    fife

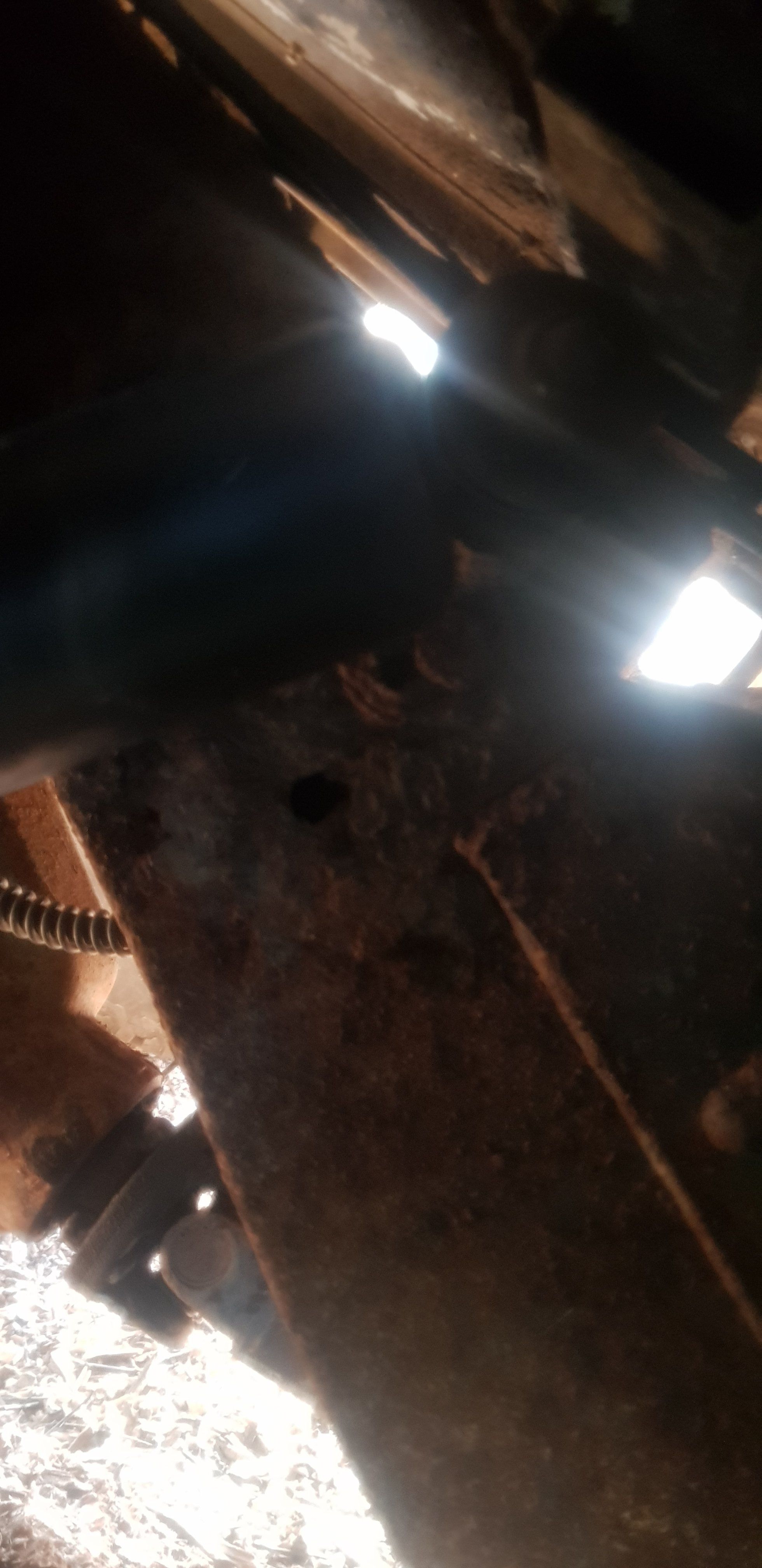

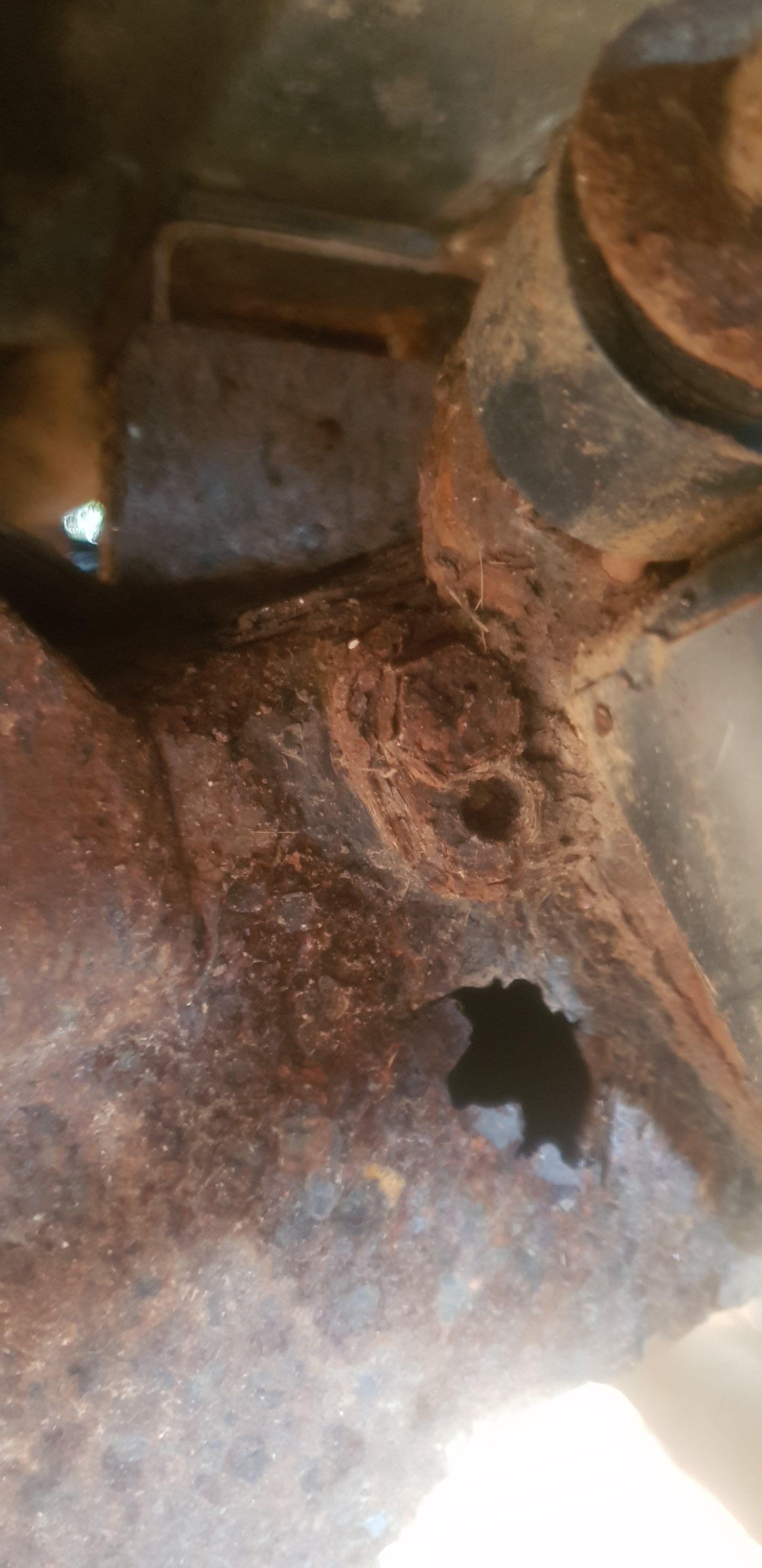

    Just spent the day cleaning and checking my chassis and found 2 holes just in front of the rear shock top mounts.

    Do I remove the mounts, cut out the rot, plate over then re drill holes for shock mounts?

    What gauge of metal is best? Cant see any repair panels for this bit so I guess its CAD (cardboard aided design)?

    Thanks in advance. 20190421_181651.jpg 20190421_181651.jpg 20190421_181651.jpg 20190421_181651.jpg


    Attached Files:

  2. blue beasty

    blue beasty Leaks an prone to bits dropping off

    Joined:
    Jun 10, 2007
    Posts:
    55,864
    Likes Received:
    22,391
    Location:
    Gloucestercotshirewolds
    I use 2.5mm, sometimes 2mm depending on what's available in my local fabricators skip for chassis patches. It's not a good idea to go too thick as you'll make a stiff patch and new stress points either side.

    It's a safe bet the rot runs behind the brackets so removal is needed to do it properly.

    swampy Stephen likes this.
  3. nobber

    nobber Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    10,207
    Likes Received:
    5,194
    Location:
    Arse!
    Make a template first to re drill the correct place for the mounts, they have to be spot on.

  4. swampy Stephen

    swampy Stephen Member

    Joined:
    Apr 17, 2019
    Posts:
    11
    Likes Received:
    7
    Location:
    fife
    Ok bud. I'm going to fit new mounts while I'm at it so I'll get my best crayons out and sort it from there. Is it worth playing the inside face too?

  5. nobber

    nobber Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    10,207
    Likes Received:
    5,194
    Location:
    Arse!
    Playing?

  6. swampy Stephen

    swampy Stephen Member

    Joined:
    Apr 17, 2019
    Posts:
    11
    Likes Received:
    7
    Location:
    fife
    Plating. I'm a fanny.

    lynall likes this.
  7. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    8,618
    Likes Received:
    7,067
    Location:
    Shropshire
    Bear in mind that there are braces or possibly tubes in that area to prevent the chassis crushing.

  8. swampy Stephen

    swampy Stephen Member

    Joined:
    Apr 17, 2019
    Posts:
    11
    Likes Received:
    7
    Location:
    fife
    Good point. Was going to cut tube to use as spacers in between the plates to stop that. Just hope I dont melt my wiring harness.

    Hicap phill likes this.
  9. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    3,510
    Likes Received:
    1,537
    Location:
    Warwick
    you could do what my po did and hack the harness in half using something vaguely sharp just after it exits the chassis, pull it back out the way, and then rejoin it afterward using whatever tape/sticky substance is nearest to hand. But I would not recommend that! It is easy enough to disconect the harness and pull it back through out of the way if you are really worried, it depends on how large a patch is needed once the mounts have been removed as to if it will be worth doing this.

    swampy Stephen likes this.
