abs light

ss9900 · Aug 14, 2019

hi

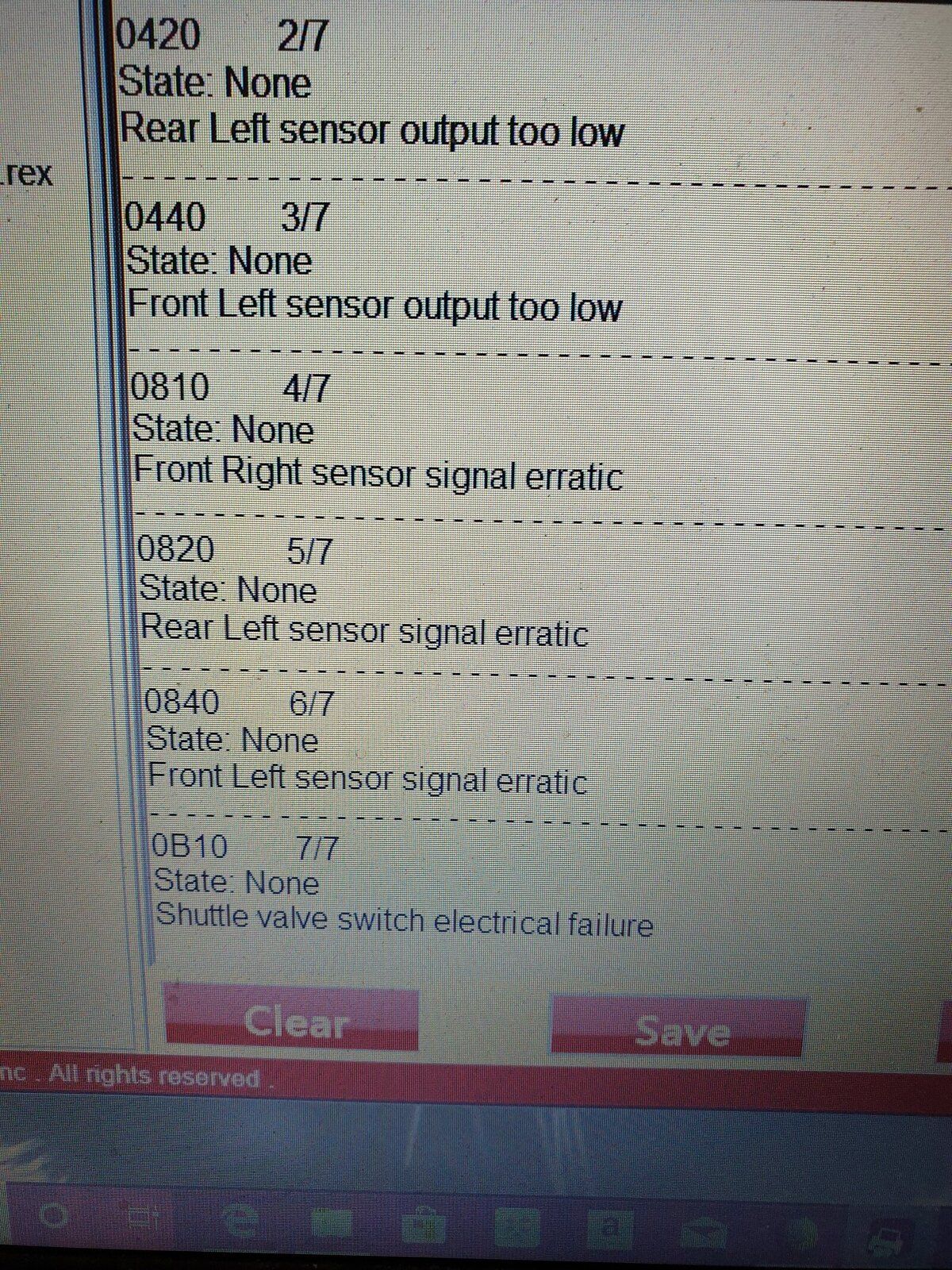

I had some lights come on on my disco2 td5 had it on a diagnostic code reader and the following photos show the faults what I would light to know is will these faults bring on the lights also in a photo many thanks for any help

ronsealdeath · Aug 14, 2019

Yes! Some could be historic though. Clear them then see what happens. All common faults and easily fixed

ss9900 · Aug 14, 2019

did clear them took the disco for a drive and they are still there even the list of faults

Bobdog · Aug 14, 2019

ss9900 said:
did clear them took the disco for a drive and they are still there even the list of faults

Search "ABS shuttle valve". Loads of info on it and seems to be your problem.

ss9900 · Aug 14, 2019

many thanks for that going to order a new shuttle valve but one that has been moded as I am not very electrical minded

ronsealdeath · Aug 15, 2019

Its really not that hard to modify but if you can get hold of a modded one then saves 10mins. You still need to earth and splice to the loom wire, ecu side of the loom not plug side.
Get a wabco one as they are effectively a genuine part just no LR badge and cost. Loads online around £35
Test it first using a multimeter
Best of luck

sierrafery · Aug 15, 2019

If that whole list of codes comes back after they were erased then only the SVS will not cure things... can you see the HDC warning after ignition?

ss9900 · Aug 15, 2019

no hdc light after the ignition has run its test also the red brake warning light now goes out

sierrafery · Aug 15, 2019

The SLABS ECU is suspect with all those codes and missing HDC light(unless it was disabled with nanocom)

ss9900 · Aug 15, 2019

not sure as to the history of that
