A useful bit of kit?

Studsaver for repairing thread,M6-M20




Enlarge
RS Stock No.194-0094 ManufacturerRecoil Manufacturers Part No.90620 Catalogue page3 - 4626 Quantity Price Each 1£25.10
Quantity:



Please log in to see latest prices - Log In

In stock for next working day delivery
Check a different quantity


Technical Reference

Statement of ConformityPages Statement of conformity 1 Data SheetPagesSize Stud Saver Data 1 39kB Note: If you experience problems downloading PDF documents, un-check 'Page at a time download' below.
Page at a time download
function openDocuemnt(techDocStandardDocUrl,byteServedUrl,webUrl) { if (document.getElementById('techDocDownload').checked) { window.open(byteServedUrl+webUrl); } else { window.open(techDocStandardDocUrl+webUrl); } } Attributes

Attribute TypeAttribute Value Product CategoryStudsaver For Use OnThread Size M6 to M20
Overview

Studsaver
The studsaver is a simple, highly effective tool for repairing damaged threads. Due to the special design it will repair M6 to M20 and M22 to M38 as well as 1/4 in. to 1 1/2 in. UNC and UNF thread types.

• Will repair threads even when they are covered with paint, concrete or rust
  Available in two sizes
  Spare blade sets are available separately

Note
The studsaver must be used in conjunction with a lubricant, preferably a cutting type oil.

Range Overview

Thread Files & Restorers



Print page Studsaver for repairing thread,M6-M20

[URL="javascript:hideStuff('zoomBox')"]

handy! already have a tap and die set though!

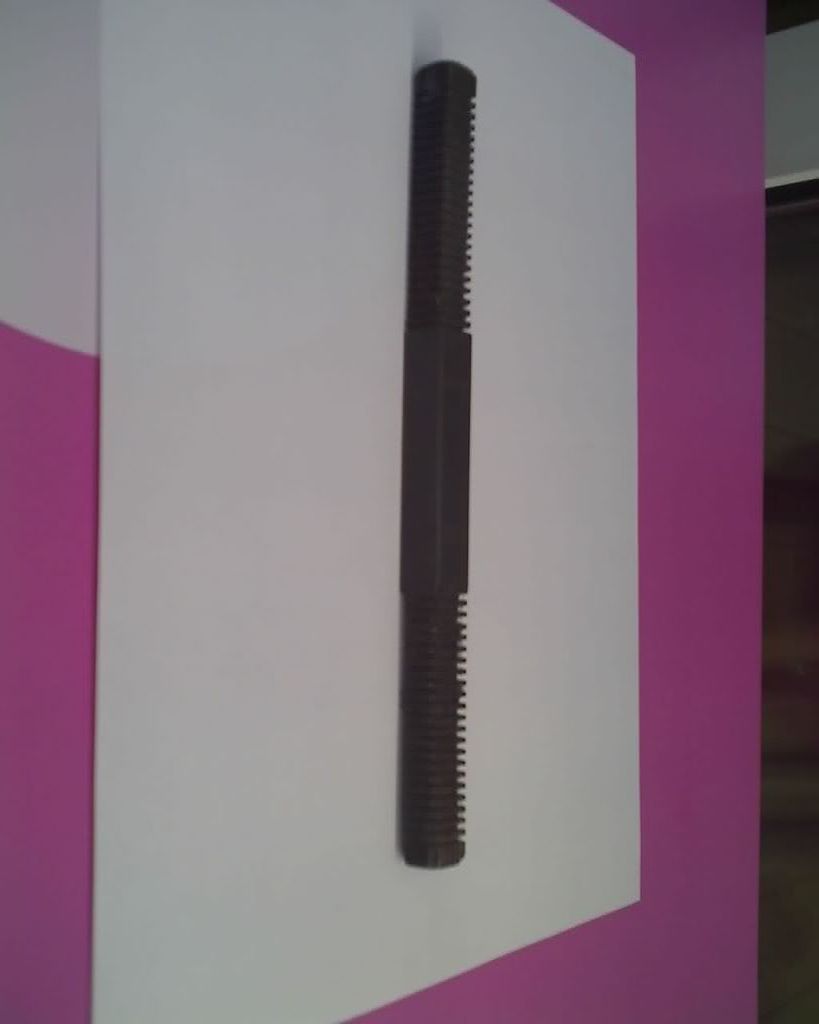

I've had this tool for donkey's years.
It covers 8 different thread pitches and you use it (carefully) like a file, to restore the damaged thread.
It's got me out of trouble many a time.

unlesss yu is selling em - that dont help other peeps, Trewy.

curling tongs? how's that gonna help?

The Mad Hat Man said:

unlesss yu is selling em - that dont help other peeps, Trewy.

Click to expand...

ffs
it's to show that there's a cheaper alternative which people could consider buying.

and anyone local is welcome to borrow it.....

reet then Trewy - this brill bit of kit - where can I get one from?

Britool, Draper, Facom, Gunson, Kamasa, Laser, Sealey, Silva and Sykes-Pickavant Products. Haynes Books and Manuals - Sykes-Pickavant THREAD RESTORER BSP

Ooops - thats the BSP one, but they do BSF, BSW, Metric...

or here

TidyConnect.co.uk: THREAD RESTORER (Hand Chaser, thread files) - METRIC , For Under £15.43 , Engineering Supplies

wot a helpful chappie yu are.

at 25 quid call me a tight yorkshire it but i tend to buy new lol.. and carry a few packs of sizes on me.

i buy direct from my fave ebay nut and bolt supplier, they normally give me a good deal. i find repairing the thread to messy i do have a tap n die set for emergency's but i've only used it a couple of times.

But a tip for peeps to make a new bolt buy a cheap metric bolt in your size say m8 ect and ask for partially threaded. longer than you need it cut it to the length you need and then as it was partially threaded you should be left with a blank bolt for you to re tap to the thread of your choice saves a fortune on harder to get thread sizes

partial threads are normally the twice diameter + 6mm

so a M8 partial thread would be 24mm thread. so if you need a M8 x 40 in fine thread you would buy a M8 x 65 or bigger and then cut at 40mm and then rethread,

Wappy

good idea but there not cheap
i use a needle file cost me a quid does a crackin job fa me

hehe i used a hacksaw on the last one i had to do and it left the cleanest mend i've ever done! Was a bit fiddly though (and it was the big thread off of the wheel hub so these bits of kit might have struggled!) but worked fine!

odenne said:

hehe i used a hacksaw on the last one i had to do and it left the cleanest mend i've ever done! Was a bit fiddly though (and it was the big thread off of the wheel hub so these bits of kit might have struggled!) but worked fine!

Click to expand...

and saved ya 24 quid he he
