A few questions.

id wont matter what order yer connect the three cables it wont blow a fuse, it wont work thas all, when ther right yerl kno, why not just but a new sender, clean the tank up with some diesel on a rag or engine cleaner spray , then do the job right,

Going out to look for new wires.

I guess with those wires there me trailer socket won't be connected up

well dunt ferget yer apron an marigolds

The_Big_P said:

Going out to look for new wires.

I guess with those wires there me trailer socket won't be connected up

Click to expand...

doubtfull, borrow a trailer board and plug it in , see what happens

Back again.

Reet, no other loose wires under there from what I can see apart from a yellow and white one.

oil dripper said:

well dunt ferget yer apron an marigolds

Click to expand...

Cheeky ****, I don't mind getting durddy.

90truckcab said:

ooh, thas a trailer cable, has been used for either trailer socket or rear indicators and lights, thats NOT what yer want to connect to yer sender, ignor the blanked off terminal fer the mo,
the wires are green , black and white, only thin and are wrapped together in tape , coming from the front of the vehicle

Click to expand...

So where are the other ends of these wires connected too so I can check they are actually there?

The yella un white wun is hanging down the side of me transfer box in that pic.

makes good readin
http://www.legionlandrover.com/manuales/workshop manual - defender TDi.pdf


http://www.legionlandrover.com/manuales/electrical schemes - defender 300 tdi.pdf

I bet the other end ud be connected to the Gauge.....otherwise it wun make no sense would it

Sirus said:

I bet the other end ud be connected to the Gauge.....otherwise it wun make no sense would it

Click to expand...

Ah was told they went to the injun

I've studied that wiring diagram and it just confuzzled the **** out of me. I've never understood. Think it's mebbey summat ter do with Autism.

If sumwum could give me very clear and basic step by step instructins (perhaps with some pics) on how to wire it up from scratch I would give it a go.

if i get time il draw a pic with wriggly lines in coloured pen for yer ,

why would they go to the engine ?? thers a power feed to the sender, then it works as a switch, with the other two wires,
the ball floats up and follows a copper conductor, the position of the arm on the conductor is shown on the gauge

I think the person what told you they went to the engine is confoosing pipes with wires...

Sirus said:

I think the person what told you they went to the engine is confoosing pipes with wires...

Click to expand...

easily done

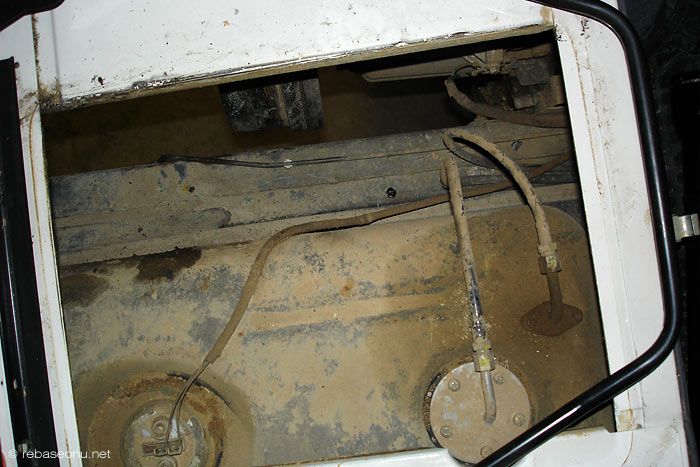

Take the fuel sender out (see, the 3 little metal tabs, tap them around with a screwdriver until they match up with the gaps around and you can pull it out), and see how it behaves when you move the ball float up and down. Go from there

gorra find the wirin first:doh:

oil dripper said:

gorra find the wirin first:doh:

Click to expand...

pokin out the back of the dash is a good start

90truckcab said:

pokin out the back of the dash is a good start

Click to expand...

hehee id start here meselfs an werk back

90truckcab said:

if i get time il draw a pic with wriggly lines in coloured pen for yer ,

Click to expand...

if yer got time just come up ter scotlandshire and do it fer me, and me other niggly probs.

Bring Si with ya, he can stand around and lean on the landy looking important. *snigger*

serioulsy though, coloured diagram will he brill.
