90 No Heat

Discussion in 'Defender 90 / 110 / 130' started by CameronW1996, Oct 20, 2013.

< Previous Thread | Next Thread >
  1. CameronW1996

    CameronW1996 Active Member

    Joined:
    Oct 19, 2013
    Posts:
    109
    Likes Received:
    0
    For some reason there is no heat coming through the blower. I traveled 100 miles yesterday, the temperature gauge was in the middle all the way. But there was still no heat coming from the heater just cold.

    I have done as this forum post suggested and still nothing (feeling the cold in your truck - Defender Forum - LR4x4 - The Land Rover Forum)

    I have read that some people swap the two coolant cables around. Is this a good idea?

    Any other things i could do ?

  2. Landyfox

    Landyfox Well-Known Member

    Joined:
    Jun 7, 2013
    Posts:
    3,439
    Likes Received:
    93
    Location:
    North East - England (Centre of the Universe)
    Are your cables connected.?
    Is there any water leaking from your heater matrix.?!
    Does your temprature gauge work.?

    It most probably that your matrix is broken, however make sure that your waterpump is working and water is circulating as it should be.

    How's your coolant levels.? :)

  3. Landyfox

    Landyfox Well-Known Member

    Joined:
    Jun 7, 2013
    Posts:
    3,439
    Likes Received:
    93
    Location:
    North East - England (Centre of the Universe)
    Oh and make sure that you have the cable adjusted correctly, often cables are such they fail to move the lever when operated by the leave. Ensure you have the small green metal clips in place. :)

  4. CameronW1996

    CameronW1996 Active Member

    Joined:
    Oct 19, 2013
    Posts:
    109
    Likes Received:
    0
    Yup cables seem to be connected and tight.
    No that i can see, but will double check.
    Temperature gauge seems to work.

    Im a newbie, where abouts is the water pump ?

    Got the landrover a couple of days ago havnt looked yet, will check today :)

  5. Landyfox

    Landyfox Well-Known Member

    Joined:
    Jun 7, 2013
    Posts:
    3,439
    Likes Received:
    93
    Location:
    North East - England (Centre of the Universe)
    Normally you have various indicators which suggests the WP is failing: Noisy pump, Temp gauge not moving or over heating and cold pipes. To locate the pump, look at the vehicle from the front and it is the top right pulley on the auxiliary belt, just to the right of the belt tensioner.

    Look at the matrix first, normal signs is water just beneath the box on the bracket! Get someone to operate the heater controls whilst you are Abe to observe how far the leaver hinges. :)

  6. CameronW1996

    CameronW1996 Active Member

    Joined:
    Oct 19, 2013
    Posts:
    109
    Likes Received:
    0
    Small green metal clips?

    Will have a look to see any leaks. Was also going to take it a drive and find out if the pipes going in to it are hot too :)

  7. sprogthedog

    sprogthedog Well-Known Member

    Joined:
    Nov 4, 2011
    Posts:
    1,142
    Likes Received:
    6
    Location:
    Berkshire. At the end bit, near Wiltshire. In the
    If everything there seems in order, try pouring a solution of caustic soda into the heater matrix.
    Leave it for 10-15 mins and rinse it out really well.

    I had the same problem with my old Disco, and this worked a treat...

    What engine do you have?

  8. Jongould

    Jongould New Member

    Joined:
    Nov 13, 2011
    Posts:
    3,185
    Likes Received:
    2
    Location:
    Colchester
    Use a hose and back flush the matrix, when I done mine I got loads of crap out of it... Still had crap heaters mind, TD5 upgrade is a worthy mod (do a search, been covers many times)

  9. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    4,253
    Likes Received:
    896
    Location:
    west wales coast
    No heater is often the first warning of water loss.The temp gauge can not be relied on as an indicator of water level because as the coolant level drops the temp gauge sender[normaly found at the top of an engine]is no longer in the water. I have often thought that coolant level warning lamp[as on many new vehicles now] would be more use to most than a gauge.

    Last edited: Oct 20, 2013
  10. Oldseadog

    Oldseadog Well-Known Member

    Joined:
    May 27, 2011
    Posts:
    9,270
    Likes Received:
    1,051
    Location:
    Tynemouth
    As has already been said, take the hoses off your heater and give it a good flush through.

    Once you have clean water coming out, fill it with coke, leave for an hour or so and then flush it through again.

    Unless you have any leaks, that will work every time!

  11. CameronW1996

    CameronW1996 Active Member

    Joined:
    Oct 19, 2013
    Posts:
    109
    Likes Received:
    0
    Just went for a drive and pulled over to check to see if pipes were warm and they were stone cold. Off to check coolant levels and find any possible leaks.

  12. sprogthedog

    sprogthedog Well-Known Member

    Joined:
    Nov 4, 2011
    Posts:
    1,142
    Likes Received:
    6
    Location:
    Berkshire. At the end bit, near Wiltshire. In the
    Is there a thermostat fitted?

  13. CameronW1996

    CameronW1996 Active Member

    Joined:
    Oct 19, 2013
    Posts:
    109
    Likes Received:
    0
    Not that i am aware of, Even tho there is a couple of cables going into the heater box, but they are for the resistors are they not?

  14. Landyfox

    Landyfox Well-Known Member

    Joined:
    Jun 7, 2013
    Posts:
    3,439
    Likes Received:
    93
    Location:
    North East - England (Centre of the Universe)
    Can you post a picture please!

  15. Hippo

    Hippo Lord Hippo

    Joined:
    Nov 22, 2007
    Posts:
    33,865
    Likes Received:
    11,781
  16. CameronW1996

    CameronW1996 Active Member

    Joined:
    Oct 19, 2013
    Posts:
    109
    Likes Received:
    0

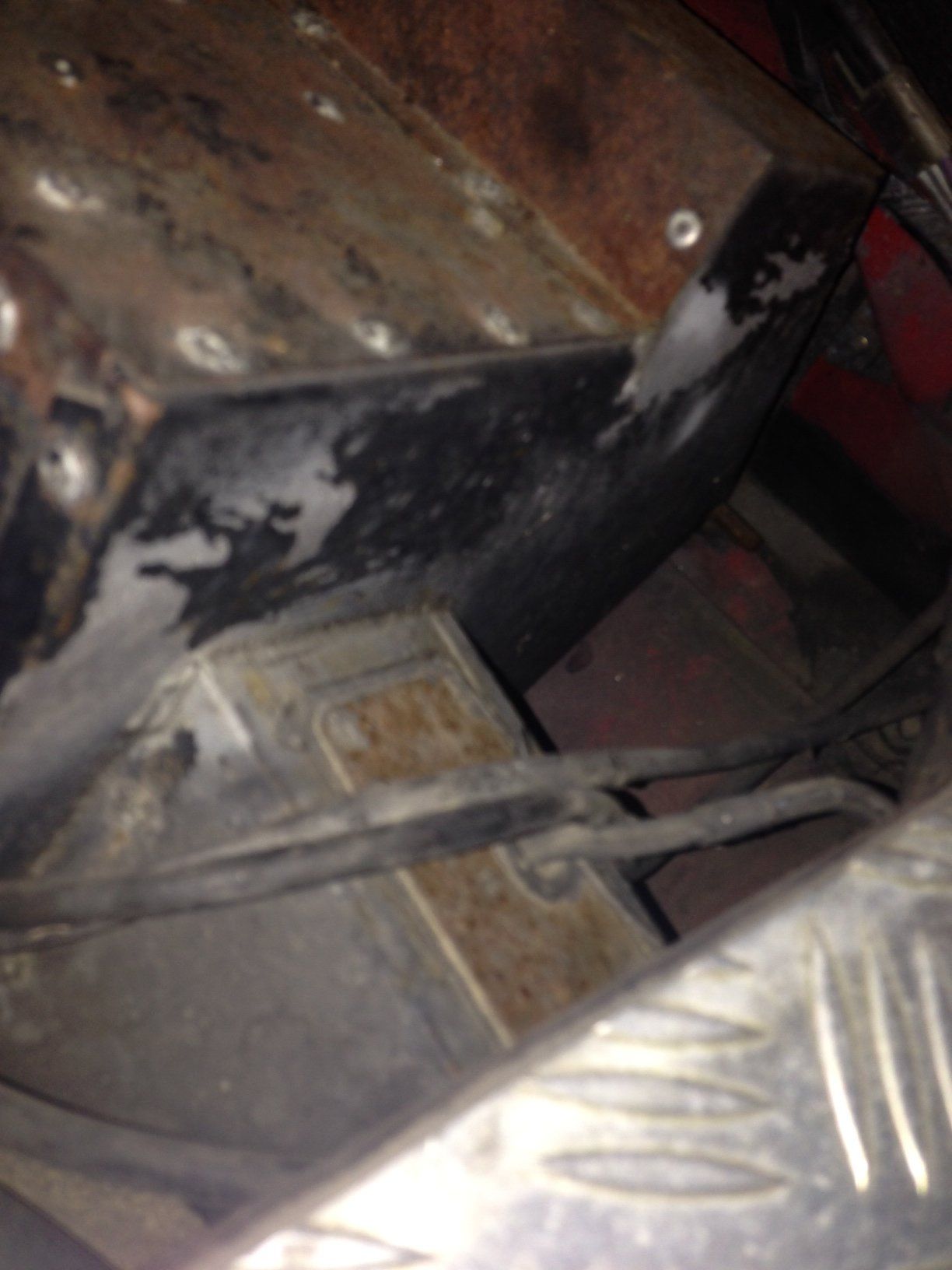

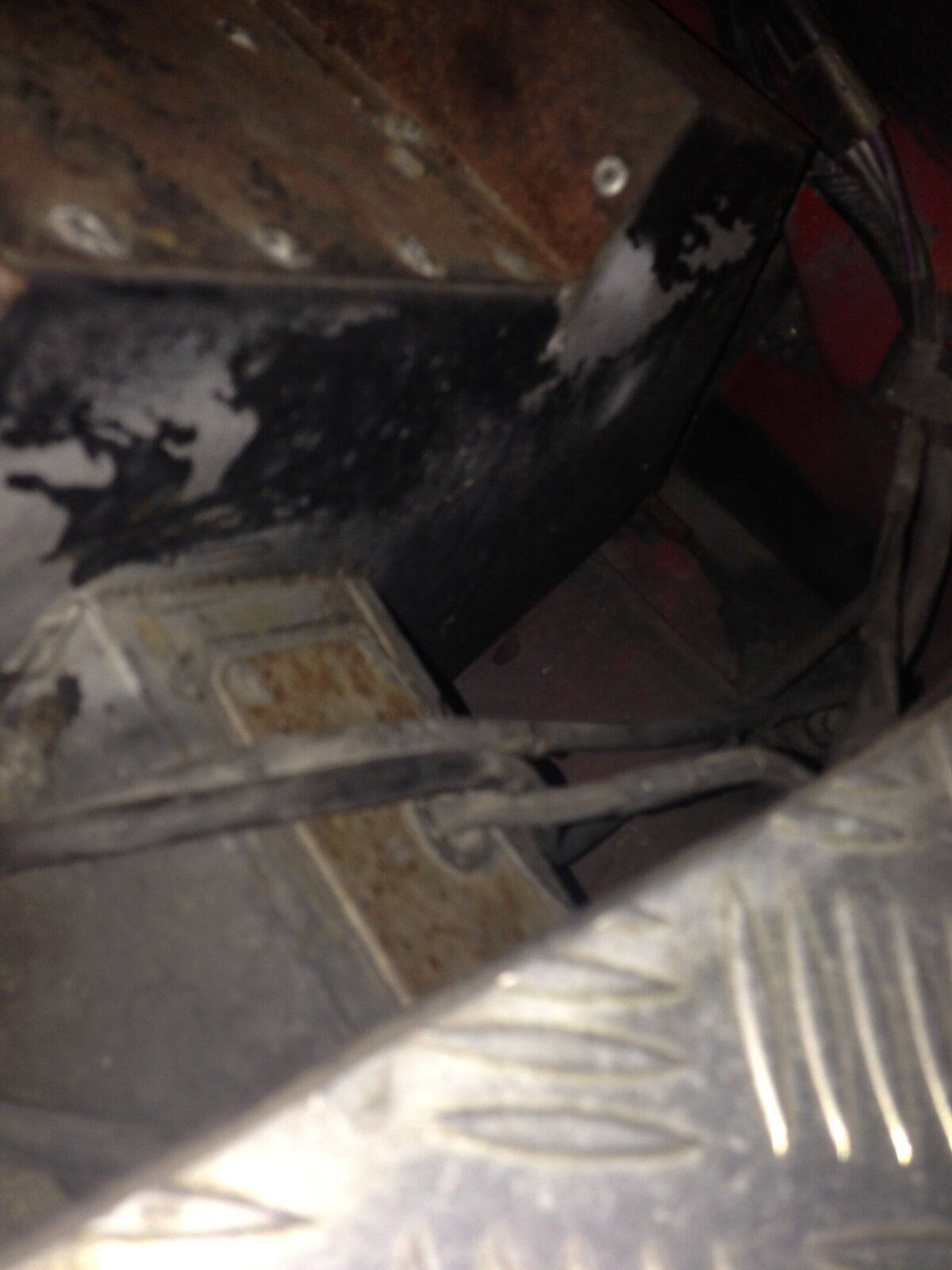

    Here you go:

    New Photo below


    Attached Files:

    Last edited: Oct 21, 2013
  17. Landyfox

    Landyfox Well-Known Member

    Joined:
    Jun 7, 2013
    Posts:
    3,439
    Likes Received:
    93
    Location:
    North East - England (Centre of the Universe)
  18. CameronW1996

    CameronW1996 Active Member

    Joined:
    Oct 19, 2013
    Posts:
    109
    Likes Received:
    0

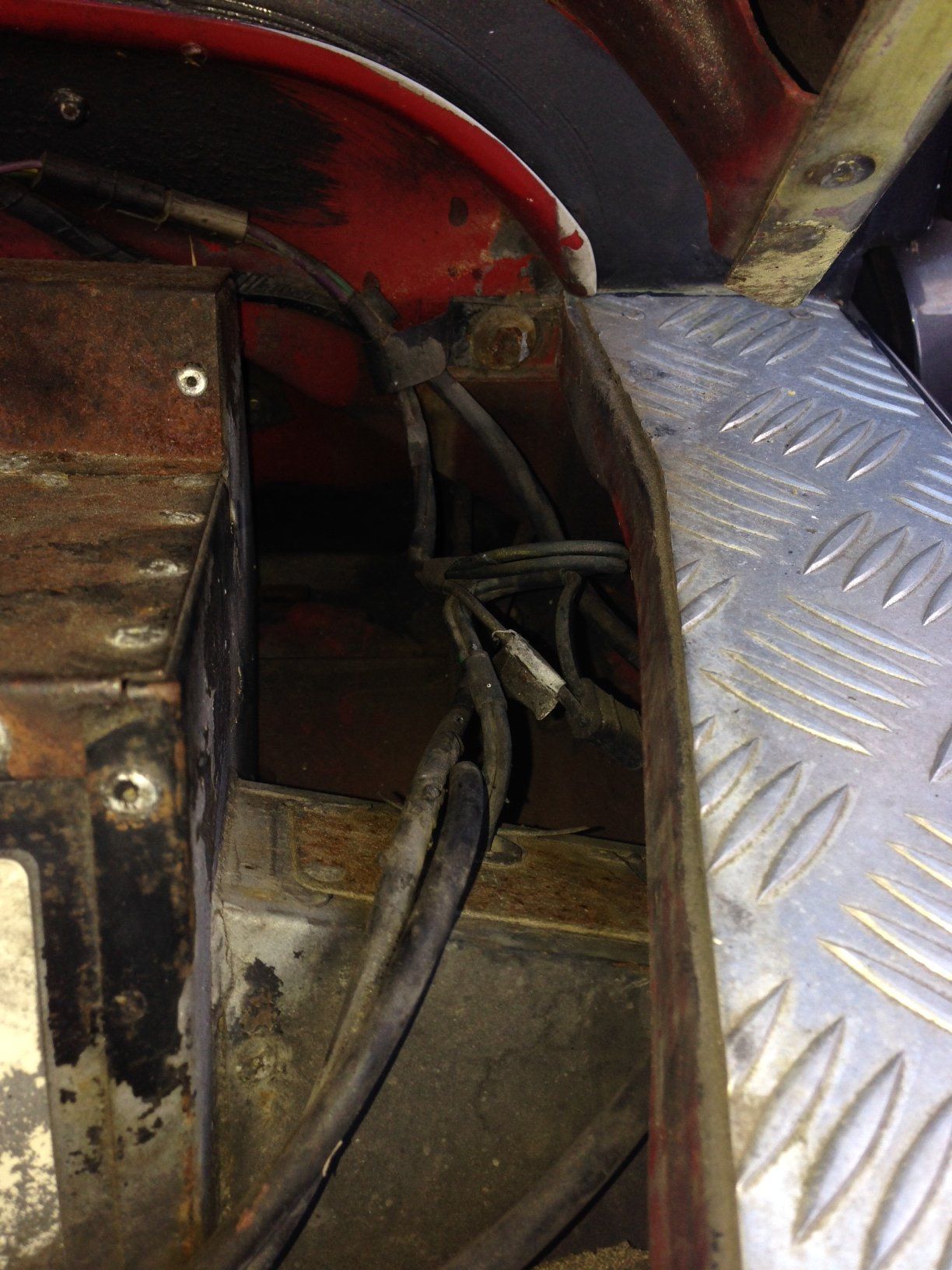

    Here is a better photo of the cables: (taken in daylight)

    [​IMG]


    Attached Files:

  19. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    4,253
    Likes Received:
    896
    Location:
    west wales coast
    The wires run the fan,but fan on or not pipes should warm up.

  20. CameronW1996

    CameronW1996 Active Member

    Joined:
    Oct 19, 2013
    Posts:
    109
    Likes Received:
    0
    Thinking it might be an air lock. Going to make sure it's not later. Will post result.
