Disco 1 300tdi seals/orings/washers help!

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

ceffyn

Active Member
Posts
418
Location
Aberdare - South Wales

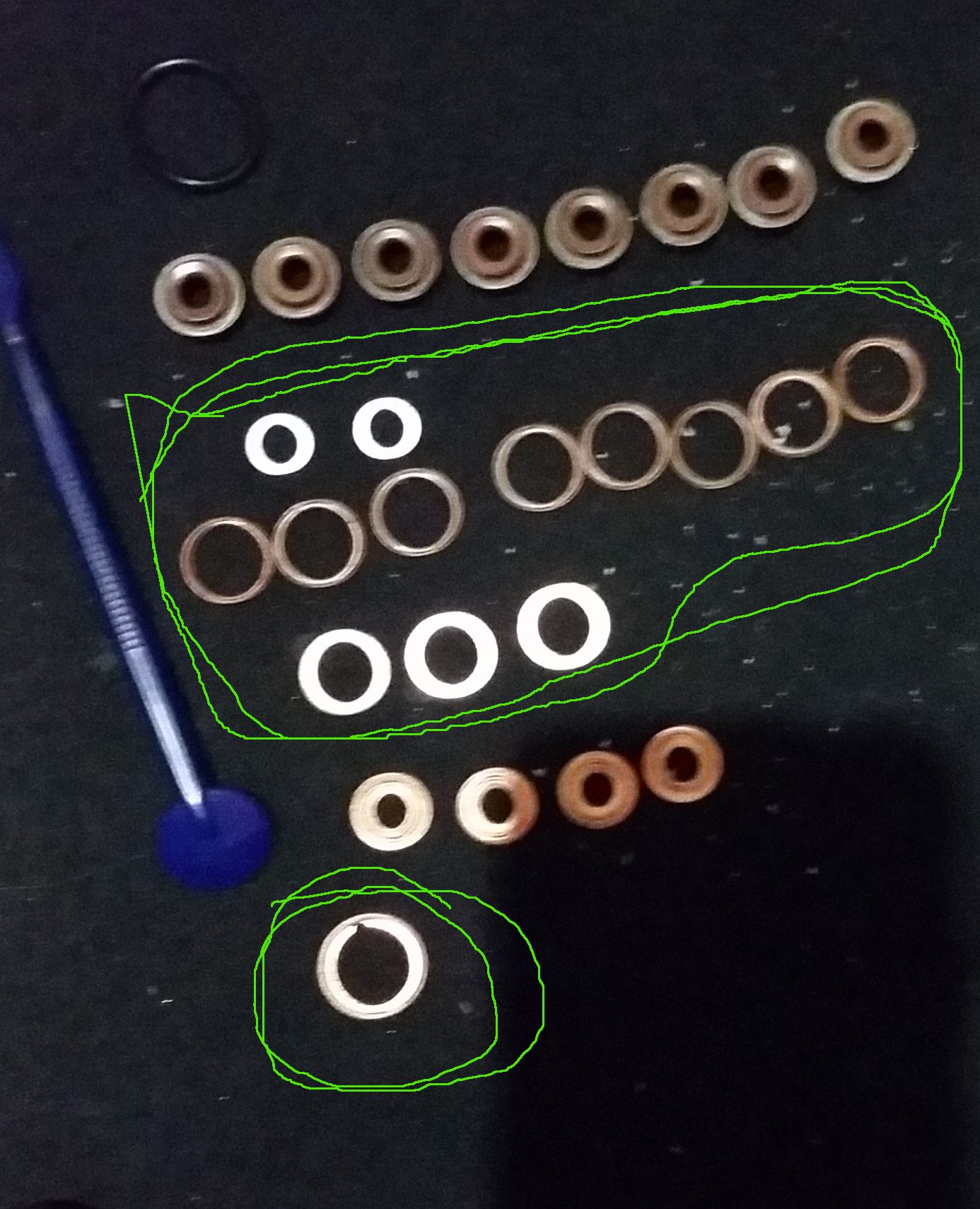

ok so i know what the top line is for and i know what ones are the injector seals however what are the ones i've put a green ring around for!
the seals/washers are all from a de-coke kit for a 300tdi.
thanks for the replies as always :)
seals and washers1.jpg

No, seriously, Al2O3 , I am sure asked exactly the same question when rebuilding his engine the other month.

Cheers
Yes I did and never got to find out. I had a similar number of copper washers left over. I replaced everything that came off and had a lot of spares left over. I found it strange that Elring don't put a parts list in the packet.

Yes I did and never got to find out. I had a similar number of copper washers left over. I replaced everything that came off and had a lot of spares left over. I found it strange that Elring don't put a parts list in the packet.
well that saves me pushing through the 55 pages on your rebuild, however im going to read over that at some point always happy to learn things. i guess i'll do the same change the ones i took off and just put the rest in a box lol. had my kit from bearmach no list there either. only doing top end atm and that wasnt out of choice :(

well thanks again guys time to get back to the cleaning/rebuilding lol

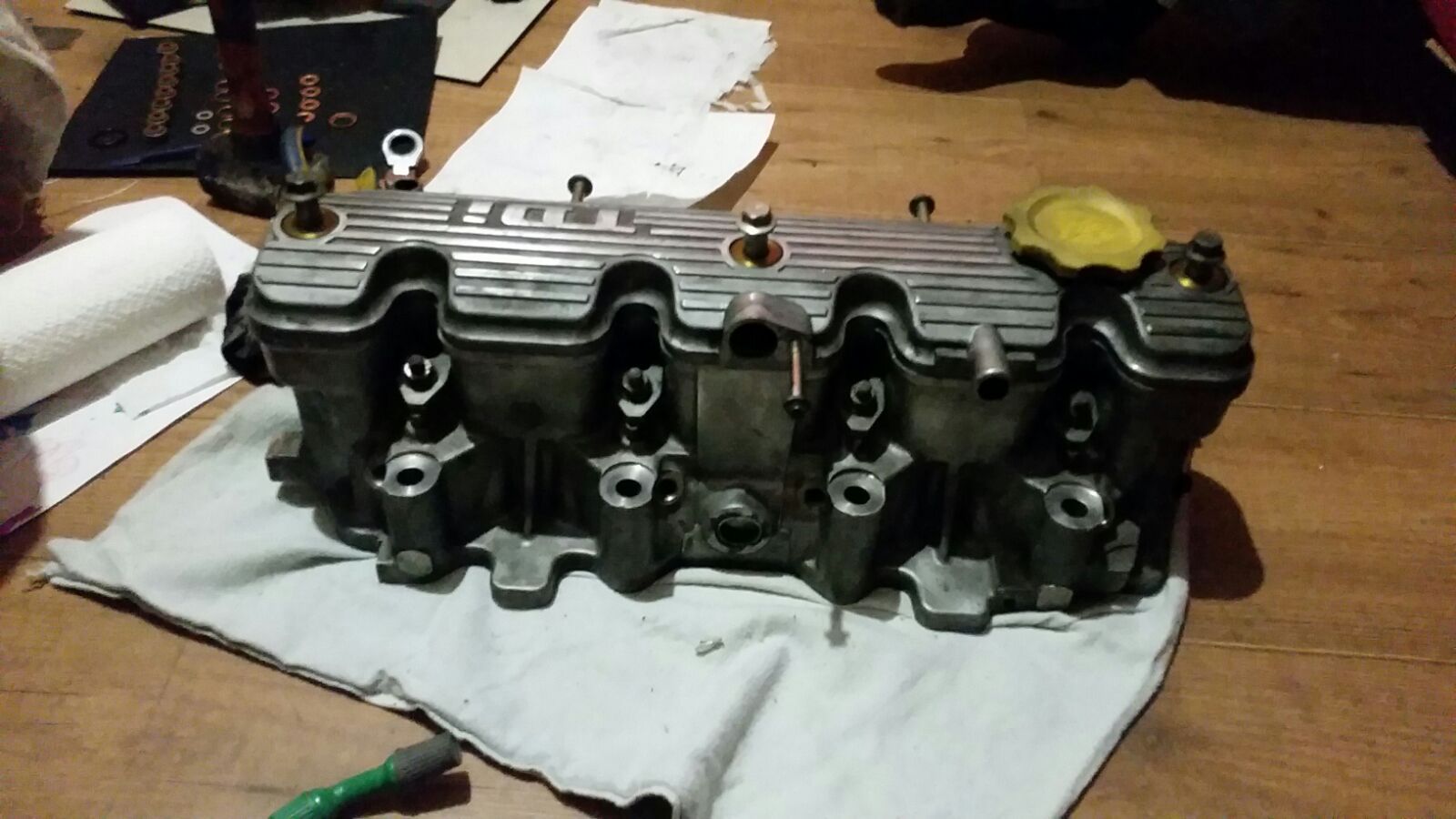

thats how mine is right now no valves in there just a clean head and cover gotta get on this hate not having the tank running.

I have a feeling, from something I read somewhere, that they are extra seals for the different engines that use the same injectors in different applications.

Not certain, just a feeling I read or heard it somewhere ...

i guess i'll do the same change the ones i took off and just put the rest in a box lol.
I think that's the best plan, that's what I did anyway.

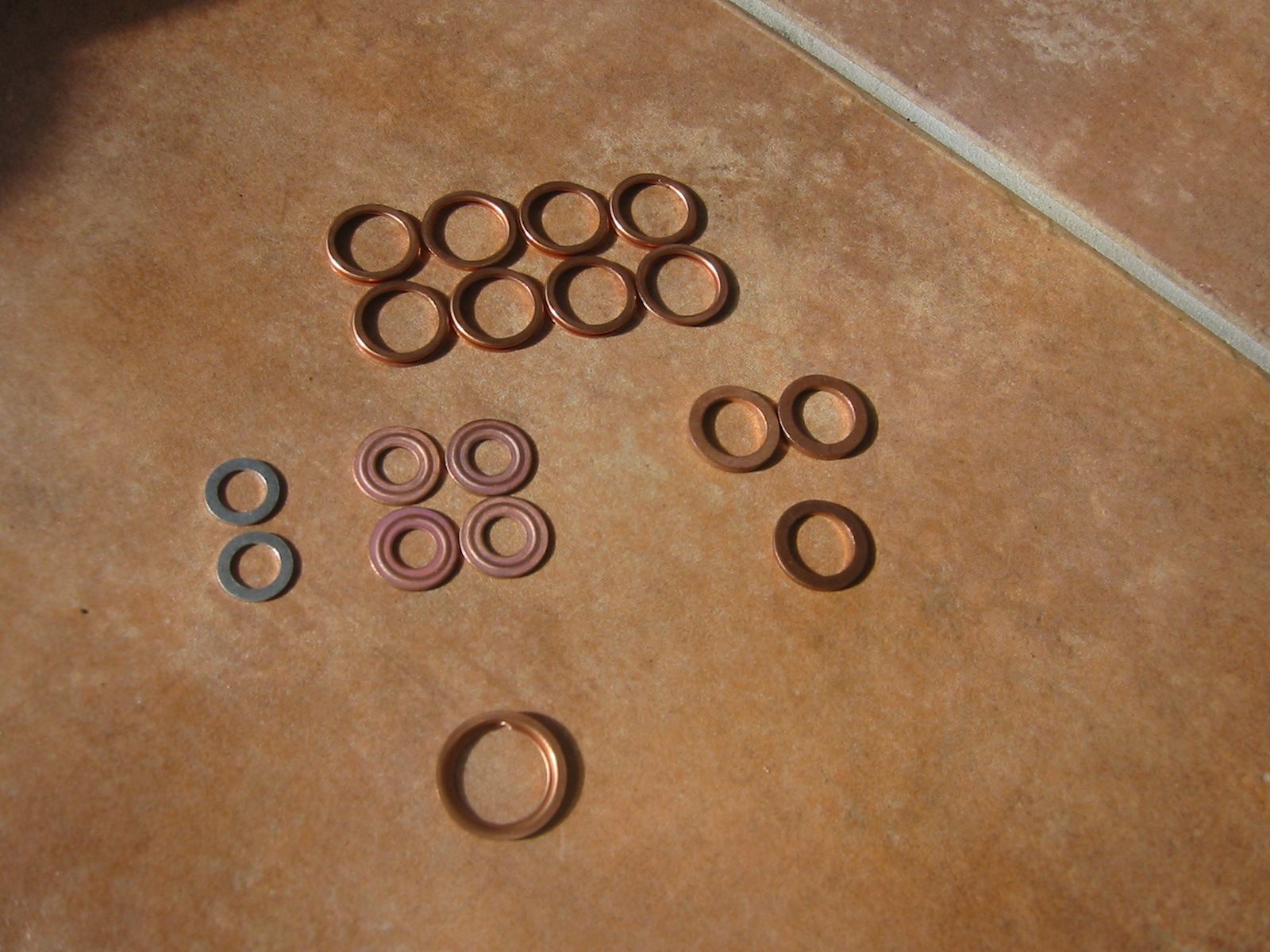

And to prove neilly has a memory like an elephant, here's a picture of some of my washers from the kits I bought.

Look familiar? :)

I have a feeling, from something I read somewhere, that they are extra seals for the different engines that use the same injectors in different applications.

Not certain, just a feeling I read or heard it somewhere ...

Silly question, what is the part number for this kit, if you have it I will call elring on Monday and ask them. cannot hurt.

Cheers

thats the same set i had in my kit dont have a clue on there for other than the injector seals the bottom one is an odd one with notch thought someone might at least know where that was for but o well, on with the putting back together :)
