300tdi fuel pump.

Discussion in 'Defender 90 / 110 / 130' started by bodgerrfa, Sep 7, 2016.

< Previous Thread | Next Thread >
  1. bodgerrfa

    bodgerrfa Active Member

    Joined:
    Mar 16, 2011
    Posts:
    159
    Likes Received:
    3
    Can anyone help me with photos of where the pipes go to the fuel injection pump. Im sure ive got them on wrong. Need a photo or drawing in janet and john form.

    Not tried to start yet but seem to be a pipe short.

  2. James_mac

    James_mac Active Member

    Joined:
    Jan 18, 2009
    Posts:
    264
    Likes Received:
    13
    Location:
    Leeds & Yeovil
    off the top of my head, theres a feed from the filter, a return to the tank and the feed to the injectors

  3. James_mac

    James_mac Active Member

    Joined:
    Jan 18, 2009
    Posts:
    264
    Likes Received:
    13
    Location:
    Leeds & Yeovil

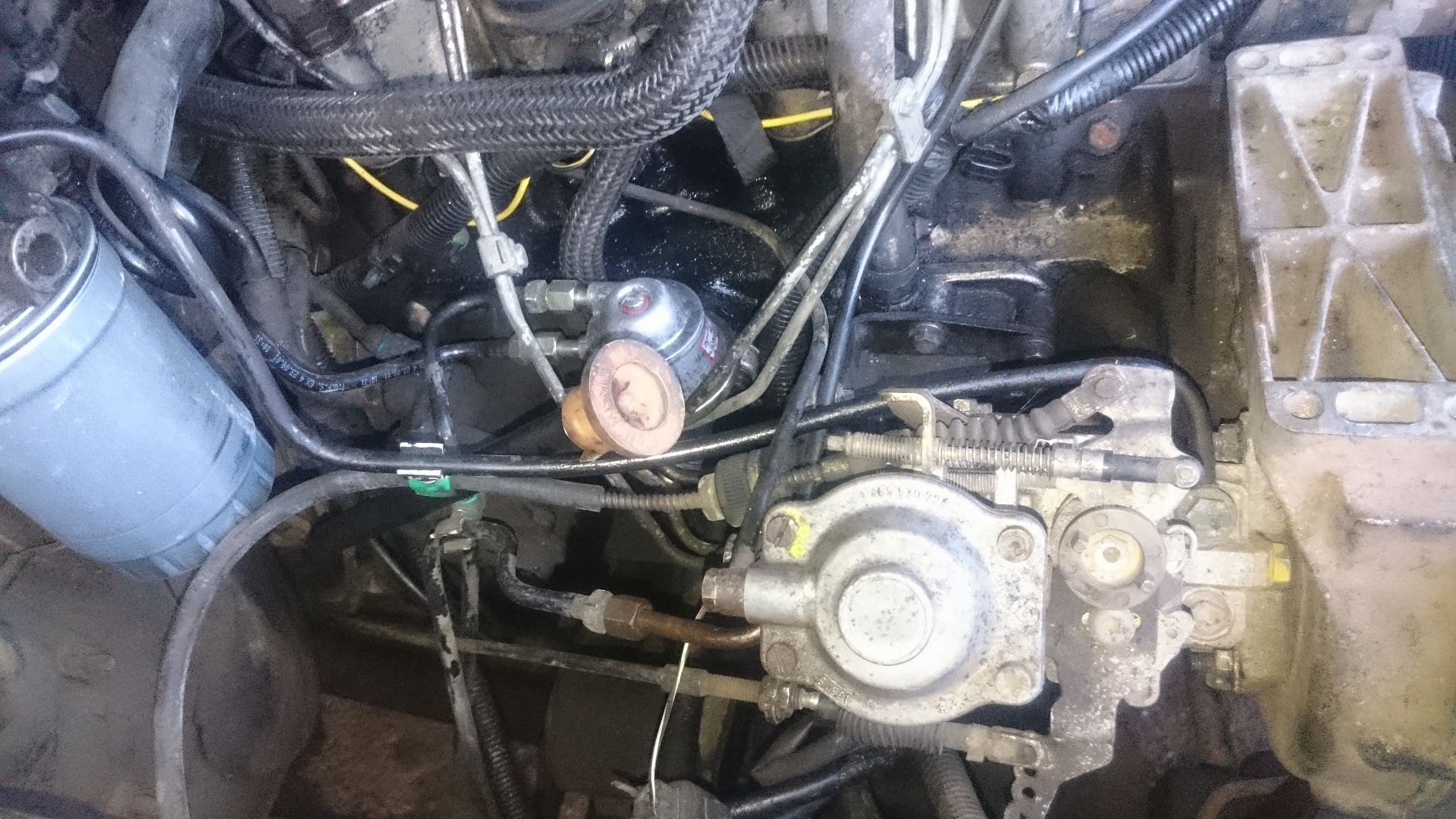

    Like this but without the sediment filter

    [​IMG]

  4. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    12,435
    Likes Received:
    6,738
    Location:
    Kent
    The small 6mm pipe that comes around the front of the engine is from the turbo to the small banjo bolt on the top back of the pump just above the rubber nipple.
    Dont mix the banjo bolts up they are both the same size and thread, but one has a tiny hole and will severely restrict flow if fitted wrong way around.

    Flossie likes this.
  5. Marmaduke

    Marmaduke Well-Known Member

    Joined:
    Feb 25, 2012
    Posts:
    8,125
    Likes Received:
    4,163
    Location:
    Near the land of 'Me Duck'
  6. bodgerrfa

    bodgerrfa Active Member

    Joined:
    Mar 16, 2011
    Posts:
    159
    Likes Received:
    3
    Cheers everyone. all squared away. Team effort
