Old Landie
New Member
- Posts
- 9
Looking for information on hooking up the mechanical throttle (set up under dash) to the carb. My manual gives info on the throttle components, but nothing on the hook-up. Before I take a guess, thought I’d ask.
2a 109 hooking up a mechanical throttle?
- Thread starter Old Landie
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
steve2286w
Well-Known Member
- Posts
- 4,577
- Location
- monkeyangerland

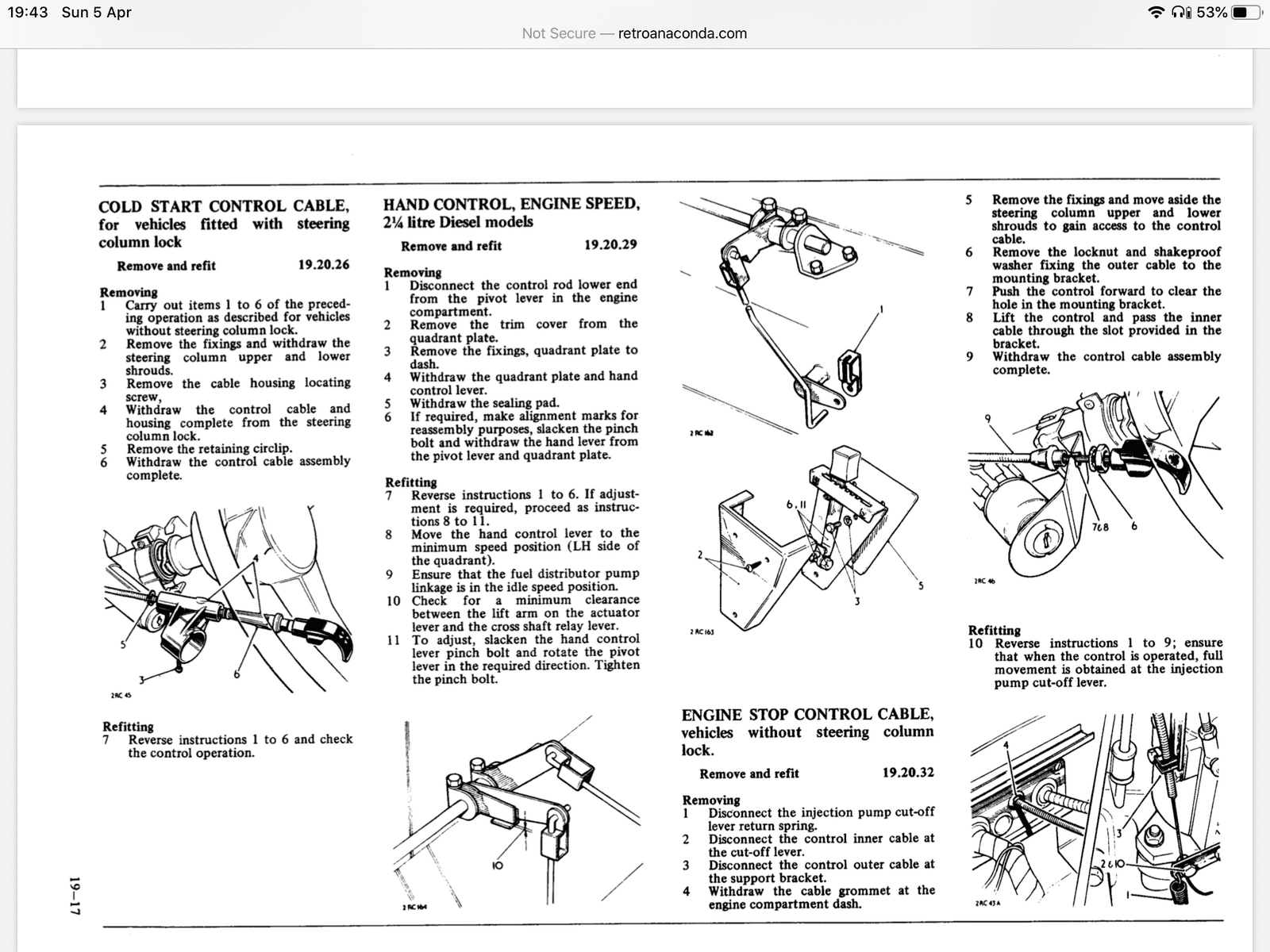

This is what I have on my series diesel, I didn’t know the hand throttle were fitted to petrol ,but as long as throttle comes off accellerator cross linkage should work the same ?
Last edited:
Old Landie
New Member
- Posts
- 9
Perfect! This really helps out, Many Thanks
steve2286w
Well-Known Member
- Posts
- 4,577
- Location
- monkeyangerland
No probs, Are there any pre drilled holes on the bulkhead
Old Landie
New Member
- Posts
- 9
Yep, plenty in fact (of a multitude of sizes) previous owner must have loved his/her drill.
steve2286w
Well-Known Member
- Posts
- 4,577
- Location
- monkeyangerland

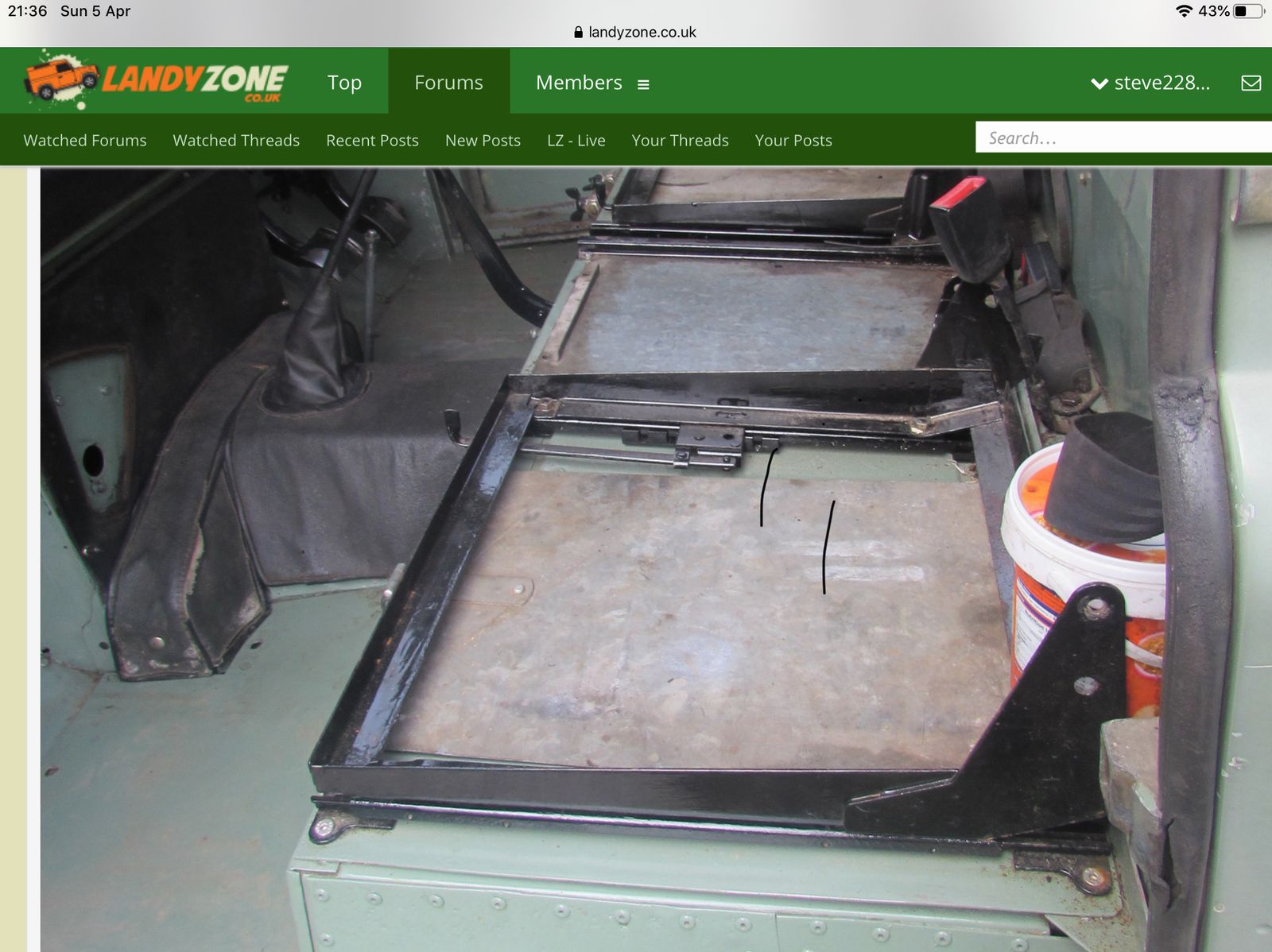

This is a pic from when I put my soundmatting in , you can see the large hole that takes the shaft and the 3 small nutserts that the handle backplate screws to , I think they are bsf quite small 3/16” ?
that’s a mean looking 109 in your avatar , any big pics
Last edited:
Old Landie
New Member
- Posts
- 9
Got it. Thanks!!
wireman
Well-Known Member
- Posts
- 1,169
- Location
- Warrington
Hand throttles were fitted to petrol FFR versions to aid battery charging when static.
rob1miles
Well-Known Member
- Posts
- 3,565
- Location
- Slough and Bath
How does that slip on the shaft when you press the accelerator?
I've got an S3 hand throttle which I'm going to fit on my S2A but it has to go in the footwell as the heater is on the bulkhead. The tricky parts are 577127, 569132, 592904, 532395
rob1miles
Well-Known Member
- Posts
- 3,565
- Location
- Slough and Bath
steve2286w
Well-Known Member
- Posts
- 4,577
- Location
- monkeyangerland
Hi Rob
It looks like if you fit yours on the side of footwell then all bits would be standard apart from a control rod that would need to be bent to suit, if placed correctly you might get away with twisting existing rod lower end 90 degrees from this pic
It looks like if you fit yours on the side of footwell then all bits would be standard apart from a control rod that would need to be bent to suit, if placed correctly you might get away with twisting existing rod lower end 90 degrees from this pic
rob1miles
Well-Known Member
- Posts
- 3,565
- Location
- Slough and Bath
That's vwery helpful, I'm thinking it will just fit. Throttle is in post (off e-bay) and I need to make or buy the links. The only person who has the bent one is the guy in Cyprus at £26, but it may still be worth it as it could take hours to make one.
steve2286w
Well-Known Member
- Posts
- 4,577
- Location
- monkeyangerland
The rod diameter is just under 5mm so 3/16 , it’s not £26 worth , I would use a bit welding rod as a template , knock one up in half an hour
The little springy clips are the same on the other throttle linkage parts on the series engine but could not make them
Although you could use those star washers which grip shafts but make it harder to remove
The little springy clips are the same on the other throttle linkage parts on the series engine but could not make them
Although you could use those star washers which grip shafts but make it harder to remove
rob1miles
Well-Known Member
- Posts
- 3,565
- Location
- Slough and Bath
This is the pricey part:
https://www.ebay.co.uk/itm/GENUINE-...e=STRK:MEBIDX:IT&_trksid=p2060353.m1438.l2649
https://www.ebay.co.uk/itm/GENUINE-...e=STRK:MEBIDX:IT&_trksid=p2060353.m1438.l2649
steve2286w
Well-Known Member
- Posts
- 4,577
- Location
- monkeyangerland
See what’s you mean gets expensive buying the bits

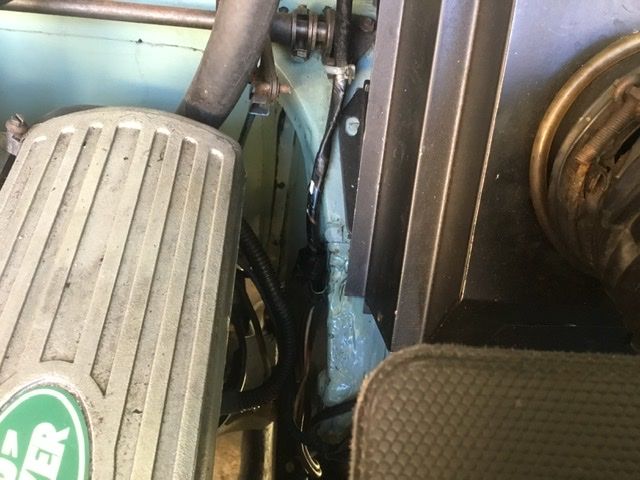

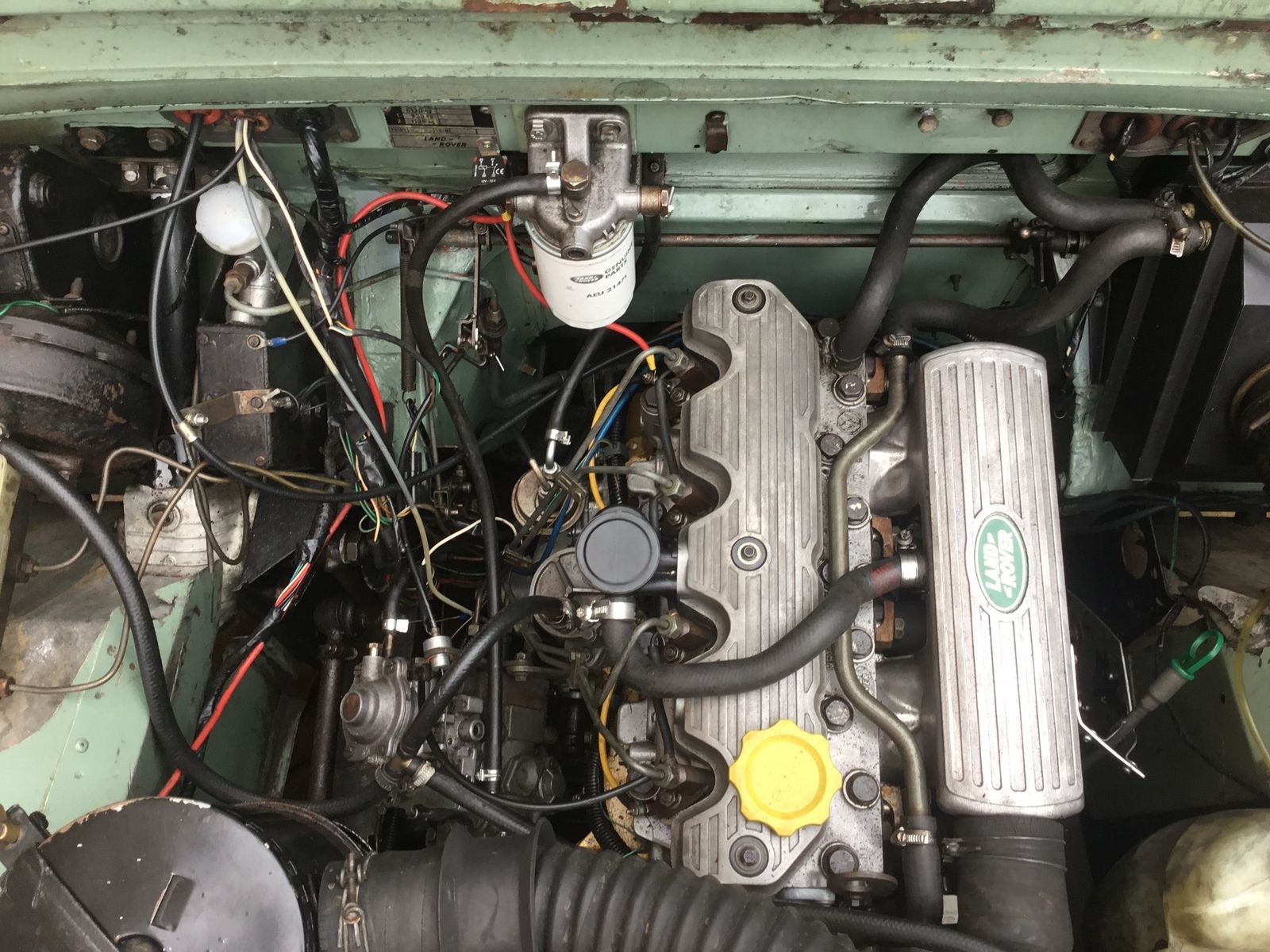

Rob I have a 200di fitted so the accelerator is on the other side with cable going to throttle the cross shaft operates the throttle on offside will get a pic tommorrow only one I have is when I had 15J engine which was all rods. The parts I had where standard accelerator bits that I adapted.
My throttle was fitted for my capstan winch but I have found it not necesary as winch will pull anything at tickover.
Attachments
steve2286w
Well-Known Member
- Posts
- 4,577
- Location
- monkeyangerland

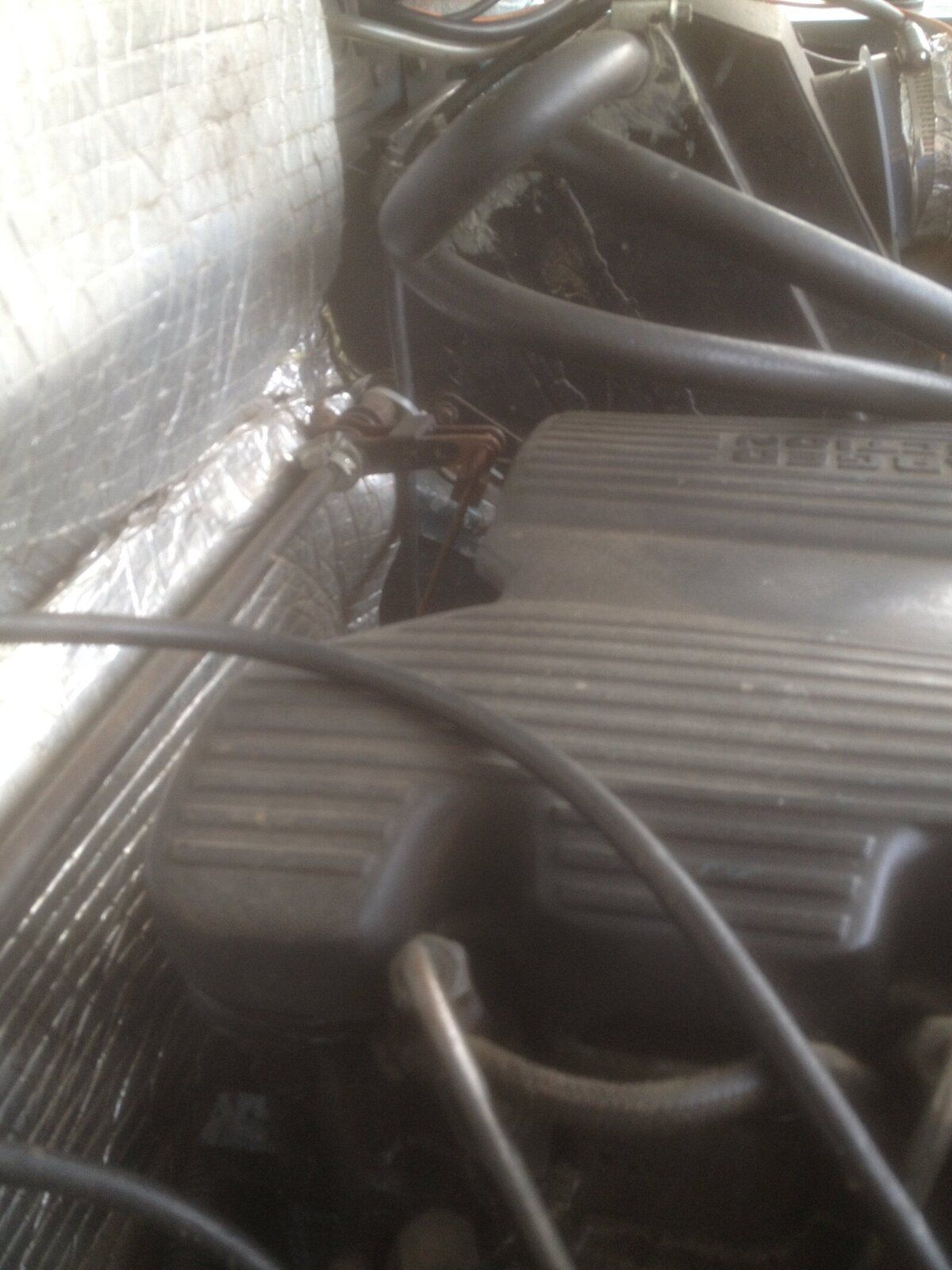

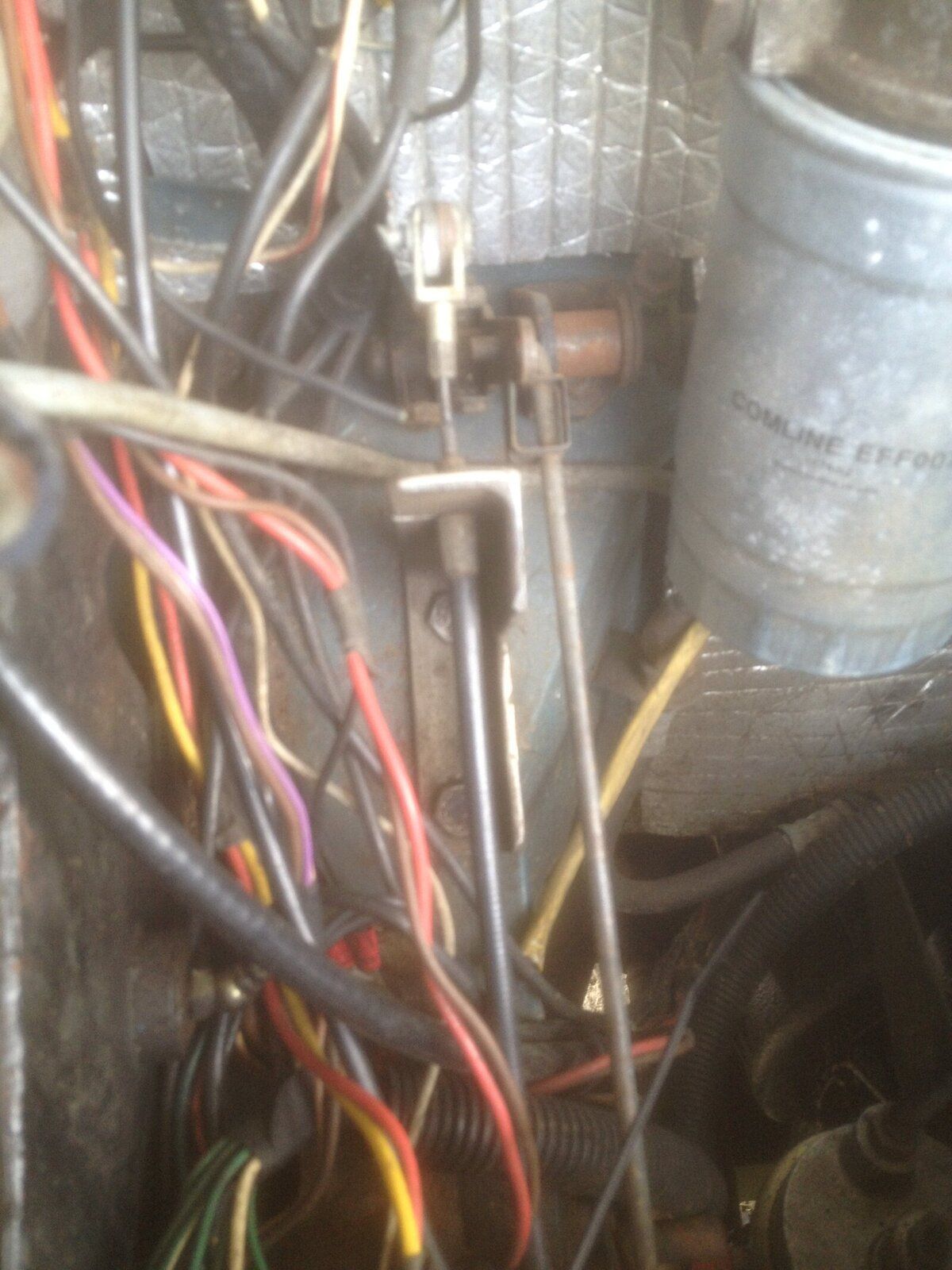

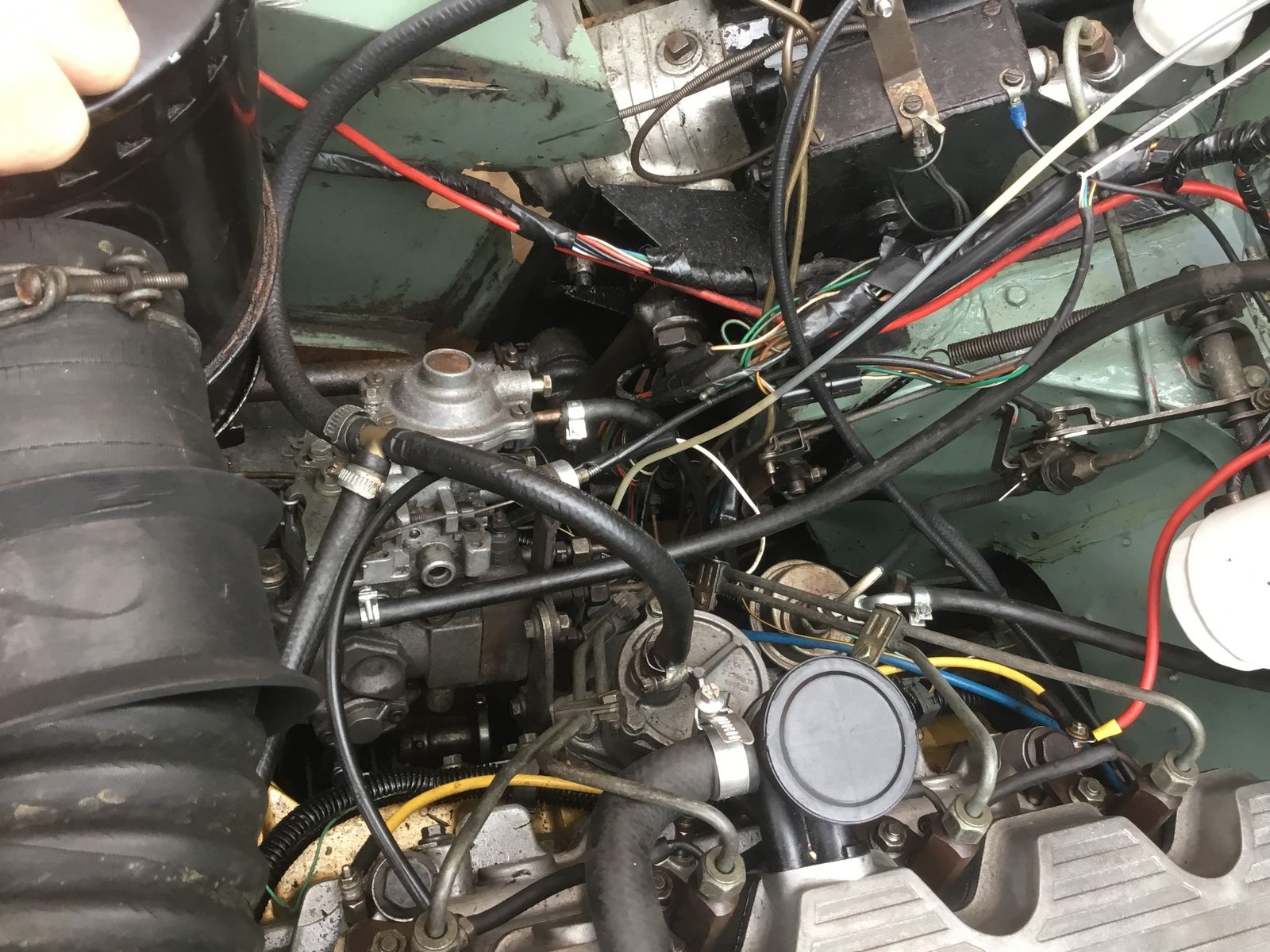

This is the other side on mine using original throttle cable just hooked up different
rob1miles
Well-Known Member
- Posts
- 3,565
- Location
- Slough and Bath
Found a set of the levers on e-bay, jumped at them so hopefully I'll have my oily mits on them. Will post how I get on.

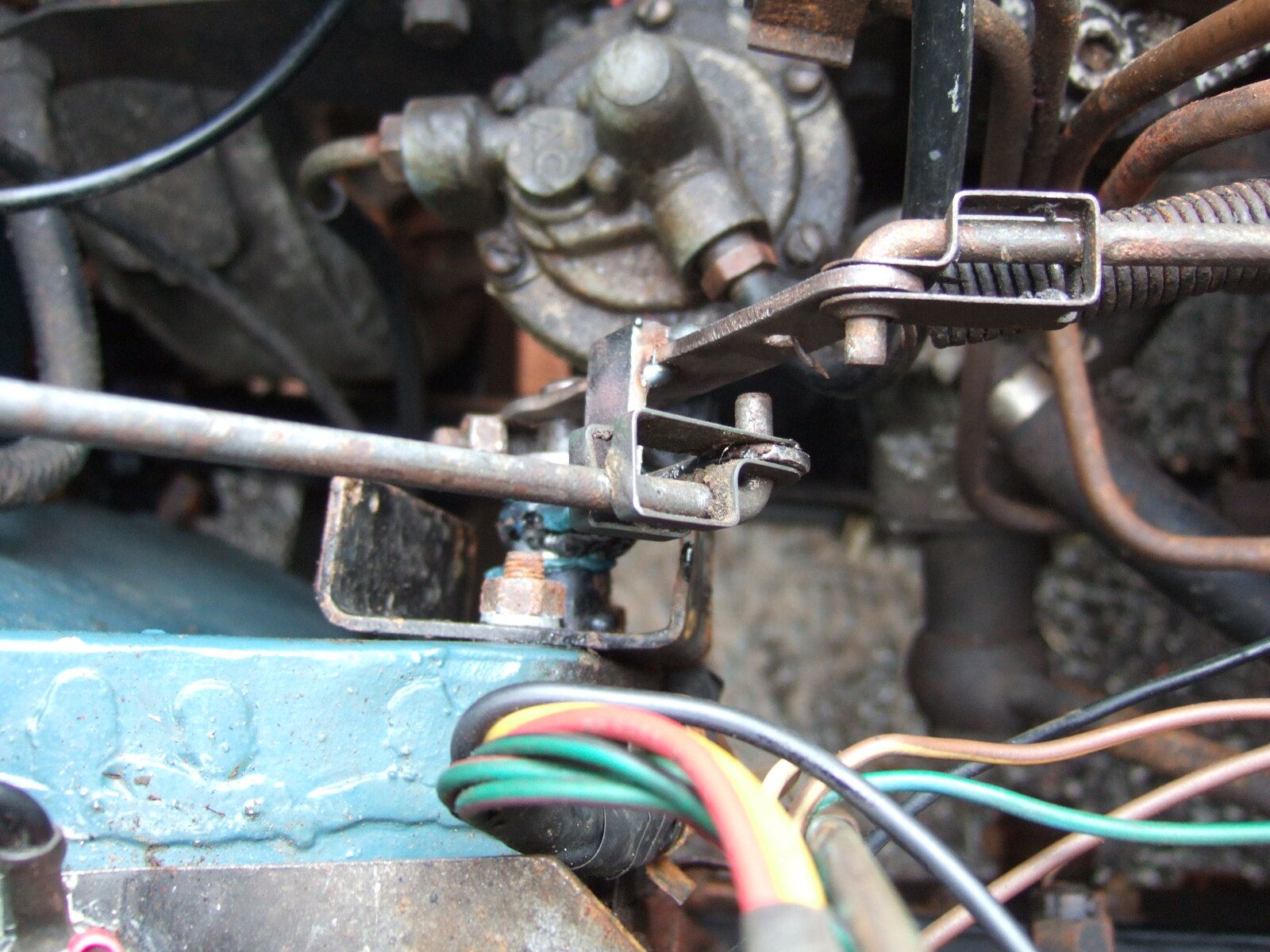

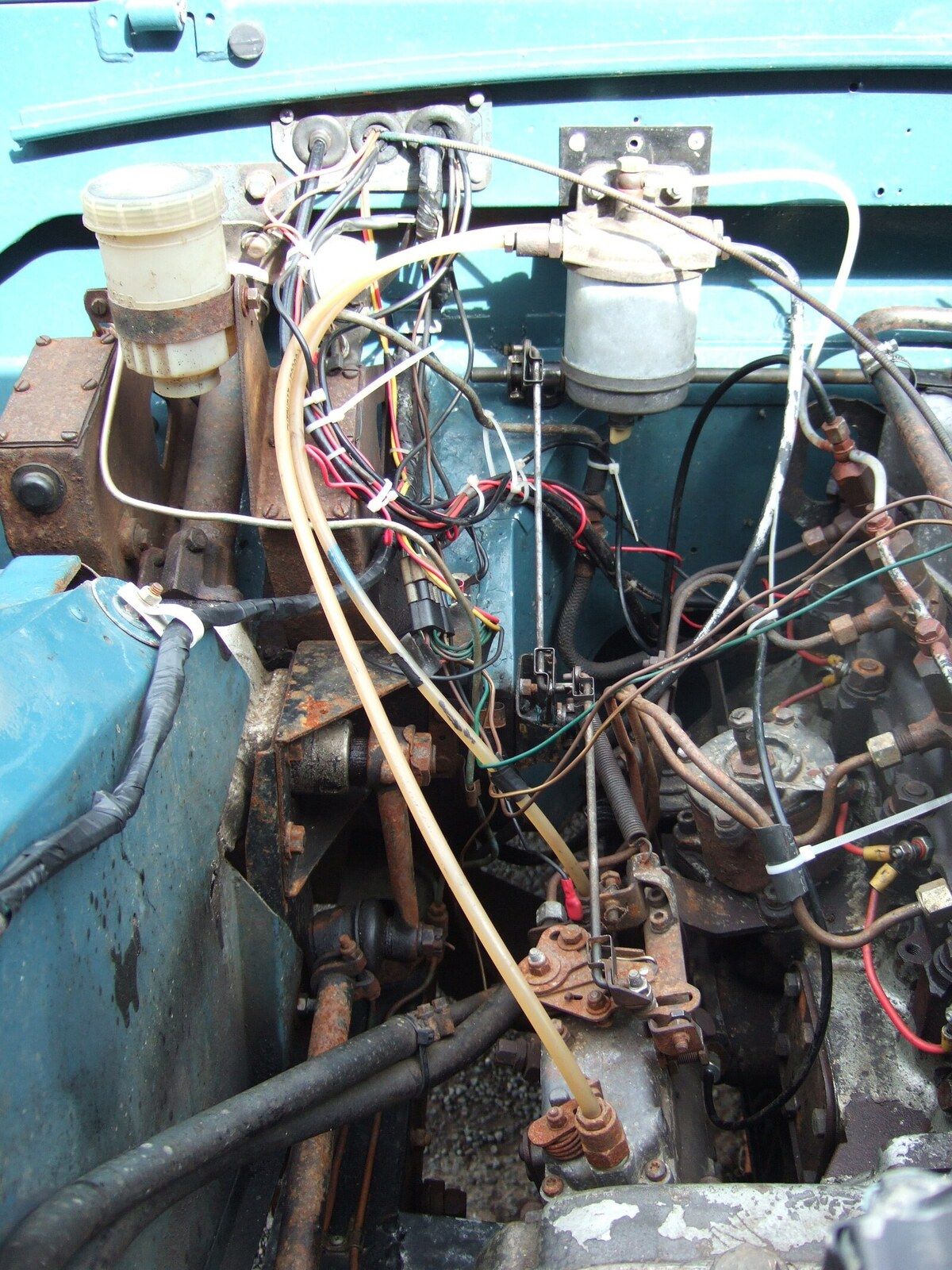

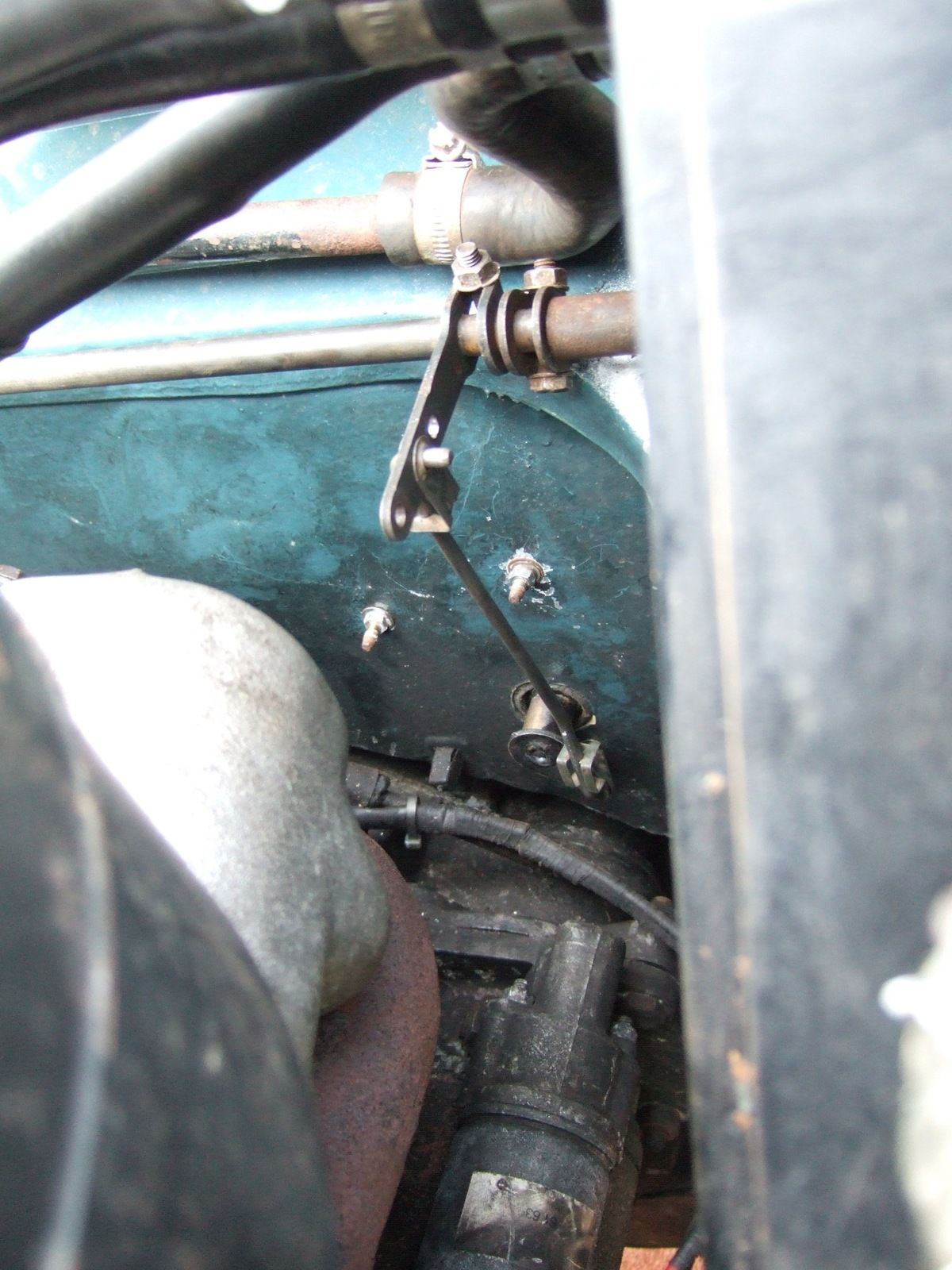

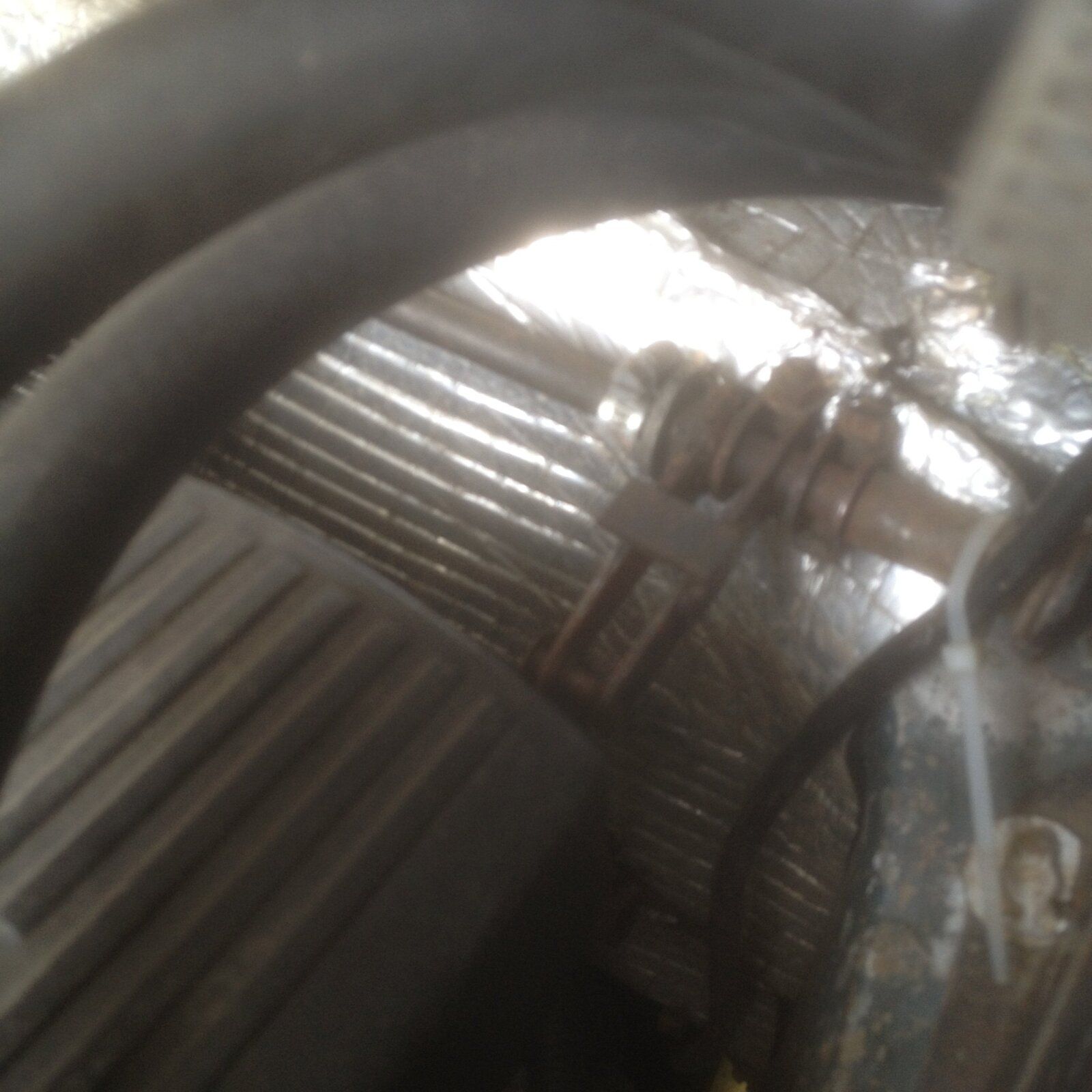

Took some pics as I had forgotten what did what

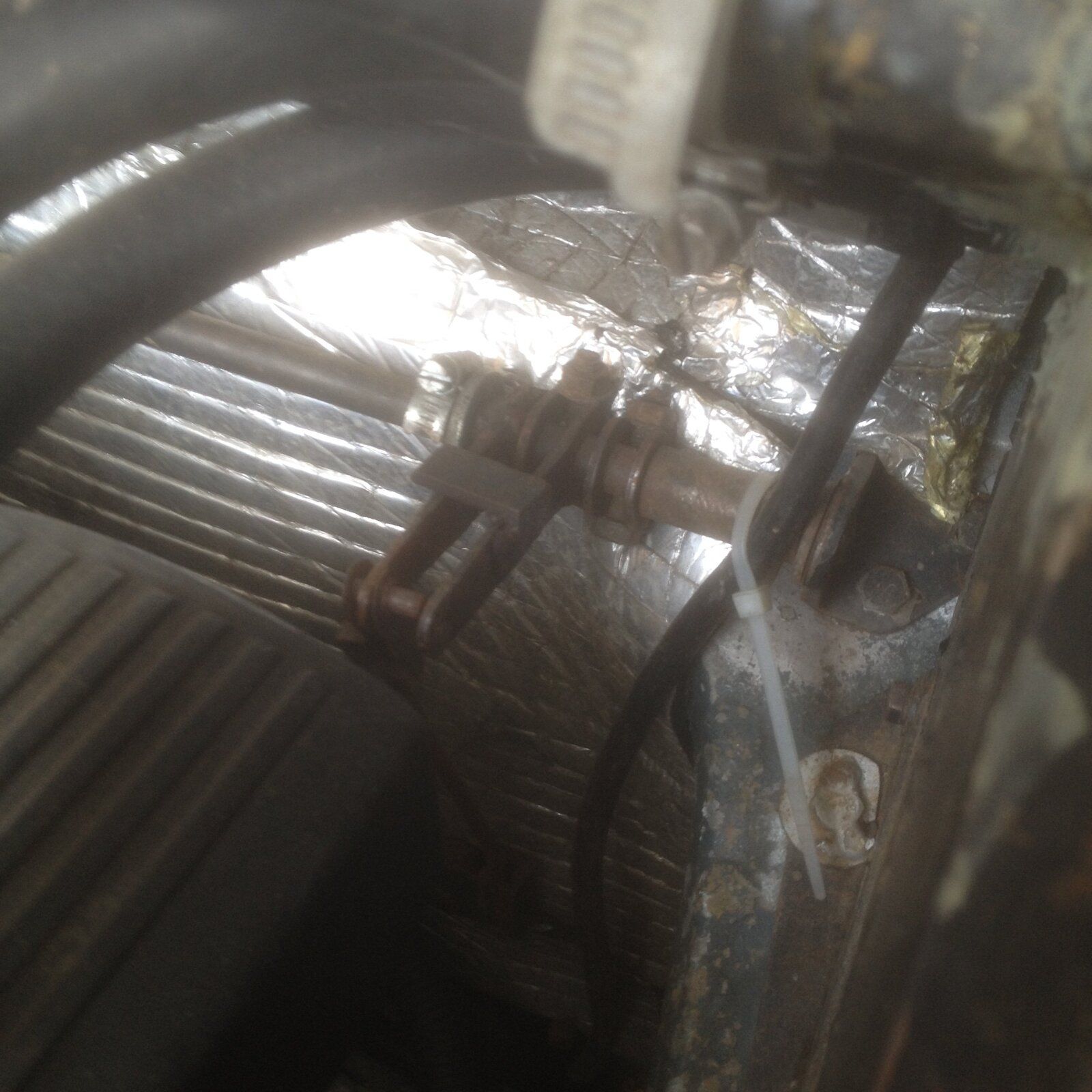

My accelerator pedal still moves the cross shaft, the handthrottle link on crosshaft is free to rotate on shaft and pushes the fixed lever up when operated thus accelerating engine.
The earlier picture I posted of engine side of handthrottle was only operating cross shaft for the 15J
My accelerator pedal still moves the cross shaft, the handthrottle link on crosshaft is free to rotate on shaft and pushes the fixed lever up when operated thus accelerating engine.
The earlier picture I posted of engine side of handthrottle was only operating cross shaft for the 15J
