Disco 1 200tdi Gearbox Advice

A

Alfdud

New Member

Posts

9

Location

Winchester

• Nov 13, 2020

• #1

Hi,

Can someone help me diagnose this issue! I am fairly inexperienced with mechanical issues and need a little help please.

I have just noticed that gearbox oil is pouring out from the front end of the gearbox.

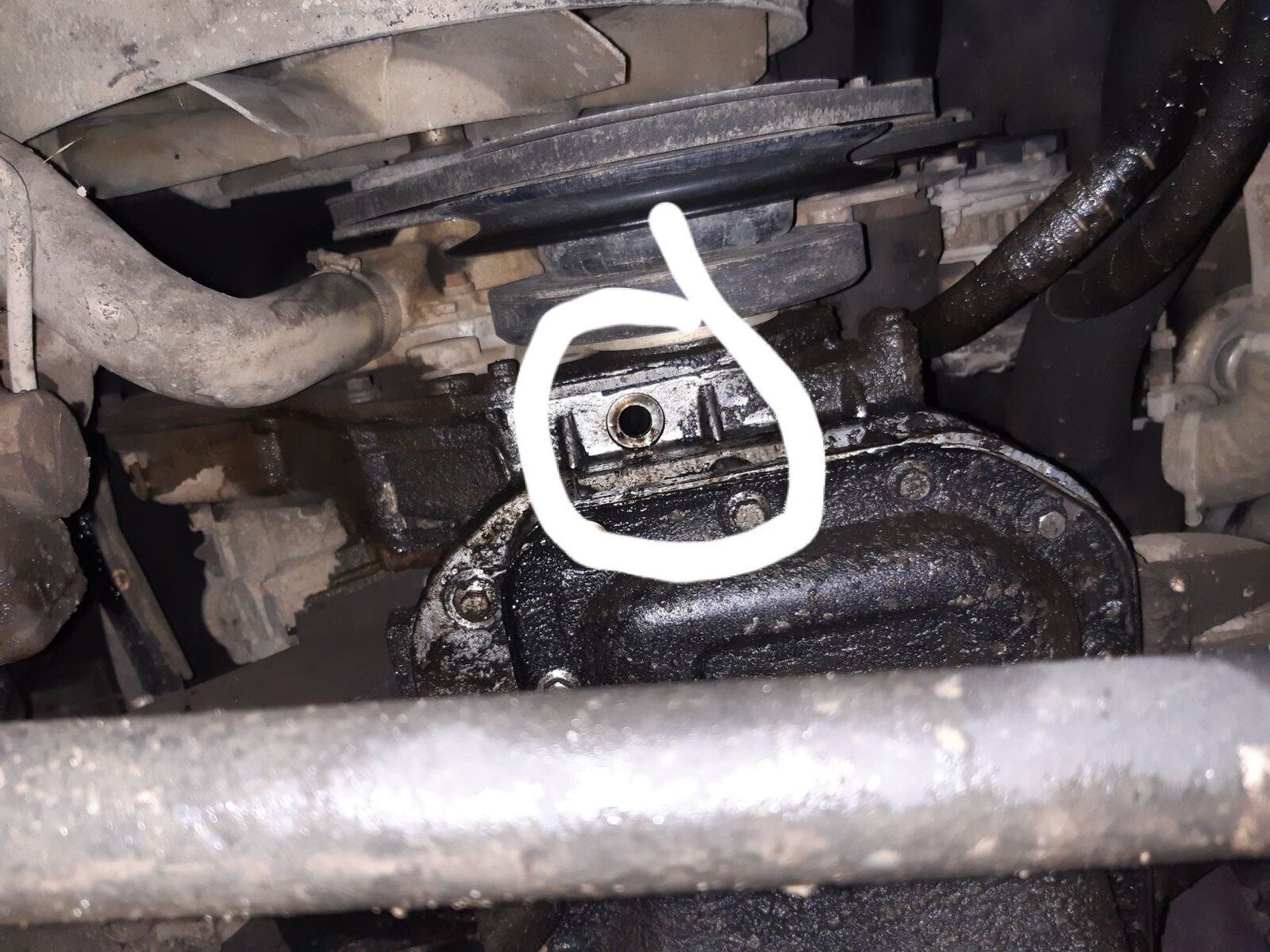

It's dark so difficult to see properly however I took this photo which shows a hole which seems to be the source. What has gone wrong here, and how do I resolve it?

The picture is taken with me lying down looking directly up at the gear box where it connect to the engine. The bar in the foreground is the front axle.



Thanks in advance



L

lynall

Well-Known Member

Full Member

Posts

25,890

Location

Kent

• Nov 13, 2020

• #2

Stop the car and do not use/run it.
That is not the gearbox, it is in fact the engine, the odd drip of oil whilst not good is not the end of the world, if its truly pouring out you have a serious issue.
The hole is the wading drain hole, which is also a tell tale to see if anything is leaking, insde that casing is your cambelt.



Kev12

Well-Known Member

Full Member

Posts

1,790

Location

Cornwall

• Nov 13, 2020

• #3

Thats not your gearbox, thats the timing case. the gearbox is about 3ft further back.

Likely front crank seal if oil is coming from that hole



A

Alfdud

New Member

Posts

9

Location

Winchester

• Nov 13, 2020

• #4

OK thank you very much for the advice.

The oil was virtually clear in terms of appearance and didnt smell of much. It didnt look like black engine oil type liquid.



ChrisBduck

Well-Known Member

Posts

272

Location

Bucks

• Nov 13, 2020

• #5

Sure its not diesel?



A

Alfdud

New Member

Posts

9

Location

Winchester

• Nov 13, 2020

• #6

Hmmmm, let me check again in the morning.

It felt viscous and oil like.

Would Diesel feel viscous? Thought it would be more fluid than what i felt.



Turboman

Mab An Gov

Posts

60,151

Location

Lathrowda, Kernow

• Nov 13, 2020

• #7

Alfdud said:

Hmmmm, let me check again in the morning.

It felt viscous and oil like.

Would Diesel feel viscous? Thought it would be more fluid than what i felt.

Click to expand...

Depends on how much oil and general crud it has washed down on the way.



Europa486

Well-Known Member

Posts

735

Location

London

• Nov 13, 2020

• #8

Could be water with antifreeze mix? Engine front core plug corroded,



ChrisBduck

Well-Known Member

Posts

272

Location

Bucks

• Nov 13, 2020

• #9

Check your dipstick. If the oil in there is black, it wouldn't be coming out of anywhere else clear.
