200tdi 1992 defender 90 wiring!?

Ajcrabb · Apr 25, 2023

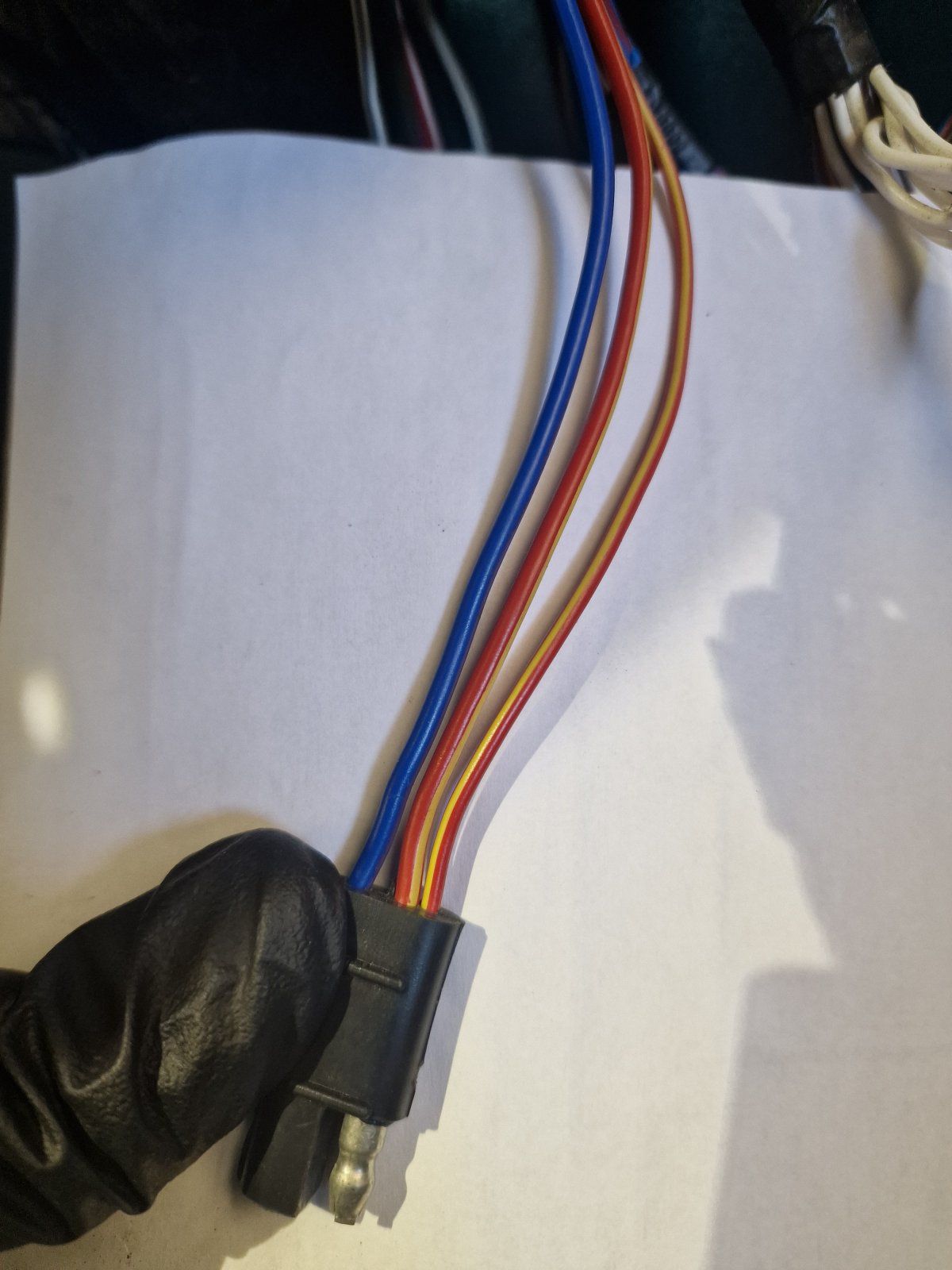

Hello, i am just rebuilding thr dash on a 200tdi 1992 90 and i am left with this connector unlabelled. Any ideas? Hoping its the rear fog as i thats the only light i dont have wired!

Thanks!

Ash

kevstar · Apr 25, 2023

Ajcrabb said:
Hello, i am just rebuilding thr dash on a 200tdi 1992 90 and i am left with this connector unlabelled. Any ideas? Hoping its the rear fog as i thats the only light i dont have wired!

Thanks!

Ash

Could connect a light onto it n try the fog switch.

v8250 · Apr 25, 2023

Yes, it's for the rear fog lamps

kevstar · Apr 25, 2023

v8250 said:
Yes, it's for the rear fog lamps

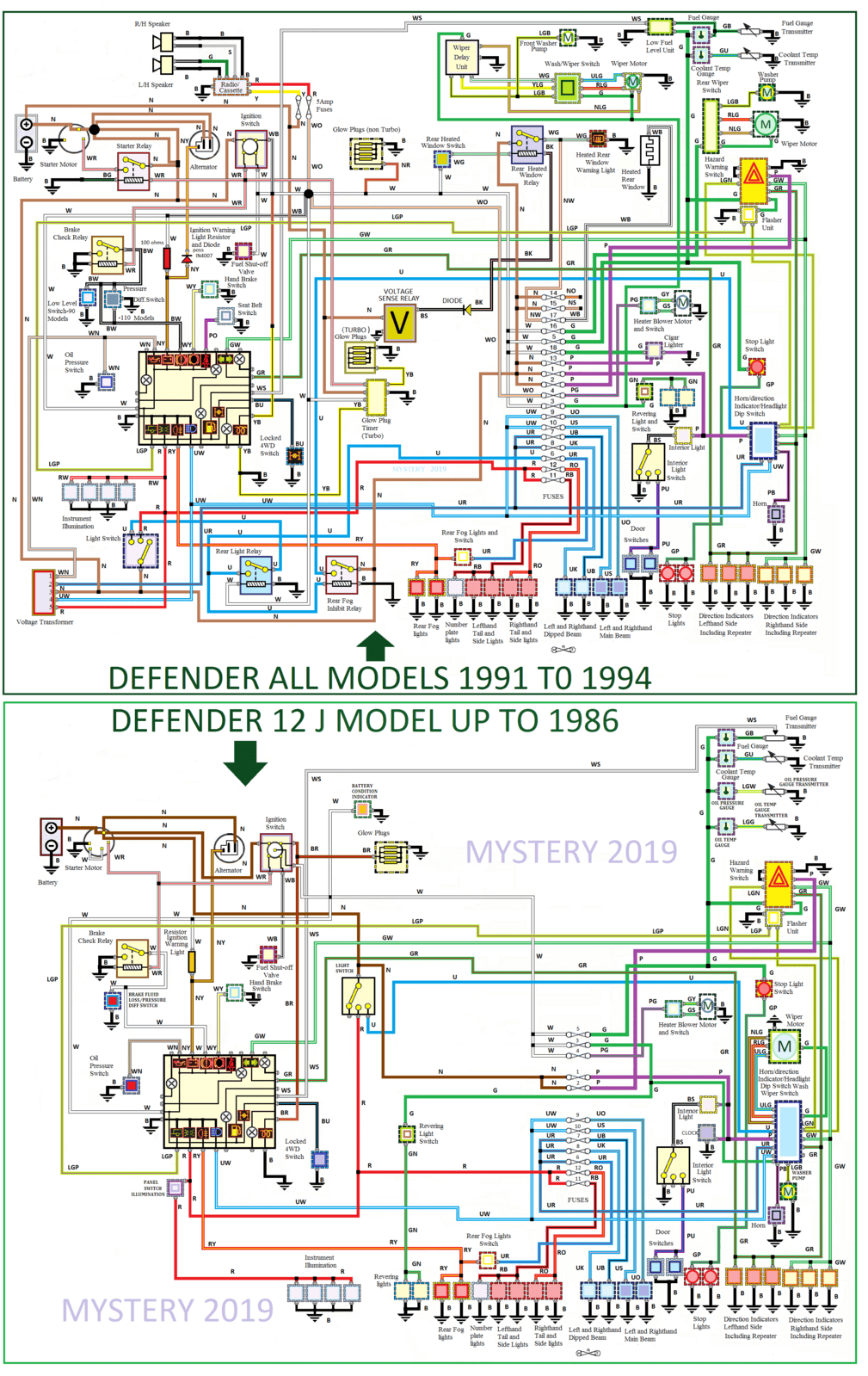

View attachment 286860

Much better on here with the white background me finks.

Ajcrabb · Apr 25, 2023

Thanks Chaps! Ill get that sorted tonight!

Ash

mystery · Apr 25, 2023

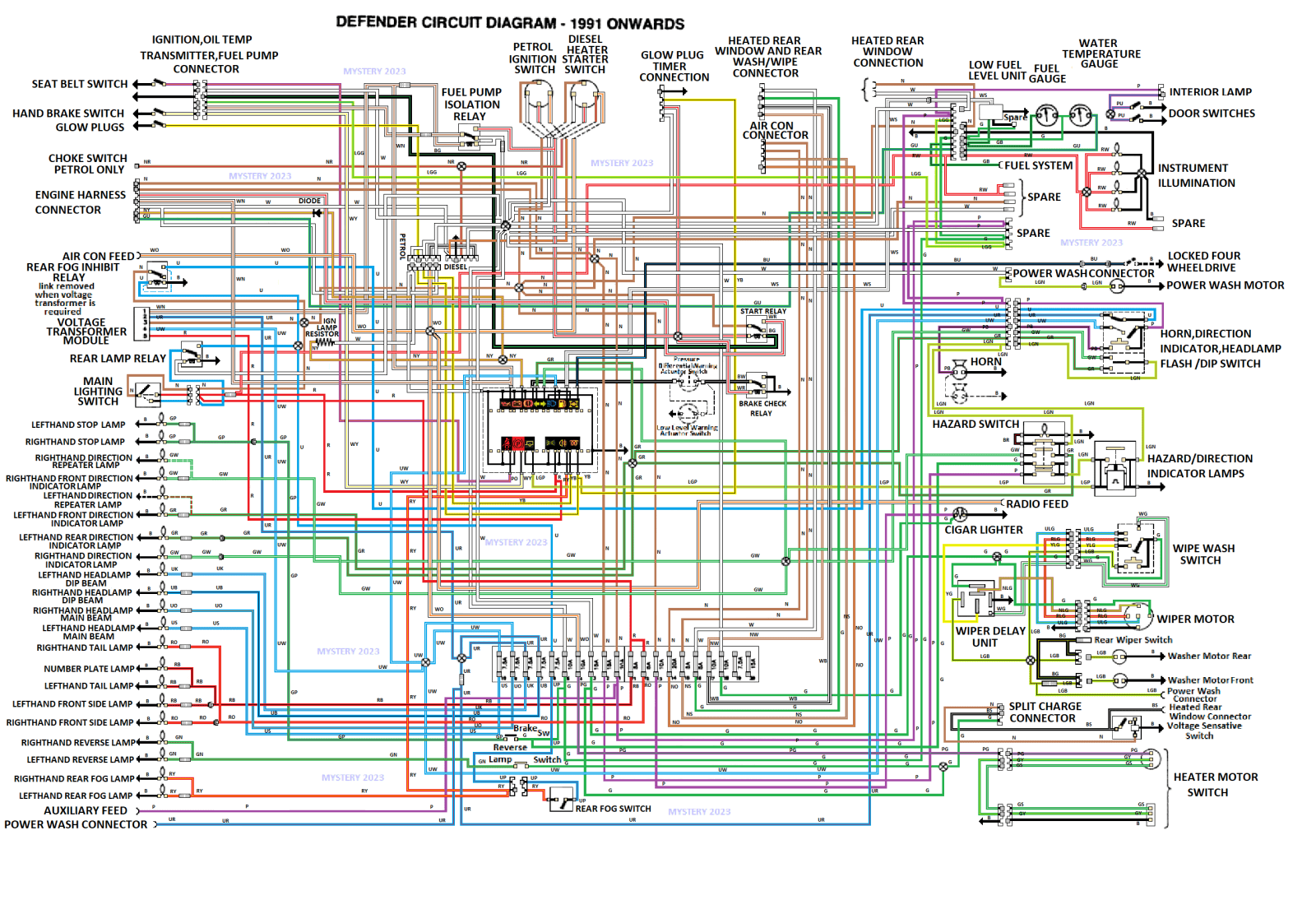

View attachment 286895
