2005 Range Rover 4.4V8...No rear heat, rear fan N/W

LOCKESBOY

Member

Posts

47

• Nov 14, 2020

• #1

Hi guys, as stated it's a 2005 l322 v8 petrol, no heat from rear vents, also rear fan not working...ant ideas, fuse in the rear is ok as the Relay, also in the rear...



backinblack

Well-Known Member

Full Member

Posts

6,223

Location

North Manchester

• Nov 14, 2020

• #2

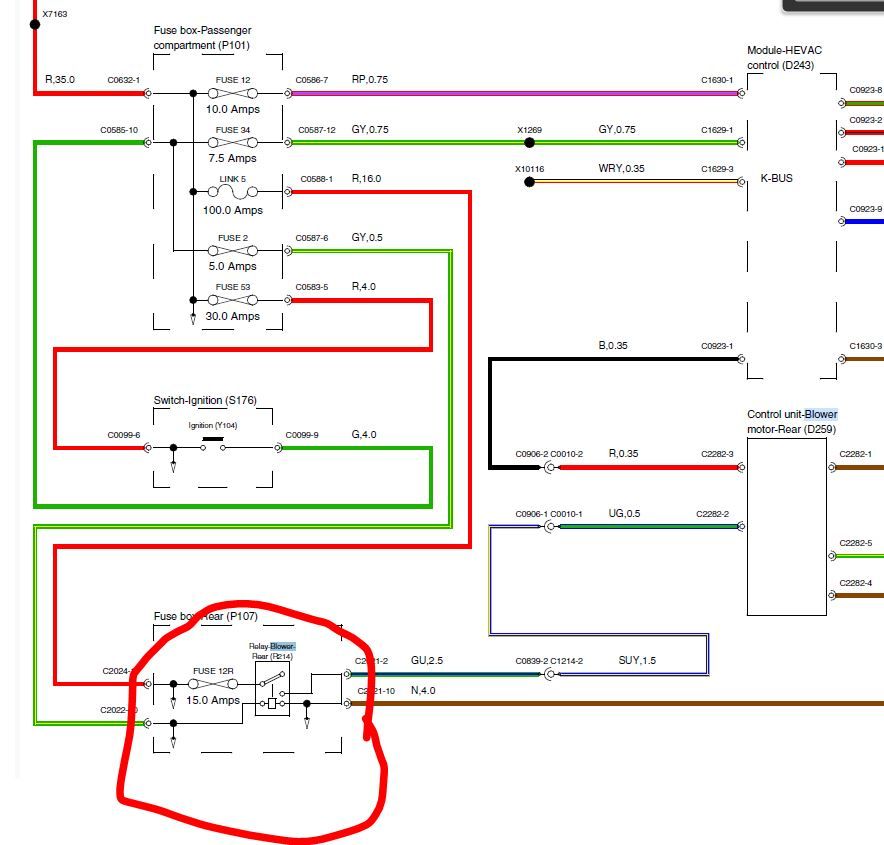

According to Rave Fuse 2 in front fuse box also.



LOCKESBOY

Member

Posts

47

• Nov 14, 2020

• #3

backinblack said:

According to Rave Fuse 2 in front fuse box also.

Thanks I will have a look tomorrow morning, it's probably never worked since we bought it, I changed the heater bypass valve on the bulkhead after getting no heat and realised that there was no heat or fan operation in the rear, thanks for responding, much appreciated.

Best regards

Ian

View attachment 223251

Click to expand...



backinblack

Well-Known Member

Full Member

Posts

6,223

Location

North Manchester

• Nov 14, 2020

• #4

Mine never worked either until I found the blown fuse while fixing something else. I didn't realise there was an electric fan.



LOCKESBOY

Member

Posts

47

• Nov 14, 2020

• #5

Same here lol, I'll have a look in the morning and let you know, have nice evening, enjoy the weekend



backinblack

Well-Known Member

Full Member

Posts

6,223

Location

North Manchester

• Nov 14, 2020

• #6

no problem, you too. Hope it is that simple



LOCKESBOY

Member

Posts

47

• Nov 14, 2020

• #7

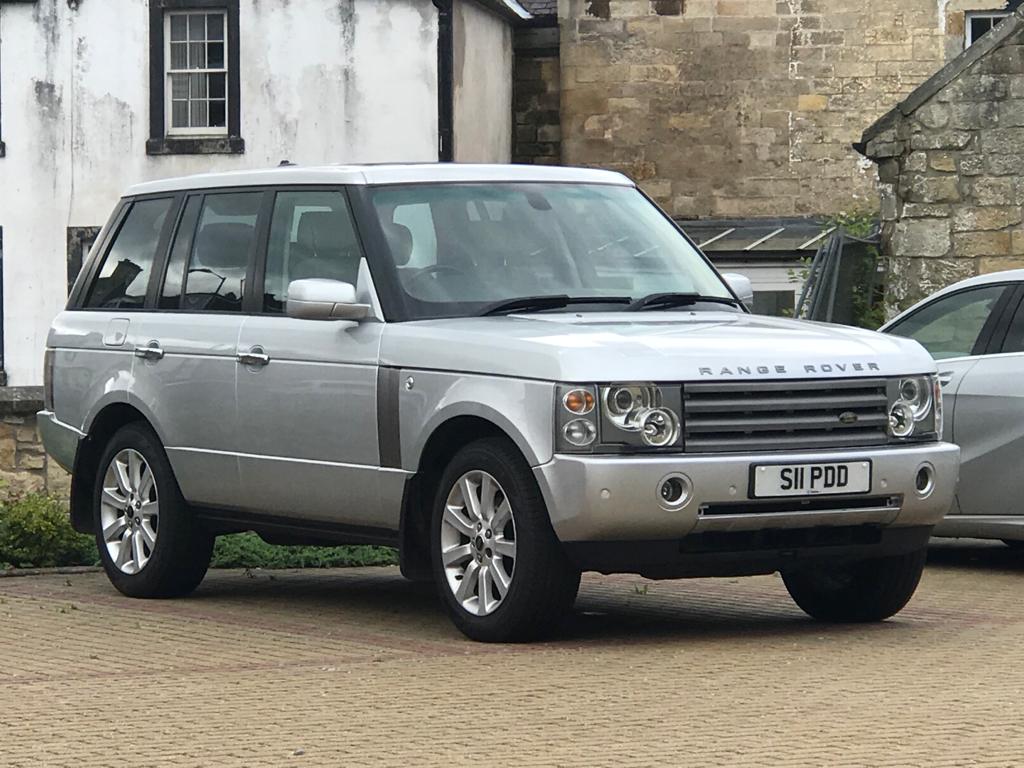

Haha nope, it's not the fuse, the fan speed and temperature dials are not illuminated in any way, I thought they might of been considering how well the front illuminates. There is airflow through the vents but not powerful, the temperature is cool, not hot like at the front...so the fuses are fine and the relay is ok, I swapped it over for the heated rear window one..no difference...its never bothered me, I didn't know until today that it didn't work, it's going to bug me now though...enclosed pic, its 15 years old not a 2011, that plate was on it when bought it...



Attachments

•

  120.4 KB · Views: 110

backinblack

Well-Known Member

Full Member

Posts

6,223

Location

North Manchester

• Nov 14, 2020

• #8

Looks like you need to get a multimeter on it and start tracing.



LOCKESBOY

Member

Posts

47

• Nov 14, 2020

• #9

Yes probably, it's odd it doesn't work, the back seats are as new, I can't see that its worn out from use, I guess Land Rover's make engineers out of us...
