2.7 TDV6 Metal Chunk in Oil pickup screen

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

JLGALL1

Member
Posts
35
Location
Scotland
Found this whilst the sump was off to replace the gasket. Was wedged in the oil pickup screen - any ideas whereabouts in the engine it’s come from? It looks like twisted metal - almost from a gear of sorts?

Any insight appreciated!


Attachments

  • 6CA89CE2-DF43-4CA5-9939-FD8A58D93DF1.jpeg
    116.1 KB · Views: 93
  • 2A13F157-DA9F-4372-863E-4A73C0874EE3.jpeg
    131.1 KB · Views: 80
Tip of a valve guide? Or a piece off the timing chain tensioner, perhaps we need better photos of a different angle, and something to scale it

Last edited:
Is say it’s the wrong shape & too thick to be from a valve guide. Have attached a few more pics with my fingers for scale


Attachments

  • E440A8DC-F7AF-41BF-A989-ECCCF89489CC.jpeg
    99.5 KB · Views: 78
  • B63B9941-94ED-4881-AFA7-B2A5655513FC.jpeg
    95.5 KB · Views: 74
  • 2E08A8FE-D7CD-4CE4-8EA9-861AB50B8B3C.jpeg
    104 KB · Views: 72
How much of the history do you know? Could of had a failed oilpump casing at somepoint and been repaired.

Before my ownership it’s had the timing belt done at 105k & also at 148k - the 148k change could well have been due to a failed oil pump casing as wouldn’t make sense to change the belt after just 40k miles. I think I might strip the timing belt cover off just to check

Just took the timing belt cover off & the oil pump has definitely been replaced before so presumably an oil pump has previously failed & they haven’t got all the shrapnel out the engine. Pic attached


Attachments

  • 8CC1A8A5-C61F-4D5A-88E7-D4BD6E246FD4.jpeg
    226 KB · Views: 79

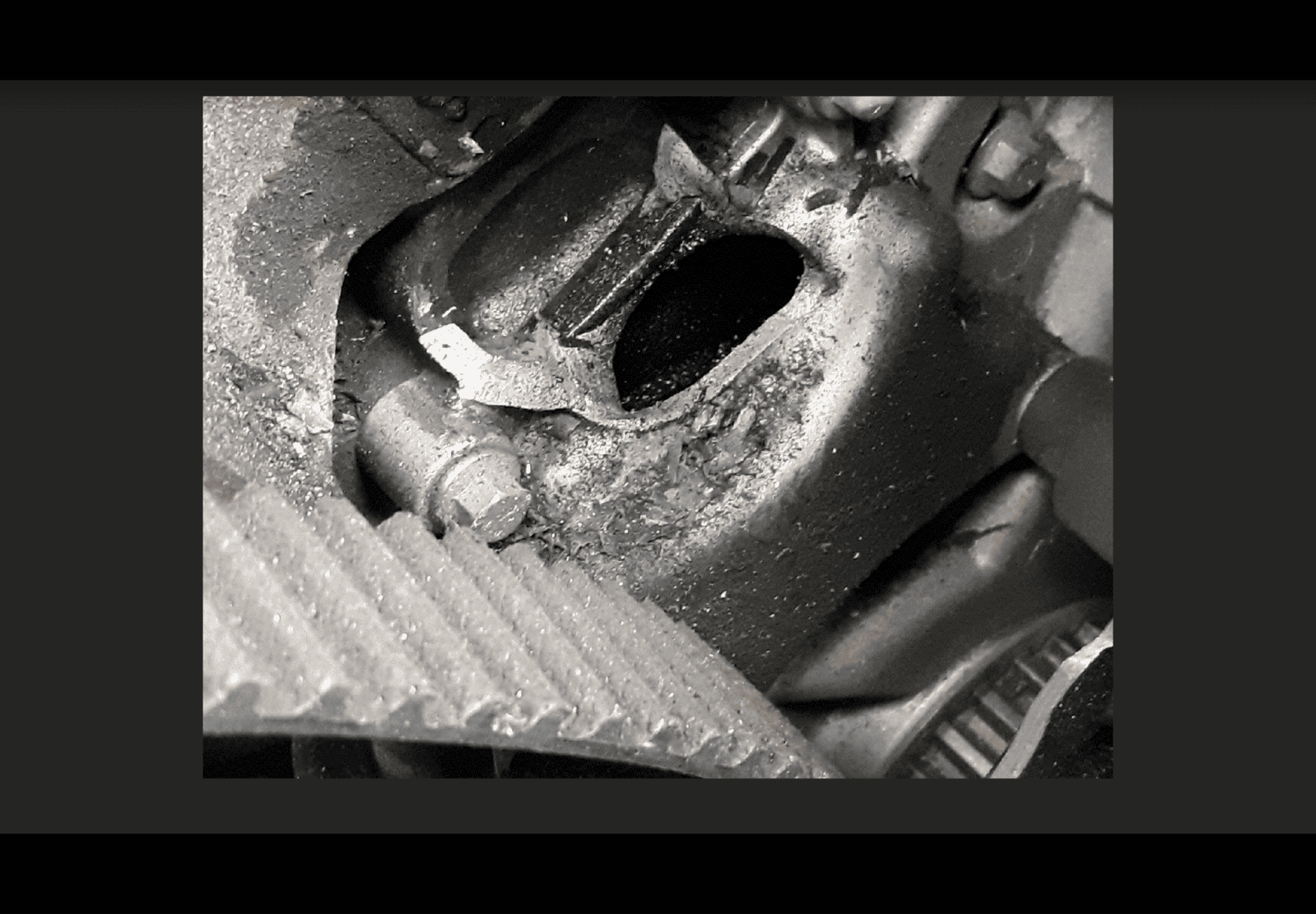

That indeed looks like a piece off an old oil pump as indeed remnants could have dropped down into the sump , plus found a pic for u of a broken oil pump cover

seriously lucky that u noticed it , hats off to u mate

hope it helps


That indeed looks like a piece off an old oil pump as indeed remnants could have dropped down into the sump , plus found a pic for u of a broken oil pump cover

seriously lucky that u noticed it , hats off to u mate

hope it helps

View attachment 265567
I'm with Gary.
Definitely off a broken oil pump casing.
Nothing to worry about if the pump is a new and upgraded one.

I'm with Gary.
Definitely off a broken oil pump casing.
Nothing to worry about if the pump is a new and upgraded one.

thks for also verifying it as indeed couldnt think of anything else that it could be, see the oil pump is an ungraded one , but assume it’s 7 x years old from the last belt change , must admit would be tempted to fit a new one seeing they don’t cost much in comparison to an engine , just that extra peace of mind
