P38A 2.5 DT srs fault

Discussion in 'Range Rover' started by RangeRoller dt, Apr 19, 2020.

< Previous Thread | Next Thread >
  1. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    10,940
    Likes Received:
    4,989
    Location:
    Trapped inside my head @ LZ asylum
    The dash is half stripped already, battery being topped up so good time to investigate my srs fault on dash.

    I understand ideally I need a Nanocom to read what the problem is and go from there BUT
    MY1995 DT only has an airbag in the steering wheel +1 above glovebox, plus 2 sensors atop the front bumper. They are all the yellow ones with yellow trunking.
    I’ve had battery off for a while so there’s no harm in trying the simple fixes first.

    The infamous A-pillar connection near the inertia switch by the drivers foot

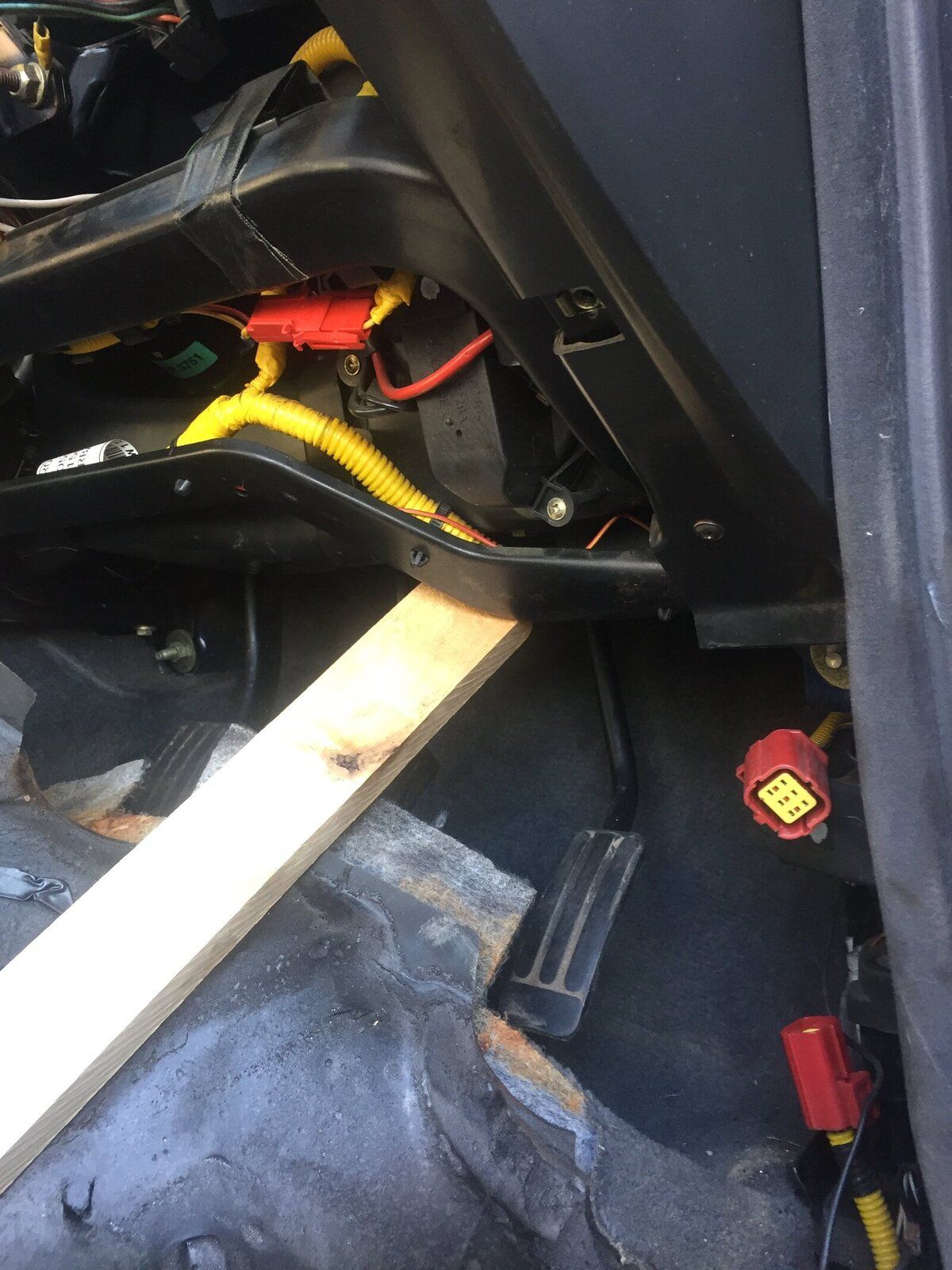

    There is a connection above this behind the panel C9974CDC-CCF0-4969-B5DC-DFE08CCE5242.jpeg

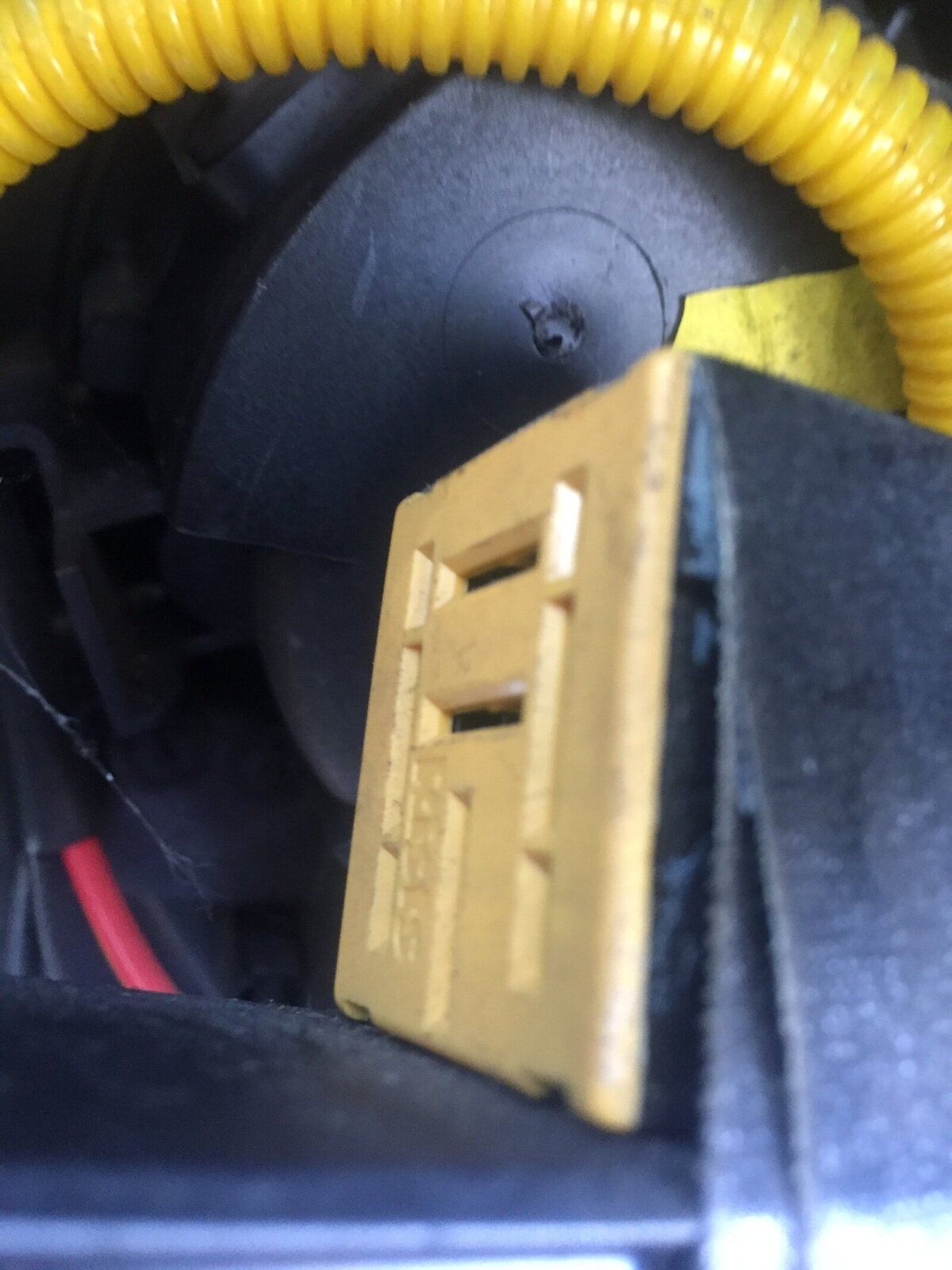

    with some sort of box next to it? :confused: 52FBEA38-E4D9-4F43-999B-67B6F4050967.jpeg

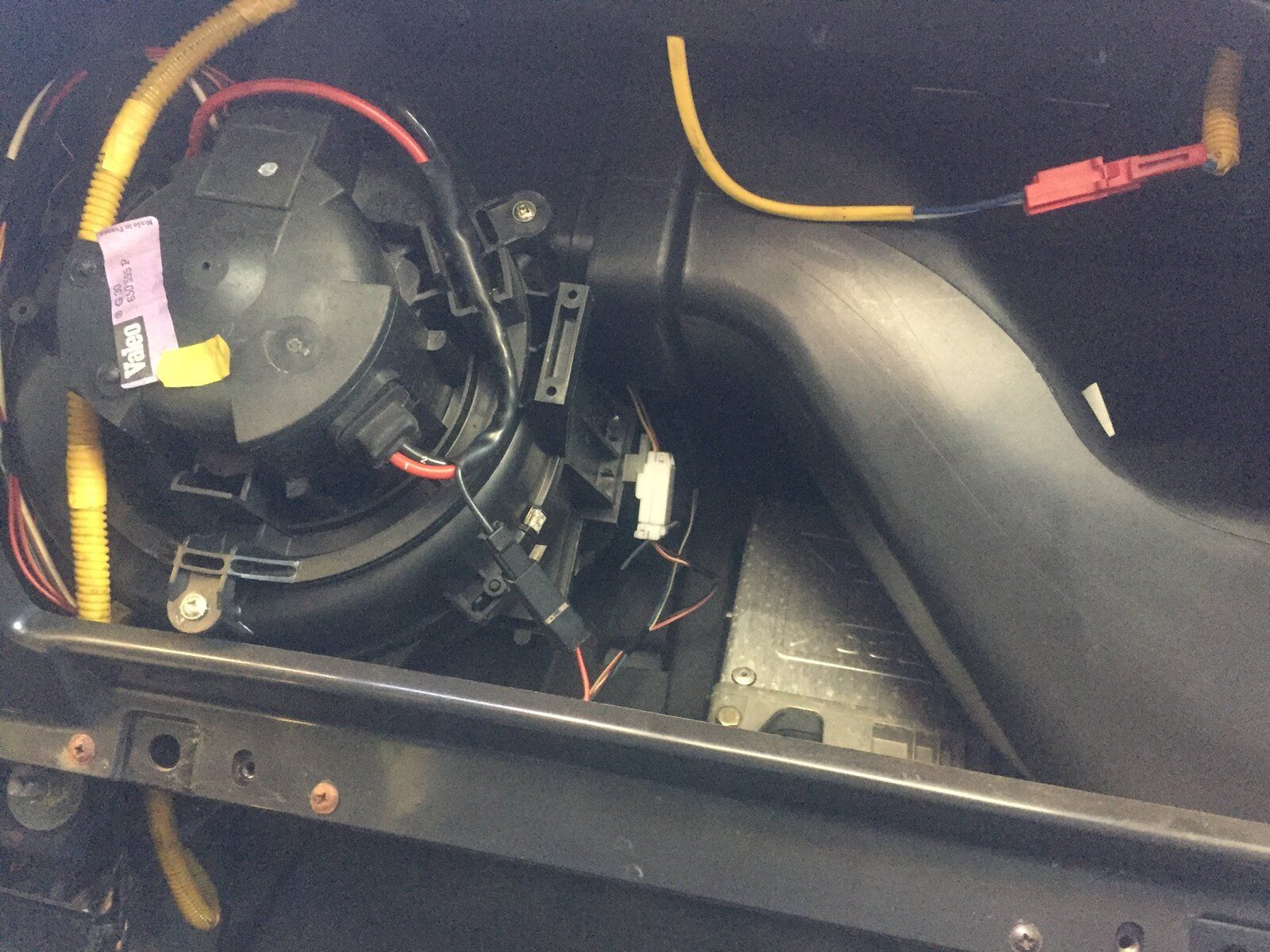

    Passenger side is only one trunk coming up to a single connector behind the glovebox that goes to the unit 4A97A85C-4406-49AC-9924-B47DF9975693.jpeg

  2. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    10,940
    Likes Received:
    4,989
    Location:
    Trapped inside my head @ LZ asylum

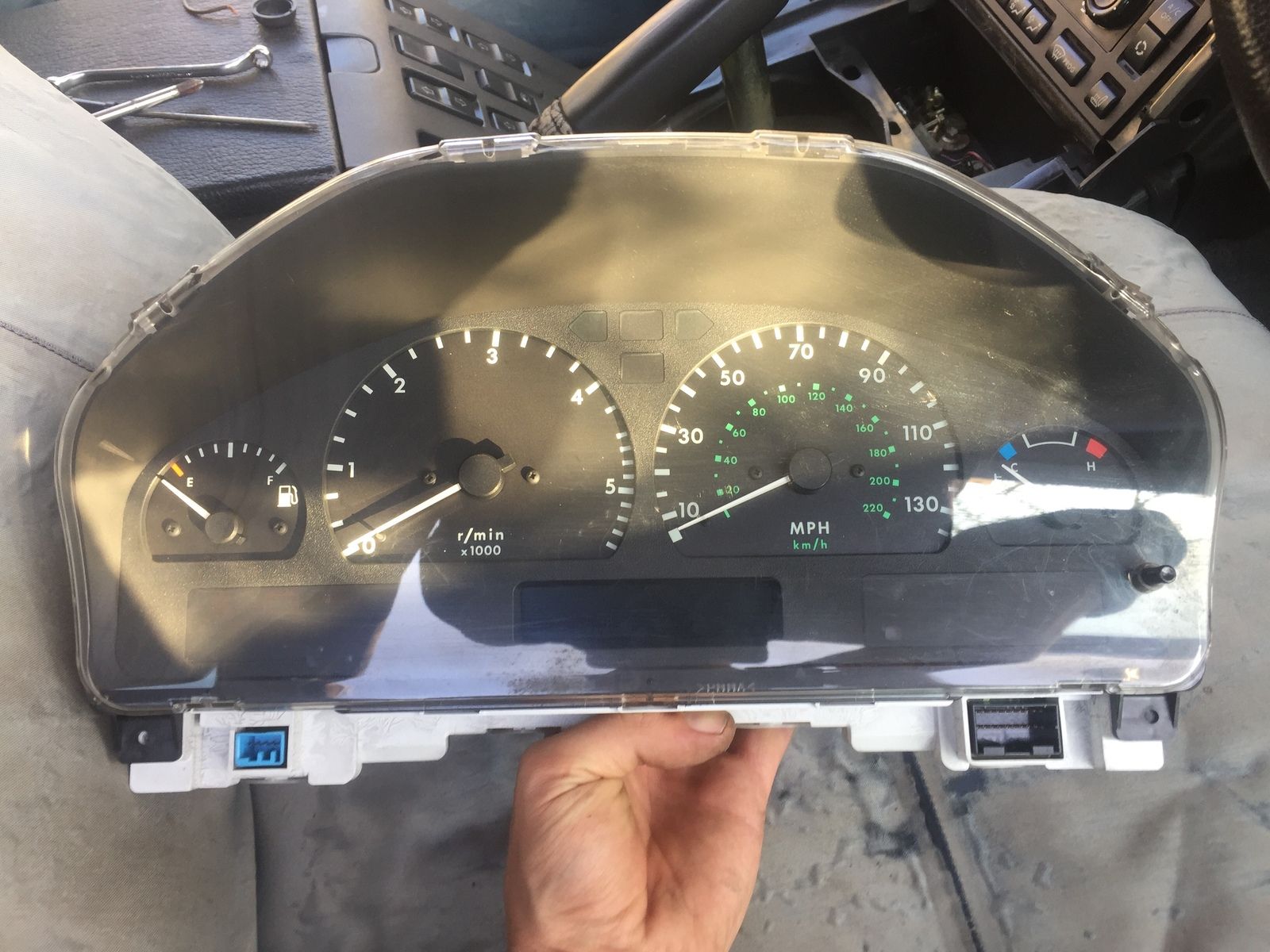

    Had the dash binnacle gauge thing out there’s only four screws and two connectors. The bulbs are labelled in little writing so you can tell which is which 9CFC5DDA-F924-46F5-B56C-F7D7D9973C5C.jpeg

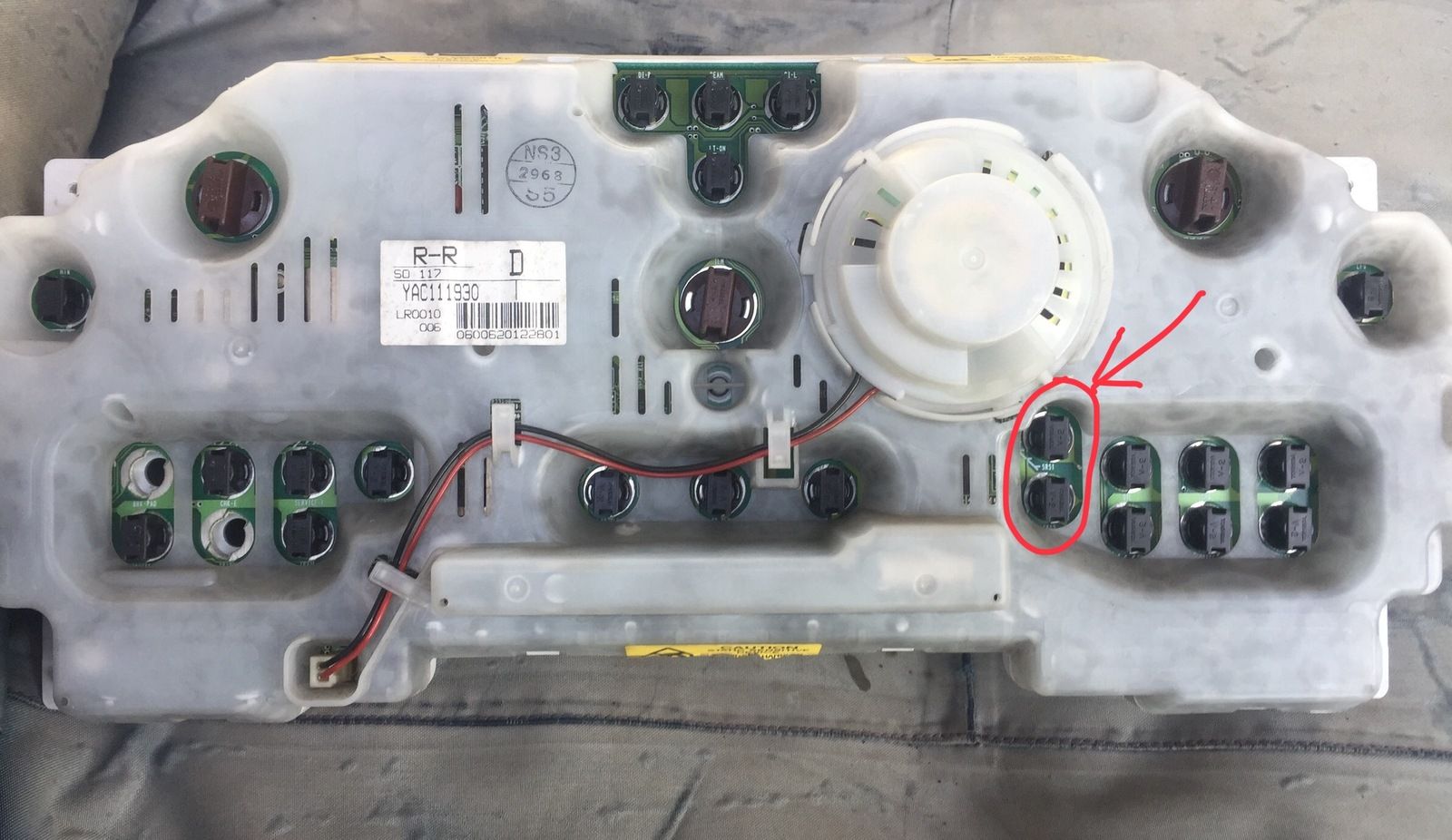

    You can see the writing if you zoom in but these are SRS bulbs 1 and 2 53E87D90-ECCE-458F-A00B-A0C9D216BF89.jpeg

  3. Rubberknees

    Rubberknees Well-Known Member

    Joined:
    Mar 25, 2019
    Posts:
    805
    Likes Received:
    605
    Location:
    Rotherham
    When I changed my driver side blend motor srs light came on. There is a connector under dash, took apart sprayed with contact cleaner and OK afterwards

    kermit_rr likes this.
  4. Grrrrrr

    Grrrrrr Technician, Bodgit & Scarper Ltd

    Joined:
    Jul 8, 2012
    Posts:
    14,043
    Likes Received:
    3,840
    Location:
    Buckinghamshire, UK. ('95 DT)
    I would take out those 2 bulbs, clean the board connection very gently and the copper tangs in the bulb capsules and bend them out very slightly. Check both bulbs are functioning correctly.

    Unfortunately you'll probably need diag to clear the fault.

    RangeRoller dt likes this.
  5. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    10,940
    Likes Received:
    4,989
    Location:
    Trapped inside my head @ LZ asylum
    How do I check the bulbs?

    Is that the one in pic#2 or have I missed one?

  6. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    57,994
    Likes Received:
    11,469
    Location:
    Preston Lancs.
    Check for continuity.

    RangeRoller dt likes this.
  7. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    10,940
    Likes Received:
    4,989
    Location:
    Trapped inside my head @ LZ asylum
    That sounds like DVM speak

    have ordered one of these
    Let’s hope it comes with instructions :)

    Mark Piercy likes this.
  8. kermit_rr

    kermit_rr Well-Known Member

    Joined:
    Dec 9, 2018
    Posts:
    7,874
    Likes Received:
    5,124
    Location:
    North Shropshire
    you could just swap with other known good lamps from the dash. my dash was one short so i borrowed one of the less used ones, i forget which one. might have even been the glow plug light which i dont care about

  9. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    36,896
    Likes Received:
    3,879
    Location:
    Near Poitiers SW France
    2 bits of wire under the bulb contacts with other ends placed on the battery terminals does the job

    Grrrrrr and RangeRoller dt like this.
  10. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    10,940
    Likes Received:
    4,989
    Location:
    Trapped inside my head @ LZ asylum
    Substitution would be my usual method but I have my battery and instrument cluster here now so will find some wire.

    There’s ones in service/trs(Tc?)/cruise c that I shouldn’t need

    DVM should come in handy and about time I learned to use one

    kermit_rr likes this.
  11. Grrrrrr

    Grrrrrr Technician, Bodgit & Scarper Ltd

    Joined:
    Jul 8, 2012
    Posts:
    14,043
    Likes Received:
    3,840
    Location:
    Buckinghamshire, UK. ('95 DT)
    That's near enough what I did. A DVM is an essential bit of kit though.

    RangeRoller dt and kermit_rr like this.
  12. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    10,940
    Likes Received:
    4,989
    Location:
    Trapped inside my head @ LZ asylum

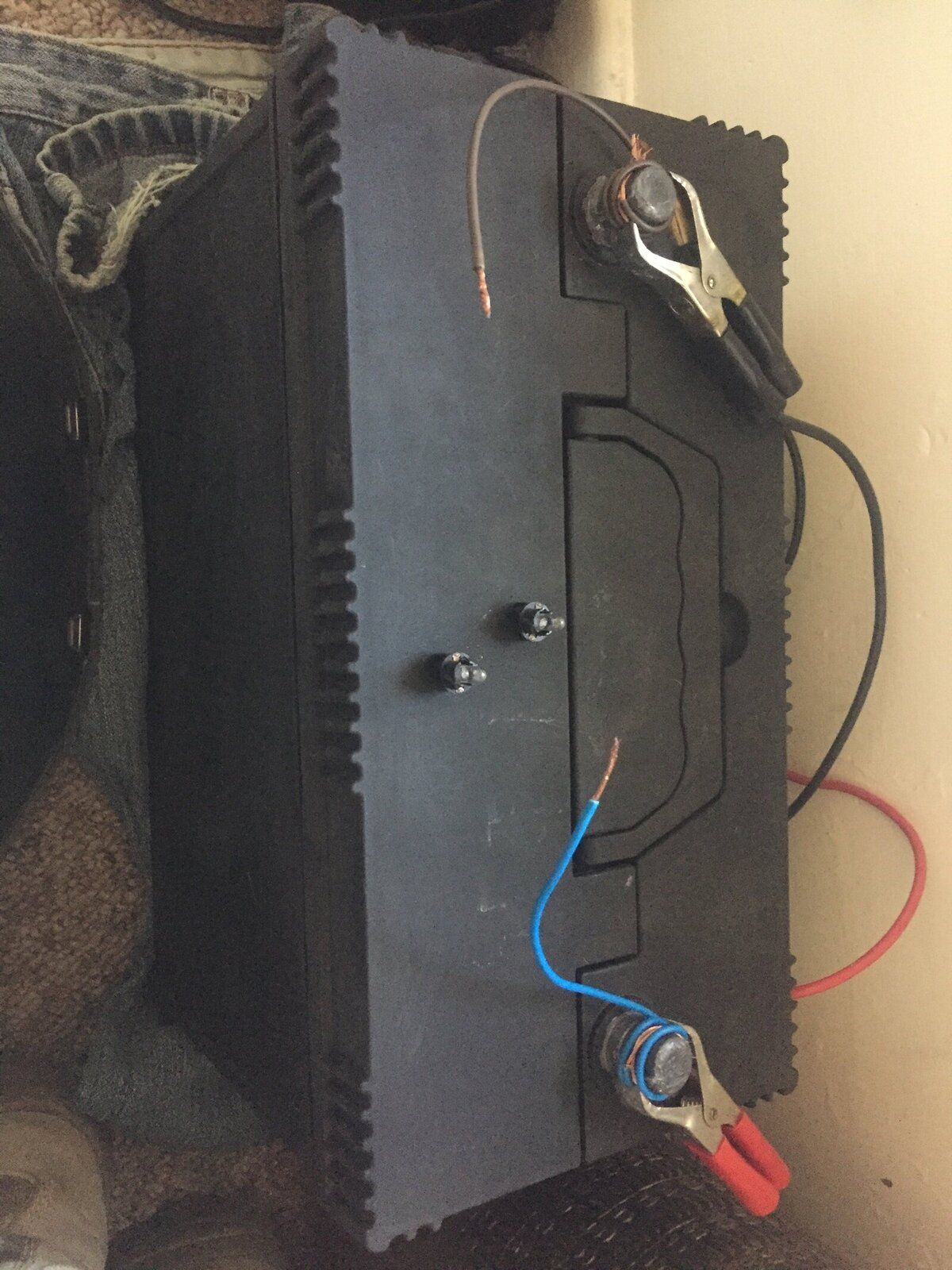

    EE25E313-FD98-450B-BC20-293573B20926.jpeg All bulbs (everyone in there) work but connection is harder to get on srs ones so will clean and swap around with cruise + traction control as I don’t have it
    Could hear Grrrr’s whisper ... ‘bend the contacts ever so slightly...’

    What to DVM next week now?? Lol

    Last edited: Apr 20, 2020
    Grrrrrr and kermit_rr like this.
  13. kermit_rr

    kermit_rr Well-Known Member

    Joined:
    Dec 9, 2018
    Posts:
    7,874
    Likes Received:
    5,124
    Location:
    North Shropshire
    The list is limitless! You'll find a whole pile of things to test that up until now didn't need to be tested

    RangeRoller dt likes this.
  14. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    10,940
    Likes Received:
    4,989
    Location:
    Trapped inside my head @ LZ asylum
    Well you know how to use one so time for you to teach me something for a change :p

    From owners manual :
    Fuse 7 - under drivers seat - 10A
    Fuse 23 - engine compartment - 10A

    Both SRS related.
    Il check these

    Last edited: Apr 21, 2020
  15. kermit_rr

    kermit_rr Well-Known Member

    Joined:
    Dec 9, 2018
    Posts:
    7,874
    Likes Received:
    5,124
    Location:
    North Shropshire
    If only you could test the amp rating of a fuse!
    I've got a bag full but no idea what size they are

  16. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    10,940
    Likes Received:
    4,989
    Location:
    Trapped inside my head @ LZ asylum
    Will continuity not work on a fuse?
    I have spare ones of them anyhow

  17. kermit_rr

    kermit_rr Well-Known Member

    Joined:
    Dec 9, 2018
    Posts:
    7,874
    Likes Received:
    5,124
    Location:
    North Shropshire
    Yes you'll have a continuity setting, most general ones do volts, dc and ac, ohms, continuity. Some do temperature, some do diode checks too

  18. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    10,940
    Likes Received:
    4,989
    Location:
    Trapped inside my head @ LZ asylum
    The expensive ones do temperature. This one says it has a continuity beeper so guess it has a settting

    kermit_rr likes this.
  19. Rubberknees

    Rubberknees Well-Known Member

    Joined:
    Mar 25, 2019
    Posts:
    805
    Likes Received:
    605
    Location:
    Rotherham
    That looks like it was very fiddly to get fingers round it to separate. Make sure none of the cables get trapped putting everything back

  20. kermit_rr

    kermit_rr Well-Known Member

    Joined:
    Dec 9, 2018
    Posts:
    7,874
    Likes Received:
    5,124
    Location:
    North Shropshire
    If you don't mind me asking, how much did you pay? I bought an ebay special last year as the leads on my old one were knackered.
    Had a look inside and out looked exceedingly cheap, certainly wouldn't use it on mains stuff! The cables fell apart after a few days :(
