Good afternoon, i'm converting a 1993 RHD Disco 1 (vin KA04xxxx) to left hand drive.
I can't read axle code, however it is 10 splines and half shaft is equipped with ABS trigger wheel.

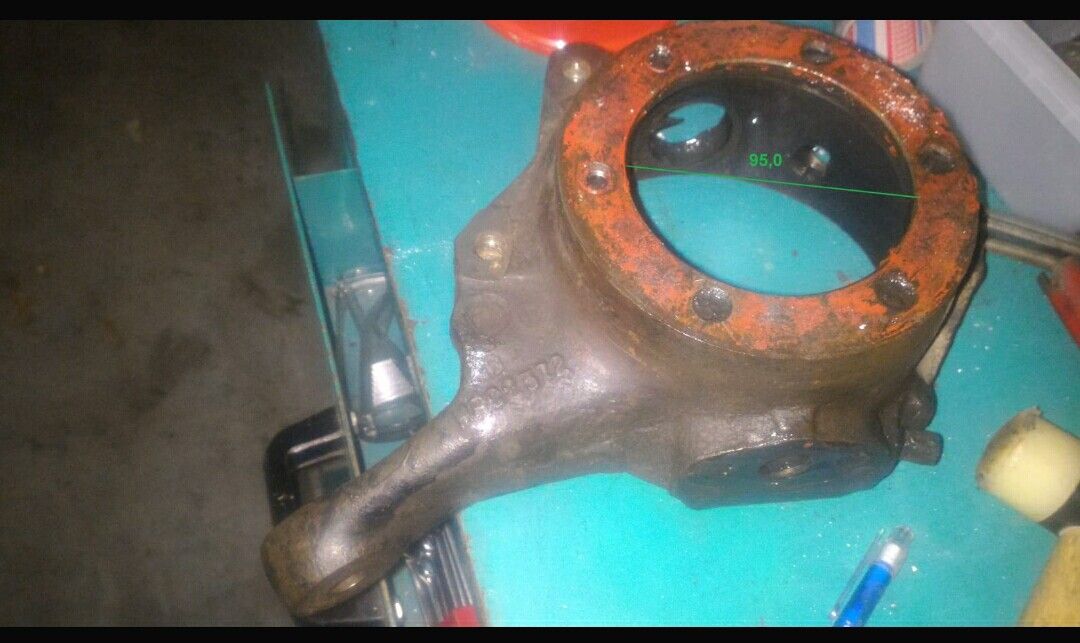

Axle is now fitted at right hand side with swivel pin housing shown in pics, it has oil lubrification (3 oil plugs), normal pins (no ABS) and it lacks of redundand steering arm, so need to change it.

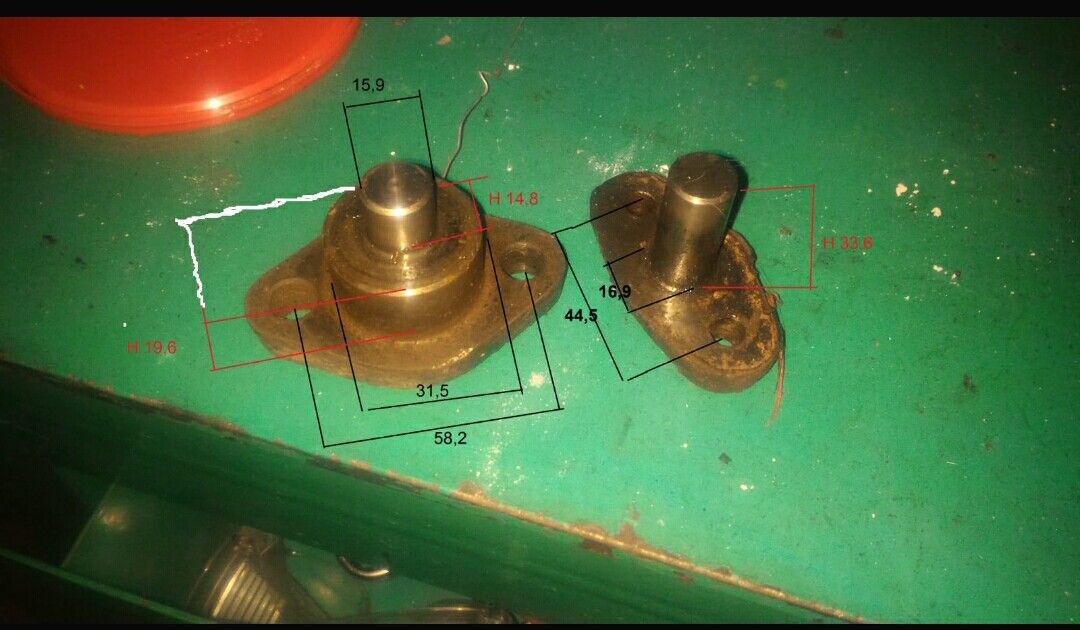

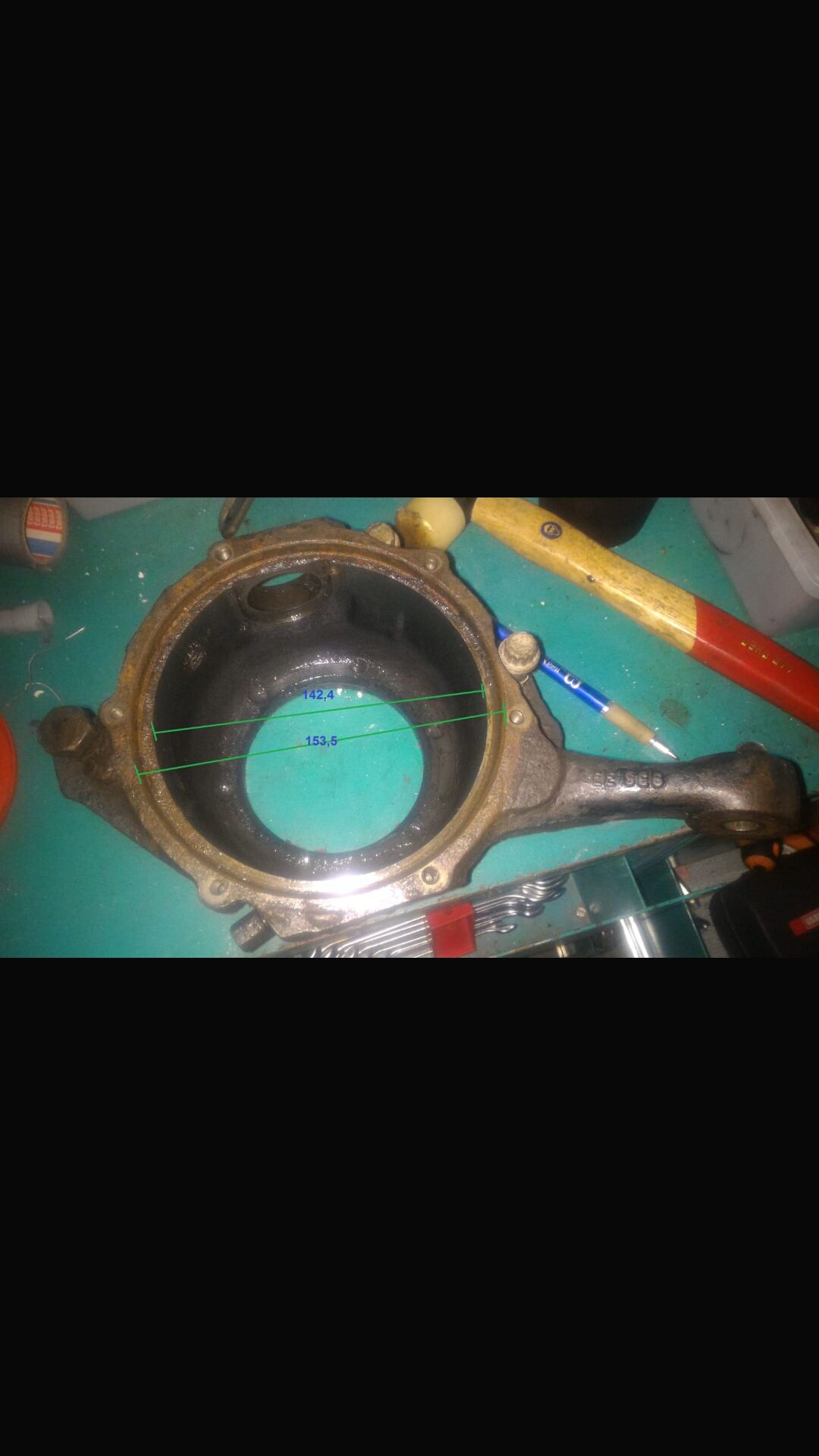

All measures are shown in pics, brake calipers bolts are 12,0 mm diameter and 35 mm long (so for bigger caliper model i think).
Can someone tell me the land rover code of my swivel pin housing, in both lhd and rhd versions?
I can't read axle code, however it is 10 splines and half shaft is equipped with ABS trigger wheel.
Axle is now fitted at right hand side with swivel pin housing shown in pics, it has oil lubrification (3 oil plugs), normal pins (no ABS) and it lacks of redundand steering arm, so need to change it.
All measures are shown in pics, brake calipers bolts are 12,0 mm diameter and 35 mm long (so for bigger caliper model i think).
Can someone tell me the land rover code of my swivel pin housing, in both lhd and rhd versions?
