Classic 1988 EFI, converted to 200TDI, Fuel tank issues

Discussion in 'Range Rover' started by jwrrc, Oct 22, 2021.

< Previous Thread | Next Thread >
  1. jwrrc

    jwrrc Well-Known Member

    Joined:
    Sep 17, 2021
    Posts:
    517
    Likes Received:
    822
    Location:
    Warwickshire, UK
    It may be possible to get something to divert up that pipe, but I've frustrated myself trying this morning to no avail! I'll have another go when my patience has return and I don't want to just burn the bloody thing :D
    I've got a brush on a bendy wire that I've been trying to get in, but it far prefers to go down the larger straigher pipe towards the tank.
    I think access is easier on the later ones with the higher filler cap, I've got a little access panel for the back of the filler neck flap that let's you tinker with the lock, but nothing else (unless I'm being blind or stupid)

    Hicap phill likes this.
  2. jwrrc

    jwrrc Well-Known Member

    Joined:
    Sep 17, 2021
    Posts:
    517
    Likes Received:
    822
    Location:
    Warwickshire, UK
    The larger pipe runs from inside the filler cap down the tank, the smaller one vents to the outside. The filler cap is one of the rubber seal, lock in the middle type ones, so I think the small pipe is the only access to fresh air in the system.
    Not Land Rover's best bit of design IMHO!

    Hicap phill likes this.
  3. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    12,956
    Likes Received:
    30,972
    Location:
    Wiltshire
    Do you have any other outlets on the fuel tank?
    You may have a small breather outlet that’s blanked off.

    jwrrc likes this.
  4. jwrrc

    jwrrc Well-Known Member

    Joined:
    Sep 17, 2021
    Posts:
    517
    Likes Received:
    822
    Location:
    Warwickshire, UK
    I don't think so, but I'll definitely check, excellent idea!

  5. jwrrc

    jwrrc Well-Known Member

    Joined:
    Sep 17, 2021
    Posts:
    517
    Likes Received:
    822
    Location:
    Warwickshire, UK
    Today's job: remove the filler neck and try to clear the small breather pipe at the top of the fuel return. I'm not expecting a fun day if I'm honest.

    Hicap phill likes this.
  6. jwrrc

    jwrrc Well-Known Member

    Joined:
    Sep 17, 2021
    Posts:
    517
    Likes Received:
    822
    Location:
    Warwickshire, UK
    So, it didn't go entirely as planned...

    The filler neck didn't come off, but the rear pannels did.

    So, I've traced the breather through and found it ended up with three cut hoses resting on top of the tank, routed up above the filler and onto the little hose at the top of the fuel return.

    I've taken off the 2+ meters of blocked old hose and intend to put a single length of hose with a filter on the end that should allow it to breath and not get blocked. I'm intending to put the end (with the filter) somewhere I can access to clean out the filter if required.

    Any advice or recommendations about the filter would be very welcome!

    Here are some pictures to help make what I've said clear:

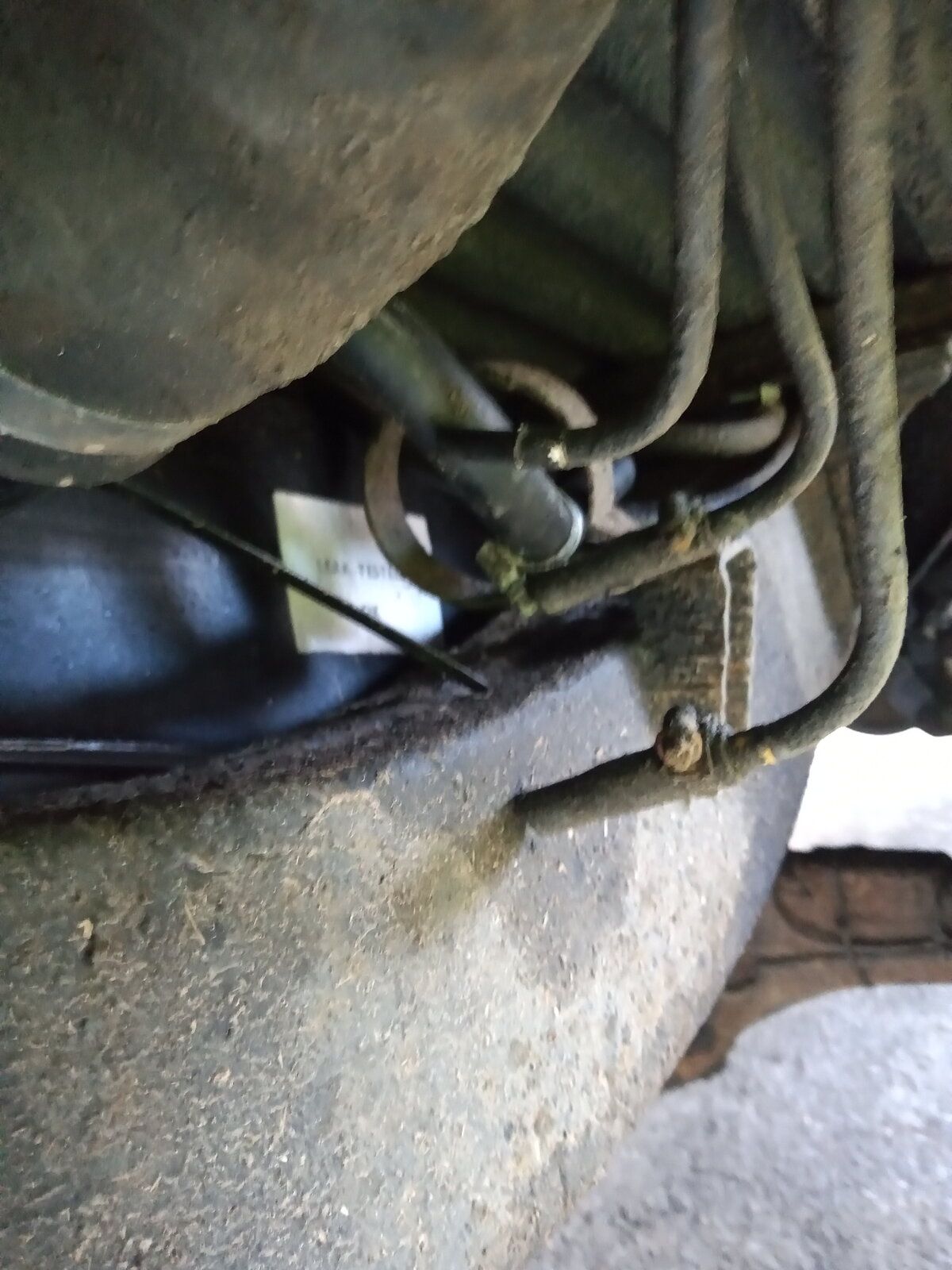

    The three breather hoses left draped on top of the tank, all of them just cut by the idiot who did the tank.

    Can only post one picture at a time, so another post will follow...

    Dippypud likes this.
  7. jwrrc

    jwrrc Well-Known Member

    Joined:
    Sep 17, 2021
    Posts:
    517
    Likes Received:
    822
    Location:
    Warwickshire, UK
    And the other picture


  8. brianp38dse

    brianp38dse Well-Known Member

    Joined:
    May 13, 2014
    Posts:
    16,907
    Likes Received:
    10,240
    Location:
    heathrow
    That bit of copper pipe will not help its of a much smaller diameter than the rubber

    jwrrc likes this.
  9. jwrrc

    jwrrc Well-Known Member

    Joined:
    Sep 17, 2021
    Posts:
    517
    Likes Received:
    822
    Location:
    Warwickshire, UK
    I forgot to take a picture of the end result, but everything is off now (the copper pipe is gone, and the rubber hoses either side of it).

    Plan is a single length of rubber hose from the filler neck to a filter that's tucked somewhere sensible.

  10. Ratae

    Ratae Well-Known Member

    Joined:
    Dec 16, 2008
    Posts:
    2,826
    Likes Received:
    2,062
    What a mess!!
    Early EFi were just an open ended pipe (5 in the link) clipped to point down. Mine's like that.
    The pipe is clipped (6 in the link) to the panel join seam.
    Not had any problems.
    MIne: Lrcat

    Various other variations on later ones - options shown on Lrcat have a look at the headings 'FUEL FILLER'.

    If you've still got it apart be an idea to replace the scotchlok with something better.

    Last edited: Dec 9, 2021
    jwrrc likes this.
  11. Kev12

    Kev12 Well-Known Member

    Joined:
    Jan 1, 2018
    Posts:
    1,539
    Likes Received:
    982
    Location:
    Cornwall
    Mine is the same as yours (originally a VM) with a single breather from the filler neck. The tank does have 1 or 2 other breather points that are capped off, I always assumed they were for petrol versions

    I believe my breather is clipped to the seam near the top, then back down into the clip to the right of the fuel flap lock

    jwrrc likes this.
  12. Ratae

    Ratae Well-Known Member

    Joined:
    Dec 16, 2008
    Posts:
    2,826
    Likes Received:
    2,062
    Later tanks on the petrols had several hoses that went to a vapour catch device mounted up in the quarter panel & then to the engine bay to be burnt off.

    Think I'm on the second tank since I bought it. They go at the seams.
    Mine has the pump in from the top & the level sender in the left hand side of the tank.
    I found out that there can be a bit of a variation in tank depth & that my fuel pickup tube on the pump is length adjustable when I fitted the first replacement.
    According to the gauge I was just above the red. According to the engine it was empty. Just what you need when you're enroute to the cinema with the wife & two small boys.....
    I did go back to the supplier who had several other tanks in stock & we measured them. No two were exactly the same.

    Last edited: Dec 9, 2021
    jwrrc likes this.
  13. Kev12

    Kev12 Well-Known Member

    Joined:
    Jan 1, 2018
    Posts:
    1,539
    Likes Received:
    982
    Location:
    Cornwall
    Mine is an 89 but the fuel tank is very clean and rust free, maybe it was replaced at some point. Not since 2006 when I got it tho

    Ratae and jwrrc like this.
  14. jwrrc

    jwrrc Well-Known Member

    Joined:
    Sep 17, 2021
    Posts:
    517
    Likes Received:
    822
    Location:
    Warwickshire, UK
    I'm definitely planning a much simpler arrangement, it sounds like they massively over complicated this when they built it!

    Ratae likes this.
  15. Ratae

    Ratae Well-Known Member

    Joined:
    Dec 16, 2008
    Posts:
    2,826
    Likes Received:
    2,062
    All to do with emissions.

    jwrrc likes this.
  16. jwrrc

    jwrrc Well-Known Member

    Joined:
    Sep 17, 2021
    Posts:
    517
    Likes Received:
    822
    Location:
    Warwickshire, UK
    That explains it: complicated, fundamentally flawed, needs swapping for something better - must be emissions related!

    Ratae and Kev12 like this.
  17. jwrrc

    jwrrc Well-Known Member

    Joined:
    Sep 17, 2021
    Posts:
    517
    Likes Received:
    822
    Location:
    Warwickshire, UK
    Hopefully, this is the last update on this...

    So today, the last of the parts I ordered 3 weeks ago arrived and I set about sorting the breather out.

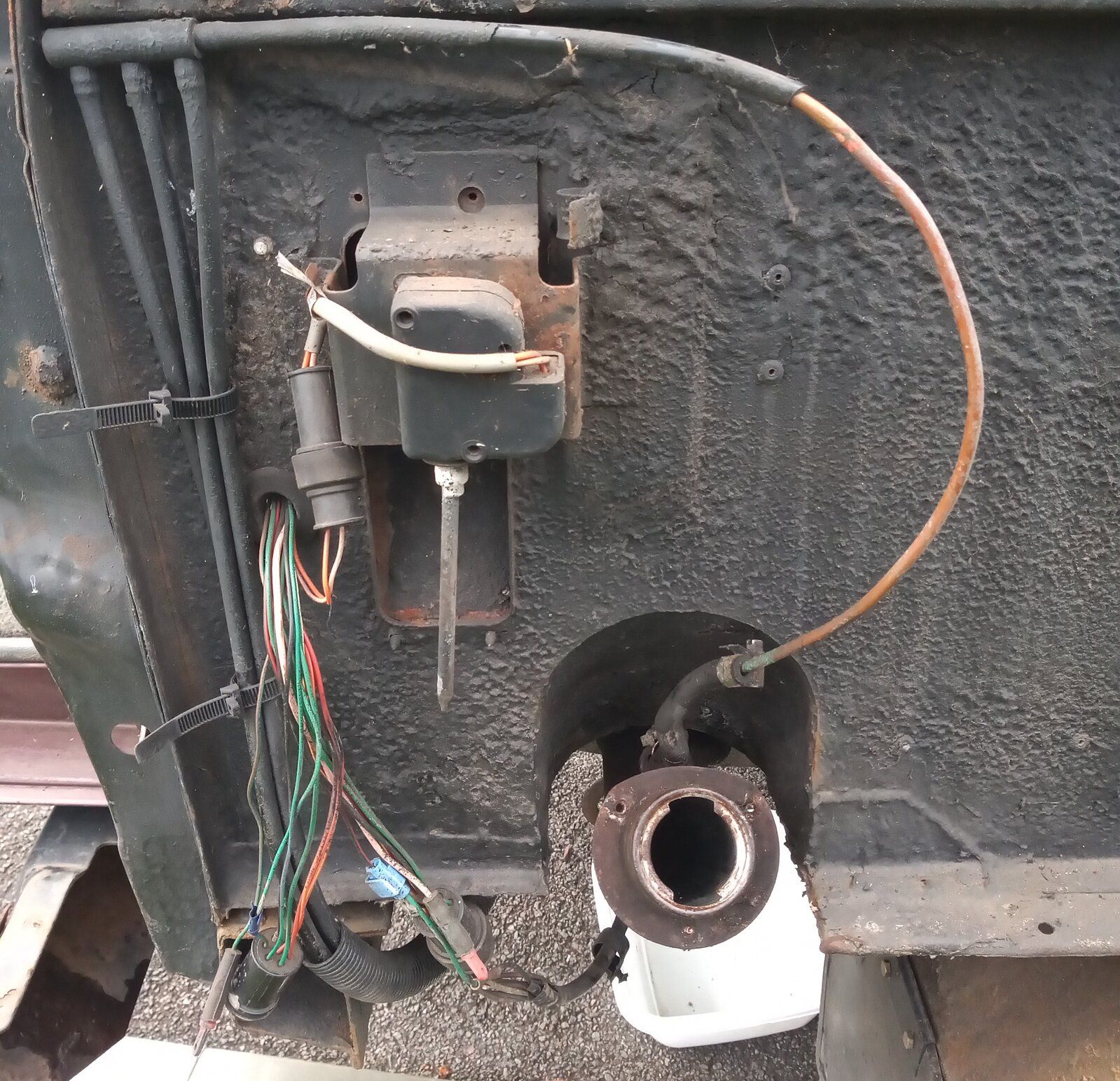

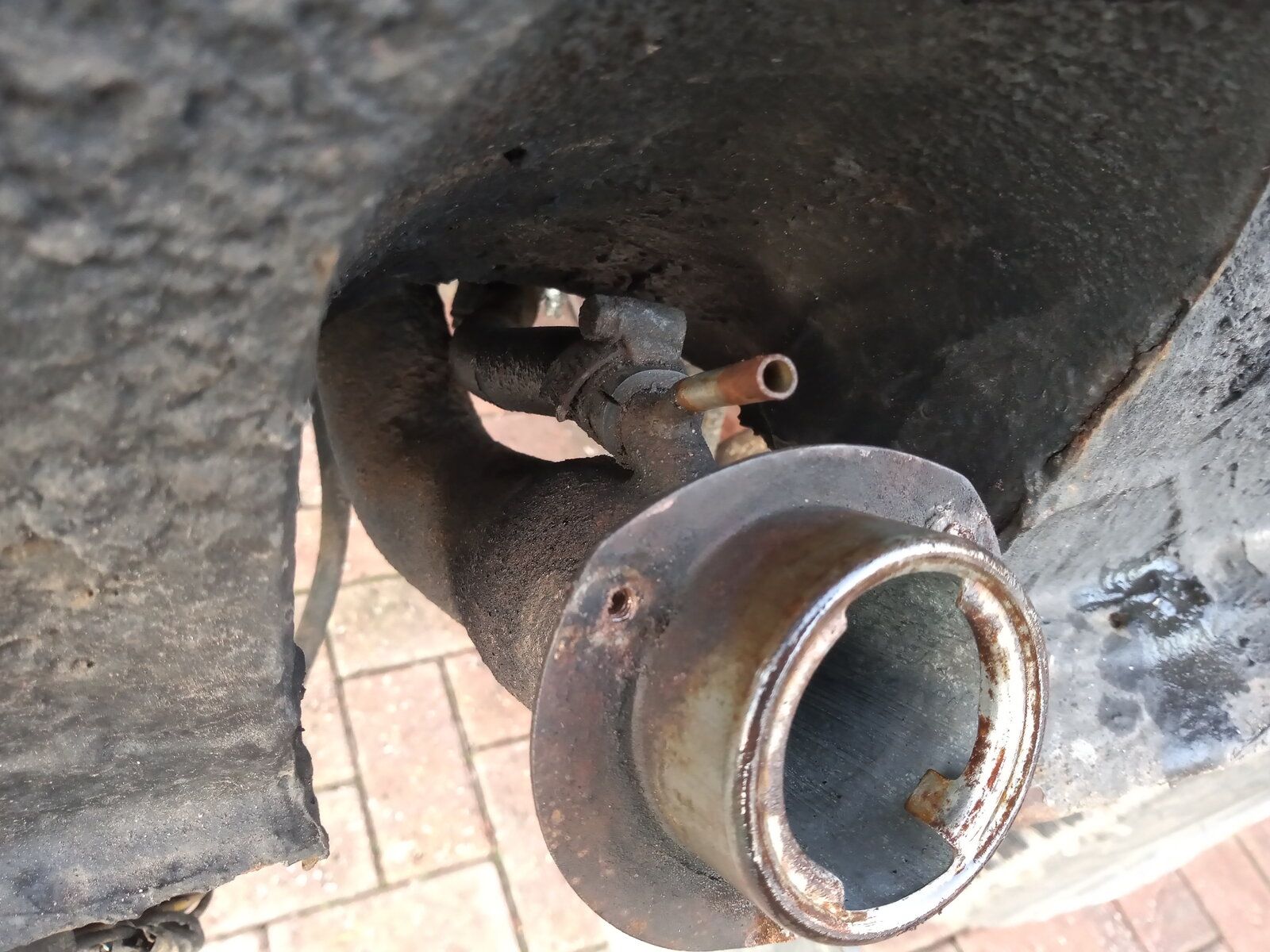

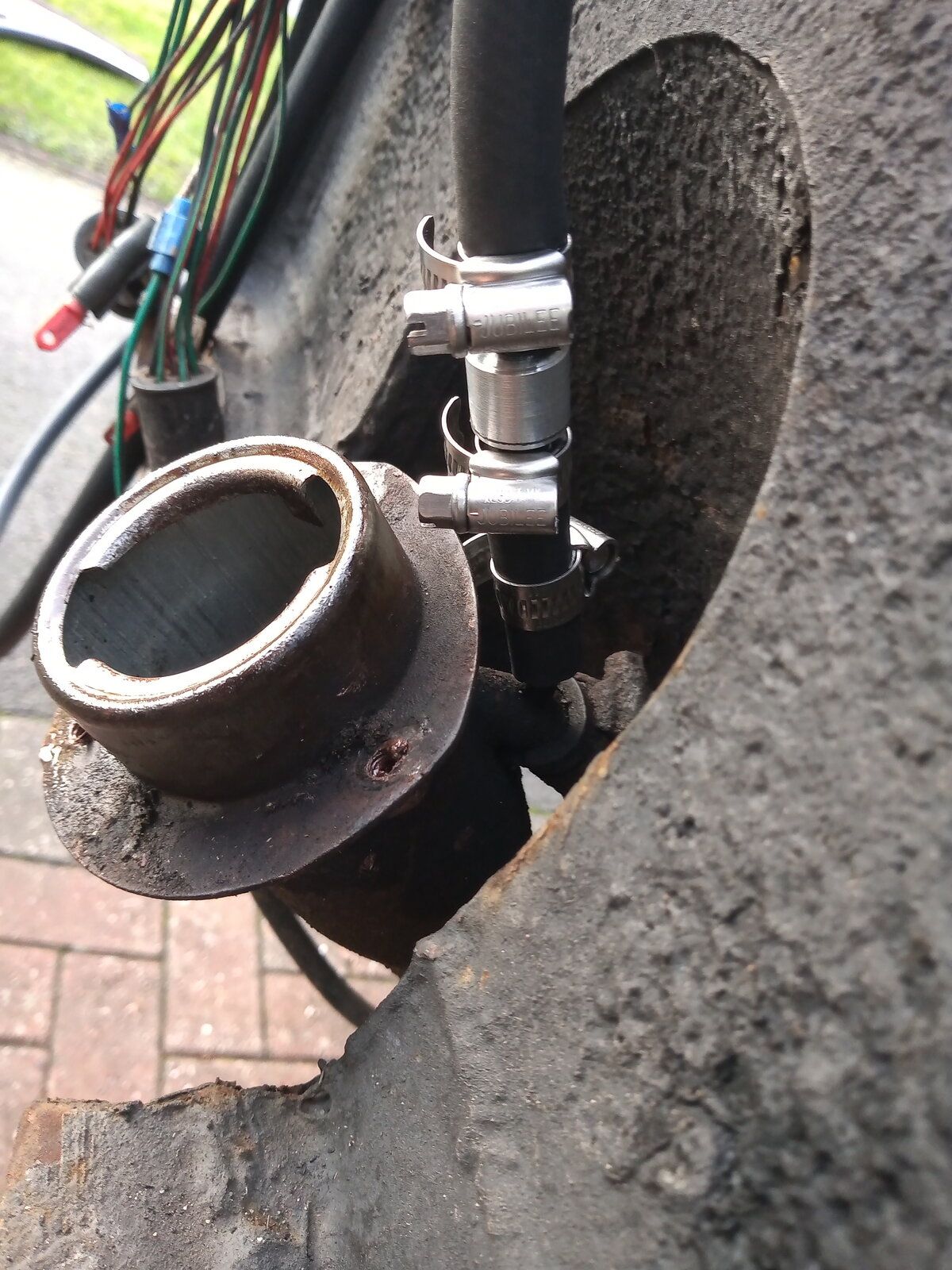

    So, rear quarter panel off again. Here's what I've been running with while I awaited parts:

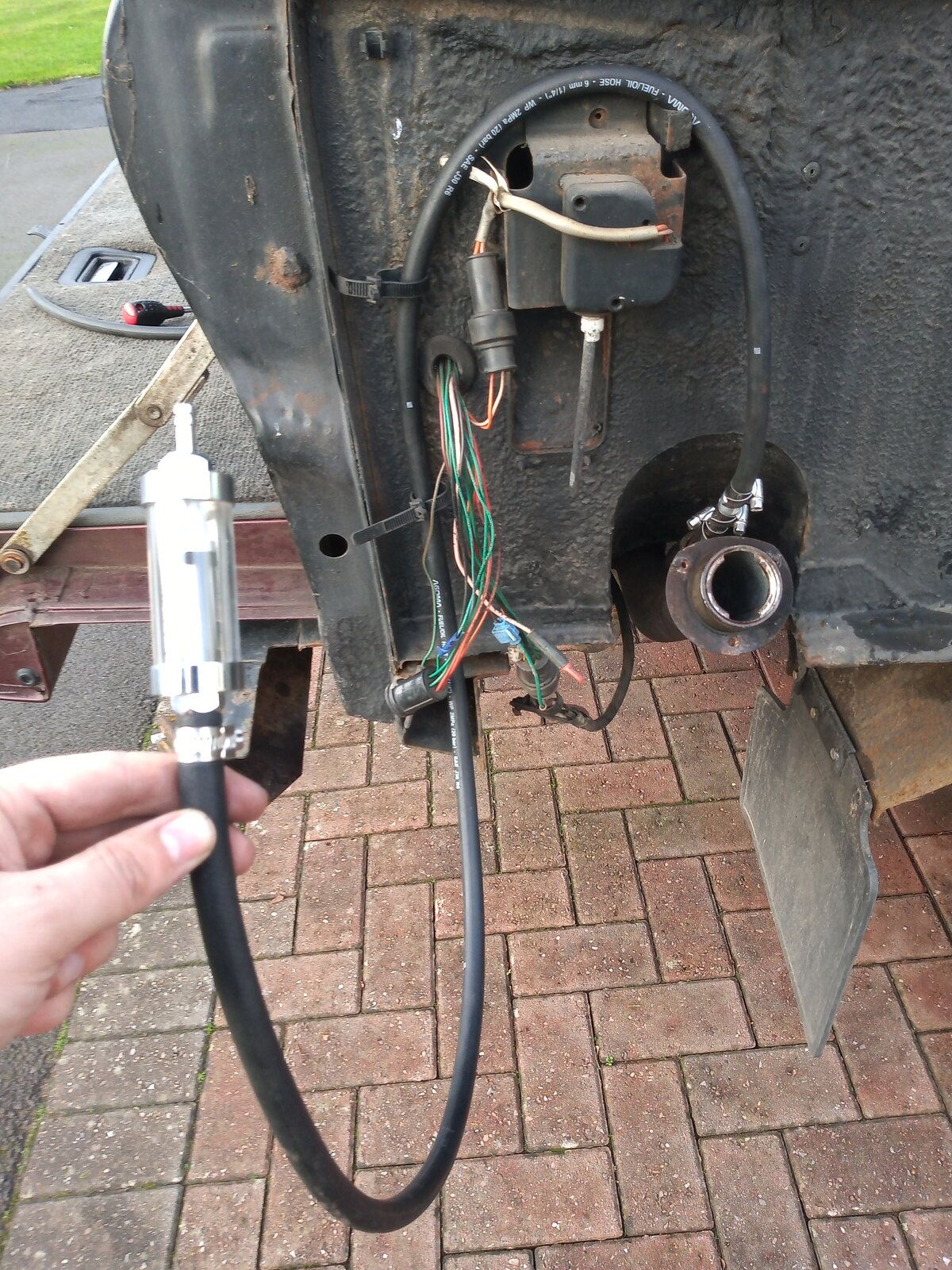

    And here's what I've assembled to replace the ****e that was previously fitted:
    6mm ID hose > 1 way valve (allowing air in but no fuel out, should it shlosh that high) > a meter and a half ish of hose > an inline fuel filter.

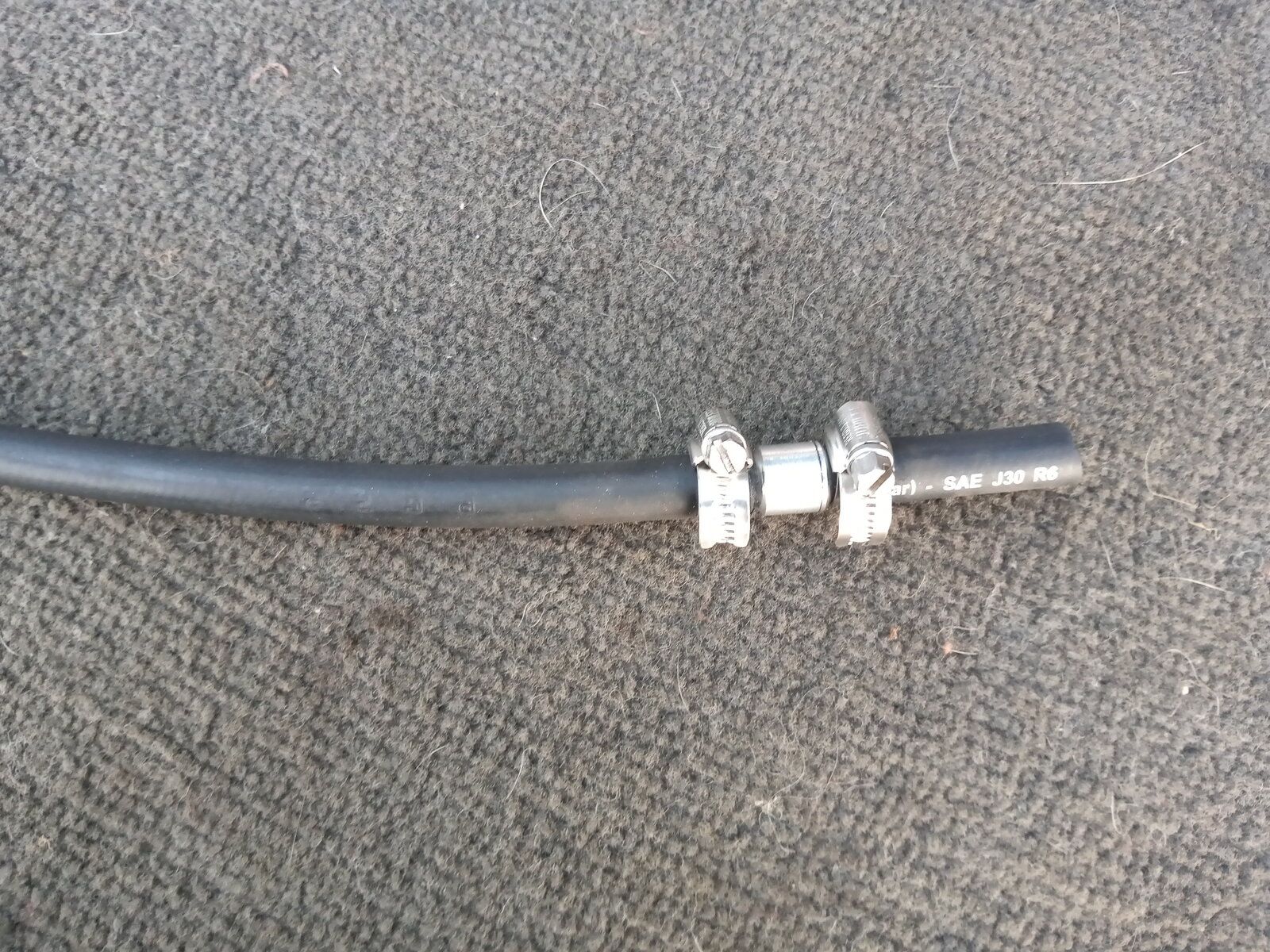

    One way valve / hose:

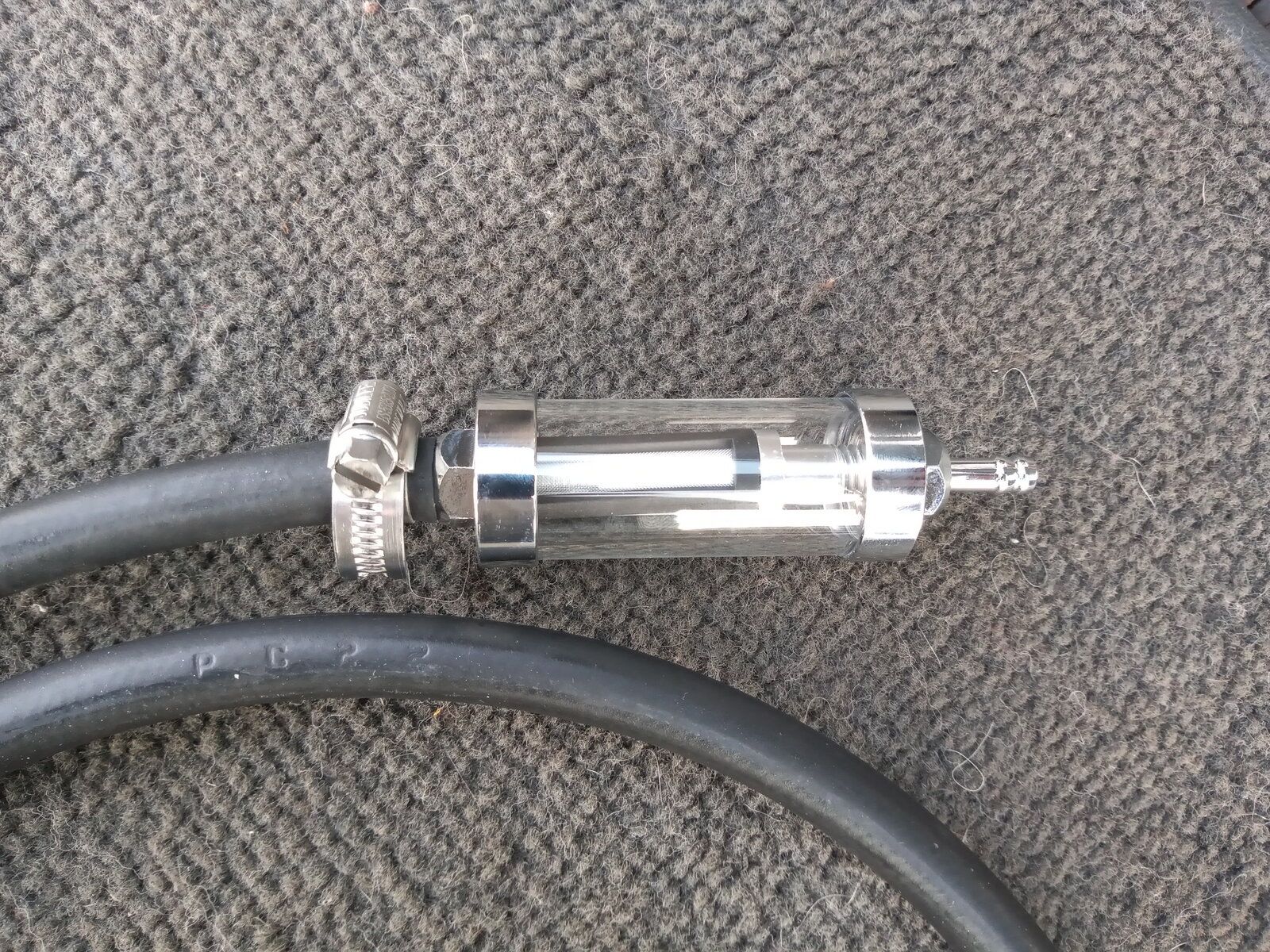

    Filter on the other end:

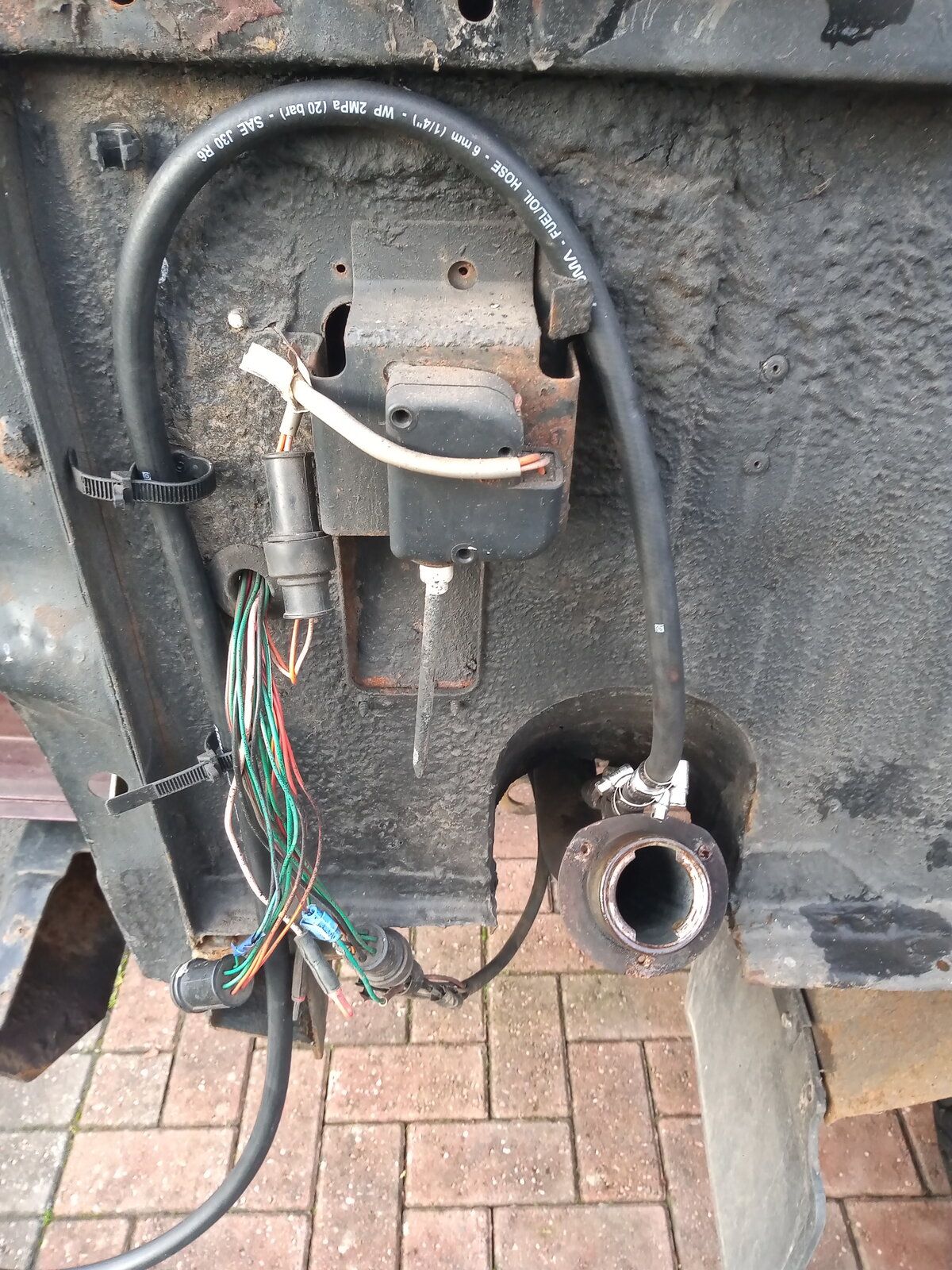

    Then I've fitted it as shown here:
    Ignore the monstrous BL wiring, that's a project for another day!

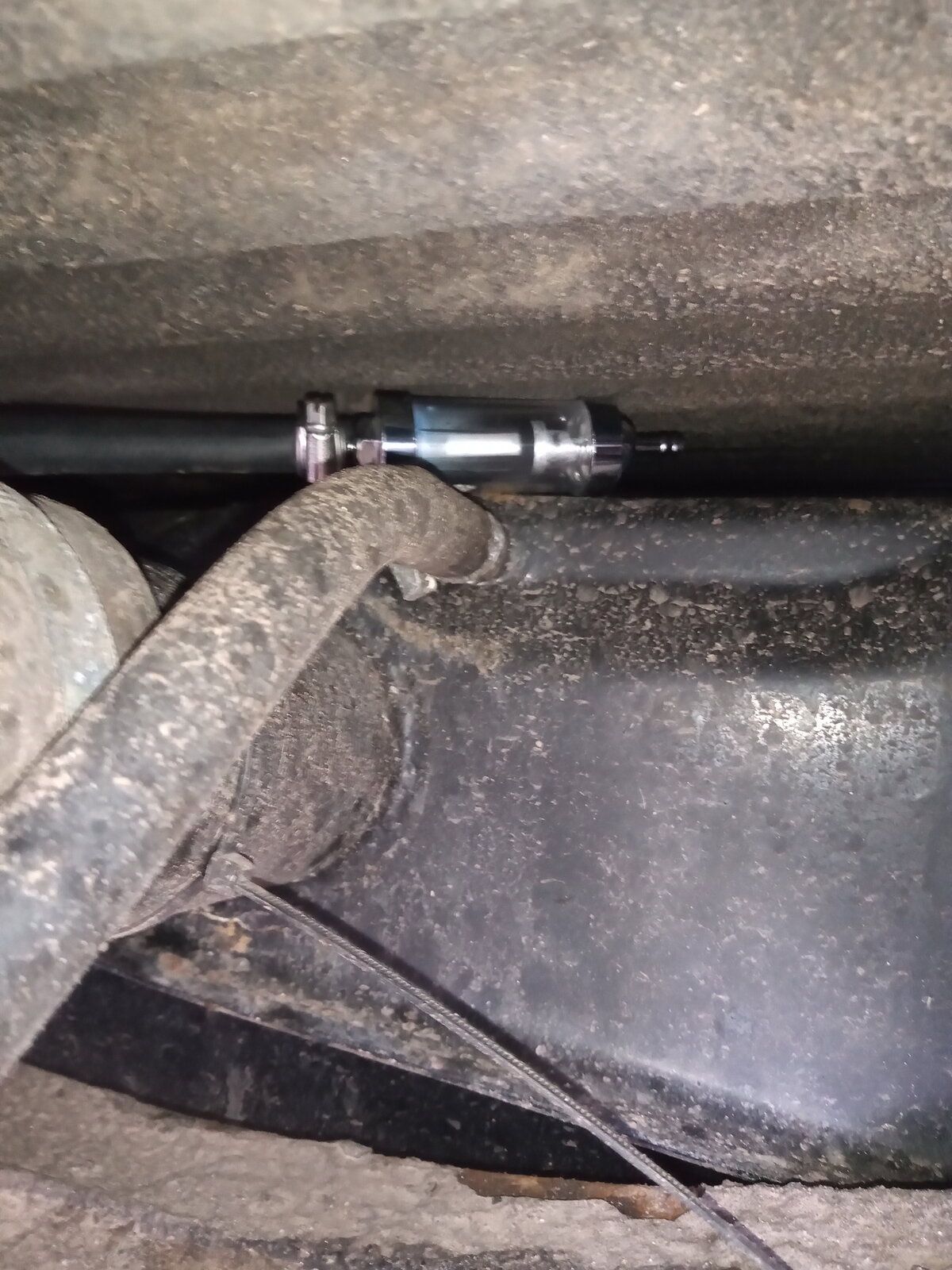

    Then I've tucked the filter on top the tank, where the old breathers were located, and cable tied it to the filler neck to keep it in place, so hopefully it won't suck too much rubbish up.

  18. jwrrc

    jwrrc Well-Known Member

    Joined:
    Sep 17, 2021
    Posts:
    517
    Likes Received:
    822
    Location:
    Warwickshire, UK
    Thanks again to everyone who's offered advice through this headache!

    Hicap phill likes this.
  19. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    39,534
    Likes Received:
    6,899
    Location:
    Near Poitiers SW France
    Just thought about your non return valve, the breather also needs to let pressure out. Filling up with fuel from a cold underground source on a hot day leads to a lot of pressure needing to be released.

  20. brianp38dse

    brianp38dse Well-Known Member

    Joined:
    May 13, 2014
    Posts:
    16,907
    Likes Received:
    10,240
    Location:
    heathrow
    As Data mentioned you need a way for the pressure to equalize, have you ever opened a Jerry can that has been sat in the sun, a lot of pressure in there
