Classic 1988 EFI, converted to 200TDI, Fuel tank issues

Discussion in 'Range Rover' started by jwrrc, Oct 22, 2021.

< Previous Thread | Next Thread >
  1. norseman

    norseman Well-Known Member

    Joined:
    Jun 26, 2009
    Posts:
    2,847
    Likes Received:
    991
    Location:
    Essex - UK
    The car's getting it's own back after having the diesel transplant :rolleyes:

  2. jwrrc

    jwrrc Well-Known Member

    Joined:
    Sep 17, 2021
    Posts:
    520
    Likes Received:
    824
    Location:
    Warwickshire, UK
    It's been acting up a lot more since I bought it a V8 brother!

    tomcat59alan and norseman like this.
  3. Kev12

    Kev12 Well-Known Member

    Joined:
    Jan 1, 2018
    Posts:
    1,539
    Likes Received:
    982
    Location:
    Cornwall

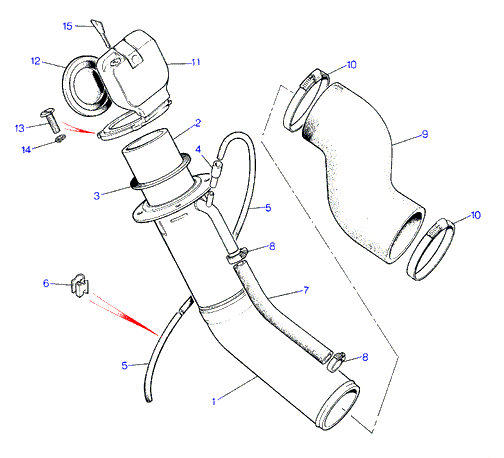

    On mine (89 originally a VM) the breather runs above the filler pipe and has an extension off the top (5 in this pic) which is clipped to the inside of the wing, near the filler door. Fuep supply and return are in the top of the tank and sender is mounted on the side


    Attached Files:

    jwrrc likes this.
  4. jwrrc

    jwrrc Well-Known Member

    Joined:
    Sep 17, 2021
    Posts:
    520
    Likes Received:
    824
    Location:
    Warwickshire, UK
    Thanks very much Kev, I'd found that diagram with a Google image search, but no explanation of the numbers, so the 5 is potentially invaluable!

  5. Kev12

    Kev12 Well-Known Member

    Joined:
    Jan 1, 2018
    Posts:
    1,539
    Likes Received:
    982
    Location:
    Cornwall
    No worries, should add mine has the lower level filler flap (as I think yours does looking at your profile pic) the arrangement must be a little different for the higher flap

    jwrrc likes this.
  6. jwrrc

    jwrrc Well-Known Member

    Joined:
    Sep 17, 2021
    Posts:
    520
    Likes Received:
    824
    Location:
    Warwickshire, UK
    It does indeed, time to get the lines blown through tomorrow in hopes of avoiding another trip to the garage!
    All this was in an effort to avoid spilling diesel on the drive changing the old leaky tank and lines. It'd have been easier to spill a whole tank of diesel and clean it off with a toothbrush in hindsight!

    tomcat59alan likes this.
  7. jwrrc

    jwrrc Well-Known Member

    Joined:
    Sep 17, 2021
    Posts:
    520
    Likes Received:
    824
    Location:
    Warwickshire, UK
    Next update:
    Runs fine with no fuel filler cap on
    Runs fine if I split the join in the breather where the garage has joined the new hose (tank to join) to the old hose (join to up near the top of the filler neck).
    So, the old breather hose is blocked above the point where they've connected it to the new hose.

    Why are some garages such bloody cowboys? :mad:

  8. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    18,541
    Likes Received:
    12,429
    Location:
    wirral and triquivijate
    Cos they're working on injuns. Sorry I'll get my coat.:oops::D

    frog hopper, norseman and jwrrc like this.
  9. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    39,554
    Likes Received:
    6,913
    Location:
    Near Poitiers SW France
    I've edited that for you:rolleyes::)

    jwrrc likes this.
  10. jwrrc

    jwrrc Well-Known Member

    Joined:
    Sep 17, 2021
    Posts:
    520
    Likes Received:
    824
    Location:
    Warwickshire, UK
    So today, I split the breather at the point where they'd joined the new hose to the old, found that the hose was a little too large for the nozzle I had so I couldn't blow it through with my small compressor, so with it disconnected I pushed some cable through from the top. **** came out into the waiting bowl I had out. Car now runs fine. No vacuum in the tank.

    The garage that did the tank said they thought the breather was fine, so the tank might need to be modified with an additional breather. Essentially, anything to charge more money rather than finish the job they half-arsed.

    Kev12, Hicap phill and tomcat59alan like this.
  11. jwrrc

    jwrrc Well-Known Member

    Joined:
    Sep 17, 2021
    Posts:
    520
    Likes Received:
    824
    Location:
    Warwickshire, UK
    Today's update:
    Took it on a longer run today, and there is a vacuum building in the tank. It's much weaker than before, so cleaning out the breather has helped, but not totally resolved it.

    So either, the breather isn't completely clear, or the tank isn't capable of breathing enough for a 200TDI. It's a new EFI tank, so that's a vague possibility.

    Planned next step is to try to breather a bit cleaner, in the hopes of avoiding modification to the tank.

    Bugger.

  12. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    18,541
    Likes Received:
    12,429
    Location:
    wirral and triquivijate
    Is the "joint"a one way valve?

  13. jwrrc

    jwrrc Well-Known Member

    Joined:
    Sep 17, 2021
    Posts:
    520
    Likes Received:
    824
    Location:
    Warwickshire, UK
    Sadly not, just a piece of plastic that the two hoses are clamped on to

  14. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    18,541
    Likes Received:
    12,429
    Location:
    wirral and triquivijate
    I'm know for sure. My 89 VM had a breather as I posted earlier;)

  15. frog hopper

    frog hopper Well-Known Member

    Joined:
    Oct 10, 2009
    Posts:
    4,380
    Likes Received:
    4,500
    Location:
    france
    Do you have a sedimenter fitted ? if you have it would be well worth cleaning it out just in case, and only a five min job to check.

    tomcat59alan likes this.
  16. jwrrc

    jwrrc Well-Known Member

    Joined:
    Sep 17, 2021
    Posts:
    520
    Likes Received:
    824
    Location:
    Warwickshire, UK
    No sedimenter, but a good shout if it had one, thanks

    tomcat59alan likes this.
  17. jwrrc

    jwrrc Well-Known Member

    Joined:
    Sep 17, 2021
    Posts:
    520
    Likes Received:
    824
    Location:
    Warwickshire, UK
    Today's update (now the snow is gone and I'm back to grovelling under the car!) Now with pictures.

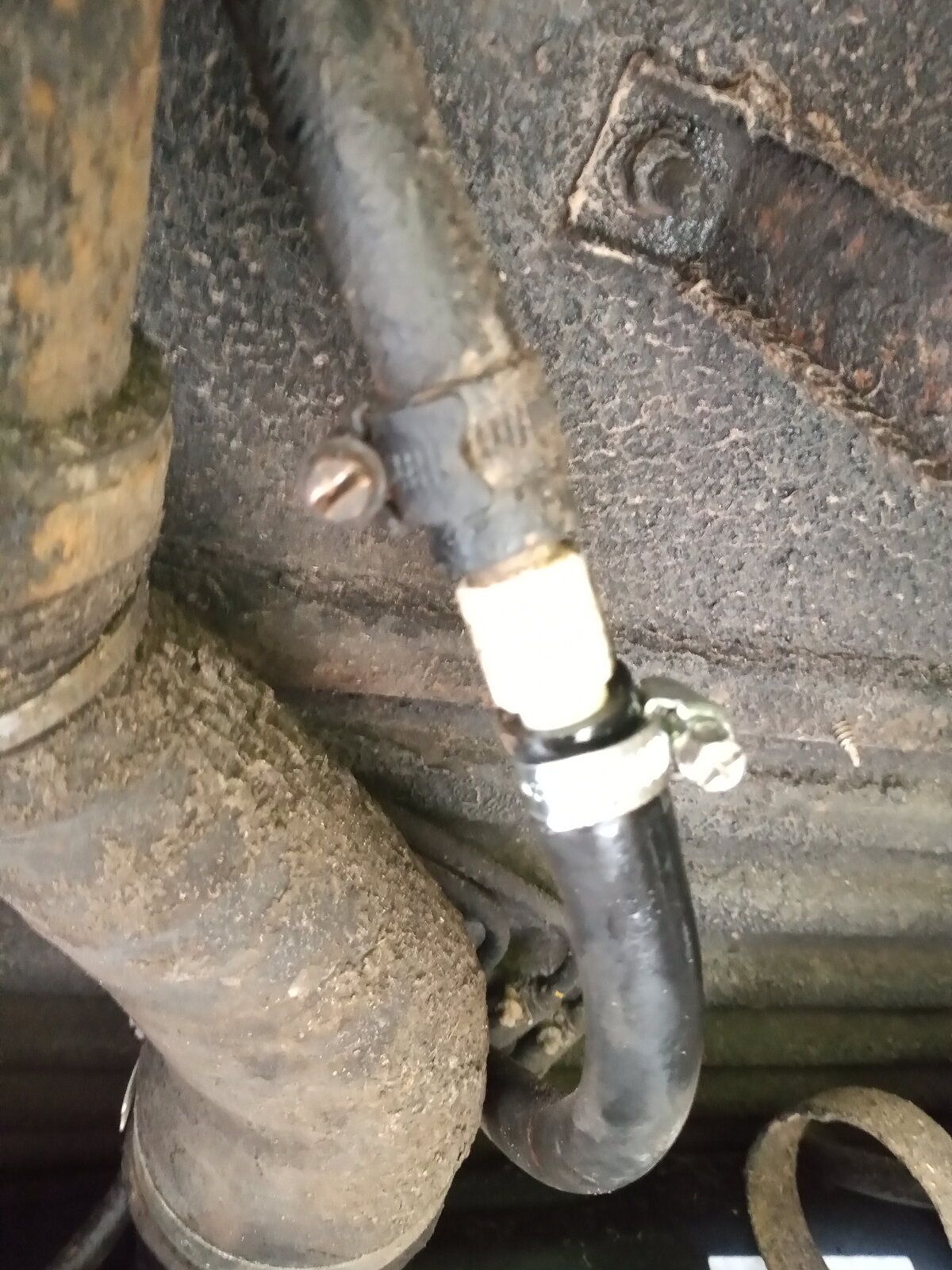

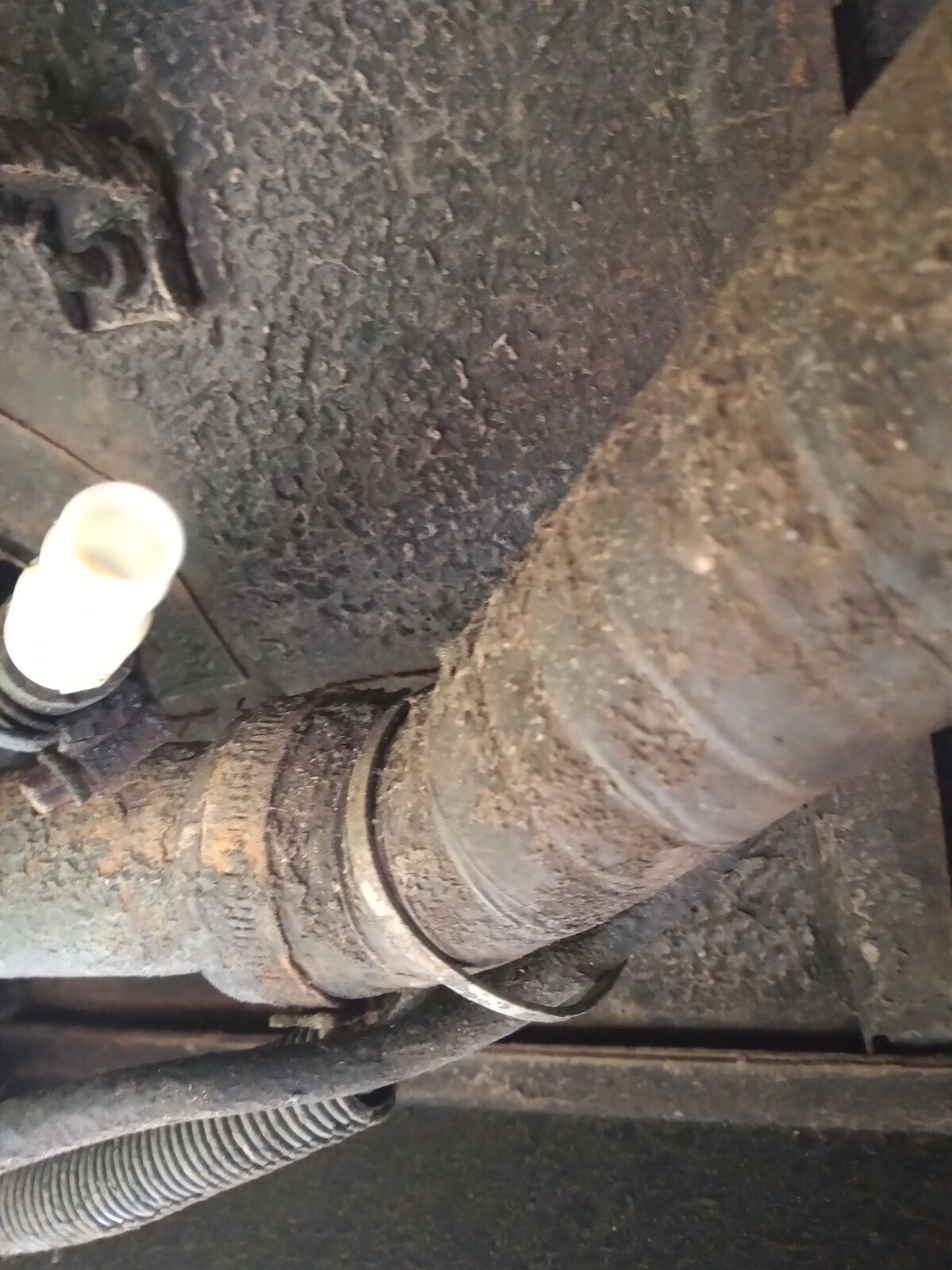

    Here's the old and new hose joined by a cowboy and the join:
    IMG_20211201_120101289.jpg IMG_20211201_115940861.jpg

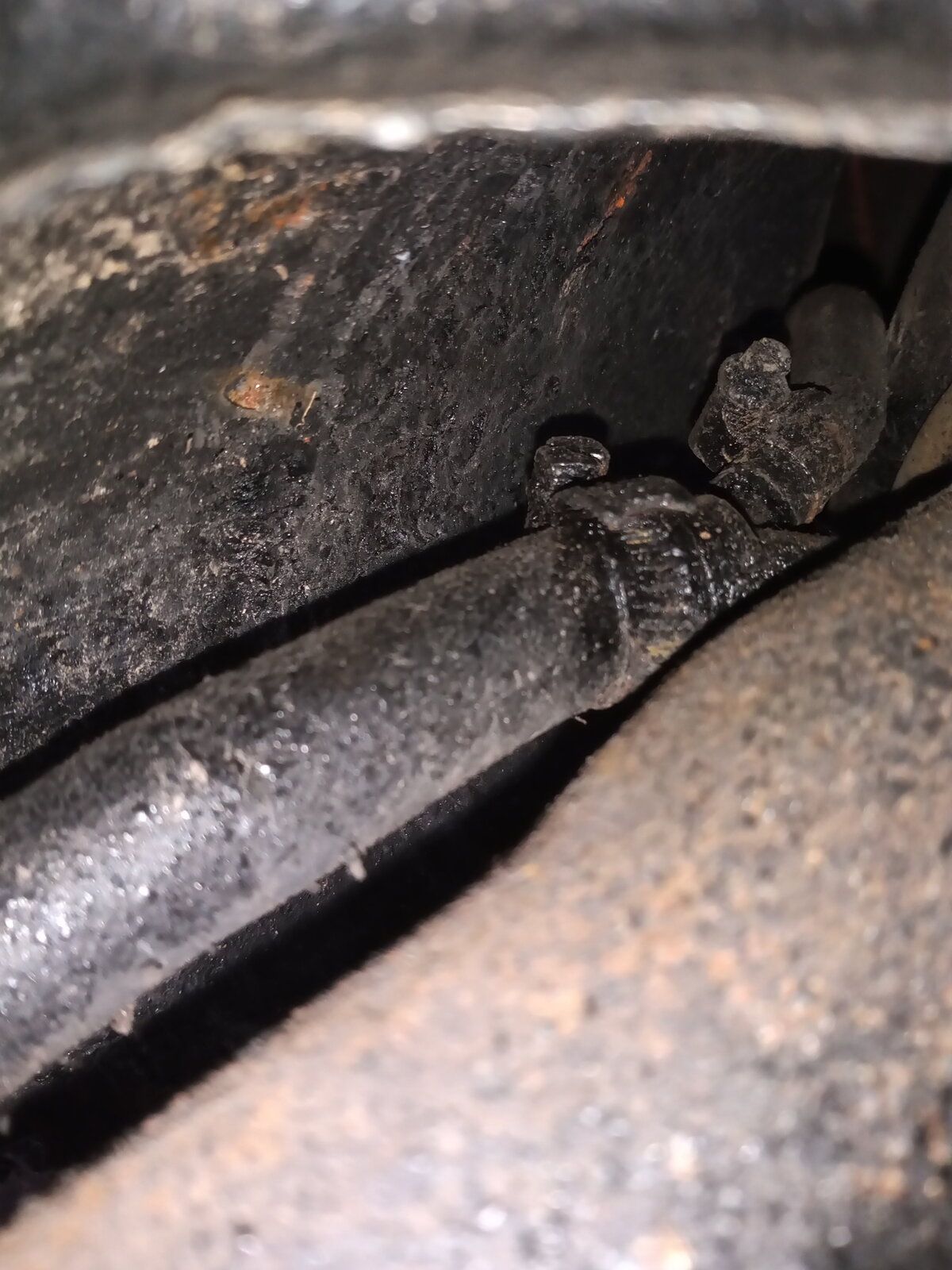

    I've run a pipe cleaner through the old section of breather, and it's clear between the filler neck and the join. To my mind, that just leaves the bit of pipe that sticks up over the filler neck with a hose on, which I can't seem to get to:


    I'm now weighing up whether to remove the whole filler neck and see if I can clean it properly off the vehicle, or buying a new one.

    Any thoughts or advice welcome as ever!

  18. jwrrc

    jwrrc Well-Known Member

    Joined:
    Sep 17, 2021
    Posts:
    520
    Likes Received:
    824
    Location:
    Warwickshire, UK

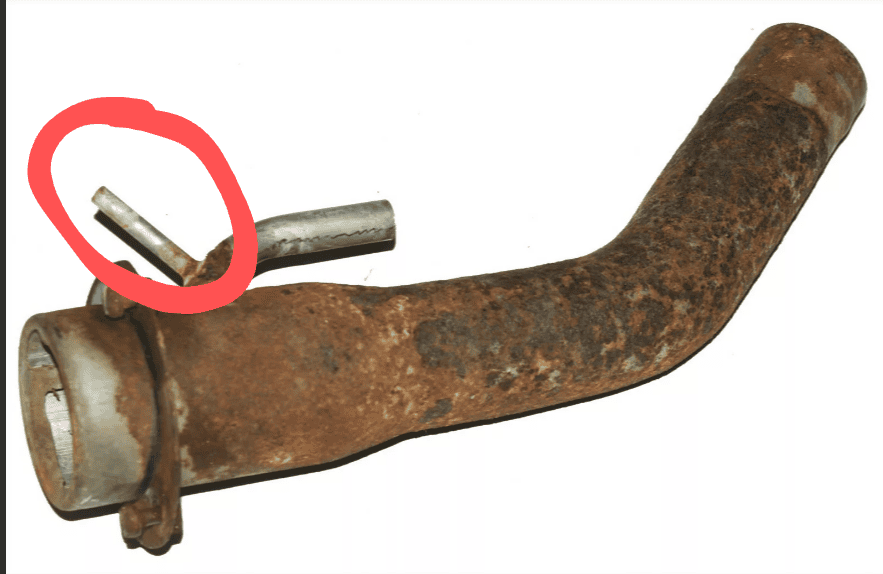

    This is the bit I think is blocked:

  19. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    12,971
    Likes Received:
    31,036
    Location:
    Wiltshire
    Could you put an air line on that pipe & blow out?
    Push up some welding wire/coat hanger?

    them screws sometimes seize & are a pain to get out to remove that neck.
    Can’t remember if there is a panel on the inner rear wing to make life easier(could be the TDI high neck models)

    jwrrc likes this.
  20. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    12,971
    Likes Received:
    31,036
    Location:
    Wiltshire
    Just had a thought….
    If them 2 pipes are linked,both go into the tank so even if the small 1 was blocked it should still allow air via the larger pipe.(or does that small pipe go to the out side)

    could your fuel cap breather be blocked then?
