gr55een
Member
- Posts
- 11
- Location
- new zealand
hi all my landrover was missing half the lights on it so was wondering if any of you would know what lights where originally on there front indicator and parklight and the rear lights?
1963 series 2a lights?
- Thread starter gr55een
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
gr55een
Member
- Posts
- 11
- Location
- new zealand
yea im trying to get the orginal ones which i think where glass manged to get a box fill from a swapmeet just trying to find out what ones meant to go on the landy haha
- Posts
- 33,912
- Location
- North Shropshire
Weren't indicators an optional extra? Or was it the wipers, or both
gr55een
Member
- Posts
- 11
- Location
- new zealand
from a parts manual i found i believe they were optional
Think indicators were optional on 2 models, as was passenger side wiper motor, think 2a was posh and had indies already fitted and wipers wentt to the one motor in the dash.
Early S2 workshop manuals have instructions on how to fit the indicator lamps and the early style dash mounted switch.
- Posts
- 33,912
- Location
- North Shropshire

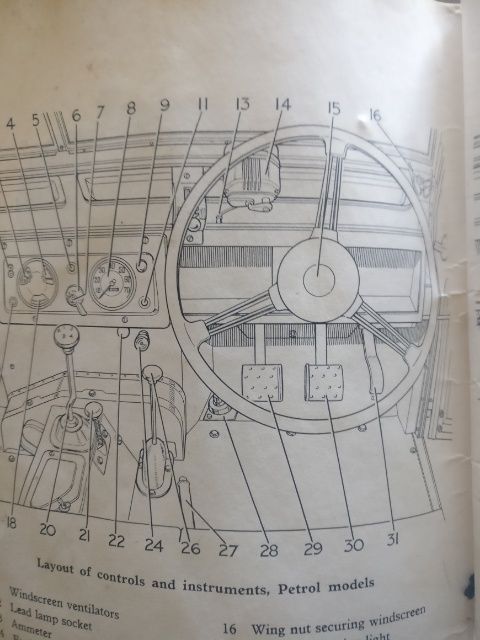

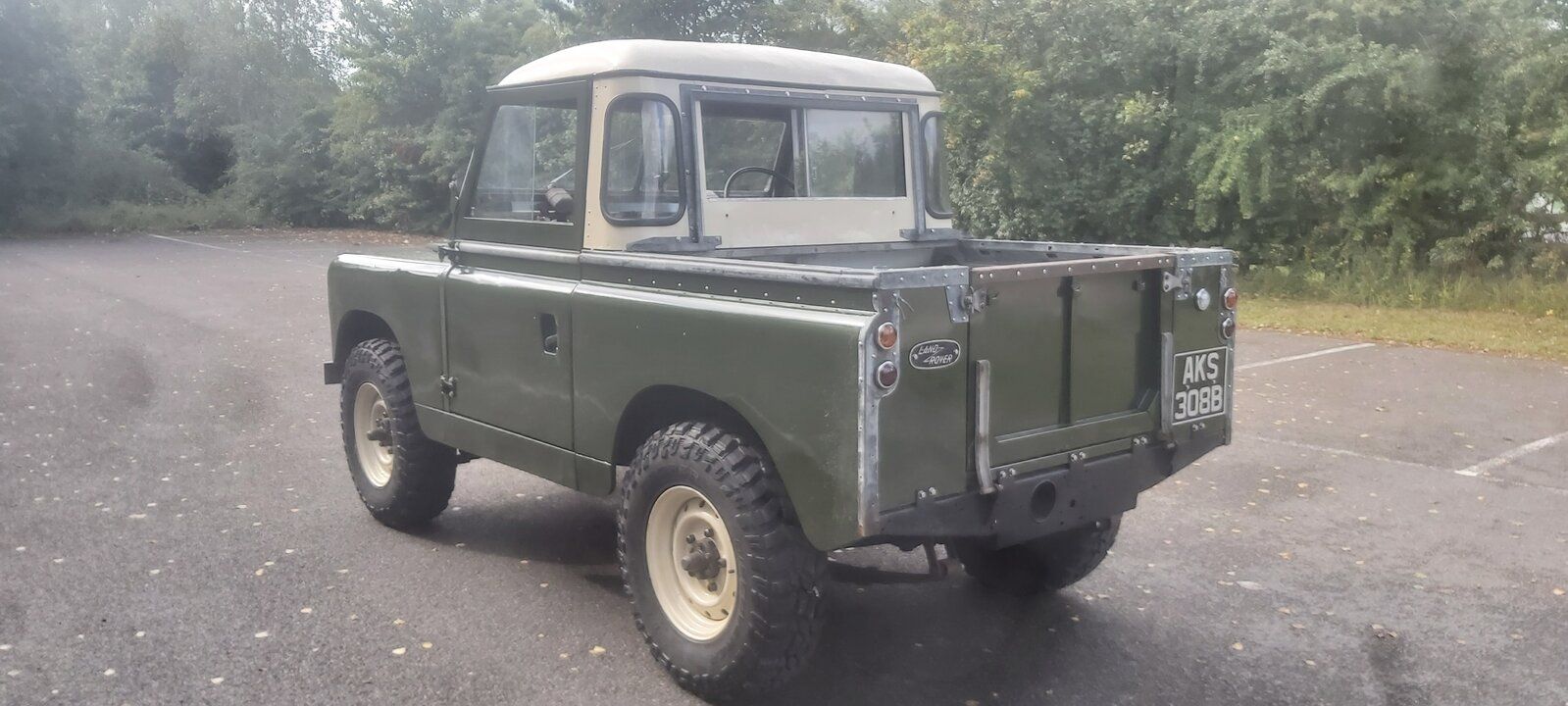

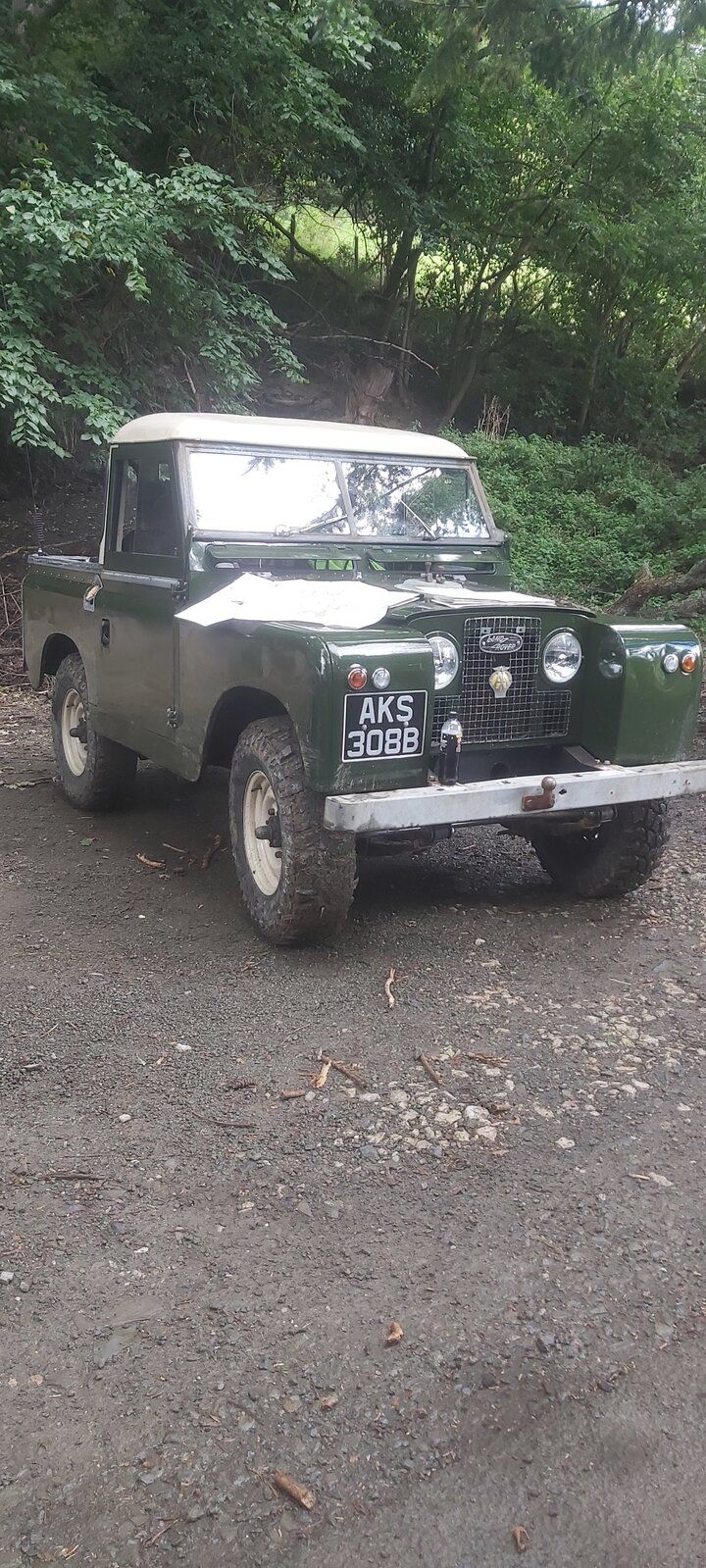

From my owners manual.. no indicator. Also no indicators on the photos
Yes but thats petrol models, everyone knows diesels were way more advanced than that old exploding stuff
- Posts
- 33,912
- Location
- North Shropshire
If i was drinking tea then it would have just been spattid!!Yes but thats petrol models, everyone knows diesels were way more advanced than that old exploding stuff
Turboman
Mab An Gov
- Posts
- 60,151
- Location
- Lathrowda, Kernow
Early 2a had the optional indicators as well.
Legislation changed during 2a production, indicators became compulsory.
So Rover changed the steering box and column to one that had a flasher control stalk mounted on it, unlike the older type that you bolted it onto with a clamp.
gr55een
Member
- Posts
- 11
- Location
- new zealand
yea i need indicators on it just wondering what the orginal optional ones would have been were they plastic or the glass lucas bulbs ? like L594
- Posts
- 33,912
- Location
- North Shropshire
Mine had plastic ones that were ancient when i got it in 1993 similar to
https://www.ebay.co.uk/itm/Land-Rov...-Unit-Stainless-Steel-Screws-BM-/200904980312
https://www.ebay.co.uk/itm/Land-Rov...-Unit-Stainless-Steel-Screws-BM-/200904980312
Turboman
Mab An Gov
- Posts
- 60,151
- Location
- Lathrowda, Kernow
Afraid I don't know what happened in 1963, I was a foetus!
But I have had quite a few Series, and as far as I can remember, they all had plastic lenses on the little lights. The Sealed Beam units on the headlights were glass.
tottot
Well-Known Member
- Posts
- 8,077
- Location
- west wales coast
I have a 63 2a. Indicators were standard with the stalk cancelled by a rubber wheel that rubbed on the steering wheel collar.
All side and indicator lens are plastic [ military had types glass ] A couple of different shapes were were used a plain dome and a stepped dome, mine were stepped. The main difference with the lights is the rear side/brake, larger, square edged and with reflector in the centre, hard to find today, a more rounded version is available at a price.
I recon I can roughly guess the year of early DR Who Daleks by the indicator lamps used on their heads, First ones had glass dome like fitted Morris cars and others at the time, later ones had various dome shapes as seen on Series 2a/3.
All side and indicator lens are plastic [ military had types glass ] A couple of different shapes were were used a plain dome and a stepped dome, mine were stepped. The main difference with the lights is the rear side/brake, larger, square edged and with reflector in the centre, hard to find today, a more rounded version is available at a price.
I recon I can roughly guess the year of early DR Who Daleks by the indicator lamps used on their heads, First ones had glass dome like fitted Morris cars and others at the time, later ones had various dome shapes as seen on Series 2a/3.
Marmaduke
Well-Known Member
- Posts
- 9,773
- Location
- Near the land of 'Me Duck'
Turboman
Mab An Gov
- Posts
- 60,151
- Location
- Lathrowda, Kernow
Says 1963 in the thread title!
Strangely, our 64 has plastic lenses. Although they may be retrofitted.
Marmaduke
Well-Known Member
- Posts
- 9,773
- Location
- Near the land of 'Me Duck'
Sorry I missed that bitSays 1963 in the thread title!
Strangely, our 64 has plastic lenses. Although they may be retrofitted.
Turboman
Mab An Gov
- Posts
- 60,151
- Location
- Lathrowda, Kernow
About the first time I haven't missed it, to be fair.Sorry I missed that bit
Marmaduke
Well-Known Member
- Posts
- 9,773
- Location
- Near the land of 'Me Duck'
To much pimms
and spending 6 hours on the roof re-cemmenting ridge tiles is my excuse....Looks much nicer with glass ones than nasty plastic ones though
Turboman
Mab An Gov
- Posts
- 60,151
- Location
- Lathrowda, Kernow
I am sure the glass ones are nice and original. But I have had lots of Series, and can't remember ever having seen the glass ones.To much pimms
Looks much nicer with glass ones than nasty plastic ones though
I guess most of the old ones will have had several changes of lights over the years, I have smashed a few lights myself, and people have just fitted plastic.
When I first started driving Series, they were just old junk, you could buy one for a few hundred quid, and just wanted to keep it going.
In the last few years, they have become collectable classics, prices have risen, and all of a sudden people are asking questions about originality.
