110 rear refit - looking for ideas/inspiration

Discussion in 'Defender 90 / 110 / 130' started by HandyAndyUK, Dec 22, 2019.

< Previous Thread | Next Thread >
  1. HandyAndyUK

    HandyAndyUK Member

    Joined:
    Nov 1, 2019
    Posts:
    69
    Likes Received:
    13
    Location:
    South Yorkshire
    Hi All,
    I've got an Ex Mil 110 with absolutely nothing in the back, and I'm looking for some ideas and inspiration as to what to do with it.

    I was thinking of a Bench seat with lap belts just in case I need to transport more than one passenger, but that wouldn't be a regular occurrence, so didn't want to take up the space with seats that would be unused 99% of the time. I occasionally also need to move big things so want to keep the space relatively free. So, something versatile would be great.

    I've seen a few vehicles at a show, but other than the expedition vehicles, most people just had empty space.

    Anyone got anything they've done already who wants to share, or people with some plans of what they would like to do, if they had the time to do it, please feel free to also throw your ideas into the mix.

    Currently, I'm not sure what I want to do, but as in most things, I think I will be able to narrow that down by hearing what others have done, and being able to go, I like that, that would work, or that's not for me, etc.

    Thanks in advance!!

  2. lhandrover

    lhandrover Active Member

    Joined:
    Apr 28, 2013
    Posts:
    216
    Likes Received:
    17
    Location:
    North Kent
  3. HandyAndyUK

    HandyAndyUK Member

    Joined:
    Nov 1, 2019
    Posts:
    69
    Likes Received:
    13
    Location:
    South Yorkshire
  4. Huddy84

    Huddy84 Well-Known Member

    Joined:
    Jul 10, 2013
    Posts:
    738
    Likes Received:
    212
    Location:
    East Anglia
    I have 2 bench seats on one side, the bottoms fold up giving most of the space back.

    Alternatively you could put a drawer at the back with a storage space near the front, with a false floor level with the top of the wheel boxes.

    Lurk likes this.
  5. Huddy84

    Huddy84 Well-Known Member

    Joined:
    Jul 10, 2013
    Posts:
    738
    Likes Received:
    212
    Location:
    East Anglia
  6. HandyAndyUK

    HandyAndyUK Member

    Joined:
    Nov 1, 2019
    Posts:
    69
    Likes Received:
    13
    Location:
    South Yorkshire

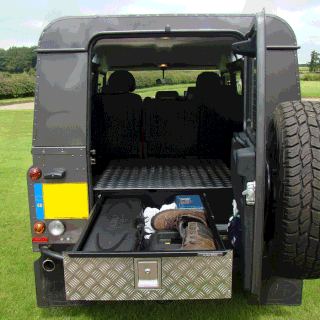

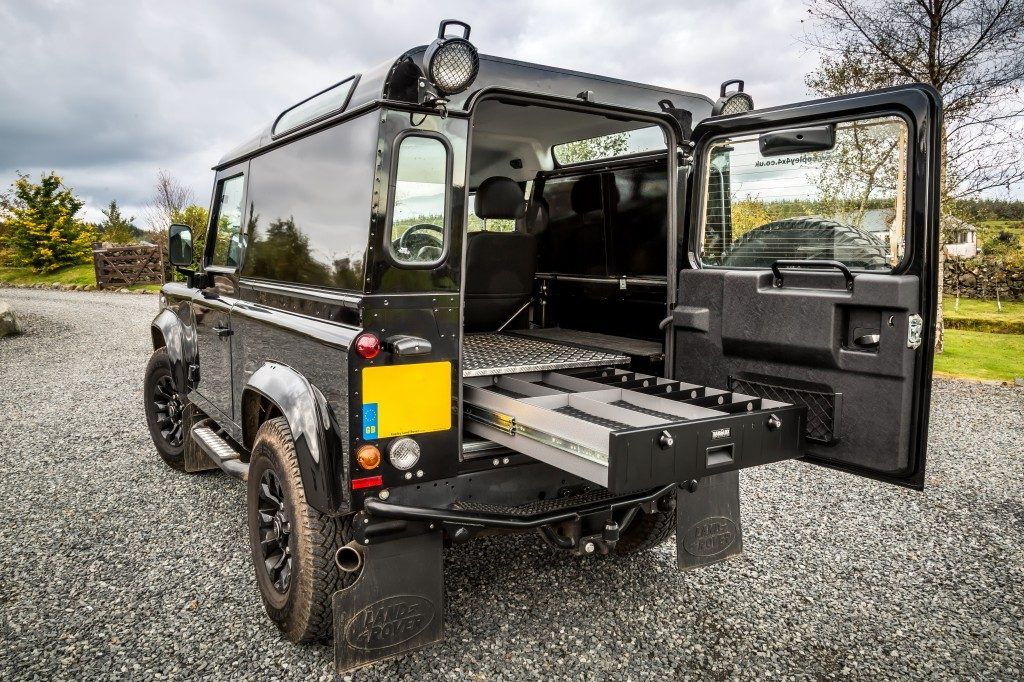

    Wow - that's a big draw!! Modern full extension draw runners are a godsend aren't they! Load of good organization in there too, I wonder how long I could keep that tidy for :)

    Thanks for the pictures, (I'm assuming that it's not your rover, as you said you had seats in yours, so thanks for looking it out for me :)

  7. HandyAndyUK

    HandyAndyUK Member

    Joined:
    Nov 1, 2019
    Posts:
    69
    Likes Received:
    13
    Location:
    South Yorkshire
    And on further inspection it's two different rovers, as the smaller one hasn't the windows in the back like the bigger one :rolleyes:

  8. Huddy84

    Huddy84 Well-Known Member

    Joined:
    Jul 10, 2013
    Posts:
    738
    Likes Received:
    212
    Location:
    East Anglia
    No problem, mines same as yours a standard empty GS 110. I like the look of the draws but I occasionally Chuck people or items in the back which mean keeping it empty. There are other options;
    1) get a radio table and modify it into a storage thing.
    2) look at the utility landys, you can box off one or both wheel boxes and put access in from the outside (hard top only)
    3) you could essentially put a tool chest or drawer thing in the front half of your load bed, leaving the rear half fit for people to sit on benches.
    4) get some ammo boxes, bolt them to the wheel boxes and if necessary modify them to be lockable
    5) fit better side lockers, you can get enclosed ones that will keep things drier and cleaner
    6) I’ve seen people mount a compressor in a side locker, good for pumping up tires etc

    if I find any pics I’ll post them

  9. HandyAndyUK

    HandyAndyUK Member

    Joined:
    Nov 1, 2019
    Posts:
    69
    Likes Received:
    13
    Location:
    South Yorkshire
    Awesome, thanks...
    Yeah, I was looking at the side locker situation, and thinking that they could be simply fitted out with something to make them more usable, and potentially more secure...
    A compressor, that's a good shout! I guess some thought would have to be given to waterproofing it somehow or remembering that water should only be welly deep for fording, and not those ones that are over the bonnet!! :)

    Yeah, pictures if you find any!

  10. Huddy84

    Huddy84 Well-Known Member

    Joined:
    Jul 10, 2013
    Posts:
    738
    Likes Received:
    212
    Location:
    East Anglia
  11. Huddy84

    Huddy84 Well-Known Member

    Joined:
    Jul 10, 2013
    Posts:
    738
    Likes Received:
    212
    Location:
    East Anglia

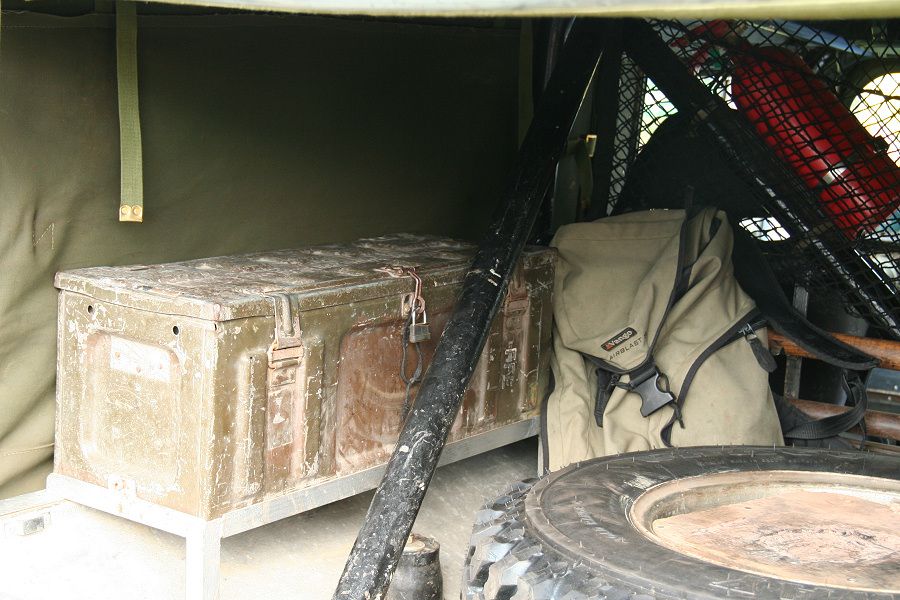

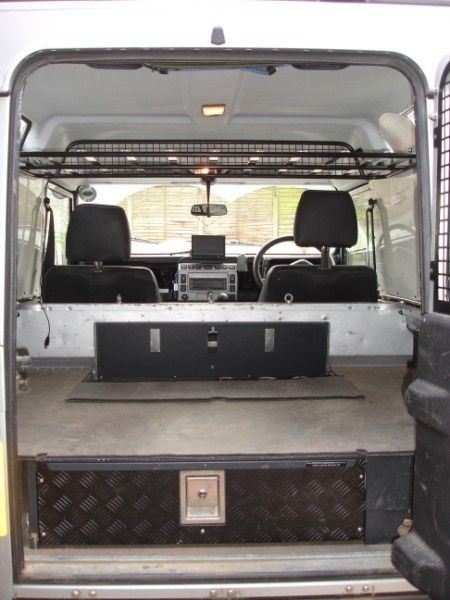

    Few examples F15F04E2-8FBF-4B52-9CE4-4602AA551244.jpeg 8E8E8A58-7DDB-4F66-8AD1-5CF5EB661C27.jpeg

  12. HandyAndyUK

    HandyAndyUK Member

    Joined:
    Nov 1, 2019
    Posts:
    69
    Likes Received:
    13
    Location:
    South Yorkshire

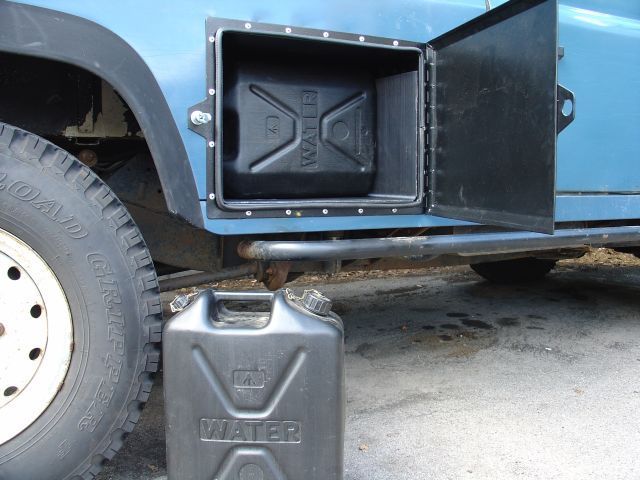

    Yeah, we used to have spare fuel in the side bins "back in the day" (swing the lamp and pull up and sandbag!)
    I was thinking that in normal circumstances, there would be a petrol station near enough not to need that in the UK.

    I've been looking at the fold up seats in pictures, I think that could be an option for one side, and keep the other side free for 'stuff', I'll have to get some plans done in excel to see what I can put where, and make sure that I don't put them too far forward or backward in the space. Maybe get some Ply cut at B&Q to help with sound reduction and heat loss (insulate between)...

  13. HandyAndyUK

    HandyAndyUK Member

    Joined:
    Nov 1, 2019
    Posts:
    69
    Likes Received:
    13
    Location:
    South Yorkshire

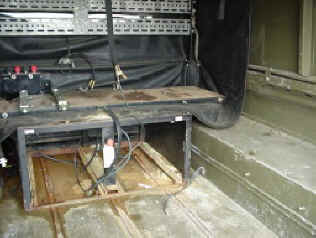

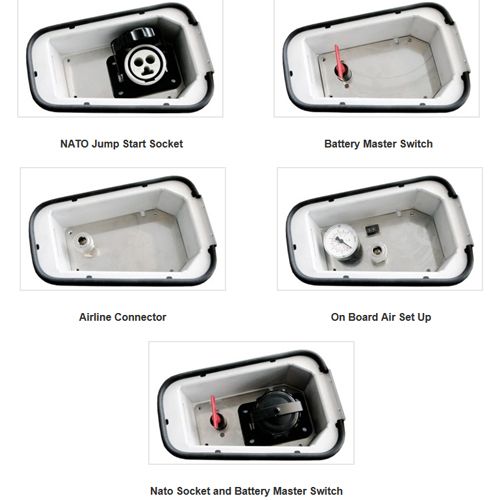

    Is that your FFR in the picture before the wing pod pictures, looks like it's the wader variant. I nearly got a winterised wader that had been with the Marines in Norway, but there was just too much work on it to make it viable for me. Also, you never know what they've been upto in those sorts of trucks, or rather, you do...
    "Hold your breath lads, we're going under!!"

  14. Huddy84

    Huddy84 Well-Known Member

    Joined:
    Jul 10, 2013
    Posts:
    738
    Likes Received:
    212
    Location:
    East Anglia
    Yeah it’s an FFR, and I think the black stuff is the waterproof bag for the radio equipment.

    Waders and Winter Waders are very desirable, but most often have waded a few times from landing craft to a beach and back. I think that’s there primary use for wading. Winter ones may also have been driven on very salty roads. Rust and corrosion will likely be an issue, chassis rails, doors and bulkhead will have been filled with salt water so rot from the inside and all the fixings will be stiff and corroded. However after a thorough tidy up they are nicely spec’d landys.

    HandyAndyUK likes this.
  15. HandyAndyUK

    HandyAndyUK Member

    Joined:
    Nov 1, 2019
    Posts:
    69
    Likes Received:
    13
    Location:
    South Yorkshire
    OK - After a fair bit of looking around at what other people have been doing in the back of their 90s and 110s I came across this thread by chrisyleigh
    https://www.landyzone.co.uk/land-rover/defender-110-sw-sleeping-storage-platform.261883/
    Some really great ideas here, and some pictures too, which has been very informative.

    It has inspired me to do something similar, I'm tempted to have the base concertina onto a storage box next to the bulkhead, but I like the way that the Ply has been carpeted gives it a less "rustic" feel.
    I was also looking for some aluminium edges that clip together (like T&G or click flooring) instead of hinges, and to just stack the sheets on the storage box (and strap them down)… I've seen them somewhere, but don't know what they would be called, and searching hasn't turned anything up - so if anyone knows what I mean and can point me in the right direction, that would be helpful.

    I'm looking at 18mm ply, and raising it high enough above the floor to have space for storage boxes to keep things tidy, as well as clear the rear bench (which I have yet to get).
    I have seen that a few people have been using the self inflating mattress, and have seen a reasonable one on Amazon, and I would be looking to make the platform to support that.

  16. gymmaniac

    gymmaniac Well-Known Member

    Joined:
    Dec 2, 2009
    Posts:
    508
    Likes Received:
    199
    Location:
    Bedfordshire

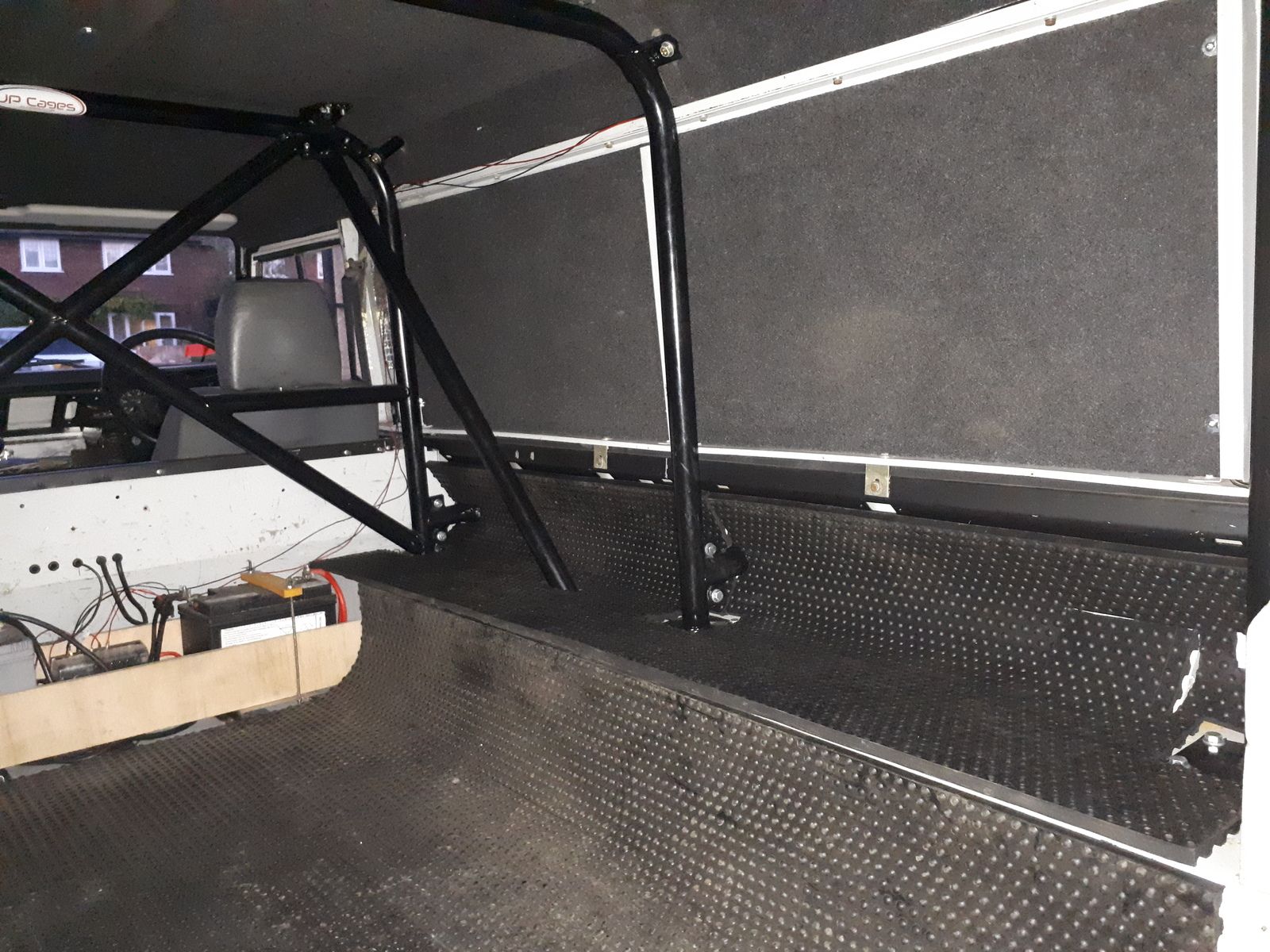

    eventually a rear facing couple of seats over the batteries are planned


    Attached Files:

  17. HandyAndyUK

    HandyAndyUK Member

    Joined:
    Nov 1, 2019
    Posts:
    69
    Likes Received:
    13
    Location:
    South Yorkshire
    That looks like thick rubber matting, where is that from?

  18. gymmaniac

    gymmaniac Well-Known Member

    Joined:
    Dec 2, 2009
    Posts:
    508
    Likes Received:
    199
    Location:
    Bedfordshire
    stable matting :)
    £40 a big square. took two to do the back with a lot of off cuts because it wasn't flat. Does a good job of sound deadening. give you dimples in your bum if you're sat on it for too long though :)

  19. HandyAndyUK

    HandyAndyUK Member

    Joined:
    Nov 1, 2019
    Posts:
    69
    Likes Received:
    13
    Location:
    South Yorkshire
    I'm not sure whether you are recommending the bum dimples or not :):):)

  20. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    3,168
    Likes Received:
    1,274
    Location:
    Warwick
    If you dont like the dimples use the other side and then you will have stripes :D
    I have a peice of stable matting on the floor of mine but the rest of it is just bare with 4 single fold up seats.
