defender 110 sw sleeping/storage platform

ust thought I would make a seperate thread for what im doing in my 110
Wanting to keep use off middle seats so building a fold out section

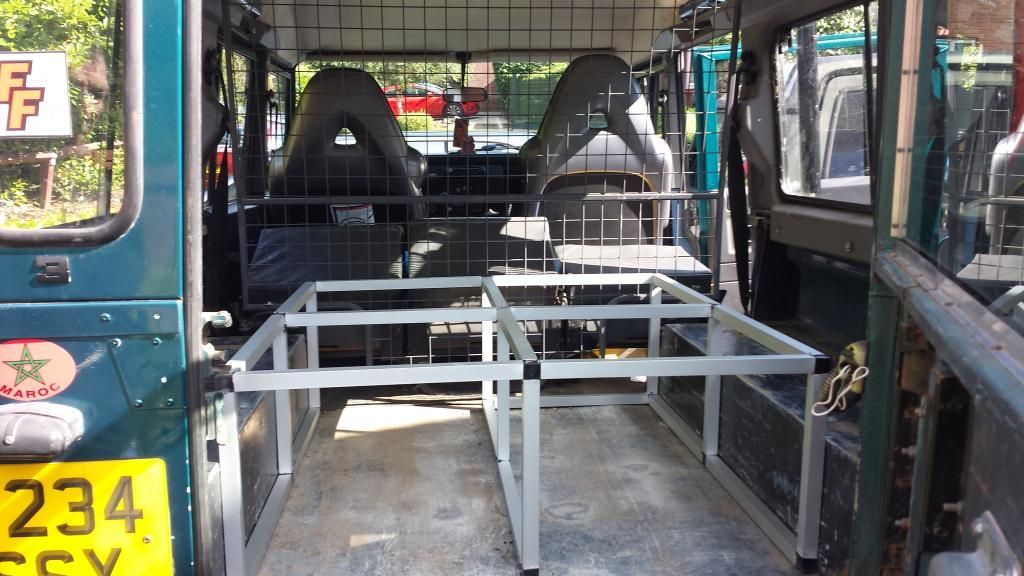

The frame is going to be made off 25mm aluminium
storage boxs under it tie downs and turn buckles ti the frame using the same boltS that the ply will mount too

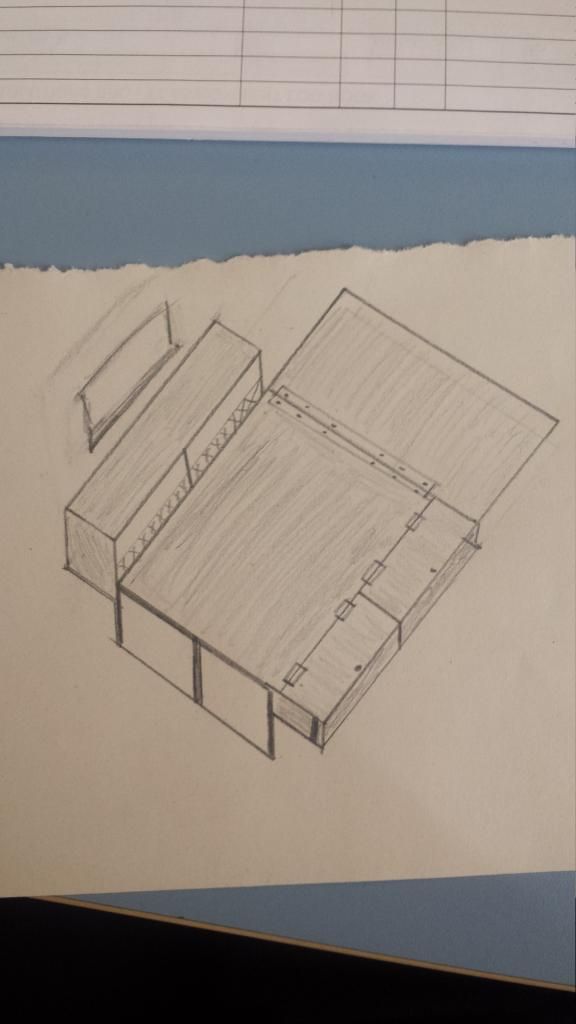

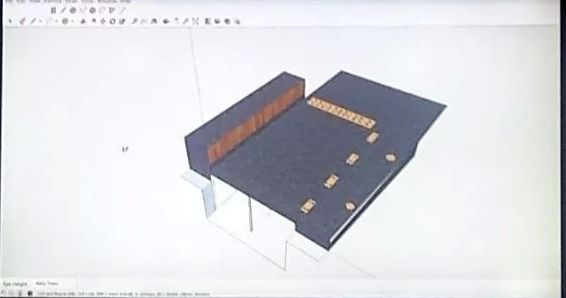

Anyway pics give an idea [/URL]

OOH Nice. Don't let 110Woman see it or she'll be wanting it pikied for her 110..

Hahhaa lmao this is just the base but as u can see from the other pics it should be good when done ive change it slightly as going to add a few cig sockets , my inverter , and possible a small 5litre water tank with a little pump in it on a switch

Will be interested to see the finished project. Keep the picutes coming.

Great idea. Might do the same so me and the family can go together. Kids on the bottom. Obviously I will cut a few holes for air but at least I know the won't be anywhere else.

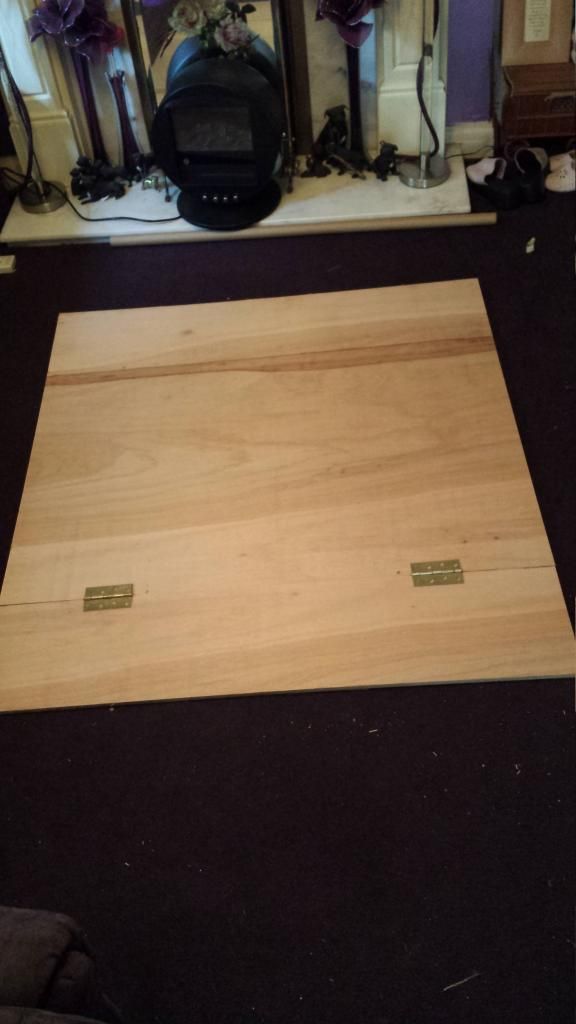

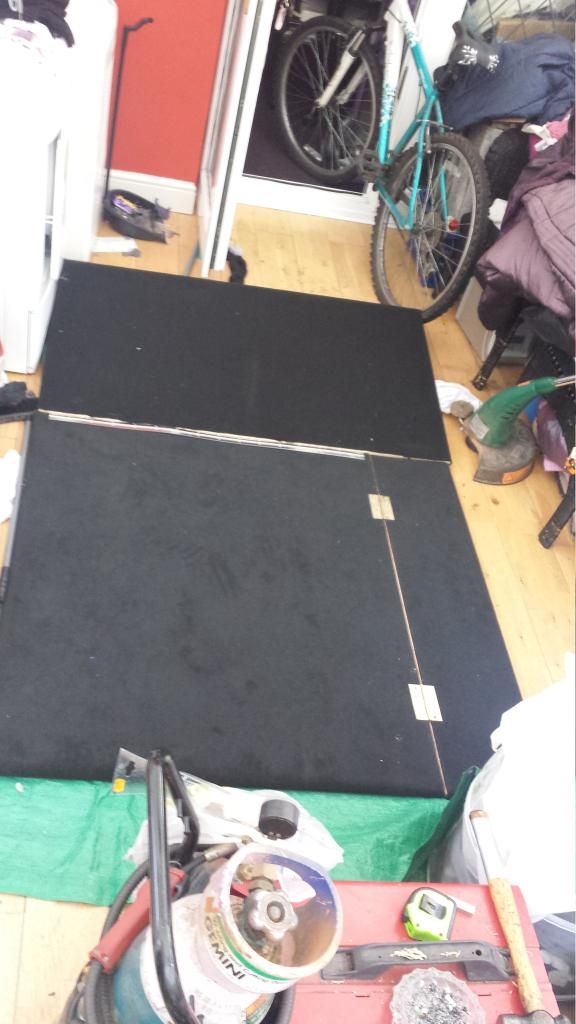

Well started on the wood work this first pic is it all cut out now carpeted ect , I have also done the other peice that will fold out onto the second row seats and thats carpeted just dont have a pic , I have a 3ft piano hinge that will be used to mount that just need some screws which I forgot to get , once thats done I can mount it all to the frame

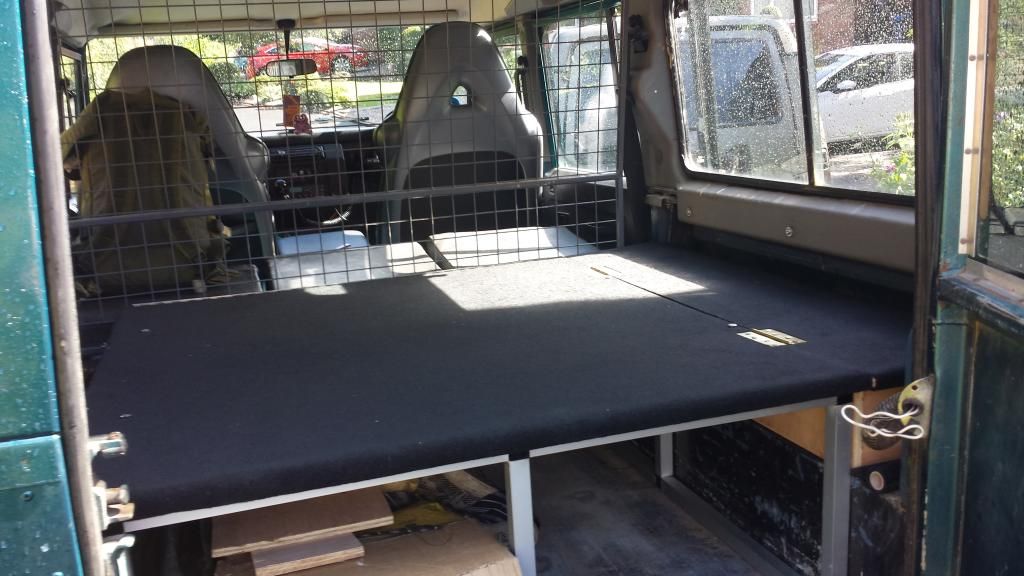

Was rain so didnt attach the top part but yer slowly coming together

Any update ?? Looking to do my truck and fully intend to steal your ideas.

Neat idea! Have used that extrusion before, its great stuff, really strong and light.
May have to nick that idea for my 110 too!

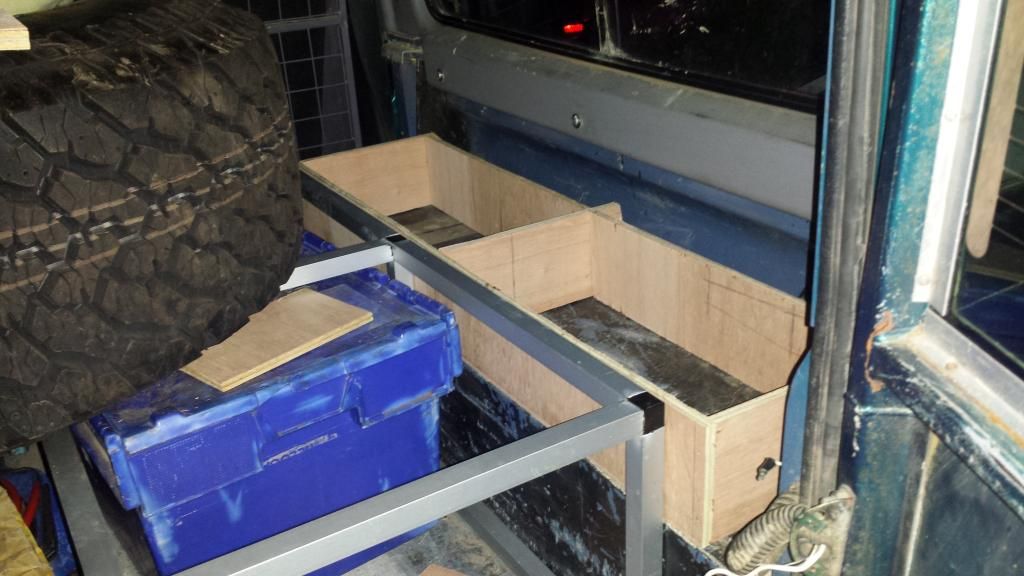

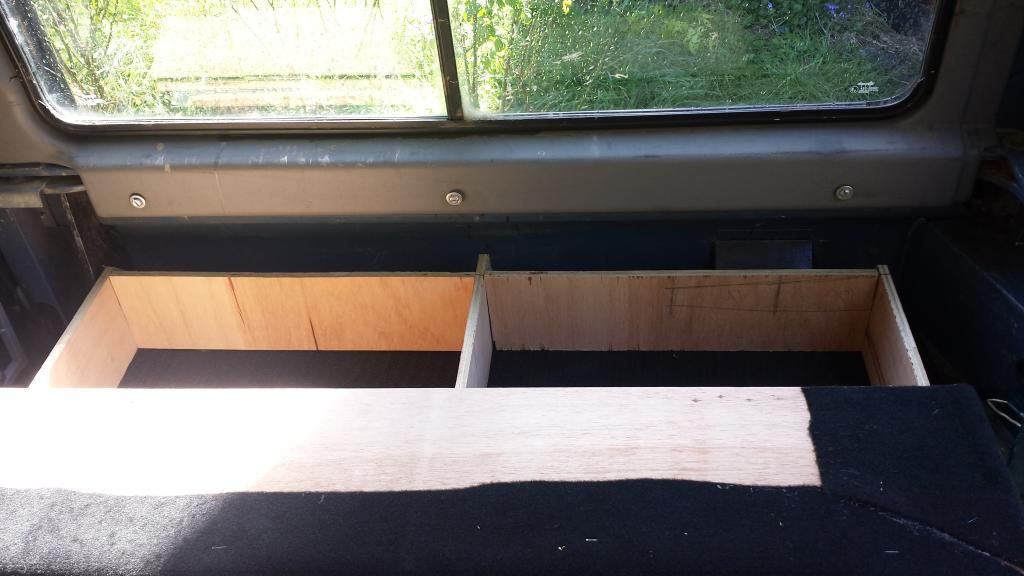

No update guys except ive bolted the frame to the body , need to still make the storage part on the nearside , going to have my 500w inverter and 2 usb and 2cig socket powers points

Yer steve the frame is really light can pick the hole "frame alone" up with one hand will the 12mm ply on thats another story tho but its still a hell off alot light than making the whole lot outa ply little more expensive tho
