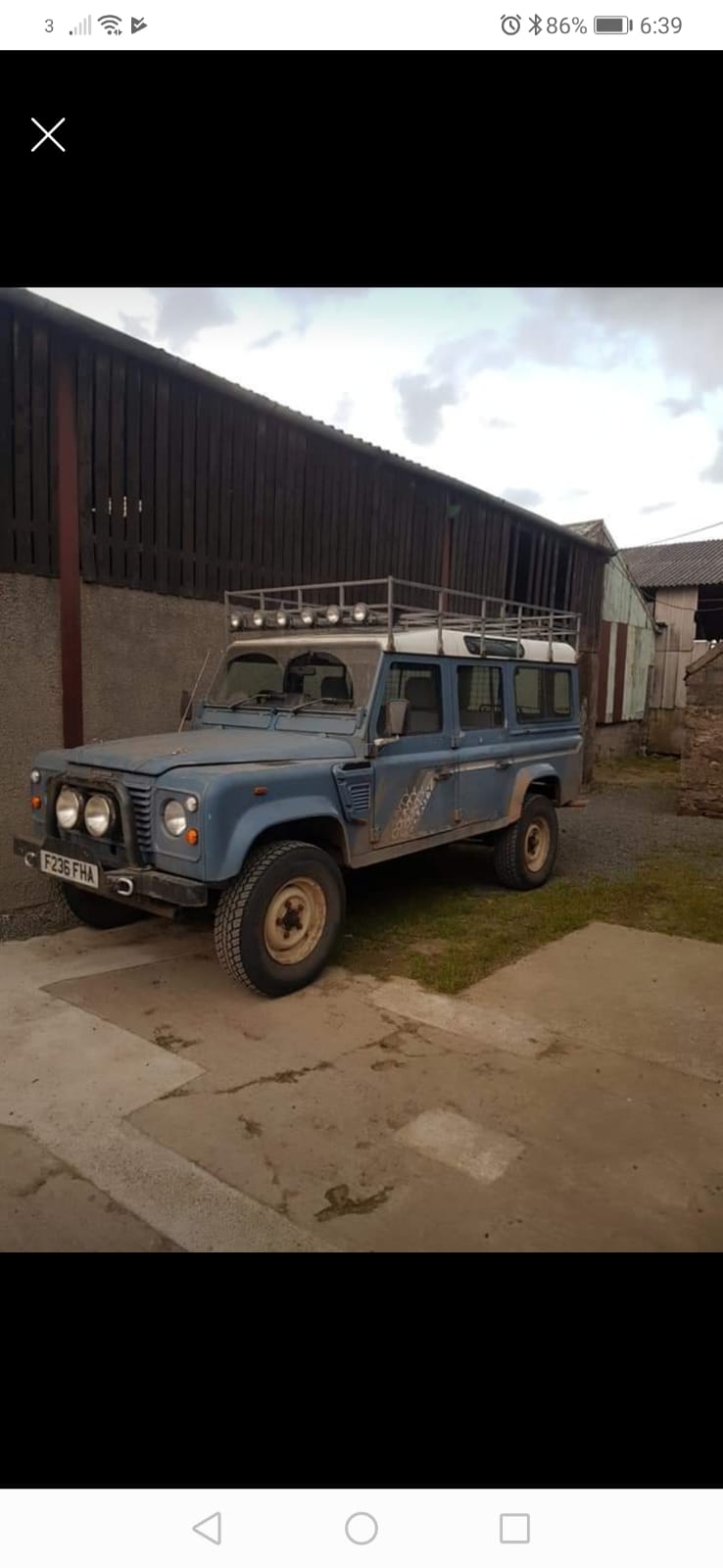

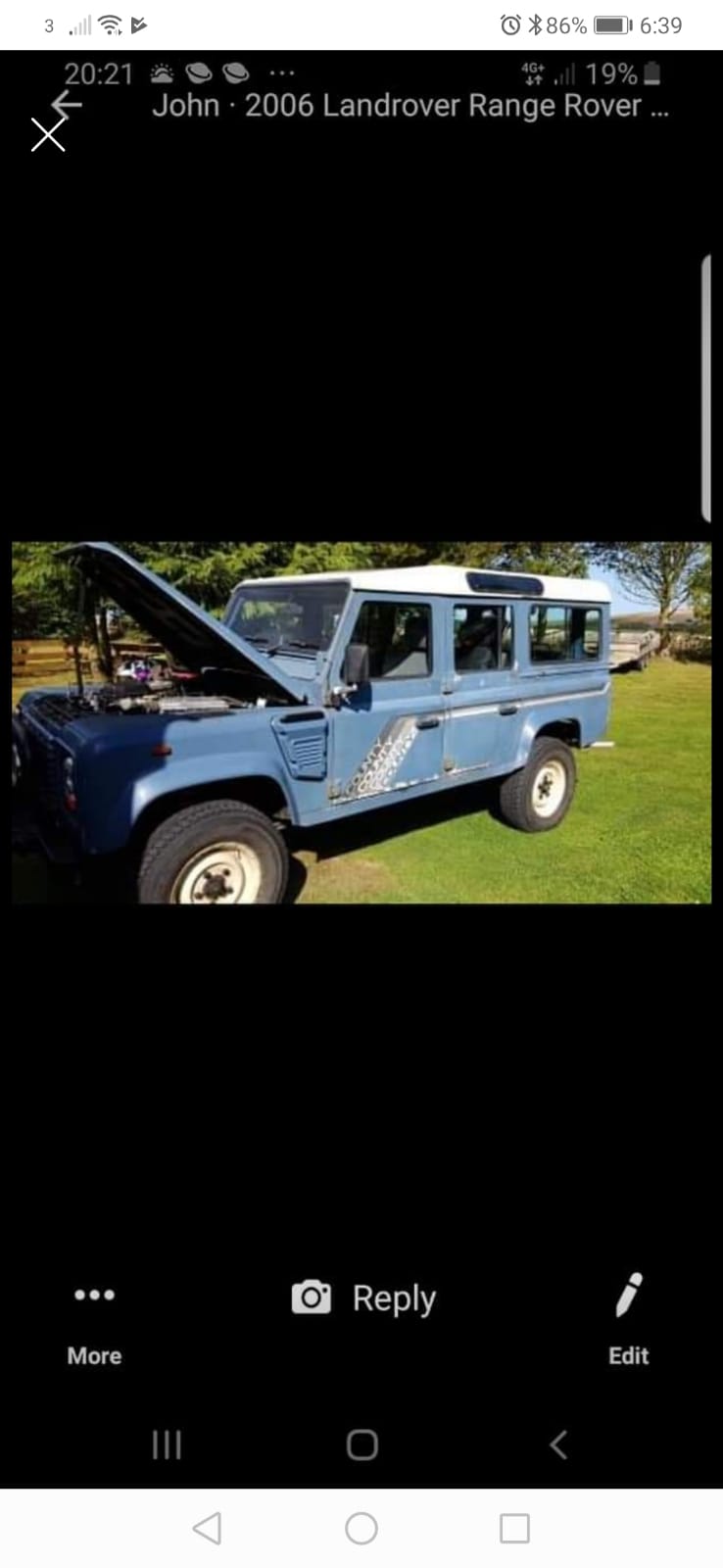

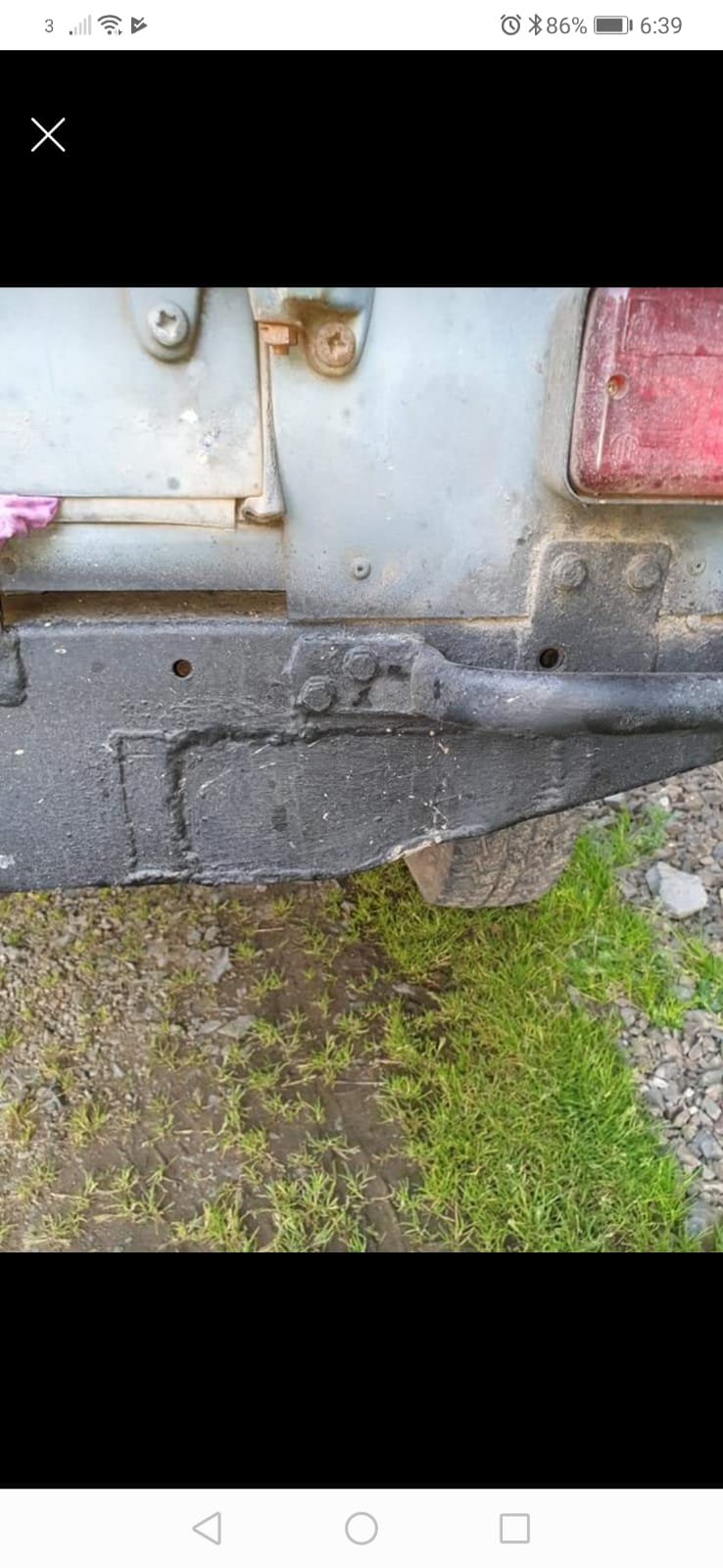

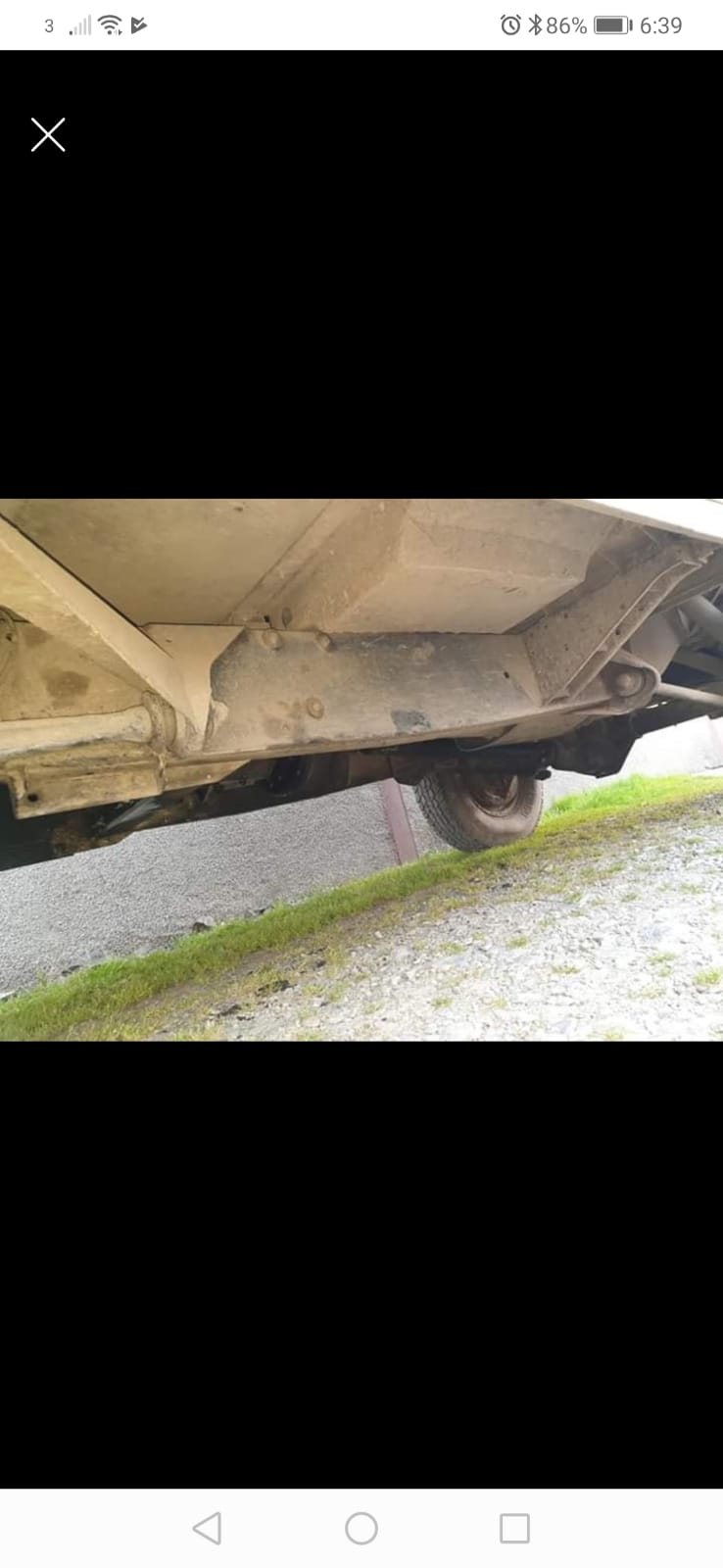

As above. I am looking at an F plate 110 CSW. It looks very fresh chassis wise and overall looks very well.
However there are issues I would like advice on.
The conversion to a discovery 300tdi and r 380 gearbox was done by the owner before this one.
The new owner says the temp gauge reads hotter (not boiling though) because the temperature sender unit is a 300tdi one and not fully compatible with the dash gauge. He says it needs replaced with the correct one ands its never bothered him. This makes sense but is it true.
Also the rev counter does not work. Again this could be because of how or where it's driven from on the old engine not transferring on to the new. He has a new gauge for this but is not sure it will solve the issue.
Finally the rear crank seal is leaking. I understand what's involved in replacing this.
It has almost a full years Mot and will in the meantime replace my D2 which needs welding.
What a the 110 worth?

As above. I am looking at an F plate 110 CSW. It looks very fresh chassis wise and overall looks very well.
However there are issues I would like advice on.
The conversion to a discovery 300tdi and r 380 gearbox was done by the owner before this one.
The new owner says the temp gauge reads hotter (not boiling though) because the temperature sender unit is a 300tdi one and not fully compatible with the dash gauge. He says it needs replaced with the correct one ands its never bothered him. This makes sense but is it true.
Also the rev counter does not work. Again this could be because of how or where it's driven from on the old engine not transferring on to the new. He has a new gauge for this but is not sure it will solve the issue.
Finally the rear crank seal is leaking. I understand what's involved in replacing this.
It has almost a full years Mot and will in the meantime replace my D2 which needs welding.
What a the 110 worth?
Dont know about the rev counter, never had one in a Defender.

Rev counter feed is taken from the alternator using the W terminal (fairly confident it's the W one but please confirm!) Not all alternators have the W terminal.

Rev counter feed is taken from the alternator using the W terminal (fairly confident it's the W one but please confirm!) Not all alternators have the W terminal.

+1 - electronic tacho's are driven from the "W" terminal on the alternator.... this is usually a tapping into the rectifier circuit producing a half wave pulse - which the "tacho" simply counts, and displays as engine RPM...

After market tacho's are often adjustable, as the relationship between engine speed and alternator speed is not known precisely .... so the adjuster might be turned to low to register...... maybe....



Attachments

  • IMG-20191022-WA0002.jpg
    74.6 KB · Views: 96
  • IMG-20191022-WA0000.jpg
    66.3 KB · Views: 97
