109 inch chassis wheel centres dimension

Thread starter nigel cartwright
Start date Apr 23, 2016

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

nigel cartwright

Active Member

Apr 23, 2016

#1

IF ANYONE HAS A DRAWING SHOWING THE DIMENSIONS COULD THEY SEND ME A LINK.

Last edited: Apr 24, 2016

John S

Well-Known Member

Apr 26, 2016

#2

I'll see if I can send you the extract from the workshop manual.

boguing

Well-Known Member

Full Member

Apr 26, 2016

#3

Which dimensions do you need?

John S

Well-Known Member

Apr 26, 2016

#4

John S

Well-Known Member

Apr 26, 2016

#5

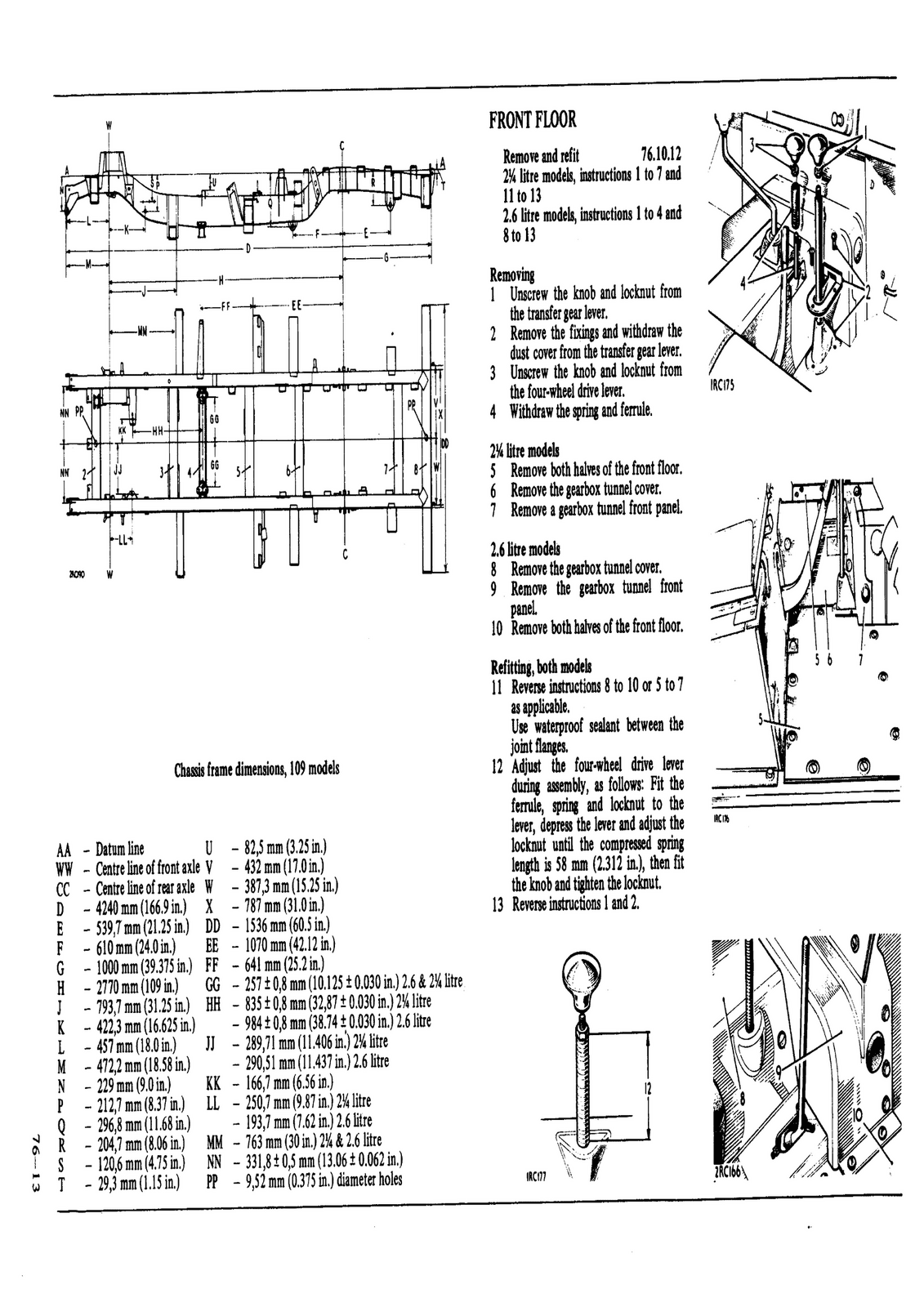

A bit distorted pic but that's for a 109in chassis.

nigel cartwright

Active Member

Apr 26, 2016

#6

John S said:
View attachment 99869

thats great thanks
