'03MY L322 Petrol 114k5 miles

Discussion in 'Range Rover' started by RichardSEL, Jan 4, 2019.

< Previous Thread | Next Thread >
  1. Grrrrrr

    Grrrrrr Jedwood Spannerhands

    Joined:
    Jul 8, 2012
    Posts:
    13,208
    Likes Received:
    3,335
    Location:
    Buckinghamshire, UK. ('95 DT)
    All of that makes sense to me except maybe the cylinder rings.

    Jaguar went Nikasil in the AJ8 engine but had issues so reverted to steel liners around 2000ish. I seem to recall a few manufacturers having issues including BMW.

    RichardSEL likes this.
  2. RichardSEL

    RichardSEL Active Member

    Joined:
    Jan 3, 2019
    Posts:
    234
    Likes Received:
    48
    Location:
    Blackheath
    Nikasil is a spray-on process AFAIK. Not only Jag but others went that way too. They're fine so long as that engine's not been run on sulpher content petrol that was phased out in UK in 2000. Last region I'm told was the northeast. But prices for '00MY and earlier X308, either 3.2 and 4.0L despite being in otherwise 100a1 condition are much reduced. At least for those that've done their research. I was lucky, I didn't know of the Nikasil issue when I bought my first of three -- it was an '01MY

    Last edited: Apr 2, 2020
  3. RichardSEL

    RichardSEL Active Member

    Joined:
    Jan 3, 2019
    Posts:
    234
    Likes Received:
    48
    Location:
    Blackheath
    AFAIK there's only no8 as bad as that pictured. He's going to check out the lump first before committing.
    Haven't heard since. The M62 was also used in the 735i and 835i (?) Dunno, not up on Beamers -- a lot of car unnecessarily complicated for a small cabin

    Grrrrrr likes this.
  4. Saint.V8

    Saint.V8 Dyed-in-the-wool 100% RR Junkie

    Joined:
    Apr 27, 2008
    Posts:
    16,254
    Likes Received:
    2,043
    Location:
    Wiltshire - Nadder valley - its rather pretty
    The M62 appeared in the E38 7'er in 3.5 and 4.4 form, in the E31 8'er 840 in 4.4 and also the E39 5'er 540 in 4.4. The 4.4 and 4.6 was used in the E53 X5, and the 4.6 in the Alpina B10 and Morgan Aero 8

    RichardSEL likes this.
  5. RichardSEL

    RichardSEL Active Member

    Joined:
    Jan 3, 2019
    Posts:
    234
    Likes Received:
    48
    Location:
    Blackheath
    Popular or not, still don't think 5mm between adjacent cylinders in an alu block's a good idea. Mebe engine heads in here think it is?
    When I get it back, I'll treat it like the highly strung tart she is.

    Deutsche Ingenieurskunst? It's a myth:confused: Jag's XK series went on for years designed pre-1950.
    And the AJV8 series goes on to 200k-ish with 10k oil changes. In the US Ford's V8 soldiered on
    thru the war to the early 60s (OK lower compression, but you get the picture?)

  6. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    35,793
    Likes Received:
    3,353
    Location:
    Near Poitiers SW France
    My experience of German engineering is that it is a myth, a successful marketing exercise.
    I have had 2 German cars, the engines in both were crap.
    I don't think Nicasil is suitable for anything other than high performance cars where reliability and longevity are less important.
    The early AjV8 with Nicasil liners was NBG as my son in-law will testify.

    RichardSEL likes this.
  7. RichardSEL

    RichardSEL Active Member

    Joined:
    Jan 3, 2019
    Posts:
    234
    Likes Received:
    48
    Location:
    Blackheath
    Had a VW Passat SEL tFSI 2.0L that VW Racing re-chipped to increase from 190 to 236bhp on dyno
    Added a few bits from the USA to make it go with some reliability but there were still basic design flaws that they described me that, if left unattended would reduce engine life. Didn't drive it around over the 10 years I had it (my father had a snub-nosed P3 that just went on, and on, and on) too wildly, just on occasion when burned off by one of the Golf GTI mk II "boyz". When I'd burn them off :rolleyes: They don't line it up 'em Capt Manwaring o_O The TSI 2.0L with chain instead of belt is reported as much better...

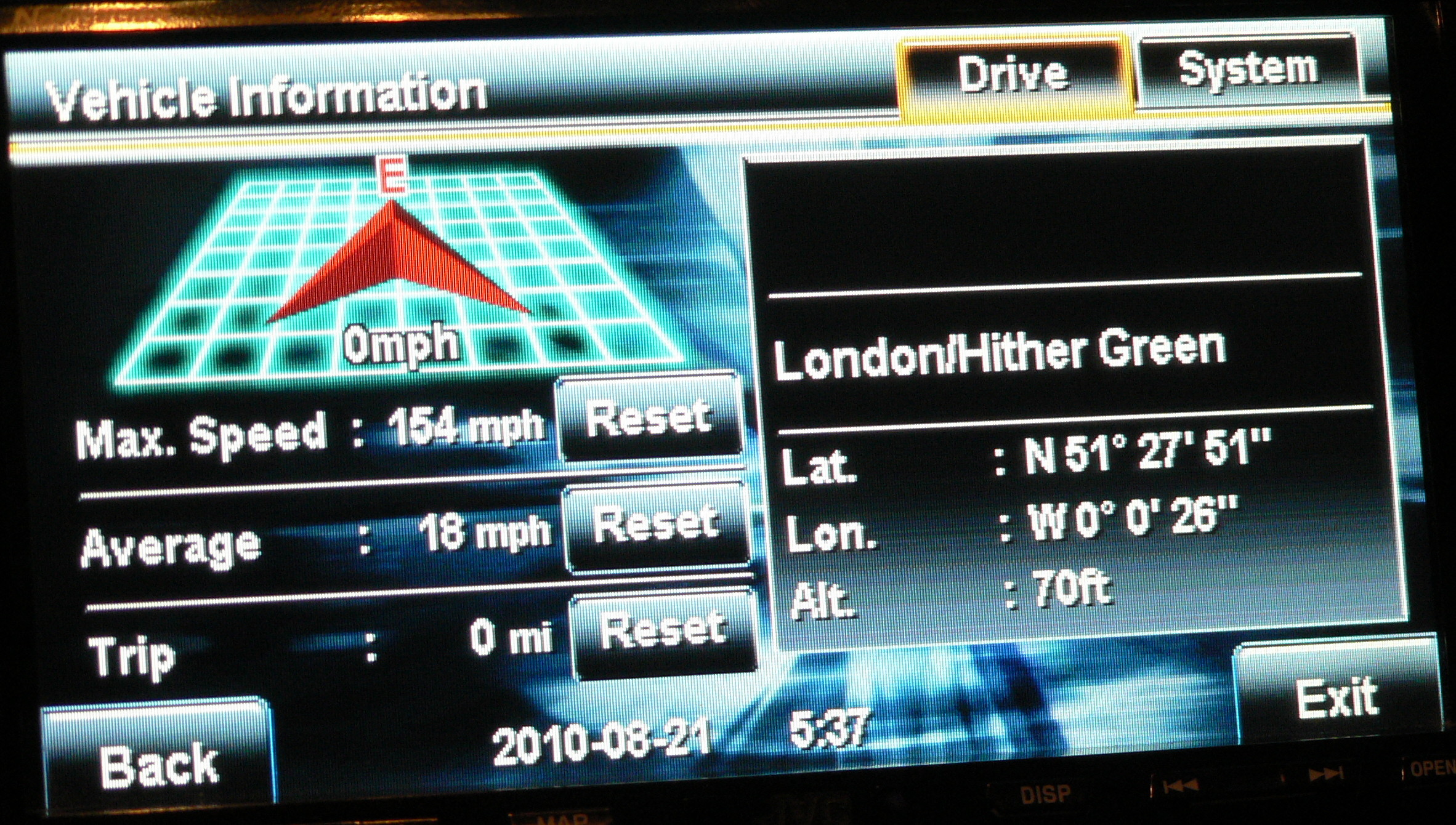

    Course, this wasn't done on the public road. Oh no -- it was Biggin Hill airport perimiter...
    [​IMG]

    Last edited: Apr 8, 2020
    Grrrrrr likes this.
  8. RichardSEL

    RichardSEL Active Member

    Joined:
    Jan 3, 2019
    Posts:
    234
    Likes Received:
    48
    Location:
    Blackheath

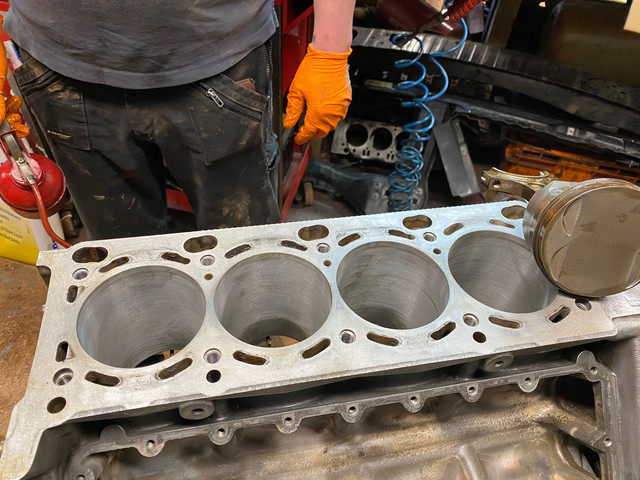

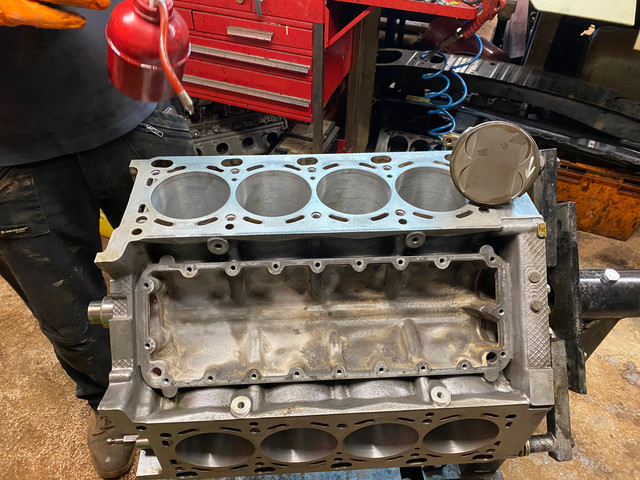

    Just had some dispatches by runner from the front line. M62 starting re-build. New crank, replacement second-hand heads skimmed and "re-honed" (whatever that means). Don't quite know how I'm going to get up to Peterboro to collect though given latest mumbles suggesting "lock down" restrictions not going to be relaxed until June :(
    [​IMG]

    [​IMG]

    Mark Piercy likes this.
  9. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    5,311
    Likes Received:
    1,952
    Location:
    sud ouest France
    The 2.0tfsi is a disaster waiting to happen, are they now on the third generation chain tensioner?
    A client of mine had his tensioner fail while the car was idling. A 4000€ head repair bill from a Bosch audi specialist... He was a year and 10.000mls out of the good will period. That was a £14k car.... Sod the audi, vw, skode and seat group.....

    RichardSEL likes this.
  10. RichardSEL

    RichardSEL Active Member

    Joined:
    Jan 3, 2019
    Posts:
    234
    Likes Received:
    48
    Location:
    Blackheath
  11. RichardSEL

    RichardSEL Active Member

    Joined:
    Jan 3, 2019
    Posts:
    234
    Likes Received:
    48
    Location:
    Blackheath
    Yes, the whole VAG group (don't think Seat is in north America) showed itself eventually to stink. Even mid-to High-end Hyundai shows them up nowadays.
    Btw tFSI = belt, TSI = chain. Faulty tensioners on both. When I had my belts done at 50k had to force the shop to change tensioner: "...but it's still OK! I know that which is why I want my specialist-made non VAG from the USA tensioner installed to keep it OK." "But you don't need it." "I do coz I'm paying the bill that's why..."
    Nice car once I'd got back to what designers had tried to achieve before component cost cutting dweebs got their mitts on it.

    Last edited: Apr 8, 2020
    Grrrrrr and Mark Piercy like this.
  12. holidaychicken

    holidaychicken Well-Known Member

    Joined:
    Jun 30, 2013
    Posts:
    3,955
    Likes Received:
    1,114
    Location:
    Kent
    Looking good , is that a new block as well or did they repair the old one ?
    Head skimmed means they have machined the mating face where the head meets the gasket to make sure it’s flat , the honed part is possibly the valve guides unless the honing was the cylinder bores of the block.
    New heads as well or probably just exchanged yours with a set already skimmed?

    RichardSEL likes this.
  13. RichardSEL

    RichardSEL Active Member

    Joined:
    Jan 3, 2019
    Posts:
    234
    Likes Received:
    48
    Location:
    Blackheath

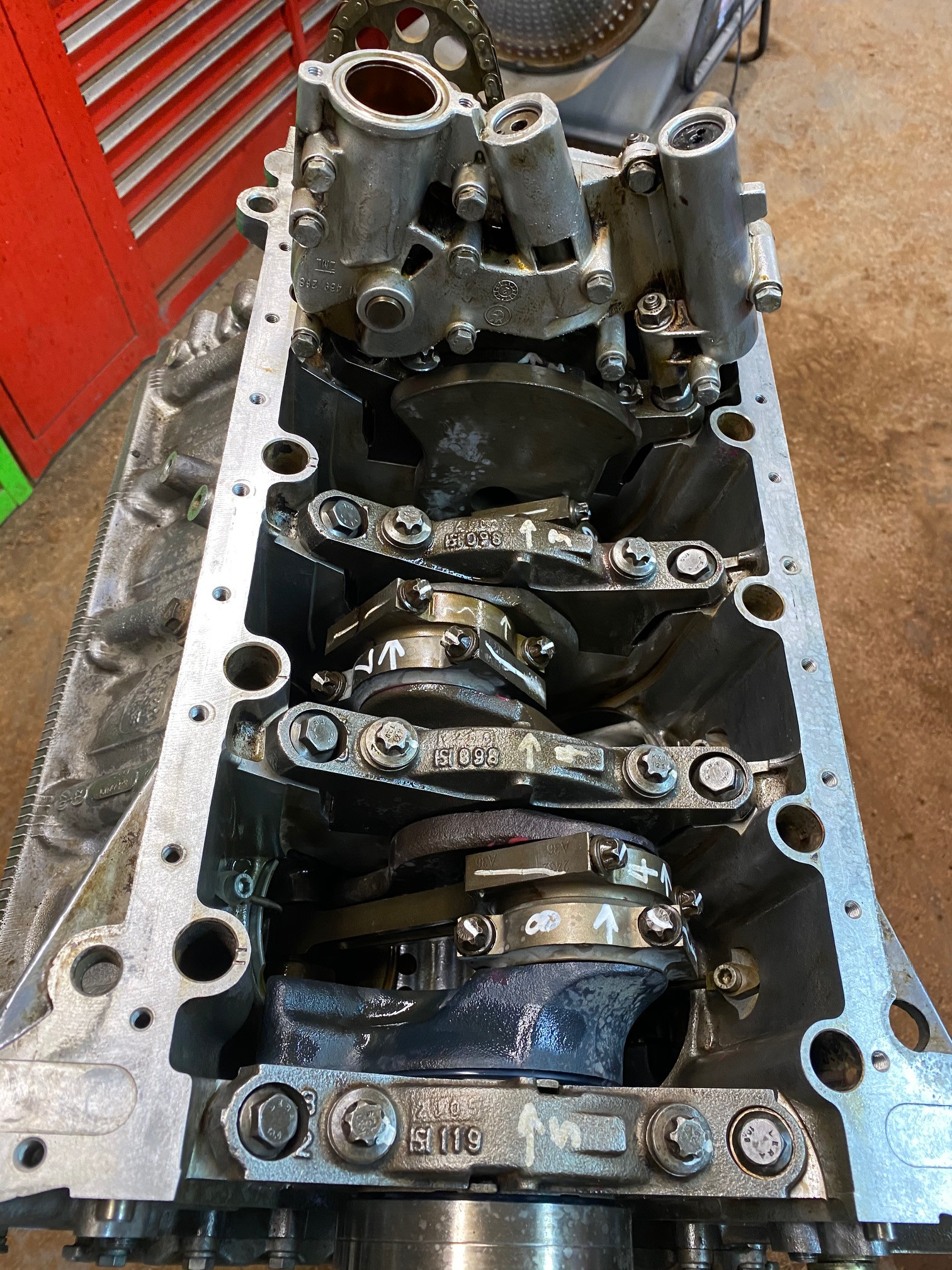

    Cleaned up the old one, clearing all the galleys, new crank, I assume shells, gudgeons, rings presumably outsize ones fitted.
    Couldn't get my heads done due to workshop closedown so he fitted pair already "honed" and skimmed ones from someone's stock. Cost a few hundred quid more, but if I ever get to emigrate will be thankfull that I did it instead of just a plain rebuild/clean out just to make it run well enough to sell on. They found that more than one cylinder had cross-threaded plugs -- no8 (again) had been re-tapped. So that was another incentive.
    Your encouragement is encouraging

  14. holidaychicken

    holidaychicken Well-Known Member

    Joined:
    Jun 30, 2013
    Posts:
    3,955
    Likes Received:
    1,114
    Location:
    Kent
    Good show then, I am guessing it is standard rings and pistons, I am not sure you can fit oversize rings with standard piston but I am sure they know what they are doing, you might find that some of the marks on the bore were actually pick up from the piston rather than damage to the bore. The pistons are coated in ferrous material to prevent aluminum rubbing against aluminium.
    All looks smart though, they may have honed the bores to standard size and then used the felt pad / paste to clean them up to size and remove the deposits - i have seen inside the engines but have not rebuilt any of them and if you man is a BMW specialist they would have done many. The felt pads and paste are what remove a few microns of aluminium exposing the silicon to give the wear resistance.
    The plugs get over tightened and and steel plugs in aluminum threads is always going to have the potential for problems.

    RichardSEL likes this.
  15. RichardSEL

    RichardSEL Active Member

    Joined:
    Jan 3, 2019
    Posts:
    234
    Likes Received:
    48
    Location:
    Blackheath
    Now back with me in sunny South Blackheath.

    Found many faults stored from scan with my iCarsoft after return from Peterboro -- just cleared them all to see what comes back

    They found rear brake pad material disintigrated -- changed for new pads -- but brakes now feel spongy. Mech says disks are original to (116k) so rear pads would need sometime to do the increased travel those disks having done 116k miles. (?)
    Hmmm... Brake fluid about 1" below the top of the resovoir's filter. I assume there's been a bleed all round including ABS pump. But a previous shop had done a hydroscopics' test on the fluid finding it over 3%. But they didn't do fluid flush out / change the pads in October last year that I ordered... ABS fault returned.

    Air suspension pump seems to run on a bit longer than I remember it -- but last time I drove any distance was early December last. Mech reckons the pump's heat sensor needs change out. I hope that's a discreet component? But dunno where it's located. Diagnostic shows that fault coming back. As well as heat sensor. Switching Ride Height Change inhibit off allows suspension to sink to kerbside height (lowest LED) eventually. Driving off from cold following day brings it to normal height LED. But over 65mph when it was going back to lowest LED just brings up AIR SUSPENSION fault on dash LCD display. I've cleared all faults, they've not returned. But I've only been out in it twice since return from Peterboro when I kept the Ride Height Change inhibit on. Will try an over 65mph test again next. (Air suspension system CAN error) and (Temporary system de-activation)

    The Lambda sensor came up as a fault with Engine EML on dash. Not after coming back from mechanics but after a 24 mile run. (Lambda control adaption fault Bank 1) Cleared with iCarsoft and hasn't come back again

    Oh, and my brand new bought 16 months ago Yuesa 100AHC apparently gave up whilst car in workshop. Only now gives 6.7V off load and won't charge without sounding a Shhhhhsh! noise. Back to Halfords for that yesterday.

    Apart from that, everything's fine :confused:

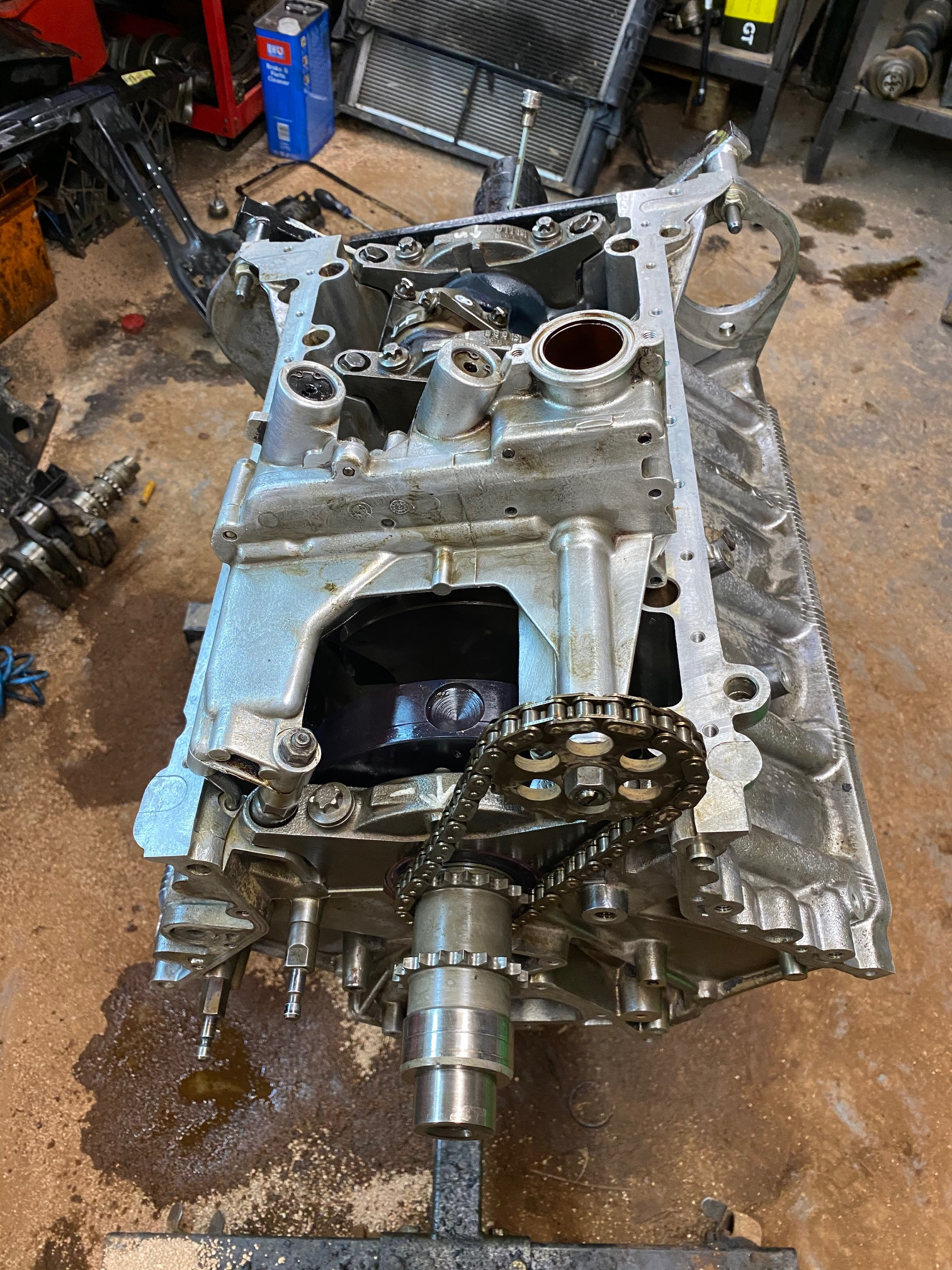

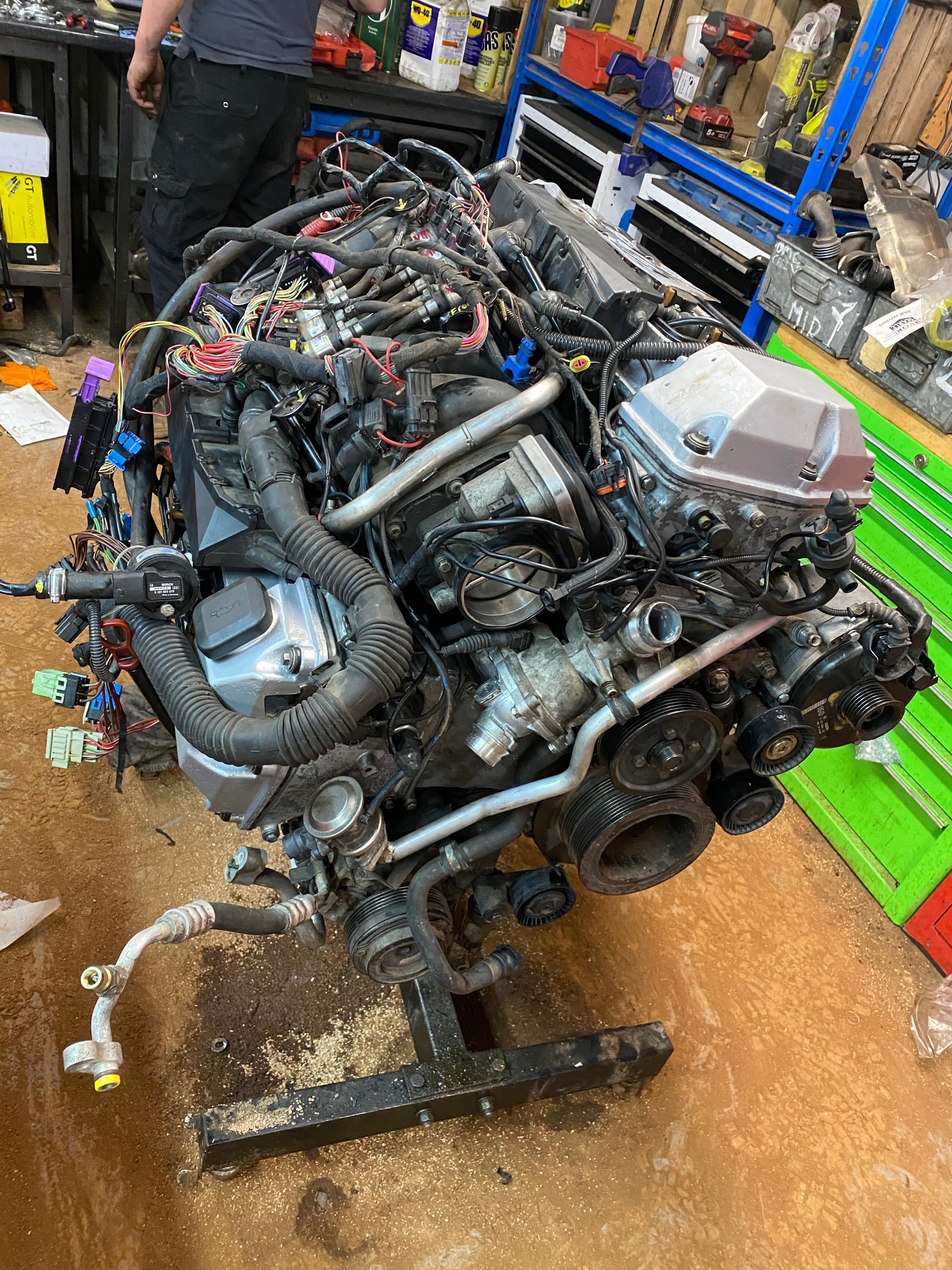

    As to the engine rebuild, mech couldn't find a shop open to take my heads in for skimming but one shop had a pair of M62 (I assume M62TUB44) ex-stock. So had them changed out. New crankshaft, rings, shells, etc. but the same block well scrubbed. Temperature's not moved off the ½FSD the 183 miles since collection.

    The caked on oil detritus was like hardened plastic and doesn't just break off but needs careful chiseling. I assume mechanic found a soda blasters still open around there somewheres

    [​IMG]

    FOR SALE -- ex-rebuilt L322 M62TUB44 '03MY 116k miles -- for spares or repair only
    (buyer collects southeast London or will deliver southeast or south-south east counties for petrol money)

    One Left Head , one Right Head both complete but without timing chains £40 each
    Valley cover 1742042 £20
    Timing Chain covers 1745510 pax side, 1745507 Drivers' side (both need clean) £20 each
    or £100 the lot :eek:

    Last edited: May 9, 2020
    holidaychicken likes this.
  16. myfirstl322

    myfirstl322 Well-Known Member

    Joined:
    Dec 29, 2012
    Posts:
    20,752
    Likes Received:
    8,274
    Location:
    Geroutavit.....
    You need 50 likes before you can sell your sh1te tat on here, and then only in the appropriate section.:D

    Mark Piercy likes this.
  17. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    35,793
    Likes Received:
    3,353
    Location:
    Near Poitiers SW France
    I thought it was 50 posts not 50 likes?

    holidaychicken and Dippypud like this.
  18. RichardSEL

    RichardSEL Active Member

    Joined:
    Jan 3, 2019
    Posts:
    234
    Likes Received:
    48
    Location:
    Blackheath
    I thought there was some Adaptation routines included in iCarsoft? Could've sworn I'd used them last year sometime?
    Mebe I'm losing it

    ... You? Losing it? Bwa hahahaaaaha! And since when have you have had 50 likes from those old fogies you hang around with in that forum? <crack!> "Yewwow!" Serves you right. That Range Rover better be fixed now after throwing all that good money after bad at it... Otherwise I won't allow you out of doors... "Yes dear..." <cringe>

    Last edited: May 11, 2020
  19. myfirstl322

    myfirstl322 Well-Known Member

    Joined:
    Dec 29, 2012
    Posts:
    20,752
    Likes Received:
    8,274
    Location:
    Geroutavit.....
    [​IMG]

  20. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    35,793
    Likes Received:
    3,353
    Location:
    Near Poitiers SW France
    The whole "Likes" thing is a childish nonsense IMO, but them I'm a very old fogie. We are allowed out from Monday here:p:D

    holidaychicken and myfirstl322 like this.
