Wolf Soft Top, extra bar??
- Thread starter Wolf Pack
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
v8250
Well-Known Member
- Posts
- 6,872
- Location
- Deepest Darkest...

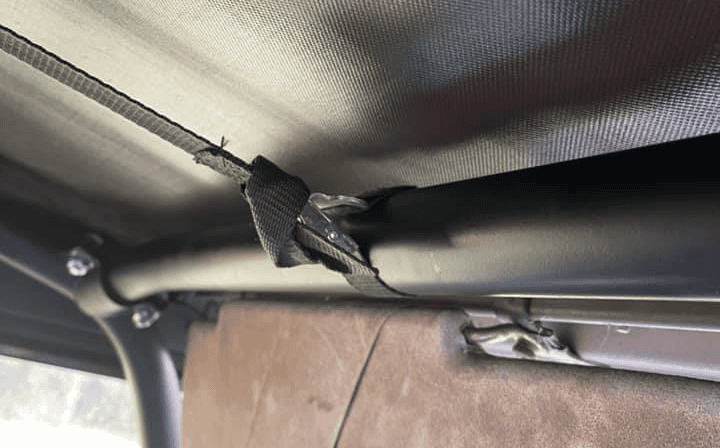

It's not an extra bar, it's the lateral front internal cage bar fitted to some later/Wolf Land Rovers, built and supplied by Safety Devices...
Wolf Pack
Active Member
- Posts
- 320
- Location
- Portsmouth
Is it part of REMUS?
v8250
Well-Known Member
- Posts
- 6,872
- Location
- Deepest Darkest...

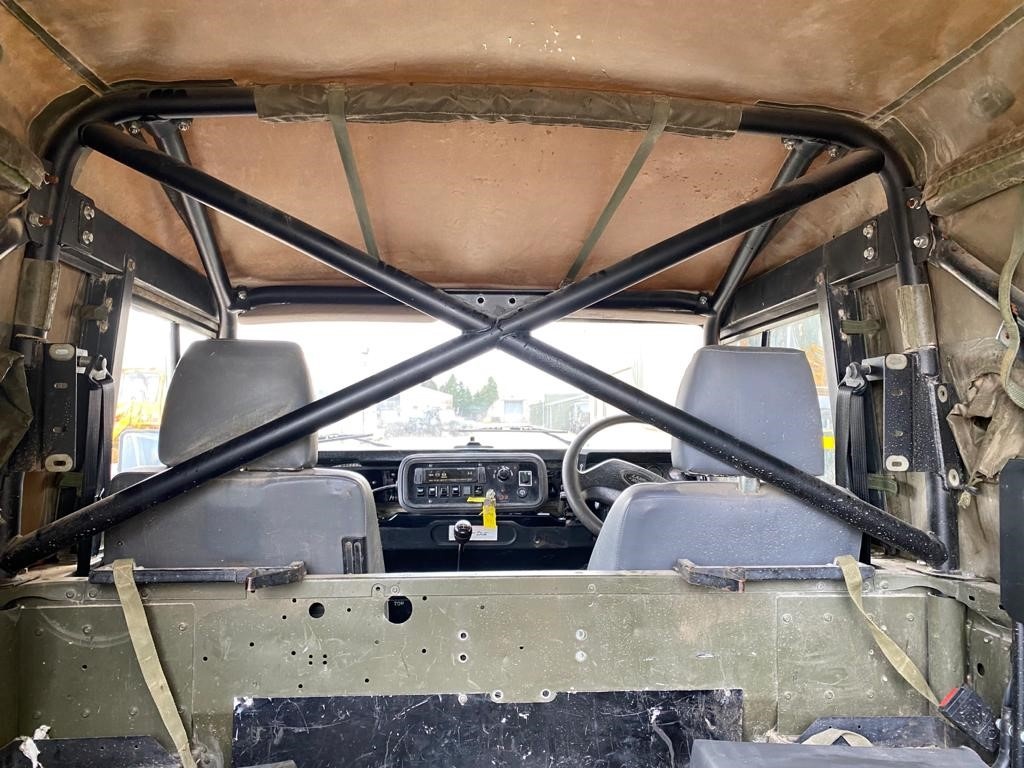

Possibly, but many an MOD Defender was fitted with all sorts beyond std fitment. Here's clear pic of internal roll cage

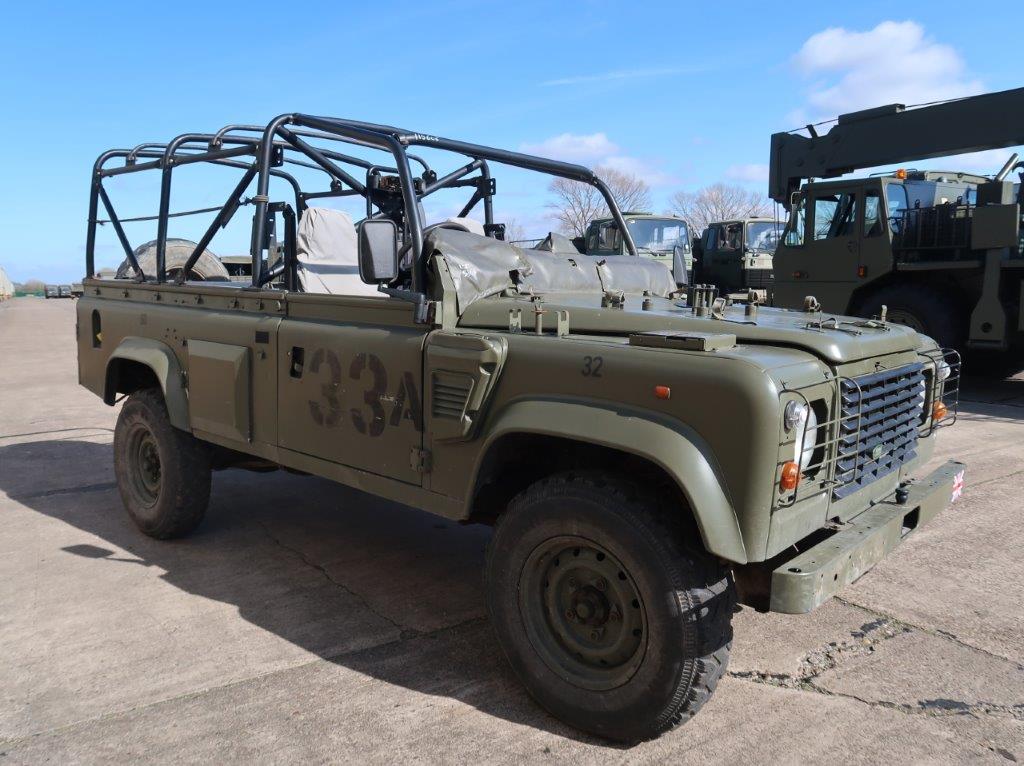

and here on a Wolf 90 Soft Top
and here on a Wolf 90 Soft Top
Wolf Pack
Active Member
- Posts
- 320
- Location
- Portsmouth
OK, yes, those front/cabin bars are part of the REMUS upgrade, which mine once had, but was removed.
Wolf Pack
Active Member
- Posts
- 320
- Location
- Portsmouth
Is that yours?
v8250
Well-Known Member
- Posts
- 6,872
- Location
- Deepest Darkest...
If wanting to refit you can buy the cage components from Safety Devices.

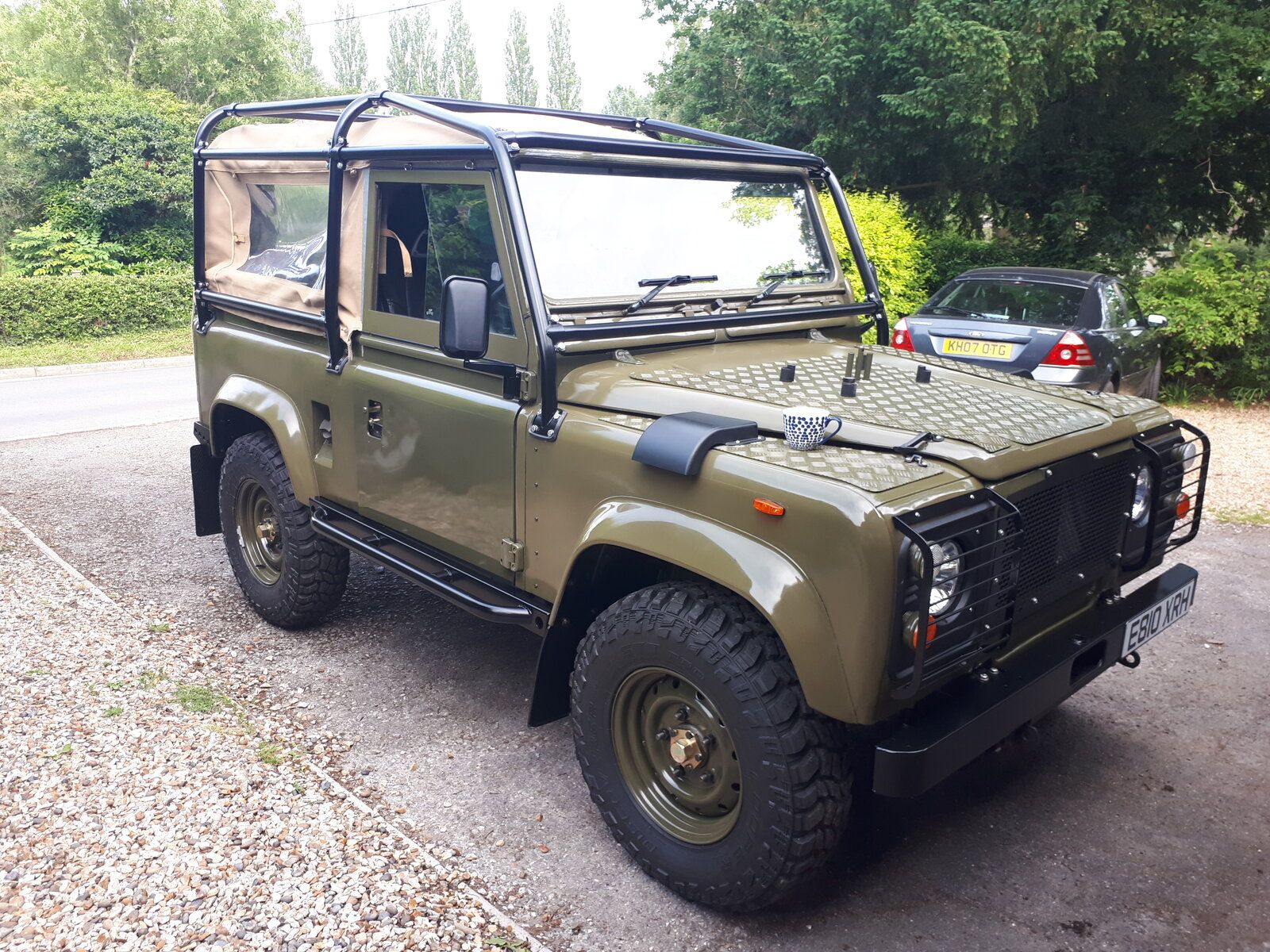

Mine is an external 6-point cage that passes through the wings/body and is welded directly to the chassis...

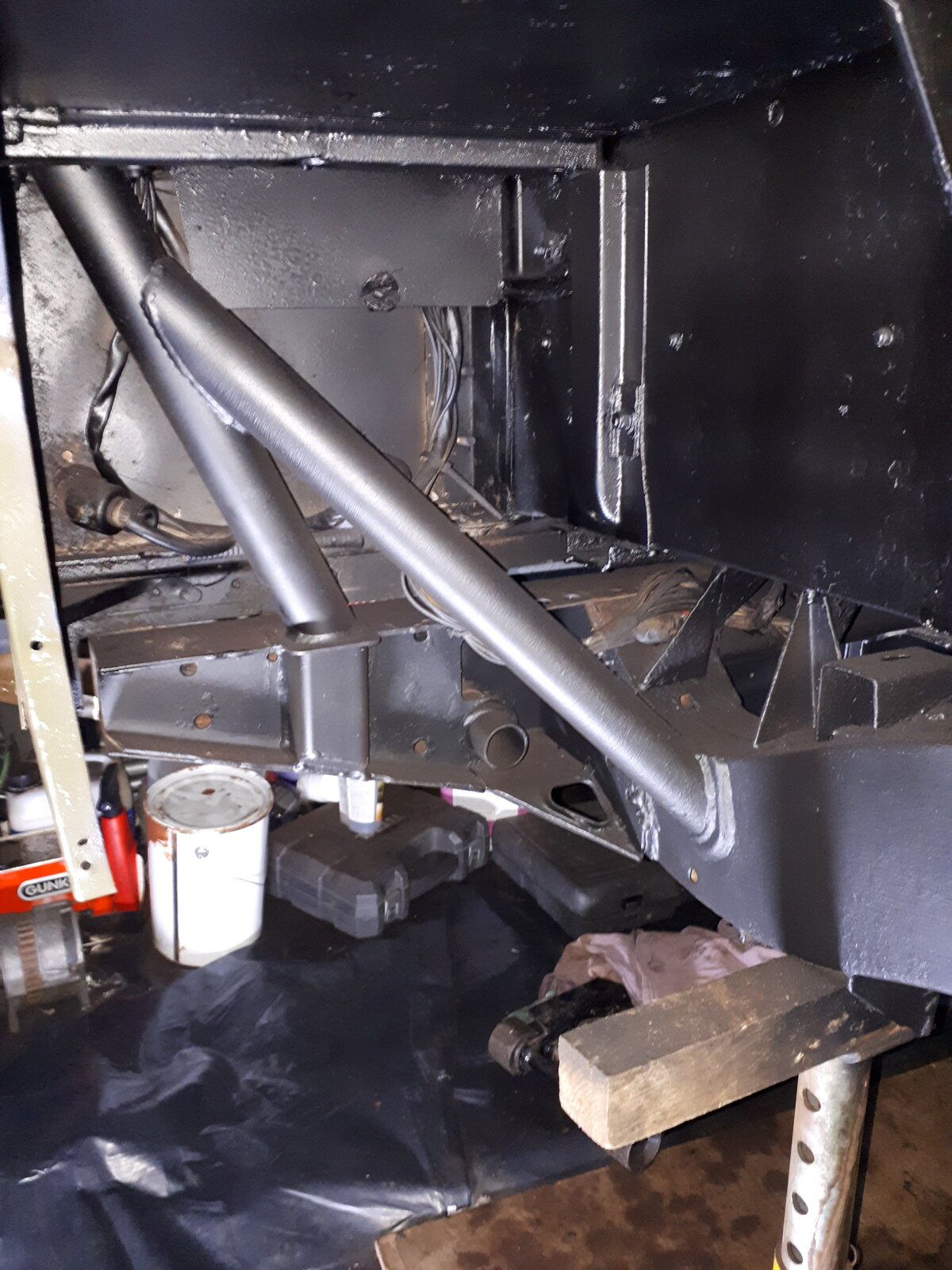

and here o/s mid-point weld to chassis for ref'
v8250
Well-Known Member
- Posts
- 6,872
- Location
- Deepest Darkest...

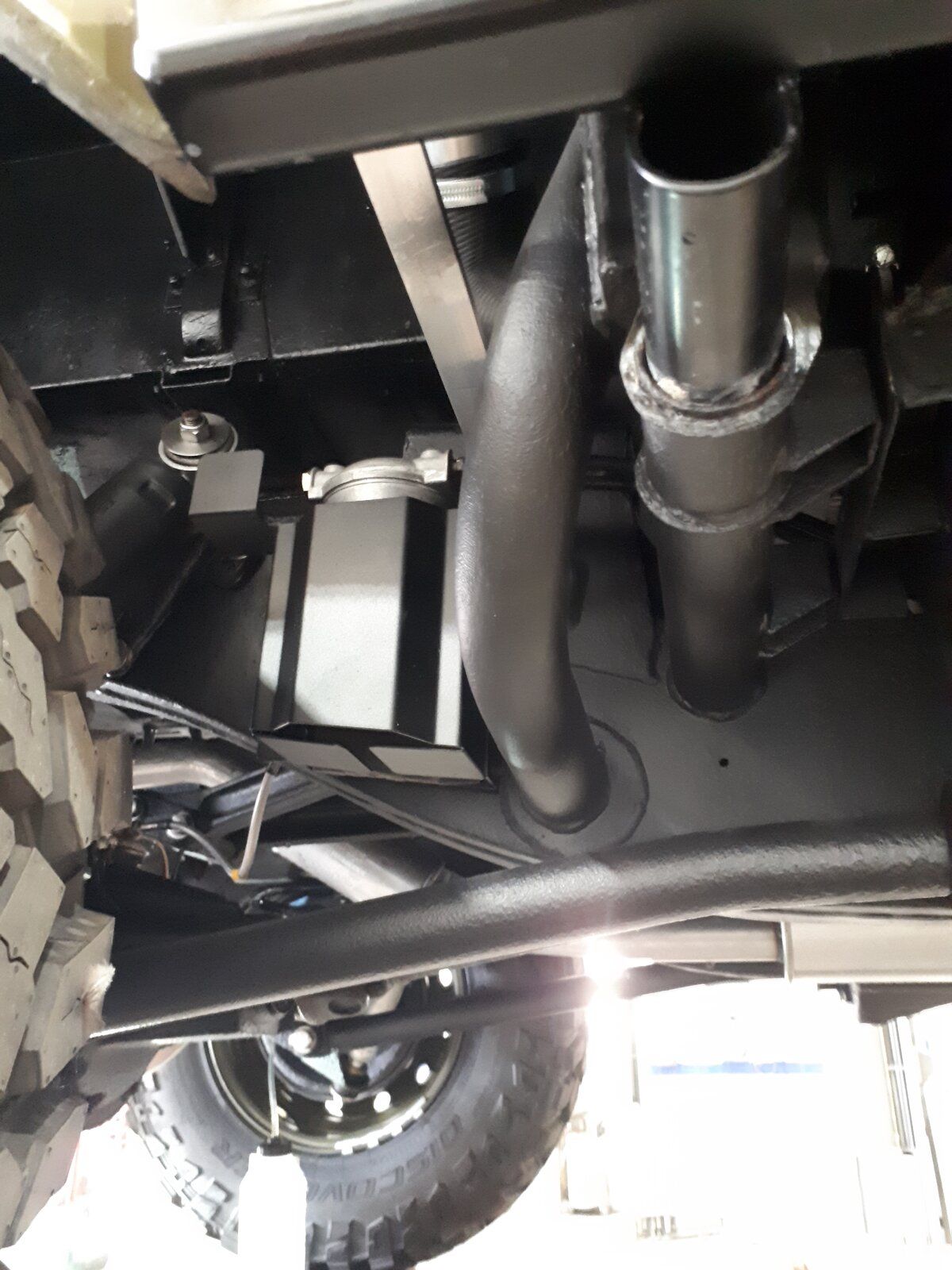

the rear is welded to both chassis and rear cross member
Wolf Pack
Active Member
- Posts
- 320
- Location
- Portsmouth
No, I'll be blanking the holes and leaving it off.
I don't go off-roading and I'm a pretty tame driver...
I don't go off-roading and I'm a pretty tame driver...
flat
Well-Known Member
- Posts
- 9,075
- Location
- Far away from you!!
gonna be a bitch of you ever need to seperate body from chassis!
v8250
Well-Known Member
- Posts
- 6,872
- Location
- Deepest Darkest...
Hi flat, I thought this too when I refurbished the chassis as the cage-to-chassis points are structurally very heavily welded. But it's only eight points of contact/it's just metal...and now refurbished, I don't intend to do this for many years to come...
eta will make me look after the chassis even more!
eta#2 - just rethinking this through [you got me thinking...], if body needed to be lifted/removed, I simply unbolt and remove external roll cage and then unbolt and lift body. It's part of its clever mated through the body design - so not too much extra work
