Disco 2 Wiring help please.

Discussion in 'Land Rover Discovery' started by Billybones, Jan 14, 2022.

< Previous Thread | Next Thread >
  1. Billybones

    Billybones Active Member

    Joined:
    May 23, 2021
    Posts:
    61
    Likes Received:
    28
    Location:
    Kent
    Hi
    Can someone tell me what colour is the live wire for the reversing lights on a D2 td5.
    I want to wire a reversing camera into the live feed but instead of individual wires to separate bulbs i have a multiplug and a sort of circuit board that all the bulbs fit into.
    Also I need to know what colour the front fog lights live is, previous owner changed to a winch bumper and i cannot find any "spare" wires anywhere to refit fog lights.
    Thank you
    Bill

  2. discool

    discool Well-Known Member

    Joined:
    Apr 25, 2007
    Posts:
    13,048
    Likes Received:
    1,717
    Location:
    Sector 12 in Kent, The Garden of England
  3. marjon

    marjon Well-Known Member Full Member

    Joined:
    Jul 15, 2018
    Posts:
    9,586
    Likes Received:
    19,919
    Location:
    Bulgaria
    Do you have a DMM ? Should be easy to figure out.
    Is it live and earthed when put in reverse, or switched live? I don’t know but 5 mins probing would sort that.

    J

    Stanleysteamer likes this.
  4. mystery

    mystery Well-Known Member

    Joined:
    Jan 11, 2010
    Posts:
    996
    Likes Received:
    256
    Location:
    torquay Devon
  5. Billybones

    Billybones Active Member

    Joined:
    May 23, 2021
    Posts:
    61
    Likes Received:
    28
    Location:
    Kent

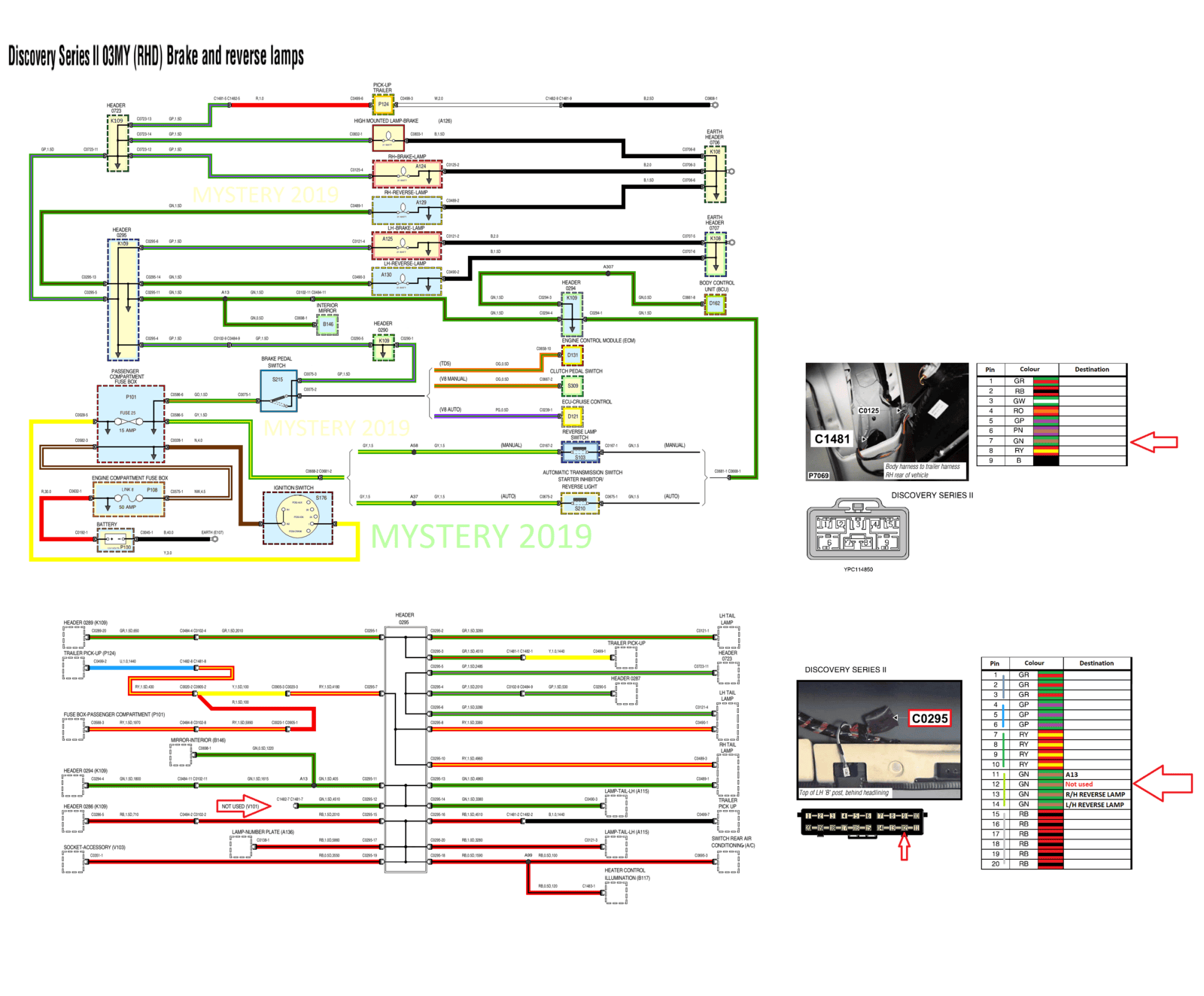

    Thanks for the link and the diagram, even shows where i need to look, body to trailer looks best bet.
    Bill

    marjon likes this.
  6. marjon

    marjon Well-Known Member Full Member

    Joined:
    Jul 15, 2018
    Posts:
    9,586
    Likes Received:
    19,919
    Location:
    Bulgaria
    Digital Multi Meter:)
    Every Land Rover owner has 1:)
    If I had thought about it a bit I wouldn’t have said switched earth;)

    @mystery has plenty and they are always useful :)

    J

    Stanleysteamer and Billybones like this.
  7. Billybones

    Billybones Active Member

    Joined:
    May 23, 2021
    Posts:
    61
    Likes Received:
    28
    Location:
    Kent
    Ah right, yes do have one but need new one, mine has some of the segments missing on the display so not sure what it's saying :(

    marjon and Stanleysteamer like this.
< Previous Thread | Next Thread >
